Zebra ZT610R
Description
Specifications
Download

Zebra ZT610R

Images may not reflect the actual product
Product Image
small product image0

Strong, smart and scalable RFID encoding for demanding industrial workflows.

The Zebra ZT610 RFID printer/encoder pairs an all-metal industrial platform with factory- or field-installable UHF RFID. It prints and encodes labels and tags up to 4.09 inches wide for manufacturing, warehouse, logistics, compliance and item-level tracking.

Adaptive Encoding Technology simplifies RFID calibration, while Zebra DNA for Printers and Link-OS support integration, deployment and remote management. A 4.3-inch color touch display helps operators monitor status and resolve routine issues.

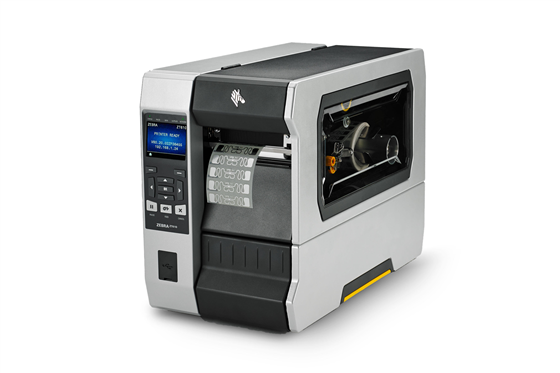

Zebra ZT610R industrial RFID printer

Zebra ZT610R industrial RFID printer/encoder.

Key Specifications

  • Print method: Thermal transfer and direct thermal
  • Resolution: 203 dpi; optional 300 dpi or 600 dpi
  • Maximum print width: 4.09 in. (104 mm)
  • Print speed: Up to 14 ips (356 mm per second)
  • Media and ribbon handling: 1.0–4.5 in. media for tear/cutter; 1.0–4.25 in. for peel/rewind; 450 m ribbon
  • Connectivity: USB 2.0, RS-232, Gigabit Ethernet and Bluetooth 4.0; optional wireless and industrial interfaces
  • Duty / application fit: High-volume industrial RFID labeling, encoding and asset tracking
  • Dimensions and weight: 19.88 x 10.56 x 15.58 in.; 50 lb. (22.7 kg)
  • Warranty: 1 year

In the Box

  • Zebra ZT610 RFID printer
  • Power cord
  • Quick Start Guide

Package note: Contents can vary by SKU and region. Accessories are sold separately unless the selected option explicitly states they are included.

Reliable RFID Encoding

Adaptive Encoding Technology

Automatic calibration and flexible inlay placement simplify setup for UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID media.

High-Resolution Choice

The ZT610R supports 203, 300 and optional 600 dpi, giving teams a path from fast industrial labels to small text, dense barcodes and fine graphics.

Built for 24/7 Operations

Industrial Construction

A metal frame, bi-fold metal media cover, durable print mechanism and dual media sensors support demanding environments and consistent output.

Operator-Friendly Supplies

Side loading, illuminated media and ribbon paths, adjustable guides and a color touch display reduce routine loading and troubleshooting time.

Integrate and Manage

Flexible Connectivity

USB, serial, Gigabit Ethernet and Bluetooth are standard. Two open communication slots support optional wireless, parallel, Ethernet and applicator interfaces.

Zebra DNA for Printers

Link-OS and Zebra DNA tools support configuration, security, deployment and remote visibility across distributed printer fleets.

Media and Application Fit

Flexible Industrial Media

Continuous, die-cut, notched and black-mark media are supported, along with optional rewind and cutter handling.

Track Critical Assets

Use the ZT610R for work-in-process, inventory, compliance, shipping, receiving and asset-tracking workflows that need printed and encoded data together.

Zebra-compatible barcode labels and ribbon

Looking for Compatible Labels or Ribbon?

Match the selected print method, media width, roll and core size, sensing method and ribbon to the job. Use the POSGuys Label Selector Tool or contact us for help selecting supplies for a ZT610R configuration.

Find LabelsView Ribbon
Resolution
  • 203 dpi/8 dots per mm
  • 300 dpi/12 dots per mm (optional)
  • 600 dpi/24 dots per mm (optional for ZT610 only)
    • Memory
  • 1 GB RAM memory
  • 2 GB on-board linear Flash memory
    • Maximum Print Width
    4.09"/104 mm
    Maximum Print Speed
    14 ips/356 mm per second
    Media Sensors
    Dual media sensors: transmissive and reflective
    Maximum Continuous Print Length
  • 203 dpi: 150"/3810 mm
  • 300 dpi: 130"/3302 mm
  • 600 dpi: 30"/762 mm
    • Media Width
  • 1.00"/25.4 mm to 4.5"/114 mm tear/cutter
  • 1.00"/25.4 mm to 4.25"/108 mm peel/rewind
    • Maximum Media Roll Size
    8.0"/203 mm O.D. on a 3"/76 mm I.D. core
    Thickness
    0.0023"/0.058 mm to 0.010"/0.25 mm
    Media Types
    Continuous, die-cut, notch, black-mark
    Standard Length
    1476'/450 m
    Width
    2.00"/51 mm to 4.33"/110 mm
    Core
    1.0"/25.4 mm I.D.
    Physical Characteristics
  • Length: 19.88"/505 mm
  • Width: 10.56"/268.2 mm
  • Height: 15.58"/395.68 mm
  • Weight: 50 lbs/22.7 kg
    • Environmental
    Operating Temperature:
  • Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC
  • Direct thermal = 32ºF to 104ºF/0ºC to 40ºC
    Operating Humidity: 20% to 85% non-condensing
    Storage/Transportation Temperature: -22F to 140F/ -30C to 60C
    Storage Humidity: 20% to 85% non-condensing
    • Electrical
    Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts

    ENERGY STAR qualified
    Connectivity
    Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port
    Media Handling
  • Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner
  • Cutter: Front-mount guillotine cutter and catch tray
  • 1" I.D. Core media supply hanger
  • Ink-side in ribbon supply spindle
    • Display
    Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support
    Keyboard Display Unit
    ZKDU™ keyboard display units for stand-alone printing applications
