Zebra ZT600

A Leap Forward in Industrial Thermal Printing

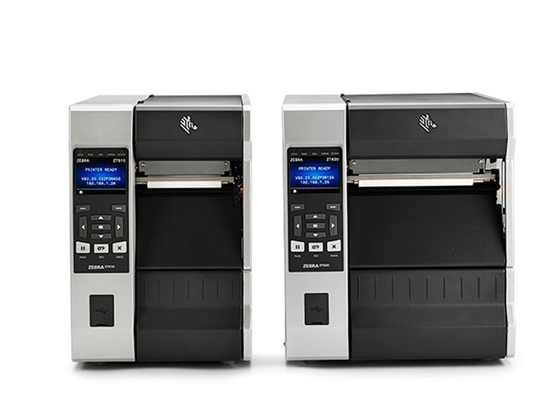

The ZT610 and ZT620 build on Zebra's reputation for print speed, long service life and reliability. A bright 4.3-inch full-color touchscreen displays status and settings through an icon-based interface engineered to tolerate temperature, humidity, dust and other industrial conditions.

24/7 Reliability in the Harshest Environments

ZT600 Series printers are designed for demanding industrial operation and high-volume output across a wide range of applications. Heavy-gauge metal structural components and a high-quality print mechanism reduce the risk that a printer failure will interrupt production.

A Leap Forward in Industrial Thermal Printing

Micro Label Option for Top Quality Small Labels

The current ZT610 Micro Label option provides up to 50% more precise registration for labels as small as 3 mm. That precision helps reduce waste on costly small media used for circuit boards, chips, miniature components and similar identification tasks.

The Micro Label option supports a broader range of small media sizes and has been enhanced for integration with automated labeling systems. These benefits apply only to the specific 600 dpi ZT610 Micro Label configuration and should not be assumed for standard ZT610 or any ZT620 model.

A Leap Forward in Industrial Thermal Printing

User-Friendly Setup, Use, Maintenance and Troubleshooting

Zebra DNA software delivers tools for advanced connectivity, device management and privacy controls through the Link-OS operating environment. Compatibility with other printing systems and onboard diagnostics help teams integrate the printer and address common issues without escalating every event to support.

ZPL and ZPL II provide Zebra formatting and control, while XML-enabled printing supports direct-connect barcode-label workflows. The platform is designed to protect compatible applications and formats as organizations move from older Xi Series printers.

A Leap Forward in Industrial Thermal Printing

Highly Adaptable, Future-Ready Platforms

Media-handling modules use bulkhead electrical connectors for faster field installation. Optional RFID encoding can also be added on supported ZT600 configurations, but RFID capability is not standard on the base ZT610 or ZT620 and must be ordered or installed separately.

Two open communication slots support options such as 802.11ax Wi-Fi, parallel, Ethernet, IPv6 and an applicator interface. Two front USB Host ports provide connections for peripherals and file-transfer workflows without consuming the main host connection.

Exceptional Today, Ready for Tomorrow, Built for the Future

Unparalleled Performance Today

Built-in thermal management eliminates the need for cooling vents and fans, helping block dust and debris from entering the cabinet. Long-life printheads and carefully designed internal components support consistent performance while reducing replacement cost and downtime.

Easy-adjust printhead pressure toggles include a scale and color-coded indicators so operators can reproduce settings more accurately. This makes setup more consistent when media widths or materials change and helps avoid trial-and-error adjustments.

Exceptional Today, Ready for Tomorrow, Built for the Future

User-Friendly for Day-to-Day Operations

The color display turns red during an error, making printer status visible from a distance. Guided media paths change color when a media error occurs, and QR codes connect operators to error-specific help videos so they can locate and resolve routine problems faster.

Side-loading supplies, an interior cabinet light and color-coded touch points make media and ribbon changes easier to understand. A wire-free quick-change printhead and fused upper and lower sensors with single-knob adjustment simplify maintenance without sacrificing sensor alignment.

Exceptional Today, Ready for Tomorrow, Built for the Future

Insight for a Smarter Tomorrow

Zebra DNA Printer Profile Manager Enterprise lets administrators monitor networked Link-OS printers from one browser-based interface. Central status, configuration and troubleshooting visibility reduces the need to inspect each printer at the point of use.

Zebra DNA MDM Support can integrate networked ZT600 Series printers with compatible systems including Omnissa Workspace ONE through Zebra's connector and SOTI Connect. Zebra DNA Cloud Connect provides an encrypted, authenticated path between printers and on-premise or cloud servers.

Zebra's Visibility Services portfolio helps organizations track printer health, performance and usage. Those insights can reveal developing issues, improve fleet planning and support business decisions before a local printer problem affects a larger workflow.

Exceptional Today, Ready for Tomorrow, Built for the Future

Adaptability for a Bright Future

Media-handling modules use bulkhead electrical connectors for faster field installation, and supported ZT600 configurations can add optional RFID encoding in the field. Two communication slots support Wi-Fi, parallel, Ethernet, IPv6 and applicator-interface options, while two front USB Host ports connect peripherals without consuming the main host connection.

Zebra DNA tools support remote updates, configuration and reconfiguration over the printer lifecycle. Specific management and security capabilities can depend on licensing and the selected deployment, so buyers should confirm requirements for their fleet-management platform.

Exceptional Today, Ready for Tomorrow, Built for the Future

Consistently Exceptional Zebra Certified Supplies

Media and ribbon affect printhead life, registration, readability and operational efficiency. Zebra designs and pretests its thermal supplies with Zebra printers to support consistent performance, and recommends qualifying the exact media, ribbon, resolution and speed used in production.

Specifications

Printer Specifications

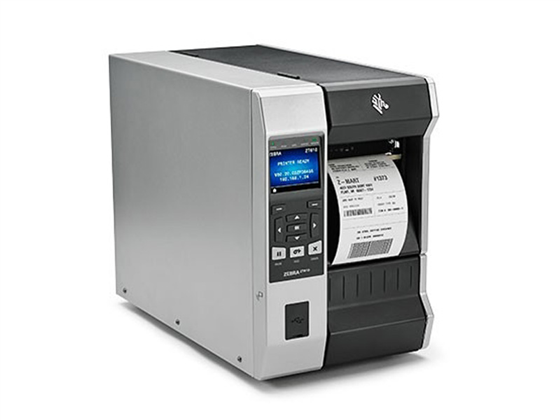

The ZT610 prints up to 4.09 inches wide and reaches 14 inches per second at 203 dpi. Standard 203 and optional 300 dpi configurations cover common industrial labels, while the 600 dpi Micro Label option is exclusive to the ZT610. The closed printer measures 19.88 by 10.56 by 15.58 inches and weighs 50 pounds.

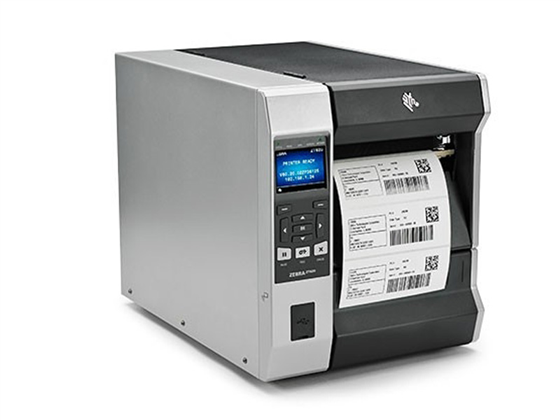

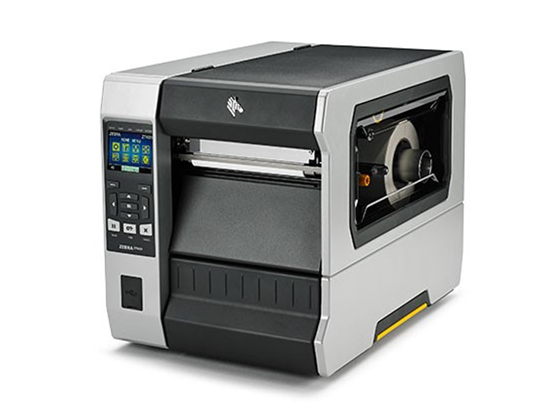

The ZT620 prints up to 6.6 inches wide at speeds up to 12 inches per second. It supports 203 or optional 300 dpi output for wide shipping, compliance, pallet and carton labels; the ZT610's 600 dpi Micro Label feature does not apply to the ZT620. Its closed dimensions are 19.88 by 13.44 by 15.58 inches and its weight is 57.4 pounds.

Specifications

Media Characteristics

Both models accept rolls up to 8 inches in outside diameter on a 3-inch core and thermal transfer ribbon up to 450 meters long. The ZT610 handles media from 0.79 to 4.5 inches wide, the Micro Label model starts at 0.47 inch, and the ZT620 accepts 2.0- to 7.1-inch media and wider ribbon. Maximum continuous print length varies by model and resolution: up to 150 inches on a 203 dpi ZT610 and 80 inches on a ZT620.

Options and Accessories

Options include a full-width guillotine cutter with catch tray, an internal media rewind spindle and peel with liner rewind. The cutter is not compatible with rewind or peel options, so the finishing configuration must be selected around the actual label workflow.

Specifications

Operating Characteristics

The ZT600 Series is ENERGY STAR certified and uses an auto-detecting 90-265 VAC, 47-63 Hz universal power supply rated at 250 watts. Thermal transfer operation is specified from 40° to 104°F, direct thermal operation from 32° to 104°F, and operating humidity from 20% to 85% non-condensing. Zebra service and genuine printheads are available to help maintain the printer as a complete system.

Markets and Applications

The combination of continuous-duty construction, precise registration and wide media support fits work-in-process, product identification, compliance, receiving and inventory labels. ZT610 Micro Label configurations extend the series into very small component labels, while ZT620 configurations address wider containers and pallets.

Fast output and industrial finishing options support shipping, cross-docking, pallet, carton and asset-label workflows. Model width, resolution, interface and media handling should be chosen around the label format and automation requirements rather than treated as interchangeable.
