Zebra ZT421R
Description
Specifications
Download

Zebra ZT421R

Images may not reflect the actual product
Product Image
small product image0

Proven durability and versatile UHF RFID encoding for wide industrial labels.

The Zebra ZT421 RFID printer/encoder combines the rugged ZT400 Series platform with integrated, factory- or field-installable UHF RFID and a 6.6-inch print path. It supports mid- to high-volume compliance, pallet, shipping, asset and item-level labeling.

A 4.3-inch color touch display, Zebra DNA for Printers and Link-OS simplify operation and remote management. Adaptive Encoding Technology supports variable inlay placement, while 203- and 300-dpi configurations balance throughput and detail.

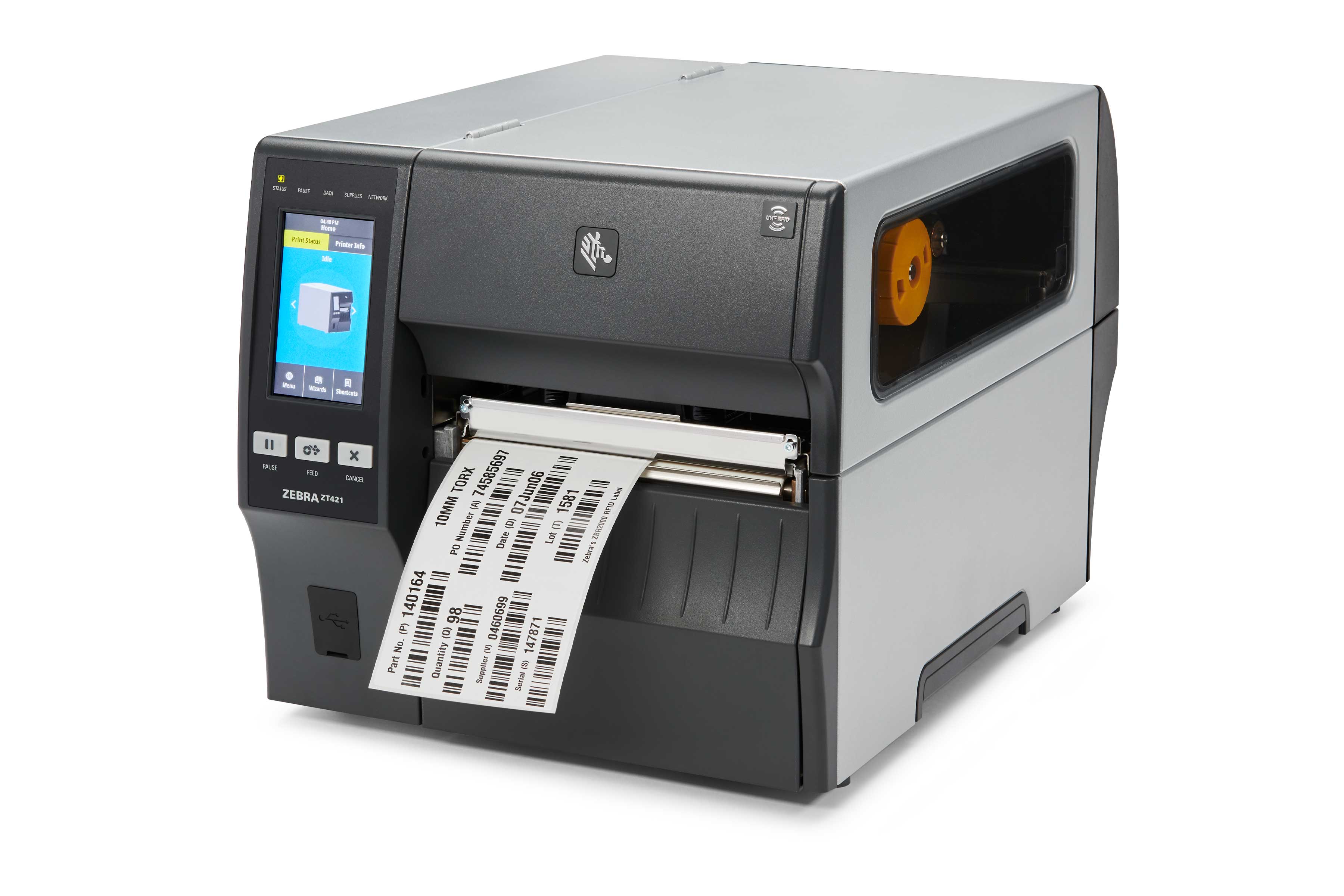

Zebra ZT421R industrial RFID printer printing RFID labels

Zebra ZT421R wide-format industrial RFID printer.

Key Specifications

  • Print method: Thermal transfer and direct thermal
  • Resolution: 203 dpi; optional 300 dpi
  • Maximum print width: 6.6 in. (168 mm)
  • Print speed: Up to 12 ips (305 mm per second)
  • Media and ribbon handling: 2.0–7.0 in. media for tear/cutter; 2.0–6.75 in. for peel/rewind; 450 m ribbon
  • Connectivity: Ethernet, RS-232, USB 2.0, dual USB Host and Bluetooth 4.1; wireless options available
  • Duty / application fit: Mid- to high-volume wide-format industrial RFID labeling and encoding
  • Dimensions and weight: 19.5 x 13.25 x 12.75 in.; 40 lb. (18.14 kg)
  • Warranty: 1 year

In the Box

  • Zebra ZT421 RFID printer
  • Power cord
  • Quick Start Guide

Package note: Contents can vary by SKU and region. Accessories are sold separately unless the selected option explicitly states they are included.

Wide-Format RFID Performance

Print and Encode With Ease

Adaptive Encoding Technology simplifies calibration and supports a minimum 0.6-inch tag pitch. The encoder supports UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID.

Large Labels at Production Speed

A 6.6-inch print width supports compliance, pallet, shipping and asset labels, with up to 12 ips output and an optional 300-dpi configuration for finer text and graphics.

Built for Industrial Work

Rugged, Operator-Friendly Design

A metal frame, metal media enclosure, side-loading supplies path and illuminated guides support demanding production environments. The bi-fold door reduces overhead clearance.

Flexible Media Handling

Continuous, die-cut, notched and black-mark media are supported, with optional cutter, peeler and liner take-up configurations.

Easy to Integrate and Manage

Connected by Design

Standard Ethernet, serial, USB, dual USB Host and Bluetooth connect the printer to common workflows; optional wireless and Industrial Ethernet capabilities extend deployment choices.

Zebra DNA for Printers

Link-OS and Zebra DNA tools support configuration, deployment, security and remote fleet management, while Print Touch NFC and dynamic QR codes speed access to help.

Application Fit

Track More Than a Barcode

Use the ZT421R for manufacturing, transportation and logistics, retail and healthcare workflows that require large printed labels plus encoded RFID data.

Qualify RFID Supplies

RFID tags must match the selected inlay placement, encoding configuration and application surface. Zebra-certified supplies help protect print quality and printhead life.

Zebra-compatible barcode labels and ribbon

Looking for Compatible Labels or Ribbon?

Match the selected print method, media width, roll and core size, sensing method and ribbon to the job. Use the POSGuys Label Selector Tool or contact us for help selecting supplies for a ZT421R configuration.

Find LabelsView Ribbon
Dimensions
  • 19.5 in. L x 13.25 in. W x 12.75 H
  • 495 mm Lx 336 mm W x 324 mm H
    • Weight
    40 lbs./18.14 kg
    Resolution
    203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
    Memory
    256 MB SDRAM memory 512 MB on-board linear Flash memory
    Maximum Print Width
    6.6 in./168 mm
    Maximum Print Speed
    12 ips/305 mm per second
    Media Sensors
    Adjustable dual media sensors: transmissive and reflective
    Print Length
    203 dpi: 102 in./2591 mm 300 dpi: 45 in./1143 mm
    Maximum Media Width
  • 2.00 in./51 mm to 7.0 in./178 mm tear/cutter
  • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
    • Maximum Media Roll Size
    8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
    Thickness
  • 0.0023 in./0.058 mm to 0.010 in./0.25 mm
    • Media Types
    Continuous, die-cut, notch, black-mark
    Standard Length
    1476 ft./450 M
    Width
  • 2.00 in./51 mm to 6.85 in./174 mm
    • Core I.D.
    1.0 in./25 mm
    Operating Temperature
    Thermal transfer: 40 F to 104 F/5 C to 40 C Direct thermal: 32 F to 104 F/O C to 40 C
    Storage/ Transportation Temperature
    -40 F to 140 F/-40 C to 60 C
    Operating Humidity
    20% to 85% non-condensing
    Storage Humidity
    5% to 85% non-condensing
    Connectivity
    Two open communication slots to add internal cards for:

  • Dual band 802.11ac Wi-Fi and Bluetooth
  • Parallel (bi-directional interface)
  • 10/100 Ethernet
  • Applicator interface
    • Media Handling
  • Rewind: Internally rewinds a full roll of printed labels on 3 in. core, or peels and rewinds liner (factory installed only)
  • Peel: Front-mount, passive peel option
  • Peel: Liner take-up—additional full-roll liner take-up spindle accommodates standard printer base
  • Cutter: Front-mount guillotine cutter and catch tray
    • Keyboard Display Unit
    ZKDU keyboard display units for stand-alone printing applications
    Linear Barcodes
    Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC case codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
    Two Dimensional Barcodes
    Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
    Zebra Industrial Printer Accessories Guide
    Download
    Zebra Setup Utility
    Download
    ZT421 Quick Setup Guide
    Download
    ZT421 RFID Spec Sheet
    Download
    ZT421 User Guide
    Download

    Shop ZT421R Models

    ZT42162-T0100A0Z

    ZT421R Industrial Label Printer. Thermal Transfer. 6", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: US & Canada, EZPL

    DPI:

    203

    Interface:

    Serial, USB, Ethernet, Bluetooth

    $4588.20

    ZT42163-T0100A0Z

    ZT421R Industrial Label Printer. Thermal Transfer. 6", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: US & Canada, EZPL

    DPI:

    300

    Interface:

    Serial, USB, Ethernet, Bluetooth

    $5035.26

    Shop ZT421R Accessories

    P1083320-037A

    Zebranet Wireless Card. 802.11ac, BT4.0. USA and Canada. For all ZT111, ZT211, ZT231, ZT411/ZT421, ZT510, ZT600 Series printers, only ZT410/ZT420 printers with firmware V75.20.14Z or later. (BT4.2 unavailable on ZT111, ZT211, ZT231)

    $627.38

    P1105147-020

    Peeler (Dispenser) Upgrade Module for Zebra ZT421 / ZT421R Printer.

    $370.00

    P1058930-025

    203 to 300 DPI Conversion Kit for Zebra ZT421, ZT421R, and ZT420 Printers.

    $1232.24

    P1058930-026

    300 to 203 DPI Conversion Kit for Zebra ZT421, ZT421R, and ZT420 Printers.

    $791.65

    P1058930-013

    Replacement 300dpi Printhead for ZT421. Please Note: This product is non-returnable.

    $1232.24

    P1058930-012

    Replacement 203dpi Printhead for ZT421. Please Note: This product is non-returnable.

    $791.65

    P1058930-075

    Parallel Port Interface Card on Zebra ZT411, ZT421, ZT410, and ZT420 Printers

    $117.96

    Z1AE-ZT421-3C0

    Zebra OneCare Essential 3-Year Comprehensive Warranty. For ZT421 and ZT421R Printers. Purchased within 30 days of Device.

    $577.67

    Z1AE-ZT421-5C0

    Zebra OneCare Essential 5-Year Comprehensive Warranty. For ZT421 and ZT421R Printers. Purchased within 30 days of Device.

    $955.46
