Zebra ZT421
A new level of performance, versatility and ease of use for 6-inch industrial printing.
The Zebra ZT421 keeps critical labeling operations moving with durable metal construction, wide-format 6-inch output and an intuitive 4.3-inch color touch display. Choose 203 or 300 dpi and the connectivity or media-handling configuration that fits the workflow.
Field-installable wireless, RFID and media-handling options let the printer evolve with changing requirements, while Zebra DNA for Printers tools simplify integration, security and remote management.

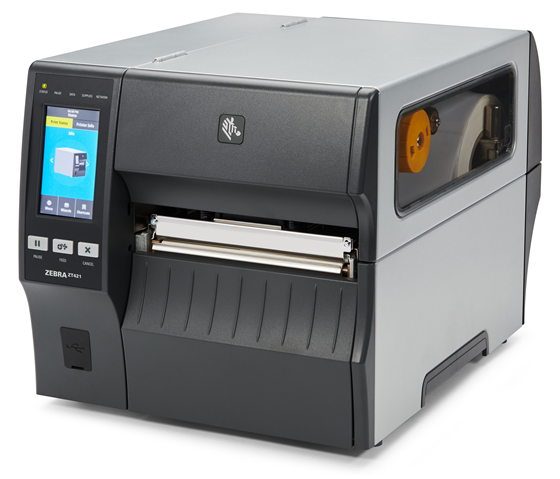

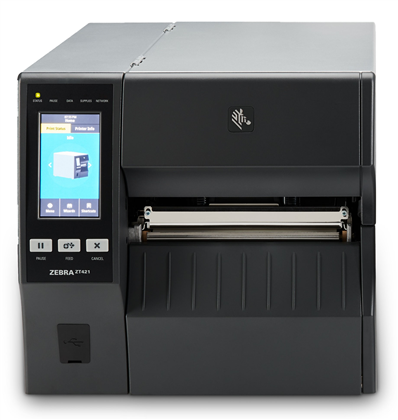

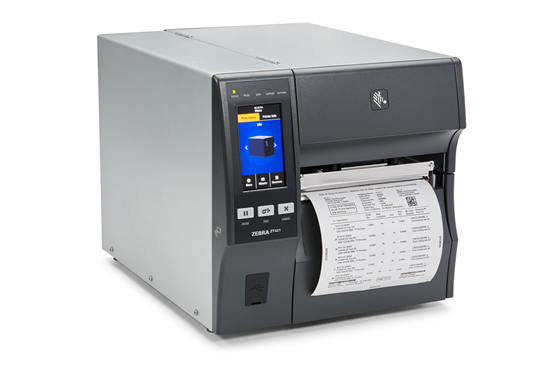

See the ZT421 industrial printer, touch interface and serviceable design.
Key Specifications
- Print method: Thermal transfer and direct thermal
- Resolution: 203 dpi; optional 300 dpi
- Maximum print width: 6.6 in. / 168 mm
- Print speed: Up to 12 ips / 305 mm per second
- Media and ribbon handling: 1.00–4.50 in. media for tear/cutter or up to 4.25 in. for peel/rewind; 8 in. roll OD; 450 m ribbon
- Connectivity: USB 2.0, RS-232 serial, 10/100 Ethernet, Bluetooth 4.2 and dual USB Host; optional Wi-Fi 6/Bluetooth 5.3 and interface cards
- Duty / application fit: Industrial labeling in manufacturing, transportation and logistics, distribution, retail and healthcare operations
- Dimensions and weight: Base model 19.5 × 10.6 × 12.75 in., 36 lb; full-rewind configurations are larger and heavier
- Warranty: Zebra limited warranty; confirm current regional terms for the selected configuration
In the Box
- Zebra ZT421 industrial printer in the selected configuration
- Installed communication and media-handling hardware only when specified by the selected option
Media, ribbon, cables, power cords and optional accessories are sold separately unless the selected option explicitly states they are included.
Versatile to Meet Your Evolving Needs
Configure Your Way
Standard Ethernet, serial, USB, dual USB Host and Bluetooth support common industrial connections. Optional Wi-Fi 6 and Bluetooth 5.3 add faster, more reliable wireless operation on modern networks.
Handle More Media and Applications
Select tear, cutter, peel, liner take-up or full-rewind handling. ZT421 configurations support 203 or high-detail 300 dpi printing.
Effortless to Integrate and Operate
Large Color Touch Display
The 4.3-inch touch display presents printer status, settings and guided alerts in a familiar interface, while bi-colored LEDs provide quick status visibility.

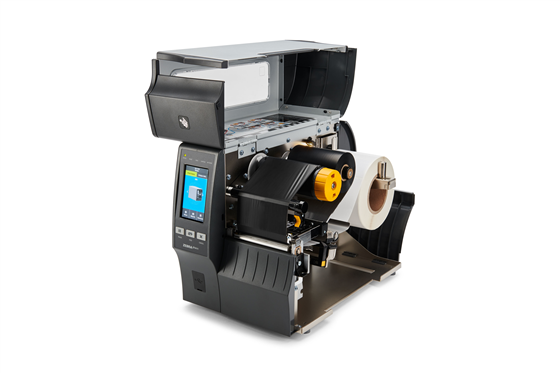

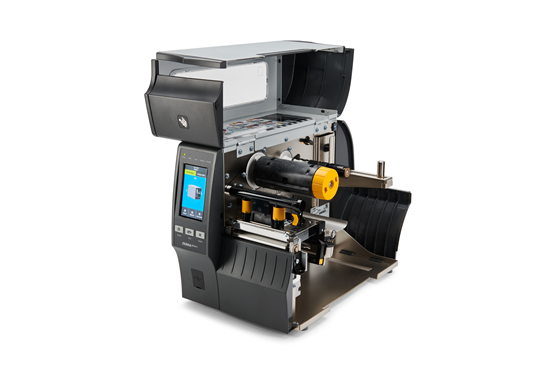

Easy Media and Ribbon Loading
A side-loading supply path, enlarged viewing window and bi-fold cover simplify replenishment and help the printer fit into constrained work areas.
Easy to Manage
Zebra DNA for Printers
Zebra DNA tools, powered by Link-OS, support setup, integration, remote configuration, troubleshooting and security across distributed printer fleets.
Connect to Industrial Networks
Optional internal communication and applicator-interface cards support evolving automation requirements without replacing the base printer.
Performance You Can Count On
Maximum Throughput and Productivity
Fast output, 256 MB SDRAM and 512 MB Flash help keep demanding print jobs moving, while adjustable transmissive and reflective sensors support varied label stocks.
Rugged Industrial Durability
A metal frame, metal media cover and serviceable design are built for sustained use in manufacturing, warehouse and distribution environments.
Looking for Compatible Labels or Ribbon?
Match the selected print method, media width, roll and core size, sensing method and ribbon to the job. Use the POSGuys Label Selector Tool or contact us for help selecting supplies for a ZT421 configuration.
Shop ZT421 Models
ZT42162-T010000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Bluetooth 4.1
DPI:
203
Interface:
Serial, USB, Ethernet, Bluetooth
Cutter Option:
Tear Bar
Print Method:
Thermal Transfer
ZT42162-T01000GA
ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 4.2
DPI:
203
Interface:
Serial, USB, Ethernet, Bluetooth
Cutter Option:
Tear Bar
Print Method:
Thermal Transfer
ZT42162-T01A000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 4.1, WiFi
DPI:
203
Interface:
Serial, USB, Ethernet, Bluetooth, WiFi
Cutter Option:
Tear Bar
Print Method:
Thermal Transfer
ZT42162-T210000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Cutter w/ Catch Tray
DPI:
203
Cutter Option:
Cutter w/ Catch Tray
Interface:
Serial, USB, Ethernet, Bluetooth
Print Method:
Thermal Transfer
ZT42162-T410000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Peel w/ Full Rewind
DPI:
203
Cutter Option:
Peel w/ Full Rewind
Interface:
Serial, USB, Ethernet, Bluetooth
Print Method:
Thermal Transfer
ZT42163-T010000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, US Cord, Serial, USB, Ethernet, Bluetooth 4.1
DPI:
300
Interface:
Serial, USB, Ethernet, Bluetooth
Cutter Option:
Tear Bar
Print Method:
Thermal Transfer
ZT42163-T110000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Peel
DPI:
300
Cutter Option:
Peeler
Interface:
Serial, USB, Ethernet, Bluetooth
Print Method:
Thermal Transfer
ZT42163-T210000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Cutter w/ Catch Tray
DPI:
300
Cutter Option:
Cutter w/ Catch Tray
Interface:
Serial, USB, Ethernet, Bluetooth
Print Method:
Thermal Transfer
ZT42163-T410000Z
ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Peel w/ Full Rewind
DPI:
300
Cutter Option:
Peel w/ Full Rewind
Interface:
Serial, USB, Ethernet, Bluetooth
Print Method:
Thermal Transfer
Shop ZT421 Accessories
105850-006
USB Interface Cable, 6FT (A to B)
37996
15FT USB Cable M-A TO M-B XI, 105SL, Z SER
P1058930-025
203 to 300 DPI Conversion Kit for Zebra ZT421, ZT421R, and ZT420 Printers.
P1058930-026
300 to 203 DPI Conversion Kit for Zebra ZT421, ZT421R, and ZT420 Printers.
P1058930-074
ZT411, ZT421, Kit, Internal Print Server IPv4,
P1058930-075
Parallel Port Interface Card on Zebra ZT411, ZT421, ZT410, and ZT420 Printers
P1058930-081
ZT421, Kit, Platen Roller,
P1058930-012
Replacement 203dpi Printhead for ZT421. Please Note: This product is non-returnable.
P1058930-013
Replacement 300dpi Printhead for ZT421. Please Note: This product is non-returnable.
P1058930-500A
ZT421, Kit, RFID Module USA and Canada
G105850-007
Cable, KIT, USB Interface Cable, 10FT (A to B)
P1083320-037A
Zebranet Wireless Card. 802.11ac, BT4.0. USA and Canada. For all ZT111, ZT211, ZT231, ZT411/ZT421, ZT510, ZT600 Series printers, only ZT410/ZT420 printers with firmware V75.20.14Z or later. (BT4.2 unavailable on ZT111, ZT211, ZT231)
39518M
Antenna, Magnetic Mount for Internal Wireless Plus Antenna (Antenna not included)
P1105147-020
Peeler (Dispenser) Upgrade Module for Zebra ZT421 / ZT421R Printer.
P1000219
PS105-Z, SEH External IPv6 Print Server
ZKDU-001-00
Keyboard Display Unit (ZKDU), For all EPL and ZPL Printers, 62-Key QW
Z1AE-ZT421-3C0
Zebra OneCare Essential 3-Year Comprehensive Warranty. For ZT421 and ZT421R Printers. Purchased within 30 days of Device.
Z1AE-ZT421-5C0
Zebra OneCare Essential 5-Year Comprehensive Warranty. For ZT421 and ZT421R Printers. Purchased within 30 days of Device.
