Zebra ZT411R
Description
Specifications
Download

Zebra ZT411R

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

Proven durability and versatile UHF RFID encoding for industrial operations.

The Zebra ZT411 RFID printer/encoder combines the rugged ZT400 Series platform with integrated, factory- or field-installable UHF RFID. It supports mid- to high-volume item tracking, asset visibility, work-in-process and compliance labeling.

A 4.3-inch color touch display, Zebra DNA for Printers and Link-OS simplify operation and remote management. Adaptive Encoding Technology supports variable inlay placement, while available 600 dpi and on-metal configurations address specialized applications.

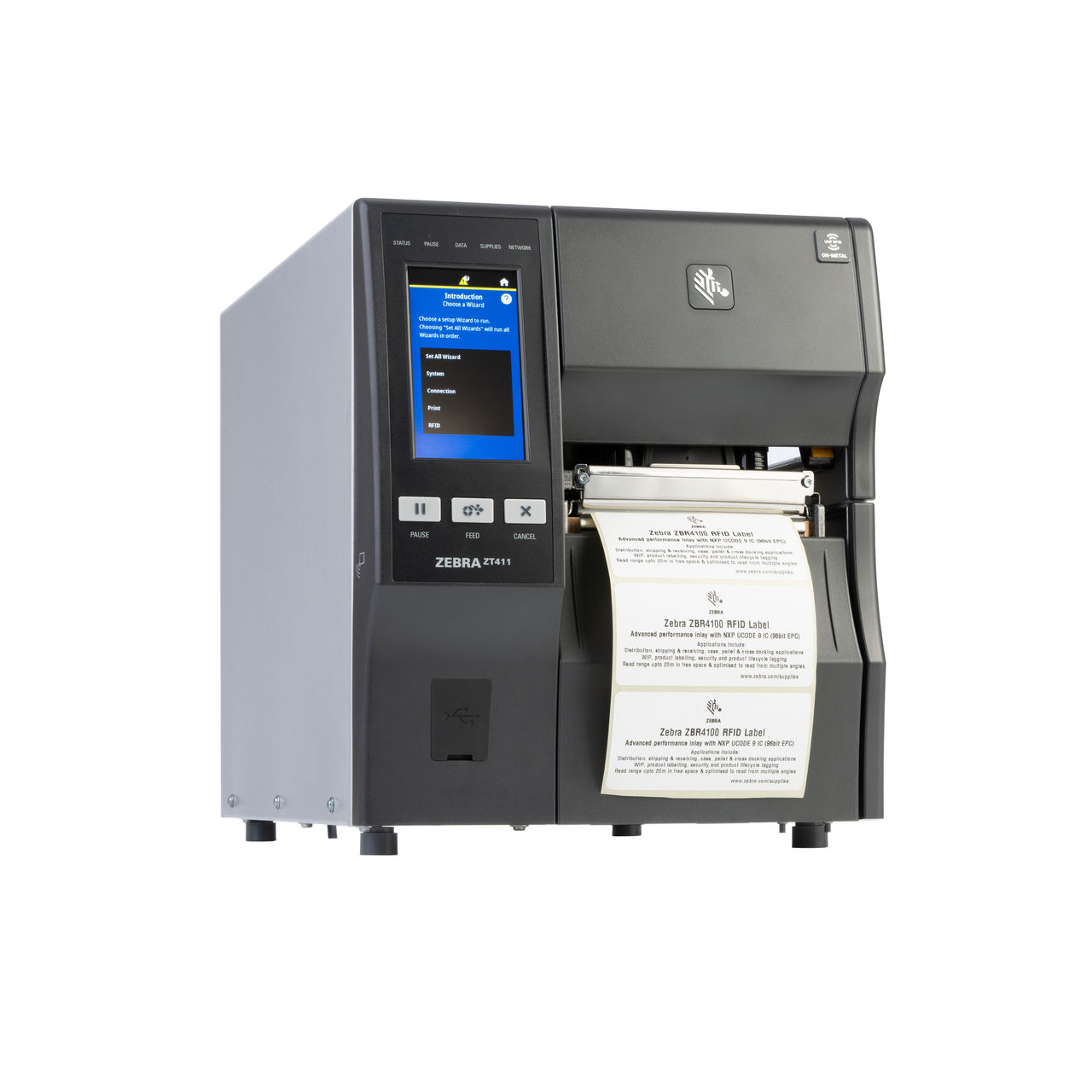

Zebra ZT411R industrial RFID printer printing RFID labels

Zebra ZT411R industrial RFID printer.

Key Specifications

  • Print method: Thermal transfer and direct thermal
  • Resolution: 203 dpi; optional 300 dpi or 600 dpi; on-metal configurations up to 300 dpi
  • Maximum print width: 4.09 in. (104 mm)
  • Print speed: Up to 14 ips (356 mm per second)
  • Media and ribbon handling: 1.0–4.5 in. media for tear/cutter; 1.0–4.25 in. for peel/rewind; 450 m ribbon
  • Connectivity: Ethernet, RS-232, USB 2.0, dual USB Host and Bluetooth 4.1; wireless options available
  • Duty / application fit: Mid- to high-volume industrial RFID labeling and encoding
  • Dimensions and weight: 19.5 x 10.6 x 12.75 in. (closed); 36 lb. (16.33 kg)
  • Warranty: 1 year

In the Box

  • Zebra ZT411 RFID printer
  • Power cord
  • Quick Start Guide

Package note: Contents can vary by SKU and region. Accessories are sold separately unless the selected option explicitly states they are included.

Versatile RFID Performance

Print and Encode With Ease

Adaptive Encoding Technology simplifies calibration and supports a minimum 0.6-inch tag pitch. The encoder supports UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID.

Specialized Configurations

The ZT411R offers optional 600 dpi for fine output. Its dedicated on-metal solution prints and encodes Zebra Silverline labels up to 1.5 mm thick and supports up to 300 dpi.

Built for Industrial Work

Rugged, Operator-Friendly Design

A metal frame, metal media enclosure, side-loading supplies path and illuminated guides support demanding production environments. The bi-fold door reduces overhead clearance.

Flexible Media Handling

Continuous, die-cut, notched and black-mark media are supported, with optional cutter, peeler and liner take-up configurations.

Easy to Integrate and Manage

Connected by Design

Standard Ethernet, serial, USB, dual USB Host and Bluetooth connect the printer to common workflows; optional wireless and Industrial Ethernet capabilities extend deployment choices.

Zebra DNA for Printers

Link-OS and Zebra DNA tools support configuration, deployment, security and remote fleet management, while Print Touch NFC and dynamic QR codes speed access to help.

Application Fit

Track More Than a Barcode

Use the ZT411R for manufacturing, transportation and logistics, retail and healthcare workflows that require both printed information and encoded RFID data.

Qualify RFID Supplies

RFID tags must match the selected inlay placement, encoding configuration and application surface. Zebra-certified supplies help protect print quality and printhead life.

Zebra-compatible barcode labels and ribbon

Looking for Compatible Labels or Ribbon?

Match the selected print method, media width, roll and core size, sensing method and ribbon to the job. Use the POSGuys Label Selector Tool or contact us for help selecting supplies for a ZT411R configuration.

Find LabelsView Ribbon
Dimensions (closed)
  • 19.5 in. 10.6 in. W x 12.75 in. H
  • 495 mm Lx 269 mm W x 324 mm H
    • Weight
  • 36 lbs./16.33 kg
    • Resolution
  • 203 dpi/8 dots per mm
  • 300 dpi/12 dots per mm (optional)
  • 600 dpi/24 dots per mm
    • Memory
  • 256 MB SDRAM memory
  • 512 MB on-board linear Flash memory
    • Maximum Print Width
    4.09 in./104 mm
    Maximum Print Speed
    14 ips/356 mm per second
    Media Sensors
    Adjustable dual media sensors: transmissive and reflective
    Print Length
  • 203 dpi: 157 in./3988 mm
  • 300 dpi: 73 in./1854 mm
  • 600 dpi: 39 in./991 mm
    • Maximum Media Width
  • 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
  • 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind
    • Maximum Media Roll Size
    8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
    Thickness
  • 0.0023 in./O.058 mm to 0.010 in./O.25 mm
  • On-metal option: up to 0.059 in./1.5 mm
    • Media Types
    Continuous, die-cut, notch, black-mark
    Standard Length
    1476 ft./450 M
    Width
    2.00 in./51 mm to 4.33 in./llO mm
    Core I.D.
    1.0 in./25 mm
    Operating Temperature
  • Thermal transfer: 400 F to 1040 F/50 C to 400 C
  • Direct thermal: 320 F to 1040 F/OO C to 400 C
    • Storage/ Transportation Temperature
    400 F 1400 F/-400 C to 600 C
    Operating Humidity
    20% to 85% non-condensing
    Storage Humidity
    5% to 85% non-condensing
    Zebra Industrial Printer Accessories Guide
    Download
    Zebra Setup Utility
    Download
    ZT411R Setup Guide
    Download
    ZT411R Spec Sheet
    Download
    ZT411R User Guide
    Download

    Shop ZT411R Models

    ZT41142-T0100A0Z

    ZT411 Thermal Transfer Label Printer. 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: US & Canada, EZPL

    DPI:

    203

    Interface:

    Serial, USB, Ethernet, Bluetooth

    Cutter Option:

    Tear Bar

    $3445.80

    ZT41142-T01A0A0Z

    ZT411 Thermal Transfer Label Printer. 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.2/MFi, USB Host, Wireless 802.11 AC Card, RFID UHF Encoder: US & Canada, EZPL

    DPI:

    203

    Interface:

    Serial, USB, Ethernet, Bluetooth & WiFi

    Cutter Option:

    Tear Bar

    $4735.16

    ZT41143-T5100A0Z

    ZT411 Thermal Transfer Label Printer. 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder: US & Canada, EZPL

    DPI:

    300

    Interface:

    Serial, USB, Ethernet, Bluetooth

    Cutter Option:

    Tear Bar

    $4266.01

    ZT41142-T1100A0Z

    ZT411 Thermal Transfer Label Printer. 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: US & Canada, Peel, EZPL

    DPI:

    203

    Cutter Option:

    Peeler

    Interface:

    Serial, USB, Ethernet, Bluetooth

    $3607.13

    ZT41143-T0100AGA

    ZT411 Thermal Transfer Label Printer. TAA. 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: US & Canada, EZPL

    DPI:

    300

    Interface:

    Serial, USB, Ethernet, Bluetooth

    Cutter Option:

    Tear Bar

    $3817.39

    ZT41142-T0100AGA

    ZT411 Thermal Transfer Label Printer. 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: US & Canada, EZPL TAA

    DPI:

    203

    Interface:

    Serial, USB, Ethernet, Bluetooth

    Cutter Option:

    Tear Bar

    $3445.80

    ZT41143-T0100A0Z

    ZT411 Thermal Transfer Label Printer. 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: US & Canada, EZPL

    DPI:

    300

    Interface:

    Serial, USB, Ethernet, Bluetooth

    Cutter Option:

    Tear Bar

    $3817.39

    Shop ZT411R Accessories

    P1083320-037A

    Zebranet Wireless Card. 802.11ac, BT4.0. USA and Canada. For all ZT111, ZT211, ZT231, ZT411/ZT421, ZT510, ZT600 Series printers, only ZT410/ZT420 printers with firmware V75.20.14Z or later. (BT4.2 unavailable on ZT111, ZT211, ZT231)

    $627.38

    Z1AE-ZT411-3C0

    Zebra OneCare Essential 3-Year Comprehensive Warranty. For ZT411 and ZT411R Printers. Purchased within 30 days of Device.

    $462.13

    Z1AE-ZT411-5C0

    Zebra OneCare Essential 5-Year Comprehensive Warranty. For ZT411 and ZT411R Printers. Purchased within 30 days of Device.

    $763.67

    P1058930-189

    Cutter Add-On Module for ZT411, ZT411R, and ZT410 Printers.

    $1014.82

    P1058930-024

    203/300 dpi to 600 dpi Printhead Conversion Kit. ZT411 and ZT411R.

    $2015.36

    P1058930-023

    300/600 dpi to 203 dpi Printhead Conversion Kit. Compatible With Zebra ZT411 and ZT411R Printers.

    $716.32

    P1058930-022

    203/600 dpi to 300dpi Printhead Conversion Kit. Compatible With Zebra ZT411 and ZT411R Printers.

    $835.72

    P1058930-010

    300 DPI Replacement Printhead for Zebra ZT411 & ZT411R.

    $835.72

    P1058930-011

    600 DPI Replacement Printhead for Zebra ZT411 & ZT411R.

    $2015.36

    P1058930-009

    203 DPI Replacement Printhead for Zebra ZT411 & ZT411R.

    $716.32

    P1058930-052

    Liner Take-Up Spindle and Motor Assembly for Zebra ZT411 & ZT411R Printer.

    $363.30

    P1105147-019

    Peeler Assembly Kit for Zebra ZT411 & ZT411R Printer.

    $258.75

    P1058930-075

    Parallel Port Interface Card on Zebra ZT411, ZT421, ZT410, and ZT420 Printers

    $117.96

    P1058930-086

    1" Core Media Hanger Kit for Zebra ZT411 and ZT410 Printer.

    $96.52
