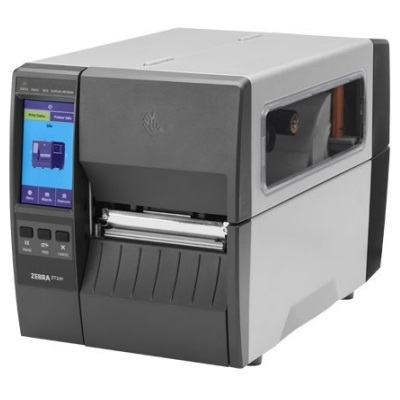

Zebra ZT231
Smart features, flexible configuration and durable value for 4-inch industrial printing.
The Zebra ZT231 combines durable metal construction, fast 4-inch output and an intuitive 4.3-inch color touch display in a space-saving industrial design. Choose 203 or 300 dpi and the connectivity or media-handling configuration that fits the workflow.
Field-installable wireless, RFID and media-handling options let the printer evolve with changing requirements, while Zebra Print DNA tools simplify integration, security and remote management.
See the ZT231 industrial printer, touch interface and serviceable design.
Key Specifications
- Print method: Thermal transfer and direct thermal
- Resolution: 203 dpi; optional 300 dpi
- Maximum print width: 4.09 in. / 104 mm
- Print speed: Up to 12 ips / 305 mm per second at 203 dpi; up to 8 ips at 300 dpi
- Media and ribbon handling: 0.75–4.50 in. media; 8 in. roll OD on a 3 in. core or 6 in. OD on a 1 in. core; 450 m ribbon
- Connectivity: USB 2.0, RS-232 serial, 10/100 Ethernet, USB Host and Bluetooth Low Energy; optional 802.11ac Wi-Fi, second Ethernet and applicator interface
- Duty / application fit: Light-industrial labeling in manufacturing, transportation and logistics, healthcare and retail operations
- Dimensions and weight: Base model 17 × 9.5 × 11 in., 20 lb; liner-takeup configurations are taller and weigh 24 lb
- Warranty: Zebra limited warranty; confirm current regional terms for the selected configuration
In the Box
- Zebra ZT231 industrial printer in the selected configuration
- Installed communication and media-handling hardware only when specified by the selected option
Media, ribbon, cables, power cords and optional accessories are sold separately unless the selected option explicitly states they are included.
Versatile to Meet Your Evolving Needs
Configure Your Way
Standard Ethernet, serial, USB, USB Host and Bluetooth Low Energy support common industrial connections. Optional 802.11ac Wi-Fi, second Ethernet and applicator connectivity extend deployment choices.
Handle More Media and Applications
Select tear, cutter, peel or factory-fit liner take-up handling. ZT231 configurations support 203 or high-detail 300 dpi printing.
Effortless to Integrate and Operate
Large Color Touch Display
The 4.3-inch touch display presents printer status, settings and guided alerts in a familiar interface, while three-color LEDs provide quick status visibility.
Easy Media and Ribbon Loading
A side-loading supply path, enlarged viewing window and bi-fold cover simplify replenishment and help the printer fit into constrained work areas.
Easy to Manage
Zebra Print DNA
Zebra Print DNA tools support setup, integration, remote configuration, troubleshooting and security across distributed printer fleets.
Connect to Industrial Networks
Optional communication and applicator-interface cards support evolving network and automation requirements without replacing the base printer.
Performance You Can Count On
Maximum Throughput and Productivity
Fast output, 256 MB SDRAM and 256 MB Flash help keep demanding print jobs moving, while adjustable transmissive and reflective sensors support varied label stocks.
Rugged Industrial Durability
A metal frame, metal enclosure and tool-less platen and printhead access support sustained use and simpler maintenance in light-industrial environments.
Looking for Compatible Labels or Ribbon?
Match the selected print method, media width, roll and core size, sensing method and ribbon to the job. Use the POSGuys Label Selector Tool or contact us for help selecting supplies for a ZT231 configuration.
Shop ZT231 Models
ZT23142-T01000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 203 dpi, Tearbar, USB, Serial, Ethernet
DPI:
203
Accessories:
Tear Bar
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23142-D21000FZ
ZT231 Industrial Label Printer; Direct Thermal. 4", 203 dpi, Cutter, USB, Serial, Ethernet
DPI:
203
Accessories:
AutoCutter
Print Type:
Direct Thermal
Interface:
USB, Serial, Ethernet
ZT23142-D01000FZ
ZT231 Industrial Label Printer; Direct Thermal. 4", 203 dpi, Tearbar, USB, Serial, Ethernet
DPI:
203
Print Type:
Direct Thermal
Accessories:
Tear Bar
Interface:
USB, Serial, Ethernet
ZT23142-D01A00FZ
ZT231 Industrial Label Printer; Direct Thermal. 4", 203 dpi, Tearbar, USB, Serial, Ethernet, WiFi & BT4
DPI:
203
Print Type:
Direct Thermal
Accessories:
Tear Bar
Interface:
USB, Serial, Ethernet, Wireless 802.11ac/BT4
ZT23142-T01A00FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 203 dpi, Tearbar, USB, Serial, Ethernet, WiFi & BT4
DPI:
203
Accessories:
Tear Bar
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet, Wireless 802.11ac/BT4
ZT23142-T31000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 203 dpi, Peeler with Liner Takeup, USB, Serial, Ethernet
DPI:
203
Accessories:
Peel with Liner Takeup
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23143-T01000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 300 dpi, Tearbar, USB, Serial, Ethernet
DPI:
300
Accessories:
Tear Bar
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23143-T01A00FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 300 dpi, Tearbar, USB, Serial, Ethernet, USB Host, WiFi & BT4
DPI:
300
Accessories:
Tear Bar
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet, Wireless 802.11ac/BT4
ZT23142-T01000GA
ZT231 Industrial Label Printer; Thermal Transfer. 4", 203 dpi, Tear, USB, Serial, Ethernet
DPI:
203
Accessories:
Tear Bar
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23143-T31000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 300 dpi, Peel with Liner Takeup, USB, Serial, Ethernet
DPI:
300
Accessories:
Peel with Liner Takeup
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23142-D31000FZ
ZT231 Industrial Label Printer; Direct Thermal. 4", 203 dpi, Peeler with Liner Takeup, USB, Serial, Ethernet
DPI:
203
Print Type:
Direct Thermal
Accessories:
Peel with Liner Takeup
Interface:
USB, Serial, Ethernet
ZT23143-T01000GA
ZT231 Industrial Label Printer; Thermal Transfer. 4", 300 dpi, Tearbar, USB, Serial, Ethernet
DPI:
300
Accessories:
Tear Bar
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23143-T21000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 300 dpi, Cutter, USB, Serial, Ethernet
DPI:
300
Accessories:
AutoCutter
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23142-T11000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 203 dpi, Peeler, USB, Serial, Ethernet
DPI:
203
Accessories:
Peeler
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23142-T21000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 203 dpi, Cutter, USB, Serial, Ethernet
DPI:
203
Accessories:
AutoCutter
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
ZT23143-D01000FZ
ZT231 Industrial Label Printer; Direct Thermal. 4", 300 dpi, Tearbar, USB, Serial, Ethernet
DPI:
300
Print Type:
Direct Thermal
Accessories:
Tear Bar
Interface:
USB, Serial, Ethernet
ZT23143-T11000FZ
ZT231 Industrial Label Printer; Thermal Transfer. 4", 300 dpi, Peeler, USB, Serial, Ethernet
DPI:
300
Accessories:
Peeler
Print Type:
Thermal Transfer
Interface:
USB, Serial, Ethernet
Shop ZT231 Accessories
P1123335-042
Kit, Peel Option, ZT111, ZT231
P1123335-013
Kit, Printhead 300 dpi, ZT111, ZT231
P1123335-035
Kit, Ethernet Card, ZT111, ZT231
P1123335-017
Kit, Convert 203dpi to 300dpi, ZT111, ZT231
P1123335-018
Kit, Convert 300dpi to 203dpi, ZT111, ZT231
P1123335-041
Kit, Cutter Option, ZT111, ZT231
Z1AE-ZT231-3C0
ZT231 Zebra OneCare Essential 3-Year Comprehensive. (3-day in-house turnaround time)
P1083320-037A
Zebranet Wireless Card. 802.11ac, BT4.0. USA and Canada. For all ZT111, ZT211, ZT231, ZT411/ZT421, ZT510, ZT600 Series printers, only ZT410/ZT420 printers with firmware V75.20.14Z or later. (BT4.2 unavailable on ZT111, ZT211, ZT231)
P1123335-056
Kit, Printhead, Enhanced, 203 dpi, ZT111, ZT231, ZT231R
P1123335-057
Kit, Printhead, Enhanced, 300 dpi, ZT111, ZT231, ZT231R
