Zebra ZT200
Description
Specifications
Download

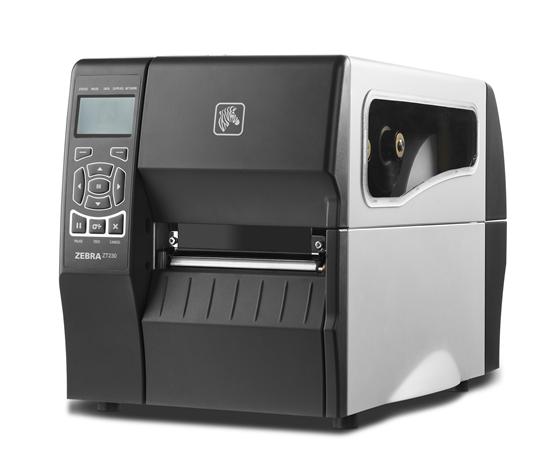

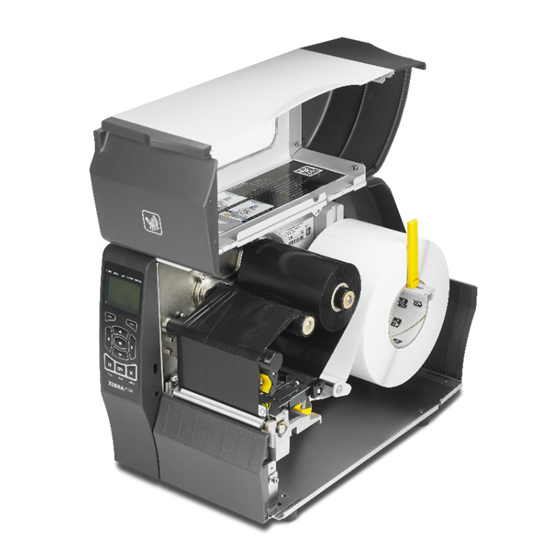

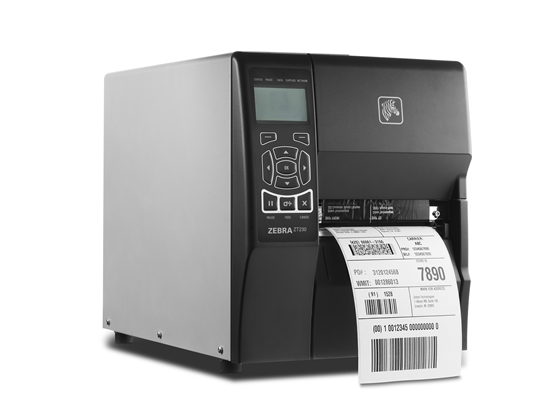

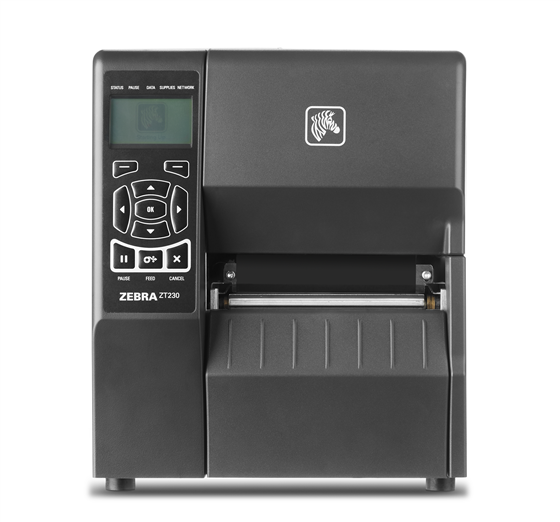

Zebra ZT200

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

The Zebra ZT200 Series delivers the performance of an industrial barcode printer in a space-saving, cost-effective design. Designed with user feedback and Zebra’s legacy engineering, the ZT200 Series simplifies routine operations while maintaining the power needed for high-volume label printing.

The series includes two models to meet different business needs: the value-focused ZT220 and the feature-rich ZT230. Both printers use a compact bi-fold door that requires less clearance, making them ideal for tight workspaces. They support both direct thermal and thermal transfer printing at speeds up to 6 inches per second—ideal for manufacturing, logistics, or inventory management applications.

ZT220 – The ZT220 is built with a high-impact polymer case that balances durability and affordability. With a 300-meter ribbon capacity and a simplified 3-button interface, it's perfect for environments with a single label format, such as shipping or inventory labeling. LED status indicators provide easy-to-read feedback for quick troubleshooting.

ZT230 – Designed for more demanding operations, the ZT230 features an all-metal enclosure and a large 450-meter ribbon capacity for longer print runs and less downtime. A graphical LCD display with an integrated keypad makes configuration and troubleshooting fast and intuitive—perfect for environments where label formats change frequently or downtime needs to be minimized.

Key Features:

  • Standard USB and Serial connectivity; optional Parallel, Ethernet, and Wi-Fi (802.11ac)
  • Print methods: Direct Thermal or Thermal Transfer
  • Print speed: Up to 6 ips (152 mm/s)
  • Max print width: 4.09 in. (104 mm)
  • Durable, compact design with easy side-loading media path
  • 1-year manufacturer warranty

Model Comparison:

  • ZT220: 300m ribbon, 3-button interface, high-impact plastic case
  • ZT230: 450m ribbon, LCD screen with keypad, all-metal case, liner take-up support (optional)
Interface
Centronics® RS-232 RS-422*, and RS-485* serial ports; IEEE 1284 bi-directional parallel
Roll Size (max), Core Size
Max.Diameter: 6 in for PM45c long door models; 213 mm (8.38 in) for all other models of PM45/ PM45c
Print Method
Direct thermal or thermal transfer
Print Speed
6" per second
Print Resolution
203 dpi or 300 dpi
Maximum Print Area
Width: 4.09 in
Length: 157 in at 203 dpi - 73 in at 300 dpi
Paper Dimensions
Width: 0.79 to 4.5 in
Roll Diameter: 8 in maximum
Paper Thickness
0.003" to 0.010"
Barcodes Supported
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar

2D Barcodes: CODABLOCK, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, Micro PDF417, RSS Code
Graphics Printing
Supports user-defined fonts and graphics including custom logos, ZPL II drawing commands for boxes and lines
Memory
128 MB RAM, 128 MB Flash
Printer Language
ZPL II, EPL2, ZBI 2 (optional), Zebra Global Printing Solution
Two Color Printing Capabilities
No
Auto Cutter
Optional - full width cutter with orderable catch tray
Peeler / Presenter
Optional
LCD Display
ZT230 Models
Weight
ZT220: 17 lbs
ZT230: 20 lbs
Dimensions
ZT220: 9.4" x 17" x 11"
ZT230: 9.5" x 17" x 10.9"
Operating Temperature
40° to 105° F
Seagull Windows Driver
Download
Windows Driver
Download
Zebra Label 3 Designer (Windows OS)
Download
Zebra Printer Setup Utility
Download
Zebra Setup Utility Walkthrough Guide
Download
Data Sheet
Download

Shop ZT200 Models

ZT22042-D01000FZ

ZT220 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Tear Bar, US Power Cord, Serial, USB Interfaces

Color:

Black

PrintHead Type:

Direct Thermal

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial

$597.46

ZT23042-T11200FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Peeler, Serial, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Peeler

Interface:

USB/Serial

$1033.56

ZT23043-T11200FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Peeler, ZPL Only, US Power Cord, Serial, USB, and Ethernet Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Peeler

Interface:

USB, Serial, Ethernet

$1304.43

ZT22043-T01200FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, US Power Cord, ZPL, Serial, USB, Ethernet Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$1108.73

ZT23043-D01000FZ

ZT230 Barcode Printer, Black with Direct Thermal Printing, 300 dpi, Tear Bar, ZPL Only, US Power Cord, Serial, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial

$960.34

ZT22042-T01000FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Tear Bar, US Power Cord, Serial, USB Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial

$657.72

ZT22043-T01000FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, US Power Cord, Serial, USB Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial

$929.24

ZT23042-T01000FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Tear Bar, ZPL only, Serial, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Tear Bar

Interface:

USB/Serial

$749.09

ZT23042-D01000FZ

ZT230 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Tear Bar, ZPL only, Serial, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal

Included:

Tear Bar

Interface:

USB/Serial

$688.18

ZT23043-T01000FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, ZPL Only, US Power Cord, Serial, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial

$1020.60

ZT22043-D012200FZ

ZT220 Barcode Printer, Black with Direct Thermal Printing, 300 dpi, Tear Bar, US Power Cord, Serial, USB, Ethernet Interfaces

Color:

Black

PrintHead Type:

Direct Thermal

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$1278.17

ZT22042-T01200FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Tear Bar, US Power Cord, Serial, USB, Ethernet Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$838.52

ZT23042-T21000FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Autocutter and Tray, Serial, USB Interfaces

Included:

Autocutter and Tray

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Interface:

USB/Serial

$1046.52

ZT23043-T11000FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Peeler, ZPL Only, US Power Cord, Serial, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Peeler

Accessories:

Power Supply

Interface:

USB/Serial

$1124.93

ZT23043-T01200FZ-PG

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, ZPL Only, US Power Cord, Serial, USB, Ethernet Interfaces. DOA Warranty Only.

$1665.90

ZT22042-D01200FZ

ZT220 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Tear Bar, US Power Cord, Serial, USB, Ethernet Interfaces

Color:

Black

PrintHead Type:

Direct Thermal

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$778.25

ZT23042-T01200FZ-PG

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 DPI, Tear Bar, ZPL Only, Serial, USB, Ethernet Interfaces. Comes with additional 300 DPI Print head. DOA Warranty Only.

$1288.80

ZT22042-D11A00FZ

ZT220 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Peeler, US Power Cord, Serial, USB, 802.11b/g Interfaces

Color:

Black

PrintHead Type:

Direct Thermal

Included:

Peeler

Accessories:

Power Supply

Interface:

USB/Serial/WiFi

$1252.00

ZT23042-T01A00FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Tear Bar, Serial, USB, ZebraNet 802.11n Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Tear Bar

Interface:

USB/Serial/WiFi

$1049.12

ZT23043-D01200FZ

ZT230 Barcode Printer, Black with Direct Thermal Printing, 300 dpi, Tear Bar, ZPL Only, US Power Cord, Serial, USB, Ethernet Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$1138.54

ZT23042-D01100FZ

ZT230 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Tear Bar, ZPL only, Serial, Parallel, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal

Included:

Tear Bar

Interface:

USB/Serial/Parallel

$733.54

ZT22042-D01100FZ

ZT220 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Tear Bar, USB Power Cord, Serial, Parallel, USB Interfaces

Color:

Black

PrintHead Type:

Direct Thermal

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Parallel

$786.36

ZT23042-T01200FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Tear Bar, ZPL Only, Serial, USB, Ethernet Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$927.94

ZT22042-T21200FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Autocutter and Tray, US Power Cord, Serial, USB, Ethernet Interfaces

Included:

Autocutter and Tray

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Interface:

USB/Serial/Ethernet

$1267.49

ZT22042-T01100FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Tear Bar, US Power Cord, Serial, Parallel, USB Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Parallel

$785.38

ZT23042-T01100FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Tear Bar, ZPL Only, Serial, Parallel, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Tear Bar

Interface:

USB/Serial/Parallel

$793.80

ZT23042-T11100FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Peeler, Serial, Parallel, USB Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Peeler

Interface:

USB/Serial/Parallel

$899.43

ZT23043-T01A00FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, ZPL Only, US Power Cord, Serial, USB, ZebraNet 802.11n Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/WiFi

$1319.33

ZT22043-T01A00FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, Serial, USB, ZebraNet 802.11n Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Included:

Tear Bar

Interface:

USB/Serial/WiFi

$1371.82

ZT23043-T21100FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Autocutter and Tray, ZPL Only, US Power Cord, Serial, Parallel, USB Interfaces

Included:

Autocutter and Tray

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Interface:

USB/Serial/Parallel

$1362.10

ZT22042-D11000FZ

ZT220 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Peeler, US Power Cord, Serial, USB Interfaces

Color:

Black

PrintHead Type:

Direct Thermal

Included:

Peeler

Accessories:

Power Supply

Interface:

USB/Serial

$878.00

ZT23043-T01200FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, ZPL Only, US Power Cord, Serial, USB, Ethernet Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$1199.45

ZT23042-D01200FZ

ZT230 Barcode Printer, Black with Direct Thermal Printing, 203 dpi, Tear Bar, ZPL only, Serial, USB, Ethernet Interfaces

Color:

Black/Silver

PrintHead Type:

Direct Thermal

Included:

Tear Bar

Interface:

USB/Serial/Ethernet

$868.32

ZT23042-T21200FZ

ZT230 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 203 dpi, Autocutter and Tray, Serial, USB, Ethernet Interfaces

Included:

Autocutter and Tray

Color:

Black/Silver

PrintHead Type:

Direct Thermal and Thermal Transfer

Interface:

USB/Serial/Ethernet

$1226.67

ZT22043-T01100FZ

ZT220 Barcode Printer, Black with Direct Thermal/Thermal Transfer Printing, 300 dpi, Tear Bar, US Power Cord, Serial, Parallel, USB Interfaces

Color:

Black

PrintHead Type:

Direct Thermal and Thermal Transfer

Accessories:

Power Supply

Included:

Tear Bar

Interface:

USB/Serial/Parallel

$1087.35

Shop ZT200 Accessories

P1037974-010

ZT200, Kit Printhead 203 dpi

$682.21
