Zebra ZQ630
Description
Specifications
Download

Zebra ZQ630

Images may not reflect the actual product

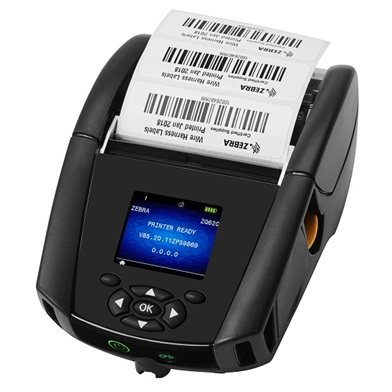

Product Image
small product image0

Premium mobile label and receipt printers for maximum productivity

The Zebra ZQ630 Plus brings premium 4-inch mobile label and receipt printing to high-volume retail, warehouse, manufacturing and transportation workflows. Its large color display, center-loading media path and wide print width support printing from a cart, on the move or from an optional vehicle or forklift mount.

Wi-Fi 6, 802.11r fast roaming, instant wake-up, rugged construction and advanced battery management help keep work moving throughout the shift. Linered, linerless and UHF RFID configurations support specialized media and identification workflows.

Key Specifications

  • Print method: Direct thermal
  • Resolution: 203 dpi (8 dots/mm)
  • Maximum print width: 4.1 in./104 mm
  • Print speed: Up to 4.5 in./115 mm per second
  • Media handling: Die-cut labels and tags, linerless labels, receipt paper, black-mark/gap media and RFID media on the RFID option; no ribbon required
  • Connectivity: USB 2.0, RS-232 and NFC; Bluetooth-only or dual-radio Wi-Fi plus Bluetooth configurations
  • Battery / power: 6600 mAh, 47.5 Wh removable PowerPrecision+ battery with built-in charger
  • Durability / environmental sealing: IP54 and multiple 6 ft./1.83 m drops to concrete
  • Dimensions and weight: 7.35 x 6.5 x 3.25 in.; 2.45 lb with battery
  • Warranty: One year

In the Box

  • ZQ630 Plus printer, per selected configuration
  • 6600 mAh PowerPrecision+ battery pack
  • Belt clip

Configuration note: AC power adapter, line cord, charging cradle, interface cables, forklift mount and separate battery chargers are sold separately unless explicitly listed with the selected option.

Premium Features for Maximum Productivity

Wi-Fi 6, WPA3 security and 802.11r fast roaming help maintain fast, dependable wireless connections, while instant wake-up over Wi-Fi or Bluetooth keeps printing responsive. A large color display and familiar Link-OS menu make status, configuration and daily operation easy to understand.

Business Tough for All-Day Use

Over-molding, a tempered-glass display and a seamless one-piece design help the lightweight ZQ630 Plus withstand demanding enterprise work. Its high-capacity PowerPrecision+ battery and Power Smart Print Technology manage power efficiently through long shifts.

An Advanced Platform that Grows with Your Business

Link-OS and Zebra DNA for Printers bring setup, management, security and development tools together on one platform. Robust memory supports fonts, graphics, firmware updates and new capabilities, while compatibility with many QLn accessories can simplify upgrades.

Maximum Uptime with Remote Management

Zebra Setup Utilities, Printer Profile Manager Enterprise, MDM integration, Printhead Diagnostics and PrintSecure help IT configure, monitor, troubleshoot and protect deployed printers. For the complete current technical reference, see Zebra's ZQ6 Series specification sheet.

Print Method
Direct thermal
Standard Features
Direct thermal barcode, text and graphics printing; black-mark and gap sensing; peel-and-present mode; label-present sensor; tear bar; center-loading media lock; clamshell loading; 288 x 240 color display; 5-way navigation; printer alerts; 400 MHz 32-bit ARM processor; XML, NFC pairing/help, label odometer and NTP support
Dimensions
ZQ630 Plus: 7.35 in. L x 6.5 in. W x 3.25 in. H (186.7 x 165.1 x 82.5 mm)
Weight with Battery
ZQ630 Plus: 2.45 lb/1.1 kg
Operating System
Link-OS
Resolution
203 dpi/8 dots per mm
Memory
256 MB RAM; 512 MB Flash standard
Maximum Print Width
ZQ630 Plus: 4.1 in./104 mm
Maximum Print Speed
Up to 4.5 in./115 mm per second
Media Sensors
Black-mark and gap sensing with fixed center-position sensors; label-present sensor for issuing batch labels one at a time
Minimum Print Length
0.5 in./12.7 mm
Maximum Print Length
32 in./813 mm
Power
6600 mAh nominal, 47.5 Wh removable and rechargeable PowerPrecision+ Li-Ion battery; built-in battery charger
Label and Liner Length
0.5 in./12.7 mm to 32 in./813 mm or continuous
Media Width
ZQ630 Plus: 2.0 to 4.4 in./51 to 112 mm linered; 2.0 to 4.1 in./51 to 104 mm linerless
Maximum Media Roll Size
ZQ630 Plus: 2.6 in./66 mm outside diameter on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
Media Thickness
2.3 mil to 5.5 mil tag stock or 6.5 mil label stock
Media Types
Die-cut labels and tags, linerless labels, receipt paper, RFID on the ZQ630 Plus RFID configuration, black-mark and gap media
Operating Temperature
-4°F to 122°F/-20°C to 50°C
Operating Humidity
10% to 90% non-condensing
Storage / Transportation Temperature
-13°F to 149°F/-25°C to 65°C
Storage Humidity
10% to 90% non-condensing
Agency Approvals
Emissions: FCC Part 15 Subpart B, EN55022 Class B, EN60950, EN55024 and VCCI Class B; susceptibility: EN55024 and EN61000-4-2/-3/-4/-5; safety: CE, TUV and CSA; ENERGY STAR certified
Security
FIPS support is available as a printer operating-system download; wireless configurations support enterprise authentication and encryption appropriate to the selected radio
Programming Languages
CPCL, EPL and ZPL; ZBI 2.0 supports standalone applications and peripheral connections
Barcode Ratios
1.5:1, 2:1, 2.5:1, 3:1 and 3.5:1
Linear Barcodes
Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2- and 5-digit add-ons, EAN-8 and EAN-13
2D Barcodes
PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar (RSS), Aztec, MSI/Plessey, FIM Postnet, Data Matrix and TLC39
Standard Fonts
25 bitmapped fonts and one smooth scalable CG Triumvirate Bold Condensed font
Optional Fonts
Downloadable bitmapped and scalable fonts
International Character Sets
Optional Chinese traditional/simplified, Japanese, Korean, Thai and Vietnamese
Wireless Connectivity
Wi-Fi 6 (802.11ax) dual radio with Bluetooth 5.3 is available; Wi-Fi 5 (802.11ac) with Bluetooth 4.2 is also available. Exact radio generation depends on the selected item number.
Bluetooth
Bluetooth 4.2 Classic and BLE radio with security modes 1–4, Made for iPod/iPhone/iPad certification and key bonding; newer dual-radio configurations support Bluetooth 5.3
Ethernet
10/100 Ethernet supported through an optional charging cradle
USB
USB 2.0 full-speed interface (12 Mbps), Mini-B connector with optional strain relief
Serial
14-pin RS-232C port for host communication up to 115.2 Kbps
User Interface
288 x 240 pixel color display, customizable WML text/icons, 5-way navigation and two software-defined keys
Zebra DNA for Printers
Zebra DNA for Printers provides built-in applications, utilities and tools for setup, security, management and lifecycle operation
RFID Capability
Available only on the separate ZQ630 Plus RFID configuration; the exposed ZQ63-RUWA004-00 option prints and encodes RFID media
In the Box
ZQ630 Plus printer, battery pack and belt clip, per the selected configuration
Warranty
One year from the date of shipment against defects in workmanship and materials, subject to Zebra warranty terms
Recommended Services
Zebra OneCare Essential and Select services offer technical support, comprehensive coverage, advance replacement and software updates; availability varies by region
Print Direction
Vertical and horizontal printing; the printer may be used in any orientation
ZQ610/ZQ620/ZQ630 Plus User Guide
Download
ZQ630 Plus Mobile Printer Accessory Guide
Download
ZQ630/ZQ630R Plus Quick Start Guide
Download

Shop ZQ630 Models

ZQ63-AUFA004-00

ZQ630 Plus Mobile Printer. 4" Width. English fonts, BT 4.x, Linered platen, 0.75" core, Belt clip

Core Size:

0.75 in.

Connectivity:

Bluetooth

Platen Type:

Linered

RFID:

Not Included

$1033.45

ZQ63-AUW2004-00

ZQ630 Plus Mobile Printer. 4" Width. English fonts, Dual 802.11AC / BT4.x, Linerless platen, 0.75" core, Belt clip

Core Size:

0.75 in.

Platen Type:

Linerless

RFID:

Not Included

Connectivity:

Wi-Fi + Bluetooth

$1208.03

ZQ63-AUWA004-00

ZQ630 Plus Mobile Printer. 4" Width. English fonts, Dual 802.11AC / BT4.x, Linered platen, 0.75" core, Belt clip

Core Size:

0.75 in.

Platen Type:

Linered

RFID:

Not Included

Connectivity:

Wi-Fi + Bluetooth

$1167.87

ZQ63-AUWB004-00

ZQ630 Plus Mobile Printer. 4" Width. English fonts, Dual 802.11AC / BT4.x, Linerless platen, 1.375" core, Belt clip

Core Size:

1.375 in.

Platen Type:

Linerless

RFID:

Not Included

Connectivity:

Wi-Fi + Bluetooth

$1208.03

ZQ63-RUWA004-00

ZQ630 Plus Mobile Printer. 4" Width. RFID; English fonts, Dual 802.11AC / BT4.x, Linered platen, 0.75" core, Belt clip

Core Size:

0.75 in.

Platen Type:

Linered

RFID:

RFID Encoder

Connectivity:

Wi-Fi + Bluetooth

$2062.55

ZQ63-AUFB004-00

ZQ630 Plus Mobile Printer. 4" Width. English fonts, BT 4.x, Linerless platen, 1.375" core, Belt clip

Core Size:

1.375 in.

Connectivity:

Bluetooth

Platen Type:

Linerless

RFID:

Not Included

$1073.60

Shop ZQ630 Accessories

MNT-MPP-CRTMNT1-01

ZQ630/QLn420 Mobile Cart Mount Attachment

$62.27

KIT-MPP-PRZQ631-01

Kit, Linered Platen Roller for ZQ630

$62.08

P1104702-030

Kit, Linerless Scraper ZQ630 (Qty 10)

$78.89

KIT-MPP-LPZQ631-01

Kit, Linerless Platen Roller for ZQ630

$220.67

SG-MPP-Q4HLSTR1-01

Holster, Waist, QLn420,ZQ630

$125.15

BTRY-MPP-68MA1-01

Spare 6600 mAh battery for Zebra ZQ630 mobile printers

$231.68

Z1AE-ZQ6X-3C0

3-Year Comprehensive Coverage for Zebra ZQ600 Mobile Printers. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.

$265.51

P1031365-024

Zebra Mobile Printer AC Adapter Kit. Compatible with ZQ510, ZQ511, ZQ520, ZQ521, ZQ610, ZQ620, ZQ630, ZQLn220, QLn320 and QLn420 Mobile Printers. Printer Not Included.

$96.68

SAC-MPP-1BCHGUS1-01

1 slot battery charger for ZQ600, QLn and ZQ500 Series and US power cord

$181.75

SAC-MPP-6BCHUS1-01

Two 3 slot battery chargers (charges 6 batteries) with power supply and Y cable; ZQ600, QLn or ZQ500. US power cord included

$796.61

P1050667-142

Kit, Accessory, Power Adapter for Mobile Battery Eliminator, 12~48V, open ended, New Resistor

$190.78

P1063406-133

Kit, Accessory Power Adapter for Mobile Battery Eliminator, 12~48V, Cigarette Lighter, New Resistor

$190.78

P1031359

QLN220, KIT, ACC, CHARGER, LIGHTER PLUG, VEHICLE ADAPTOR MOBILE

$64.46

AK18913-003

Cable, Li-Ion DC/DC 15 - 60 VDC adapter (for use with forklifts)

$122.47

P1063406-030

ZQ500, QLN, KIT, Acc DC-DC vehicle adapter, open ended, 12~24V,

$63.17

P1063406-031

ZQ500, KIT, Acc DC-DC vehicle adapter, CIG, 12~24V

$63.17

AT17010-1

USB Interface Cable, 1 meter

$30.93

P1050667-018

QLN420-EC, Kit ACC AC Adapter US (type A) CORD

$305.50

P1050667-026

QLN420-VC, KIT ACC 15V 60V to 12V

$501.43

P1031365-192

Kit Accessory QLn/ZQ6 Series Shoulder Strap

$24.49

P1031365-027

QLN420, QLN320N, QL220N, KIT ACC QLn HAND STRAP

$37.39

P1031365-028

QLN420, QLN320N, QL220N, KIT ACC QLn BELT CLIP REPLACEMENT (20)

$51.55

P1050667-017

QLN420, KIT ACC SOFT CASE (Includes Shoulder Strap)

$217.86

P1050667-034

QLN420, KIT ACC ASSY HARD CASE W/METAL BELT CLIP

$122.47

P1050667-041

QLN420, KIT ACC BATTERY ELIMINATOR NO ADAPTER

$229.44

P1031365-056

KIT ACC QLn/ZQ6/ZQ6 Plus Serial Cable (with strain relief) RJ45 to Telzon Adapter

$45.06

P1063997-001

KIT ACC CABLE ACCY, 14PIN CONN14PIN CONN

$73.48

P1031365-060

QLN, KIT ACC 11 PIN Serial Cable (with strain relief) to MC3000

$106.38

P1031365-052

QLN, KIT ACC Serial Cable (with strain relief) QL Adapter (female DIN)

$33.52

P1031365-053

QLN, KIT ACC Serial Cable, 6' (with strain relief) PC-DB9

$51.55

P1031365-054

QLN, KIT ACC Serial Cable (with strain relief) to MC9000

$51.55

P1031365-055

QLN, KIT ACC QLn PC-USB Cable, 6' (with strain relief)

$30.93

P1031365-062

QLN, KIT ACC Serial Cable (with strain relief) to RJ45

$46.41

P1031365-057

QLN, KIT ACC QLn Serial Cable (with strain relief) to LS2208 Scanner

$46.41

P1031365-058

QLN, KIT ACC 16 PIN Serial Cable (with strain relief) to MC3000

$109.57

P1050667-140

Kit, Accessory, QLn420 Battery Eliminator With Power Adaptor, New Resistor

$331.28

AN16618-1

Cable, KIT,ACC MNT HWR W/FANFOLD BIN

$88.95

P1010338

P4T, RP4T, Vehicle Cradle RAM Mount Kit

$126.33

P1050667-032

QLN420, KIT ACC Handi-Mount (compact, flexible RAM arm) with Base Plate

$381.55

P1050667-033

QLN420, KIT ACC Handi-Mount (compact, flexible RAM arm) without Base Plate

$286.16

P1050667-035

QLN420, KIT ACC Mobile Mount for Forklifts (with U-arm bracket and fanfold bin)

$603.25

P1050667-037

QLN420, KIT ACC MOBILE MOUNT PLATE

$127.62

P1050667-038

QLN420, KIT ACC DESKTOP STAND

$64.46

P1050667-061

Kit, variable width spacer for use with fanfold media

$60.68
