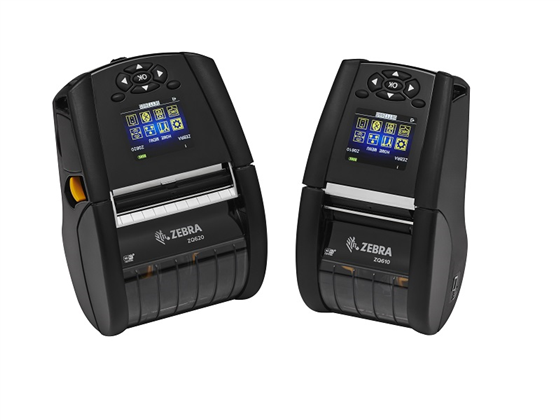

Zebra ZQ610/ZQ620

Name: Zebra ZQ610/ZQ620
Brand: Zebra
Price: 511.33 USD
Availability: InStock

Images may not reflect the actual product

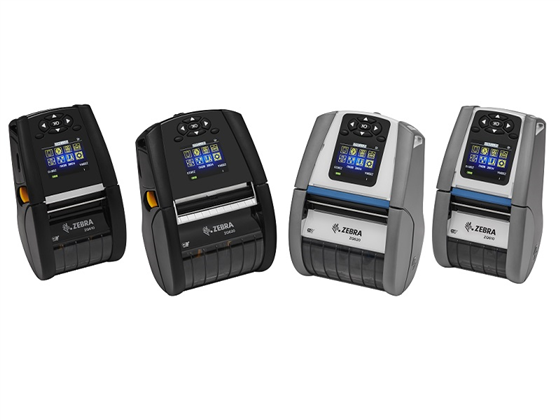

Premium mobile label and receipt printers for maximum productivity

The Zebra ZQ610 and ZQ620 family brings premium mobile label and receipt printing to retail, warehouse, manufacturing, transportation and field workflows. Choose the compact 2-inch ZQ610 or 3-inch ZQ620 to match the required print width and media capacity.

Configurations are available with linered or linerless media paths and Bluetooth-only or Wi-Fi plus Bluetooth radios. Select the print width, connectivity and package that fit the application.

Key Specifications

Print method: Direct thermal
Resolution: 203 dpi (8 dots/mm)
Maximum print width: ZQ610: 1.9 in./48 mm; ZQ620: 2.8 in./72 mm
Print speed: Up to 4.5 in./115 mm per second
Media handling: Die-cut labels and tags, linerless labels, receipt paper and black-mark/gap media; 0.75-inch or 1.375-inch core as selected; no ribbon required
Connectivity: USB and Bluetooth standard; Wi-Fi plus Bluetooth configurations available as selected
Battery / power: Current Plus configurations support a 6600 mAh removable PowerPrecision+ battery and built-in charging; package varies by selected option
Durability / environmental sealing: Current Plus configurations provide IP54 sealing and multiple 6 ft./1.83 m drops to concrete
Dimensions and weight: ZQ610: 6.5 x 3.5 x 2.75 in., 1.33 lb with battery; ZQ620: 6.8 x 4.6 x 3.3 in., 1.6 lb with battery
Warranty: Two years

In the Box

ZQ610 or ZQ620 printer, per selected configuration
Belt clip only where identified with the selected option
Battery only where the selected option explicitly includes one

Configuration note: AC adapter, line cord, charging cradle, interface cables, spare battery, separate battery charger, media and carrying or mounting accessories are sold separately unless explicitly listed with the selected option.

Premium Features for Maximum Productivity

Current Plus Wi-Fi configurations take advantage of Wi-Fi 6, WPA3 security and 802.11r fast roaming, while instant wake-up over Wi-Fi or Bluetooth helps keep printing responsive. A large color display and familiar Link-OS menu make status, configuration and daily operation easy to understand.

Business Tough for All-Day Use

Over-molding, a tempered-glass display and a seamless one-piece design help the lightweight ZQ6 Series withstand demanding enterprise work. A high-capacity PowerPrecision+ battery and Power Smart Print Technology manage power efficiently through long shifts.

An Advanced Platform that Grows with Your Business

Link-OS and Zebra DNA for Printers bring setup, management, security and development tools together on one platform. Robust memory supports fonts, graphics, firmware updates and new capabilities, while compatibility with many QLn accessories can simplify upgrades.

Maximum Uptime with Remote Management

Zebra Setup Utilities, Printer Profile Manager Enterprise, MDM integration, Printhead Diagnostics and PrintSecure help IT configure, monitor, troubleshoot and protect deployed printers. For the complete current technical reference, see Zebra's ZQ6 Series specification sheet.

Resolution

203 dpi/8 dots per mm

Max Print Width

ZQ610: 1.9 in./48 mm

ZQ620: 2.8 in./72 mm

Max Print Speed

Up to 4.5 in./115 mm per second

Max Print Length

32 in./813 mm

Sensors

Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

Dimensions (L x W x H)

ZQ610: 6.5 in. L x 3.5 in. W x 2.75 in. H (165 mm L x 89 mm L x 70 mm H)

ZQ620: 6.8 in. L x 4.6 in. W x 3.3 in. H (173 mm L x 117 mm W x 84 mm H)

Weight (w/Battery)

ZQ610: 1.33 lbs/0.6 kg

ZQ620: 1.6 lbs/0.73 kg

Max Paper Width

ZQ610: 1.0 in./25 mm to 2.18 in./55.4 mm

ZQ620: 1.0 in./25 mm to 3.125 in./79 mm

Max Roll Size

ZQ610: 2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

ZQ620: 2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

Max Paper Thickness

2.3 mil to 5.5 mil tag stock or 6.5 mil label stock

Media Type

Die-cut labels and tags, linerless labels, receipt paper, black bar and gap sensing

Operating Temperature

-4°F to 122°F/-20°C to 50°C

Storage Temperature

-13°F to 149°F/-25°C to 65°C

Supported Operating Systems

Android, Apple iOS, Windows, and Linux application support through Zebra software and SDKs

Interface Options

USB and Bluetooth standard; Wi-Fi/Bluetooth configurations available as selected

Warranty

2-year factory warranty

Print Method

Direct thermal

Print Resolution

203 dpi / 8 dots per mm

Print Speed

Up to 4.5 in. / 115 mm per second

Programming Languages

CPCL, EPL and ZPL II

Memory

256 MB RAM; 512 MB Flash

Battery

6600 mAh removable PowerPrecision+ Li-Ion battery

Charging

Built-in battery charger; compatible single-bay and multi-bay charging accessories available separately

Wireless Connectivity

Bluetooth 5.x; 802.11ax Wi-Fi 6 configurations available as selected

Security

WPA3 security support on current Wi-Fi configurations

Ruggedness

IP54 sealing; designed to withstand multiple 6 ft. / 1.83 m drops to concrete

Display

Large color display with intuitive navigation

Media Width

ZQ610: 1.0–2.18 in. / 25–55.4 mm; ZQ620: 1.0–3.125 in. / 25–79 mm

Media Roll Diameter

ZQ610: 2.2 in. / 55.9 mm; ZQ620: 2.6 in. / 66 mm

Media Core

0.75 in. / 19 mm or 1.375 in. / 34.9 mm, as selected

Operating Humidity

10% to 90% non-condensing

Storage Humidity

10% to 90% non-condensing

Agency Approvals

Energy Star and applicable regional radio/safety approvals; see current Zebra documentation

Included Software

Zebra Print DNA software tools and Zebra Setup Utilities support

Fonts and Graphics

Scalable and bitmap font support; downloadable fonts and graphics

Service

Zebra OneCare service plans available separately

CPU

32-bit ARM processor

User Interface

Color display, navigation controls and status indicators

Media Sensing

Fixed center-position black-mark and gap sensing; label-present sensor for batch labels

Linerless Media

Linerless configurations available as selected

Healthcare Configuration

Healthcare-ready configurations available as selected

Mounting and Carrying

Belt clip included only where named; mounting and carrying accessories sold separately

Country of Origin

See individual selected configuration and current Zebra documentation

Shop ZQ610/ZQ620 Models

ZQ62-AUWB004-00

ZQ620 Plus 3" Mobile Printer, WiFi & Bluetooth, Linerless Platen, 1.375" Core, Belt Clip

Core Size:

1.375"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linerless Platen

$1154.78

ZQ61-AUFA000-00

ZQ610 2" Mobile Printer, BT, Linered Platen, .75" Core, Belt Clip

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$511.33

ZQ62-AUXA004-GA

ZQ620 Plus 3" Mobile Printer, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered Platen, 0.75" Core, Belt Clip, TAA

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1114.63

ZQ61-HUXA0D4-00

DT Printer ZQ610 Plus 2 /48mm Healthcare; English/Latin fonts, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered platen, 0.75 core, Group 0, Belt clip, No Battery Pack

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1047.57

ZQ61-AUX2004-00

ZQ610 Plus 2" Mobile Printer, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linerless Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linerless Platen

$1165.25

ZQ61-AUXA004-00

ZQ610 Plus 2" Mobile Printer, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1036.94

ZQ61-HUXA004-00

ZQ610 Plus 2" Mobile Printer Healthcare, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1072.73

ZQ62-AUXA004-00

ZQ620 Plus 3" Mobile Printer, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1114.63

ZQ62-AUXA0B4-00

ZQ620 Plus 3" Mobile Printer, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1187.08

ZQ62-HUXA004-00

ZQ620 Plus 3" Mobile Printer Healthcare, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1191.44

ZQ61-AUF2004-00

ZQ610 Plus 2" Mobile Printer, Bluetooth 4.x, Linerless Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linerless Platen

$942.68

ZQ61-AUFA004-00

ZQ610 Plus 2" Mobile Printer, Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$901.66

ZQ61-AUFB004-00

ZQ610 Plus 2" Mobile Printer, Bluetooth 4.x, Linerless Platen, 1.375" Core, Belt Clip

Core Size:

1.375"

Radio:

Bluetooth

Platen Type:

Linerless Platen

$941.81

ZQ61-AUWA004-00

ZQ610 Plus 2" Mobile Printer, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1036.94

ZQ61-AUWB004-00

ZQ610 Plus 2" Mobile Printer, Wi-Fi (802.11AC) / Bluetooth 4.x, Linerless Platen, 1.375" Core, Belt Clip

Core Size:

1.375"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linerless Platen

$1077.97

ZQ61-HUFA004-00

ZQ610 Plus 2" Mobile Printer Healthcare, Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$938.32

ZQ61-HUFA0D4-00

ZQ610 Plus 2" Mobile Printer Healthcare, Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip, No Battery Pack

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$853.88

ZQ61-HUWA004-00

ZQ610 Plus 2" Mobile Printer Healthcare, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1072.73

ZQ62-AUFA004-00

ZQ620 Plus 3" Mobile Printer, Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$978.46

ZQ62-AUFA0B4-00

ZQ620 Plus 3" Mobile Printer, Bluetooth 4.x, Linered Platen, 0.75" Core, Extended Battery

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$1050.91

ZQ62-AUWA004-00

ZQ620 Plus 3" Mobile Printer, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1114.63

ZQ62-AUWA0B4-00

ZQ620 Plus 3" Mobile Printer, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Extended Battery

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1187.08

ZQ62-HUFA004-00

ZQ620 Plus 3" Mobile Printer Healthcare, Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$1055.27

ZQ62-HUFA0D4-00

ZQ620 Plus 3" Mobile Printer Healthcare, Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip, No Battery Pack

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$964.43

ZQ62-HUWA004-00

ZQ620 Plus 3" Mobile Printer Healthcare, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1191.44

ZQ62-HUWA0D4-00

ZQ620 Plus 3" Mobile Printer Healthcare, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip, No Battery Pack

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$1156.53

ZQ61-HUFA0D0-00

ZQ610 2" Mobile Printer Healthcare, Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip, No Battery Pack

Core Size:

0.75"

Radio:

Bluetooth

Platen Type:

Linered Platen

$555.02

ZQ61-HUWA0D0-00

ZQ610 2" Mobile Printer Healthcare, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip, No Battery Pack

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$686.65

ZQ62-HUWA000-00

ZQ620 Plus 3" Mobile Printer Healthcare, Wi-Fi (802.11AC) / Bluetooth 4.x, Linered Platen, 0.75" Core, Belt Clip

Core Size:

0.75"

Radio:

Dual BT/Wi-Fi

Platen Type:

Linered Platen

$731.99

Shop ZQ610/ZQ620 Accessories

BTRY-MPP-34MA1-01

Spare smart battery for Zebra ZQ511, ZQ521, ZQ610 and ZQ620 mobile printers (ground shipping required)

$163.45

SAC-MPP-1BCHGUS1-01

1 slot battery charger for ZQ600, QLn and ZQ500 Series and US power cord

$181.75

Z1AE-ZQ6X-3C0

3-Year Comprehensive Coverage for Zebra ZQ600 Mobile Printers. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.

$265.51

P1031365-024

Zebra Mobile Printer AC Adapter Kit. Compatible with ZQ510, ZQ511, ZQ520, ZQ521, ZQ610, ZQ620, ZQ630, ZQLn220, QLn320 and QLn420 Mobile Printers. Printer Not Included.

$96.68

BTRY-MPP-EXT1-01

Extended 6500 mAh smart battery for Zebra ZQ511, ZQ521, ZQ610 and ZQ620 mobile printers

$245.89

SAC-MPP-6BCHUS1-01

Two 3 slot battery chargers (charges 6 batteries) with power supply and Y cable; ZQ600, QLn or ZQ500. US power cord included

$796.61

P1063406-032

ZQ500, KIT, Acc Mobile Battery Eliminator, Dummy Battery Pack

$128.90

P1050667-142

Kit, Accessory, Power Adapter for Mobile Battery Eliminator, 12~48V, open ended, New Resistor

$190.78

P1063406-133

Kit, Accessory Power Adapter for Mobile Battery Eliminator, 12~48V, Cigarette Lighter, New Resistor

$190.78

CHG-MPP-BEPSAC1-2

KIT, AC Power Supply, Mobile Battery Eliminator, Dummy Battery Pack

$255.94

CHG-MPP-BEPSAC2-01

KIT, AC Power Eliminator Cable Reversed

$246.10

46693

PWRCORD 79IN DTCHBL

$20.31

P1031359

QLN220, KIT, ACC, CHARGER, LIGHTER PLUG, VEHICLE ADAPTOR MOBILE

$64.46

AK18913-003

Cable, Li-Ion DC/DC 15 - 60 VDC adapter (for use with forklifts)

$122.47

P1063406-030

ZQ500, QLN, KIT, Acc DC-DC vehicle adapter, open ended, 12~24V,

$63.17

P1063406-031

ZQ500, KIT, Acc DC-DC vehicle adapter, CIG, 12~24V

$63.17

P1099875-059

Kit, Battery Charging, Cradle Cup; ZQ600/ZQ600 Plus, QLn and ZQ500 Series

$22.42

P1050667-038

QLN420, KIT ACC DESKTOP STAND

$64.46

P1031365-192

Kit Accessory QLn/ZQ6 Series Shoulder Strap

$24.49

P1031365-027

QLN420, QLN320N, QL220N, KIT ACC QLn HAND STRAP

$37.39

P1031365-028

QLN420, QLN320N, QL220N, KIT ACC QLn BELT CLIP REPLACEMENT (20)

$51.55

P1031365-053

QLN, KIT ACC Serial Cable, 6' (with strain relief) PC-DB9

$51.55

P1063997-001

KIT ACC CABLE ACCY, 14PIN CONN14PIN CONN

$73.48

P1031365-052

QLN, KIT ACC Serial Cable (with strain relief) QL Adapter (female DIN)

$33.52

P1031365-054

QLN, KIT ACC Serial Cable (with strain relief) to MC9000

$51.55

P1031365-055

QLN, KIT ACC QLn PC-USB Cable, 6' (with strain relief)

$30.93

AT17010-1

USB Interface Cable, 1 meter

$30.93

P1031365-056

KIT ACC QLn/ZQ6/ZQ6 Plus Serial Cable (with strain relief) RJ45 to Telzon Adapter

$45.06

P1031365-057

QLN, KIT ACC QLn Serial Cable (with strain relief) to LS2208 Scanner

$46.41

P1031365-058

QLN, KIT ACC 16 PIN Serial Cable (with strain relief) to MC3000

$109.57

P1031365-060

QLN, KIT ACC 11 PIN Serial Cable (with strain relief) to MC3000

$106.38

P1031365-062

QLN, KIT ACC Serial Cable (with strain relief) to RJ45

$46.41

P1031365-033

QLN320, EC, KIT ACC Adapter US (type A) Cord

$305.50

P1031365-045

QLN, EC4, KIT ACC AC ADAPTER US CORD

$824.96

P1031365-029

QLN320, KIT ACC SOFT CASE (Includes Shoulder Strap)

$159.84

P1031365-044

QLN220, KIT ACC SOFT CASE (Includes Shoulder Strap)

$197.22

P1031365-050

EC4, KIT ACC WALL MOUNT

$51.55

Have Questions?Call Us at: (800) 241-6264
