Zebra ZQ511/ZQ521
Rugged mobile printing for demanding indoor and outdoor work

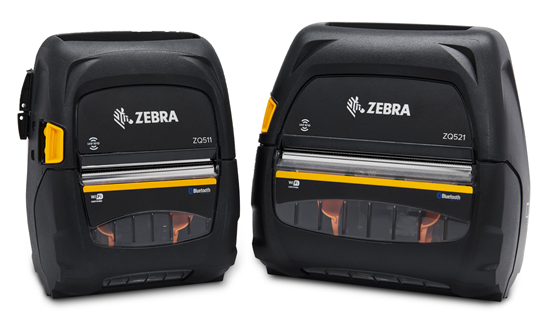

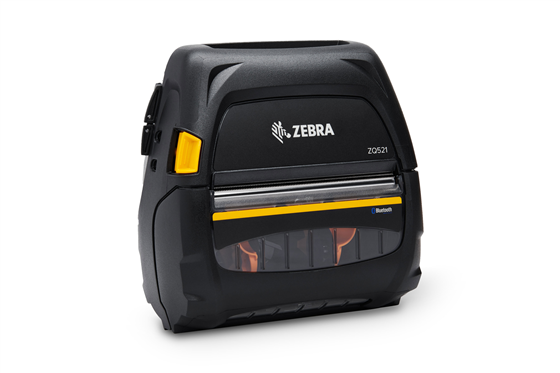

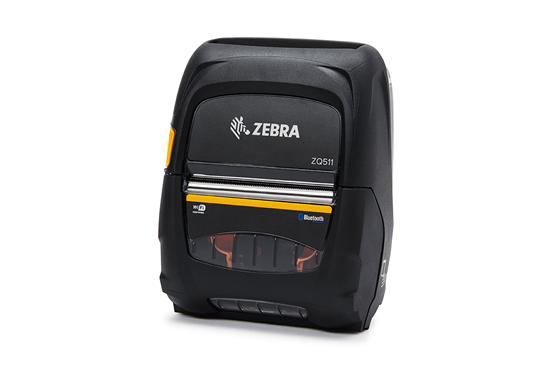

Zebra ZQ511 and ZQ521 mobile printers bring durable, on-demand receipt and label printing to field service, transportation, warehouse and retail workflows. The 3-inch ZQ511 and 4-inch ZQ521 combine direct thermal printing, simple media loading and USB On-The-Go with Bluetooth-only or dual-radio Wi-Fi and Bluetooth configurations.
MIL-STD 810G drop and shock certification, IP54 sealing and tumble testing help these printers keep working through drops, dust, moisture and temperature extremes. Optional linerless, extended-battery and RFID configurations support specialized mobile applications without changing the compact ZQ500 Series operating experience.
Key Specifications
- Print method: Direct thermal
- Resolution: 203 dpi (8 dots/mm)
- Maximum print width: ZQ511: 2.83 in./72 mm; ZQ521: 4.09 in./104 mm
- Print speed: Up to 5 in./127 mm per second with Draft Mode enabled
- Media handling: Receipts, gap/black-mark labels, tags, linerless and RFID media; no ribbon required
- Connectivity: USB 2.0 On-The-Go; Bluetooth-only or dual-radio 802.11ac Wi-Fi plus Bluetooth configurations
- Battery / power: 3250 mAh removable PowerPrecision+ battery; optional 6500 mAh extended battery
- Durability / environmental sealing: IP54, MIL-STD 810G, 6.6 ft./2 m drop tolerance and 1,300 tumbles from 3.3 ft./1 m
- Dimensions and weight: ZQ511: 5.9 x 4.7 x 2.4 in., 1.39 lb; ZQ521: 6.2 x 6.1 x 2.6 in., 1.73 lb with standard battery
- Warranty: Two years; batteries one year and printheads six months

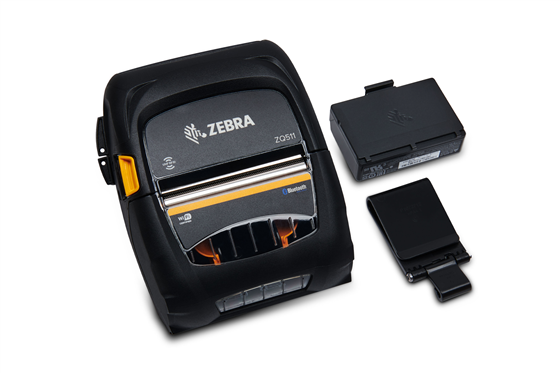

In the Box
- ZQ511 or ZQ521 printer, per selected model
- Quick start guide and regulatory guide
- Safety guide
- Belt clip
- Battery on standard- and extended-battery configurations
Configuration note: Printer-only options omit the battery. AC adapter, USB charging cable, charging cradle and separate battery chargers are sold separately unless the selected option explicitly includes them.
Print It All: Receipts, Labels, RFID Tags and Linerless
Print receipts, labels and tags in 3-inch or 4-inch widths. Linerless configurations work with Zebra ZeroLiner media to reduce backing waste and fit more labels on a roll. Separate ZQ511 RFID and ZQ521 RFID configurations print and encode UHF RFID labels on the go.
Tough. Reliable. Built to Endure.
Over-molding, IP54 sealing and the rugged ZQ500 Series chassis help protect the printer without a case. For harsher work, the optional exoskeleton raises the tested drop height to 10 ft./3 m and the environmental rating to IP65.
On-the-Go Power and Performance
Power Smart Print Technology manages energy for consistent output, while temperature compensation supports sharp printing in hot and cold conditions. The removable 3250 mAh PowerPrecision+ battery supports long shifts, and a 6500 mAh extended battery is available for higher-volume work.
Easy to Operate and Manage

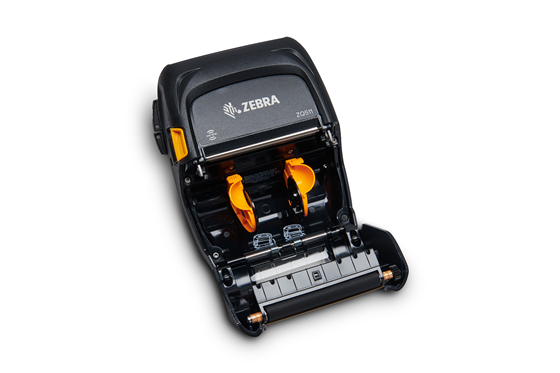

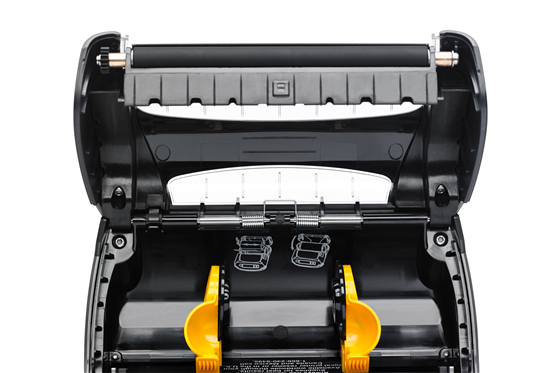

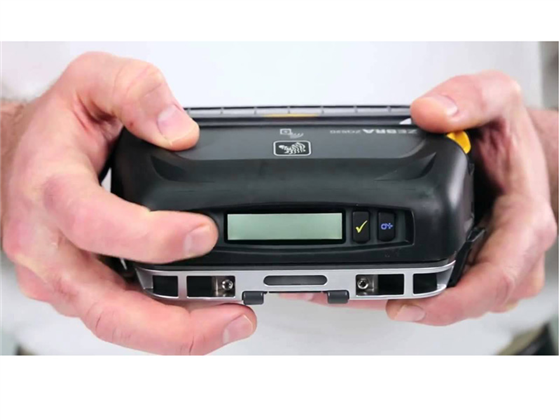

Large buttons, a simple LCD, clamshell media loading and center-loading media guides make everyday operation straightforward, including for gloved users. Zebra DNA for Printers supports setup, integration, security and remote management across deployed printers.
Supplies, Service and Support
Zebra Certified Supplies are designed to protect print quality and printhead life. Zebra OneCare plans add repair coverage and service options beyond the standard warranty for organizations that need predictable uptime.
Make the Job Easier with Accessories
Choose the charging and mounting path that matches the deployment: in-printer AC charging, spare-battery chargers, vehicle cradles, vehicle power, multi-printer power stations, protective exoskeletons and carrying accessories are available. Verify the complete power chain and US line cord for the selected charger or cradle.
Shop ZQ511/ZQ521 Models
ZQ51-BUE0000-00
ZQ511 3" Mobile Printer, Bluetooth Radio, Linered Platen, Standard Battery Included
Print Width:
2.83 in.
Radio:
Bluetooth
Platen Type:
Linered
RFID:
Not Included
Battery:
Standard Battery
ZQ51-BUE1000-00
ZQ511 3" Mobile Printer, Bluetooth Radio, Linerless Platen, Standard Battery Included
Print Width:
2.83 in.
Radio:
Bluetooth
Platen Type:
Linerless
RFID:
Not Included
Battery:
Standard Battery
ZQ51-BUW0000-00
ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Standard Battery Included
Print Width:
2.83 in.
Platen Type:
Linered
RFID:
Not Included
Battery:
Standard Battery
Radio:
Wi-Fi + Bluetooth
ZQ51-BUW1000-00
ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, Linerless Platen, Standard Battery Included
Print Width:
2.83 in.
Platen Type:
Linerless
RFID:
Not Included
Battery:
Standard Battery
Radio:
Wi-Fi + Bluetooth
ZQ52-BUW0010-00
ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Order Battery Separately.
Print Width:
4.09 in.
Platen Type:
Linered
Battery:
Not Included
RFID:
Not Included
Radio:
Wi-Fi + Bluetooth
ZQ52-BUW0000-00
ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Standard Battery Included.
Print Width:
4.09 in.
Platen Type:
Linered
RFID:
Not Included
Battery:
Standard Battery
Radio:
Wi-Fi + Bluetooth
ZQ52-BUW0300-00
ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, RFID Encoder, Linered Platen, Standard Battery Included.
Print Width:
4.09 in.
Platen Type:
Linered
RFID:
RFID Encoder
Battery:
Standard Battery
Radio:
Wi-Fi + Bluetooth
ZQ52-BUW0020-00
ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Extended Battery Included.
Print Width:
4.09 in.
Battery:
Extended Battery
Platen Type:
Linered
RFID:
Not Included
Radio:
Wi-Fi + Bluetooth
ZQ52-BUE1000-00
ZQ521 4" Mobile Printer, Bluetooth Radio, Linerless Platen, Standard Battery Included.
Print Width:
4.09 in.
Radio:
Bluetooth
Platen Type:
Linerless
RFID:
Not Included
Battery:
Standard Battery
ZQ52-BUE0010-00
ZQ521 4" Mobile Printer, Bluetooth Radio, Linered Platen, Order Battery Separately.
Print Width:
4.09 in.
Radio:
Bluetooth
Platen Type:
Linered
Battery:
Not Included
RFID:
Not Included
ZQ52-BUE0000-00
ZQ521 4" Mobile Printer, Bluetooth Radio, Linered Platen, Standard Battery Included.
Print Width:
4.09 in.
Radio:
Bluetooth
Platen Type:
Linered
RFID:
Not Included
Battery:
Standard Battery
ZQ51-BUW0300-00
ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, RFID Encoder, Linered Platen, Standard Battery Included
Print Width:
2.83 in.
Platen Type:
Linered
RFID:
RFID Encoder
Battery:
Standard Battery
Radio:
Wi-Fi + Bluetooth
ZQ52-BUW1000-00
ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linerless Platen, Standard Battery Included.
Print Width:
4.09 in.
Platen Type:
Linerless
RFID:
Not Included
Battery:
Standard Battery
Radio:
Wi-Fi + Bluetooth
ZQ51-BUW0010-00
ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Order Battery Separately.
Print Width:
2.83 in.
Platen Type:
Linered
Battery:
Not Included
RFID:
Not Included
Radio:
Wi-Fi + Bluetooth
ZQ51-BUE0010-00
ZQ511 3" Mobile Printer, Bluetooth Radio, Linered Platen, Order Battery Separately.
Print Width:
2.83 in.
Radio:
Bluetooth
Platen Type:
Linered
Battery:
Not Included
RFID:
Not Included
Shop ZQ511/ZQ521 Accessories
SAC-MPP-1BCHGUS1-01
1 slot battery charger for ZQ600, QLn and ZQ500 Series and US power cord
BTRY-MPP-34MA1-01
Spare smart battery for Zebra ZQ511, ZQ521, ZQ610 and ZQ620 mobile printers (ground shipping required)
Z1AE-ZQ5X1-3C0
3-Year Comprehensive Coverage for Zebra ZQ511/ZQ521 Mobile Printers. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.
P1031365-024
Zebra Mobile Printer AC Adapter Kit. Compatible with ZQ510, ZQ511, ZQ520, ZQ521, ZQ610, ZQ620, ZQ630, ZQLn220, QLn320 and QLn420 Mobile Printers. Printer Not Included.
BTRY-MPP-EXT1-01
Extended 6500 mAh smart battery for Zebra ZQ511, ZQ521, ZQ610 and ZQ620 mobile printers
P1099875-059
Kit, Battery Charging, Cradle Cup; ZQ600/ZQ600 Plus, QLn and ZQ500 Series
P1063406-061
ZQ500, KIT, Acc Battery Eliminator Cradle with USB lock,
P1063406-062
KIT, Acc Vehicle Cradle with USB lock, ZQ500 Series
SAC-MPP-6BCHUS1-01
Two 3 slot battery chargers (charges 6 batteries) with power supply and Y cable; ZQ600, QLn or ZQ500. US power cord included
P1031359
QLN220, KIT, ACC, CHARGER, LIGHTER PLUG, VEHICLE ADAPTOR MOBILE
P1063406-027
ZQ500, KIT, Acc 4-BAY Power Station, US (type A) Cord,
CHG-MPP-BEPSAC2-01
KIT, AC Power Eliminator Cable Reversed
P1063406-038
ZQ510, KIT, Acc Soft Case,
P1063406-043
ZQ510, KIT, Acc Exoskeleton Case with Shoulder Strap,
P1063406-044
ZQ520, KIT, Acc Exoskeleton Case with Shoulder Strap,
BT16899-1
QL220, QL320, QL420, QL and RW Series 8 Hand Strap
P1051921
QL, RW, P4T, ZQ510, ZQ520, KIT, ACC SHOULDER STRAP
P1063406-035
ZQ500, KIT, Acc Rugged Shoulder Strap with Metal Clips, 56 inch
P1063406-037
ZQ520, KIT, Acc Soft Case,
P1063406-039
ZQ510, KIT, Acc 2-roll Media Storage Case
P1063406-040
ZQ500, KIT, Acc Belt Clip, (Set of 5)
P1063406-041
ZQ500, KIT, Acc D-Ring Adapter Belt Attachment Strap,
P1050667-142
Kit, Accessory, Power Adapter for Mobile Battery Eliminator, 12~48V, open ended, New Resistor
P1063406-031
ZQ500, KIT, Acc DC-DC vehicle adapter, CIG, 12~24V
P1063406-133
Kit, Accessory Power Adapter for Mobile Battery Eliminator, 12~48V, Cigarette Lighter, New Resistor
VAM-MPP-VHCH1-01
ZQ500, ZQ600, QLN, TC7X Vehicle adapter; includes open ended and cigarette lighter adapter cables
AK18913-003
Cable, Li-Ion DC/DC 15 - 60 VDC adapter (for use with forklifts)
P1063406-030
ZQ500, QLN, KIT, Acc DC-DC vehicle adapter, open ended, 12~24V,
P1063406-049
ZQ500, KIT, Acc Type-A USB to Serial DB9 Cable,
P1063406-146
Kit, Accessory Micro,USB,B to USB,A,Plug, 3.5M, ZQ500 Series, w/20AWG Wires
P1063406-034
ZQ500, KIT, Acc Convert Cable, 6 inch,
P1063406-045
ZQ500, KIT, Acc Micro,USB,B, to,USB,A,Plug,1.8M,
P1063406-047
ZQ500, KIT, Acc Micro,USB,A to USB,A, Rec.
CHG-MPP-BEPSAC1-2
KIT, AC Power Supply, Mobile Battery Eliminator, Dummy Battery Pack
P1063406-032
ZQ500, KIT, Acc Mobile Battery Eliminator, Dummy Battery Pack
46693
PWRCORD 79IN DTCHBL
P1063406-026
ZQ500, KIT, Acc Swivel Lock Adapter,
P1063406-025
ZQ500, KIT, Acc Media Disk Support,12.5mm,(Set of 3)
AK17463-002
RW420, RAM MOUNT VEHICLE CRADLE
P1063406-042
ZQ500, KIT, Acc RAM Arm Mounting Plate,
KIT-MPP-MD2SPR3-01
Acc Kit, discs to support media with 3/8"(9.5mm) core in the ZQ500 series. Set of 3
