Zebra ZQ320 Plus
Compact 3-inch receipt and label printing for retail and field work
The Zebra ZQ320 Plus puts 3-inch direct thermal printing into a lightweight mobile design for receipts, linerless labels and selected linered label applications. Choose an indoor Wi-Fi and Bluetooth configuration for connected retail workflows or a scuff-resistant outdoor Bluetooth configuration for field service and delivery work.
IP54 sealing, a 5 ft./1.5 m drop specification and 500-drop tumble testing support work in wet, dusty and mobile environments. The 2280 mAh PowerPrecision+ battery, USB-C charging and simple clamshell media loading help keep daily operation straightforward.
Key Specifications
- Print method: Direct thermal
- Resolution: 203 dpi (8 dots/mm)
- Maximum print width: 2.83 in./72 mm
- Print speed: Up to 4 in./100 mm per second
- Media handling: 3.15 in./80 mm media; receipts and linerless labels, with limited linered-label support on the sensor-equipped indoor option; no ribbon required
- Connectivity: USB-C; Bluetooth-only or dual-radio 802.11ac Wi-Fi plus Bluetooth configurations
- Battery / power: 2280 mAh, 7.2 V removable PowerPrecision+ battery; USB-C charging
- Durability / environmental sealing: IP54, 5 ft./1.5 m drop specification, 500 tumbles from 3.3 ft./1 m and MIL-STD-810 vibration testing
- Dimensions and weight: 5.12 x 4.63 x 1.95 in.; 0.95 lb with battery
- Warranty: One year
In the Box
- ZQ320 Plus printer, per selected indoor or outdoor configuration
- 2280 mAh PowerPrecision+ battery
- Belt clip
- USB Type-A to USB Type-C cable
- Quick Start Guide and registration card
- Safety Guide and Regulatory Guide
Power note: AC-to-USB power adapter, charging cradle, separate battery charger and vehicle power accessories are sold separately unless explicitly listed with the selected option.

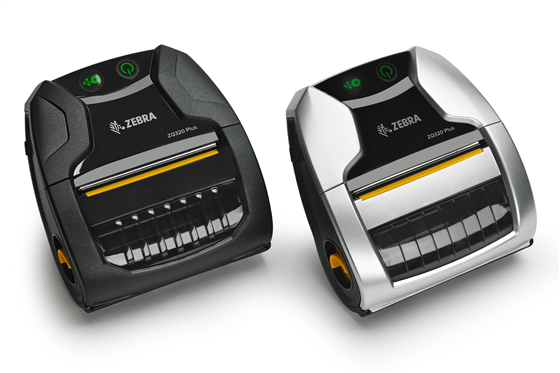

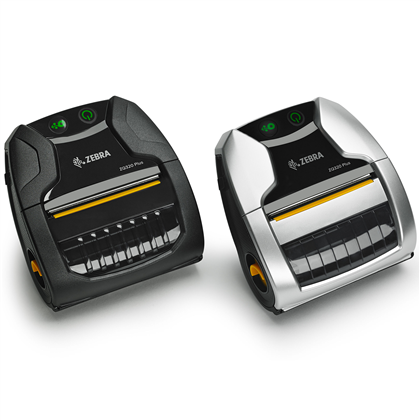

Choose the Right Work Environment

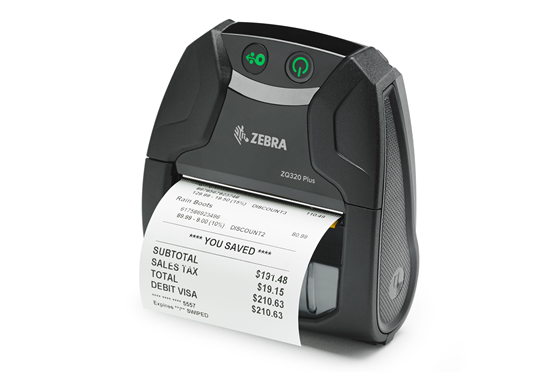

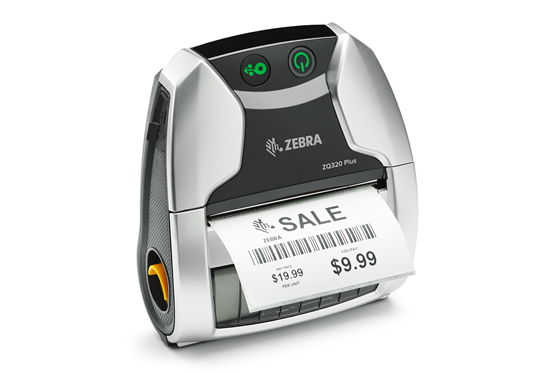

The indoor model uses a contemporary silver-and-black design and adds Wi-Fi connectivity plus a label-taken sensor. Outdoor models use a dark gray, scuff-resistant shell and Bluetooth connectivity. One outdoor option supports linerless media.
Match the Media Path to the Option
The sensor-equipped indoor option supports only the listed 3-inch linered media rolls because the printer uses a fixed-width clamshell holder and accepts a maximum 1.57 in./40 mm outside roll diameter. Confirm media compatibility before ordering.
Power for a Full Shift
Power Smart Print Technology adjusts energy use as print conditions change, while PowerPrecision+ battery metrics support proactive battery management. Charge through the printer's USB-C port or build a separate cradle and spare-battery charging workflow.
Manage and Support the Fleet
Link-OS and Zebra DNA for Printers support setup, integration, security and remote management. Zebra Certified Supplies and Zebra OneCare service plans are available for deployments that need predictable print quality and support.
Shop ZQ320 Plus Models
ZQ32-A0E04T0-00
ZQ320 Plus 3" Mobile Printer; Bluetooth, Linered, No Label-Taken Sensor, Outdoor Use
Connectivity:
Bluetooth
Platen Type:
Linered
Label Sensor:
Not Included
Indoor or Outdoor:
Outdoor
ZQ32-A0E14T0-00
ZQ320 Plus 3" Mobile Printer; Bluetooth, Linerless, No Label Sensor, Outdoor Use
Connectivity:
Bluetooth
Platen Type:
Linerless
Label Sensor:
Not Included
Indoor or Outdoor:
Outdoor
ZQ32-A0W03R0-00
ZQ320 Plus 3" Mobile Printer; WiFi & Bluetooth, Linered, Label-Taken Sensor, Indoor Use
Indoor or Outdoor:
Indoor
Label Sensor:
Label-Taken Sensor
Platen Type:
Linered
Connectivity:
Wi-Fi + Bluetooth
Shop ZQ320 Plus Accessories
PWR-WUA5V12W0US
Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.
BTRY-MPM-22MA1-01
Battery, 2280mAh for ZQ300 series (Batteries must be shipped via ground shipping)
CRD-MPM-1SCHGUS1-01
ZQ300, 1-slot printer docking cradle; ZQ300 Series; Includes type A to Type C USB Cable and AC to USB Adapter with US power plug

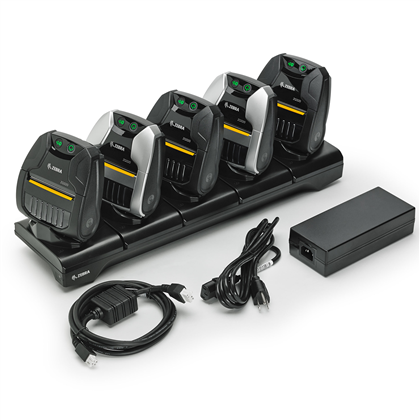

CRD-MPM-5SCHGUS1-01
ZQ300, 5-slot printer docking cradle; ZQ300 Series; includes power supply and US power cord
CBL-MPM-USB1-01
Zebra Cable - USB C Cable for ZQ310, ZQ320, TC20
Z1AE-ZQ3X-3C0
3-Year Comprehensive Coverage for Zebra ZQ310/ZQ320 Mobile Printers. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.
SAC-MPM-3BCHGUS1-01
ZQ300, 3 Slot Battery Charger; includes power supply and US power cord
SAC-MPM-1BCHGUS1-01
ZQ300, 1 slot battery charger; US power cord
CHG-AUTO-USB1-01
Cable, CIGARETTE LIGHTER ADAPTER Plug, (CLA), 5V, 2.5A, TWO TYPE A USB PORTS.
VAM-MPM-VHCH1-01
ZQ300, TC51, TC56, Vehicle adapter; includes open ended and cigarette lighter adapter cables
MNT-MPM-VHDRD1-01
ZQ300, Vehicle holder; attaches to dashboard
MNT-MPM-VHDRW1-01
ZQ300, Vehicle holder; attaches to Windshield
SG-MPM-SC31-01
ZQ320, Kit, Soft Case
KIT-MPM-BLTCLP5-01
ZQ300, Kit, Belt Clip, Qty. 5
SG-MPM-SS231-01
ZQ320, Kit, Shoulder Strap
KIT-MPM-PLTRLR1-01
ZQ320 Plus linerless platen roller kit
KIT-MPM-MDSPR5-01
ZQ320, Spacers for media compartment to accept 3'' (76.2) wide paper (5 sets; 2 per set)
10021203
Receipt Paper Case, White For ZQ110, Direct Thermal (ZPerform 1000D), 2.25" X 26', 0.5 Core, 2.4mil, 50 Rolls Per Case
10021236
Receipt, Paper, 3.1406in x 40ft (79.8mm x 12.2m); DT, Z-Select 4000D 3.2 mil, High Performance Coated, 0.5in (12.7mm) core, 50/box, Plain
10021232
Receipt, Paper, 3.1406in x 50ft (79.8mm x 15.2m); DT, Z-Perform 1000D 2.4 mil, Uncoated, 0.5in (12.7mm) core, 50/box, Plain
