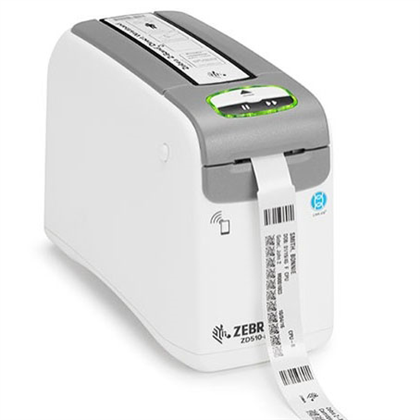

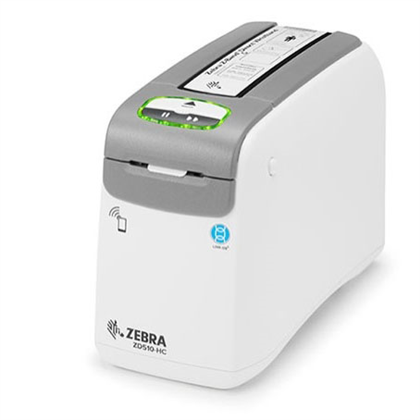

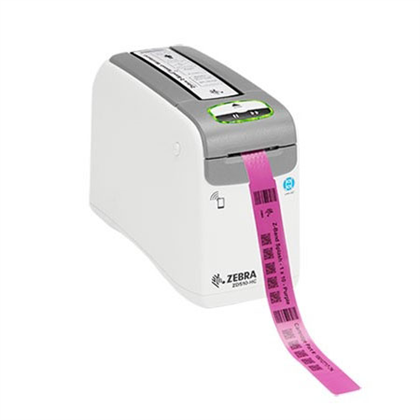

Zebra ZD510 Wristband Printer
Trust patient wristband printing to a healthcare specialist.
The Zebra ZD510-HC combines a 300 dpi direct-thermal printer with fast-loading Z-Band wristband cartridges for dependable patient identification. Automatic calibration and cartridge-based loading reduce training and help admissions teams produce durable, consistently scannable wristbands.
Its disinfectant-ready UV-resistant housing, quiet operation and IEC 60601-1 compliant power supply suit shared care environments. Zebra DNA for Printers, Link-OS and PrintSecure support deployment, remote management and data protection.
See how Zebra's ZD510-HC wristband workflow simplifies cartridge loading and printing.
Key Specifications
- Print method: Direct thermal
- Resolution: 300 dpi (12 dots per mm)
- Maximum print width: 1.1875 in. (30.16 mm)
- Print speed: 2 ips for healthcare wristbands; up to 4 ips for Z-Band Fun and Splash
- Media and ribbon handling: Fast-loading Z-Band wristband cartridges; no ribbon required
- Connectivity: Ethernet, USB, USB Host and Bluetooth Low Energy; optional 802.11ac Wi-Fi and Bluetooth 4.1
- Duty / application fit: Patient identification and healthcare or hospitality wristband printing
- Dimensions and weight: 5 x 7 x 9.5 in.; weight not published by the manufacturer
- Warranty: Minimum 2 years; varies by region
In the Box
- Zebra ZD510-HC wristband printer
- IEC 60601-1 compliant power supply and power cord
- USB cable
- Quick Start Guide
Package note: Contents can vary by SKU and region. Wristband cartridges and other accessories are sold separately unless the selected option explicitly states they are included.
Easy to Use and Deploy
Pop In a Cartridge and Print
A smart chip enables automatic calibration and print-speed settings for the installed Z-Band cartridge, while illuminated media indicators help staff respond quickly.
Connect to Care Workflows
Standard Ethernet, USB, USB Host and Bluetooth Low Energy support common deployments; optional wireless adds concurrent wired and Wi-Fi connectivity.
Designed for Healthcare
Cleanable, Quiet and Medical Grade
The disinfectant-ready UV-resistant housing tolerates approved cleaning routines, the printer operates quietly near patients, and the power supply meets IEC 60601-1.
Protect Sensitive Data
Direct thermal printing leaves no used ribbon to secure. Zebra PrintSecure and Zebra DNA management tools support secure connections, configuration and remote oversight.
Durable, Scannable Z-Bands
Built for Patient Identification
Zebra designs and tests Z-Band wristbands for image durability and first-scan readability through exposure to water, soap, sanitizer and other common healthcare solvents.
Sizes for Each Patient
Healthcare cartridges cover infant, child and adult sizes with adhesive or clip closures, including UltraSoft choices for sensitive skin.
Application Flexibility
Healthcare and Hospitality
Use ZD510-HC for patient identification or choose compatible Z-Band Fun and Splash cartridges for guest identification at attractions and resorts.
Easy Migration
Native ZPL supports migration from Zebra desktop and legacy HC100 workflows, while Zebra DNA Printer Emulations can reduce changes when replacing third-party printers.
Looking for Compatible Wristbands or Labels?
The ZD510-HC uses direct-thermal media and does not require ribbon. Match the media width, roll and core size and sensing method to the job. Use the POSGuys Label Selector Tool or contact us for help selecting supplies.
Shop ZD510 Wristband Printer Models
ZD51013-D01E00FZ
DT Printer ZD510 Wristband; ZPL II, XML, 300 dpi, US Cord, USB, USB Host, Ethernet, BTLE
Additional Features:
Standard Connectivity
ZD51013-D01B01FZ
DT Printer ZD510 Wristband; ZPL II, XML, 300 dpi, US Cord, USB, USB Host, Ethernet, 802.11, BT USA/Canada
Additional Features:
WiFi Connectivity
ZD51013-D01E00GA
DT Printer ZD510 Wristband; ZPL II, XML, 300 dpi, US Cord, USB, USB Host, Ethernet, BTLE, TAA
Additional Features:
Standard Connectivity
Shop ZD510 Wristband Printer Accessories
10006996K
Z-Band Direct Wristband (Adhesive, HC100 6 Cartons per Case, 1.1875 x 11)
10006995K
HC100, Wristband, Polypropylene, 1x11in (25.4x279.4mm); Direct thermal, Z-Band Direct, Adhesive closure, HC100 cartridge, 200/roll, 6/box,
10006995-2K
HC100, Wristband, Polypropylene, 1x11in (25.4x279.4mm); Direct thermal, Z-Band Direct, Adhesive closure, HC100 cartridge, 200/roll, 6/box, Blue
10006997K
HC100, Wristband, Polypropylene, 0.75x11in (19.1x279.4mm); Direct Thermal, Z-Band Direct, Adhesive closure, HC100 Cartridge, 200/roll, 6/box
10006995-1K
Z-Band Direct Wristband (Adult, White, Width: 1.00 Inches x Length: 11.00 Inches - 200/WB 6/Case)
10006995-4K
HC100, Wristband, Polypropylene, 1x11in (25.4x279.4mm); Direct thermal, Z-Band Direct, Adhesive closure, HC100 cartridge, 200/roll, 6/box, Purple
10006999K
HC100, Wristband, Polypropylene, 1x7in (25.4x177.8mm); Direct Thermal, Z-Band Direct, Adhesive closure, HC100 Cartridge, 300/roll, 6/box
10006995-5K
Z-Band Direct Wristband (Adult, Pink, Width: 1.00 Inches x Length: 11.00 Inches - 200/WB 6/Case)
10006995-6K
HC100, Wristband, Polypropylene, 1x11in (25.4x279.4mm); DT, Z-Band Direct, Coated, Permanent Adhesive, HC100 cartridge, 200/roll, 6/box
10006995-7K
HC100, Wristband, Polypropylene, 1x11in (25.4x279.4mm); Direct thermal, Z-Band Direct, Adhesive closure, HC100 cartridge, 200/roll, 6/box, Yellow
10006995-3K
HC100, Wristband, Polypropylene, 1x11in (25.4x279.4mm); Direct thermal, Z-Band Direct, Adhesive closure, HC100 cartridge, 200/roll, 6/box, Green
10006998K
HC100, Wristband, Polypropylene, 1x6in (25.4x152.4mm); Direct Thermal, Z-Band Direct, Adhesive closure, HC100 Cartridge, 350/roll, 6/box
