Zebra ZD411

Name: Zebra ZD411
Brand: Zebra
Price: 322.15 USD
Availability: InStock

Images may not reflect the actual product

ZD411 (iOS)

ZD411 - iOS Compatible Barcode Label Printer (Bluetooth, USB) For growing businesses or those planning to expand, the ZD411 is the perfect hassle-free printer, offering field-installable media handling and communication options to adapt to your needs for years of reliable performance. Direct thermal, thermal transfer and healthcare models support nearly any 2-inch use case. A portable battery accessory will allow you to print on the go.

• Max Print Width: 2.2 Inches
• Software: Square, Lightspeed
• Warranty: 2-Year
• Return Period: 15 Days
• Lifetime Support
• Free Shipping
• Direct Thermal Use: Barcode Label, Jewelry Label
• Thermal Transfer Use: Jewelry Label

Elevate your expectations with advanced, compact printers built for enduring performance

The Zebra ZD411 brings enterprise-grade flexibility to a compact 2-inch desktop printer. Choose direct thermal for ribbon-free labeling or thermal transfer for durable ribbon-based output, with 203 or 300 dpi models for everyday labels, receipts, tags and wristbands.

Five status icons, a three-button interface and color-coded media touchpoints make daily operation straightforward. Zebra DNA, Link-OS and field-installable connectivity and media-handling options help the printer adapt as workflows change.

See the ZD411's size, controls and media path in this POSGuys product review.

Key Specifications

Print method: Direct thermal or thermal transfer
Resolution: 203 dpi; optional 300 dpi
Maximum print width: 2.20 in. at 203 dpi; 2.13 in. at 300 dpi
Print speed: Up to 6 ips at 203 dpi; 4 ips at 300 dpi
Media and ribbon handling: Media 0.585-2.36 in. wide; rolls up to 5 in. OD; thermal-transfer models use 74 m ribbon on a 0.5 in. core
Connectivity: USB and USB Host standard; optional Ethernet, serial or dual-radio Wi-Fi/Bluetooth
Duty / application fit: Compact retail, healthcare, hospitality, government and light logistics labeling
Dimensions and weight: Direct thermal 8.6 x 4.5 x 6.0 in., 2.2 lb.; thermal transfer 9.56 x 5.46 x 6.66 in., 3.59 lb.
Warranty: Two-year standard warranty

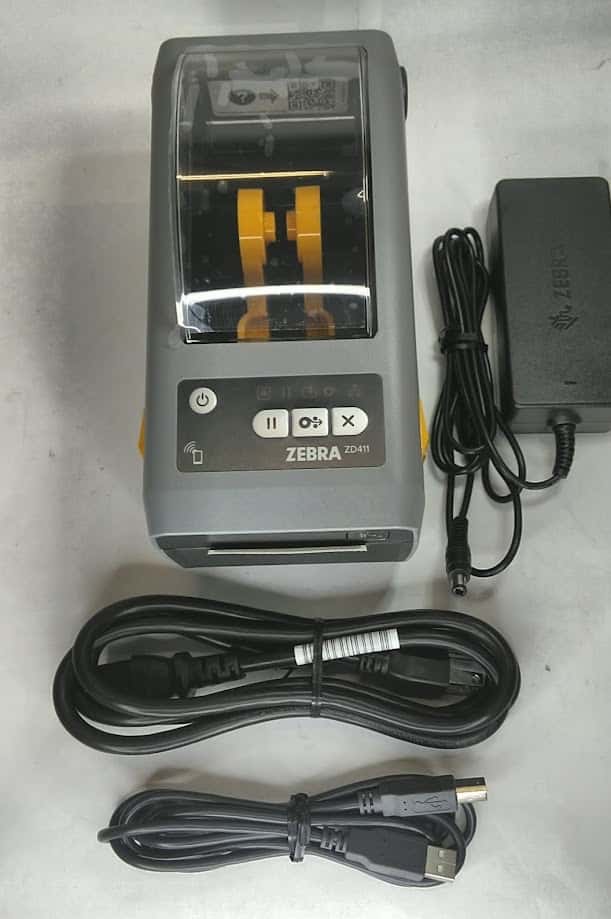

In the Box

ZD411 printer
AC power supply and power cord(s)
USB cable
Quick Start Guide
Regulatory Guide

Configuration note: Thermal-transfer models also include a 0.5-inch empty ribbon take-up core. Media, ribbon and option-specific accessories are sold separately unless the selected option states otherwise.

Powerful Printing with Intuitive Operation

OpenACCESS and a movable media sensor simplify loading roll-fed or fan-fold die-cut, continuous, black-mark, tag, receipt and wristband media. Thermal-transfer models use a compact 74-meter ribbon path, while optional cutter and dispenser/peeler modules support different finished-label workflows.

Built for the Work Area

The small footprint fits counters, shelves and mobile workstations. An optional battery can move printing closer to the point of application, and healthcare models add disinfectant-ready plastics, a sealed interface and a healthcare-compliant power supply.

Connect and Manage Your Way

Every ZD411 includes USB 2.0, USB Host, Bluetooth Low Energy for the printer setup mobile app and an NFC Print Touch tag. Selected configurations add Ethernet, serial, Wi-Fi 5/Bluetooth 4.2 or Wi-Fi 6/Bluetooth 5.3.

Ready for Existing and Future Workflows

ZPL and EPL support helps preserve established label formats. Zebra DNA tools, Printer Profile Manager Enterprise and PrintSecure support remote configuration, monitoring and security for networked deployments.

Zebra-compatible barcode labels and ribbon

Looking for Compatible Labels or Ribbon?

Match the selected print method, media width, roll and core size, sensing method and ribbon to the job. Use the POSGuys Label Selector Tool or contact us for help selecting supplies for a ZD411 configuration.

Find Labels View Ribbon

Standard Features

Thermal transfer or direct thermal; ZPL and EPL programming languages; 5 status icons and 3-button user interface; USB 2.0 and USB Host; Zebra printer setup mobile app for Android and iOS via BLE 5 (BLE is for the setup app only); real-time clock; OpenACCESS media loading; dual-wall frame; ENERGY STAR certified; ZebraDesigner Essentials.

Dimensions

Direct Thermal: 8.6 in. L x 4.5 in. W x 6.0 in. H / 220 mm L x 115 mm W x 151 mm H; Thermal Transfer: 9.56 in. L x 5.46 in. W x 6.66 in. H / 242.9 mm L x 138.7 mm W x 169.2 mm H.

Weight

Direct Thermal: 2.2 lb. / 1.0 kg; Thermal Transfer: 3.59 lb. / 1.629 kg.

Operating System

Link-OS

Resolution

203 dpi / 8 dots per mm; 300 dpi / 12 dots per mm optional.

Memory

512 MB Flash; 256 MB SDRAM.

Maximum Print Width

2.2 in. / 56 mm for 203 dpi; 2.13 in. / 54 mm for 300 dpi.

Maximum Print Speed

6 in. / 152 mm per second at 203 dpi; 4 in. / 102 mm per second at 300 dpi.

Media Sensors

Full-width, movable reflective/black mark sensor; multi-position transmissive/gap sensor.

Programming Languages

ZPL II; EPL 2; XML; ZBI; PDF Direct.

Label Length

Minimum: 0.25 in. / 6.35 mm; Maximum: 39.0 in. / 991 mm.

Media Width

0.585 in. / 15 mm to 2.36 in. / 60 mm.

Media Roll Size

Maximum outer diameter: 5.00 in. / 127 mm. Core inner diameter: 0.5 in. / 12.7 mm and 1.0 in. / 25.4 mm standard; 1.5 in. / 38.1 mm, 2.0 in. / 50.8 mm, and 3.0 in. / 76.2 mm using optional adapters.

Media Thickness

0.0024 in. / 0.06 mm minimum; 0.0075 in. / 0.1905 mm maximum (tear-off mode only).

Media Types

Roll-fed or fan-fold; die cut or continuous with or without black mark; tag stock; continuous receipt paper; wristbands.

Ribbon Outside Diameter

1.34 in. / 34 mm (74 m).

Ribbon Standard Length

243 ft. / 74 m.

Ribbon Ratio

1:1 ribbon to media (74 m).

Ribbon Width

1.3 in. / 33 mm to 2.24 in. / 58 mm.

Ribbon Core I.D.

74 m ribbon: 0.5 in. / 12.7 mm.

Operating Temp.

40° to 105° F / 4.4° to 41° C.

Storage Temp.

-40° to 140° F / -40° to 60° C.

Operating Humidity

10% to 90% non-condensing.

Storage Humidity

5% to 95% non-condensing.

Electrical

Auto-detectable, PFC-compliant 100–240 VAC, 50–60 Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; healthcare models include an IEC 60601-1 certified power supply.

Healthcare

White color scheme, healthcare-compliant power supply, disinfectant-ready easy-to-clean plastics, sealed button interface, and UV-resistant housing.

Media Handling

Field-installable dispenser/peeler with label-present sensor; field-installable cutter.

Communications

Factory-installed: Ethernet 10/100; dual-radio Wi-Fi 5 (802.11ac) and Bluetooth 4.1; or dual-radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (MIMO). Field-installable: Ethernet 10/100; dual-radio Wi-Fi 5 and Bluetooth 4.1; dual-radio Wi-Fi 6 and Bluetooth 5.3 (SISO); or auto-sensing Serial RS-232.

Battery

Optional battery supports a full shift of printing at maximum print speed and all media-handling options.

Keyboard Display Unit

Optional ZKDU keyboard display unit for stand-alone printing.

Mounting Adapter Bracket

Enables mounting in the same location as previous models, including GK420 and LP/TLP2824.

Barcode Ratios

2:1 and 3:1.

1D Barcodes

Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC/EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, and Planet Code.

2D Barcodes

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, and Aztec.

Fonts and Graphics

16 resident expandable ZPL II bitmap fonts; two resident scalable ZPL fonts; five resident expandable EPL2 fonts; native OpenType font support; Unicode compliant. China units include SimSun Simplified Chinese font. 64 MB user-available non-volatile memory; 8 MB user-available SDRAM.

Regulatory

IEC 60950-1; IEC 62368-1; EN55022 Class B; EN55024; EN55035; EN61000-3-2; EN61000-3-3; FCC Class B; ICES-003; FCC 15.209 and 15.247(d); IC RSS 247; EN 300 328; EN 301 893; EN 62311; cTUVus; CE Marking; VCCI; C-Tick; S-Mark; CCC; CU; BSMI; KCC; SABS; IN-Metro; BIS; NOM.

Environmental Compliance

RoHS Directive 2011/65/EU with Amendment 2015/863; REACH SVHC 1907/2006.

Included In The Box

Printer; empty ribbon take-up core (0.5 in., thermal transfer models only); AC power supply; power cord(s); USB cable; Quick Start Guide; Regulatory Guide.

Product Warranty

Warranted against defects in workmanship and materials for a minimum of two years from the date of shipment; warranty varies by region.

ZD4A022-D01M00EZ

ZD411 Direct Thermal Label Printer; 203 dpi, USB

DPI:

203

Color:

Black

Color:

Black

Printer Type:

Direct Thermal

Interface:

USB

$322.15

ZD4A022-D01E00EZ

ZD411 Direct Thermal Label Printer; 203 dpi, USB, Ethernet

DPI:

203

Color:

Black

Color:

Black

Printer Type:

Direct Thermal

Interface:

USB, Ethernet

ZD411 Thermal Transfer Label Printer; 203dpi, USB, WiFi, Bluetooth

DPI:

203

Color:

Black

Printer Type:

Thermal Transfer

Interface:

USB, WLAN, Bluetooth

$585.60

ZD4A022-T01X01EZ

ZD411 Thermal Transfer Label Printer; Healthcare, 203dpi, USB, WiFi, Bluetooth

DPI:

203

Printer Type:

Thermal Transfer

Interface:

USB, WLAN, Bluetooth

Color:

White

$585.60

ZD4A023-D01X01EZ

ZD411 Direct Thermal Label Printer; 300dpi, USB, WiFi, Bluetooth

DPI:

300

Color:

Black

Printer Type:

Direct Thermal

Interface:

USB, WLAN, Bluetooth

$568.15

ZD4A023-T01X01EZ

ZD411 Thermal Transfer Label Printer; 300dpi, USB, WiFi, Bluetooth

DPI:

300

Color:

Black

Printer Type:

Thermal Transfer

Interface:

USB, WLAN, Bluetooth

$672.49

ZD4AH22-D01X01EZ

ZD411 Direct Thermal Label Printer; Healthcare, 203dpi, USB, WiFi, Bluetooth

DPI:

203

Printer Type:

Direct Thermal

Interface:

USB, WLAN, Bluetooth

Color:

White

$568.15

ZD4AH22-D01M00EZ

ZD411 Direct Thermal Label Printer; Healthcare, 203dpi, USB

DPI:

203

Printer Type:

Direct Thermal

Interface:

USB

Color:

White

$404.15

ZD4A022-D01E00GA

ZD411 Direct Thermal Label Printer; 203dpi, USB, Ethernet

DPI:

203

Color:

Black

Printer Type:

Direct Thermal

Interface:

USB, Ethernet

$445.15

ZD4A023-D01E00EZ

ZD411 Direct Thermal Label Printer; 300 dpi, USB, Ethernet

DPI:

300

Color:

Black

Color:

Black

Printer Type:

Direct Thermal

Interface:

USB, Ethernet

ZD411 Direct Thermal Label Printer, Healthcare; 203 dpi, USB, Ethernet, Cutter

DPI:

203

Printer Type:

Direct Thermal

Interface:

USB, Ethernet

Color:

White

$704.34

ZD4AH23-D01E00EZ

ZD411 Direct Thermal Label Printer, Healthcare; 300 dpi, USB, Ethernet

DPI:

300

Printer Type:

Direct Thermal

Interface:

USB, Ethernet

Color:

White

$609.16

ZD4AH22-D01W01EZ

ZD411 Direct Thermal Label Printer, Healthcare; 203 dpi, USB, WiFi

DPI:

203

Printer Type:

Direct Thermal

Interface:

USB, WLAN, Bluetooth

Color:

White

$568.15

ZD4AH23-D01W01EZ

ZD411 Direct Thermal Label Printer, Healthcare; 300 dpi, USB, WiFi

DPI:

300

Printer Type:

Direct Thermal

Interface:

USB, WLAN, Bluetooth

Color:

White

$650.16

ZD4AH22-D01E00EZ

ZD411 Direct Thermal Label Printer, Healthcare; 203 dpi, USB, Ethernet

DPI:

203

Printer Type:

Direct Thermal

Interface:

USB, Ethernet

Color:

White

$527.16

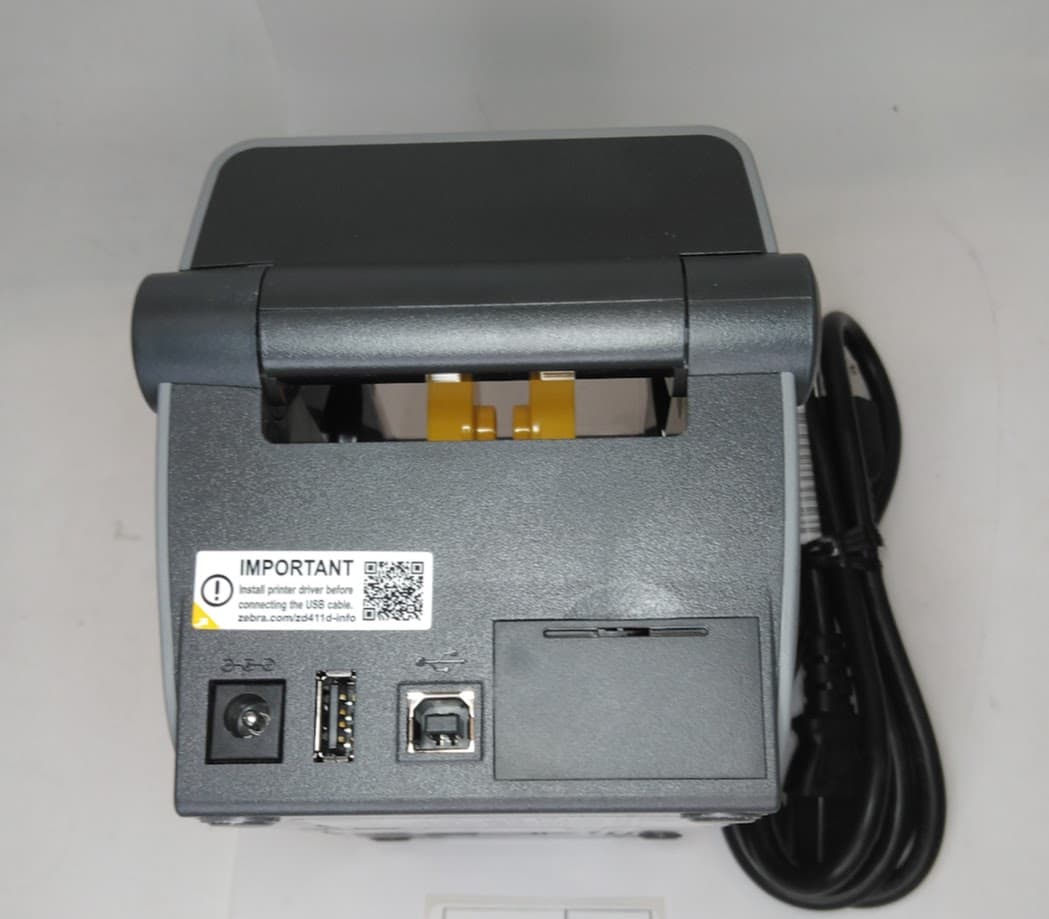

Outlet Items

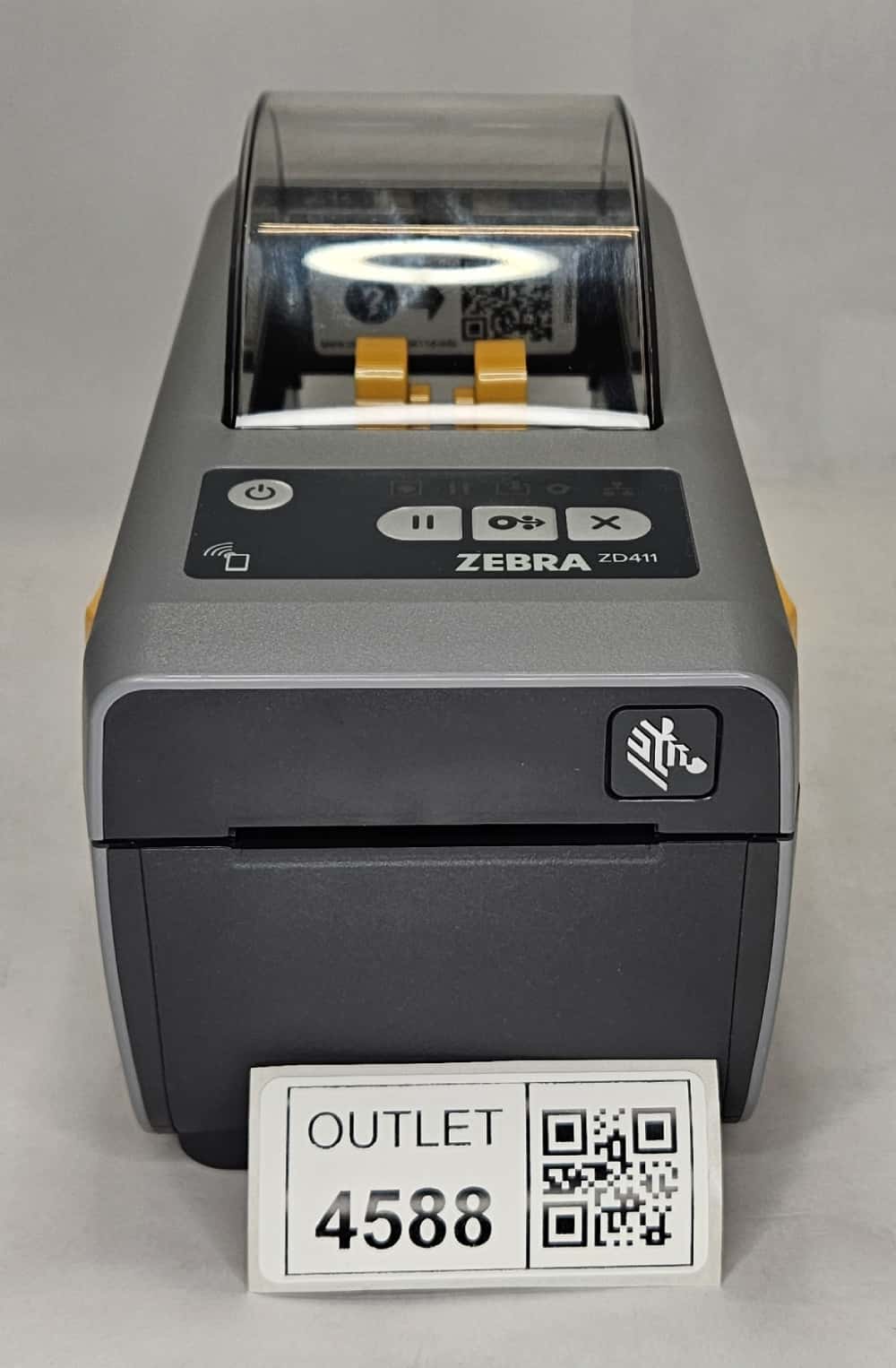

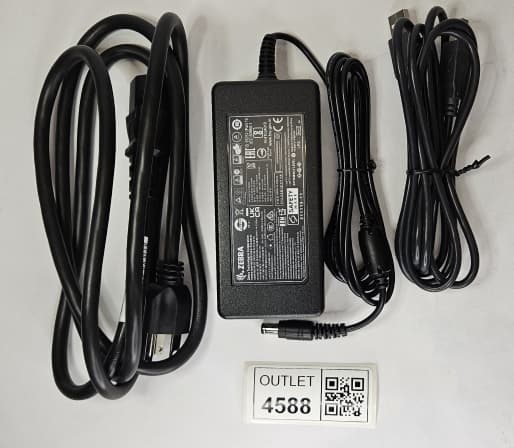

ZD411

USB, Color:Grey, CID:4588

Item Number: ZD4A022-D01M00EZ

1 Reconditioned Available

CID: 4588

$245.00

ZD411

USB, Color:Grey, CID:4593

Item Number: ZD4A022-D01M00EZ

1 Like New Available

CID: 4593

$275.00

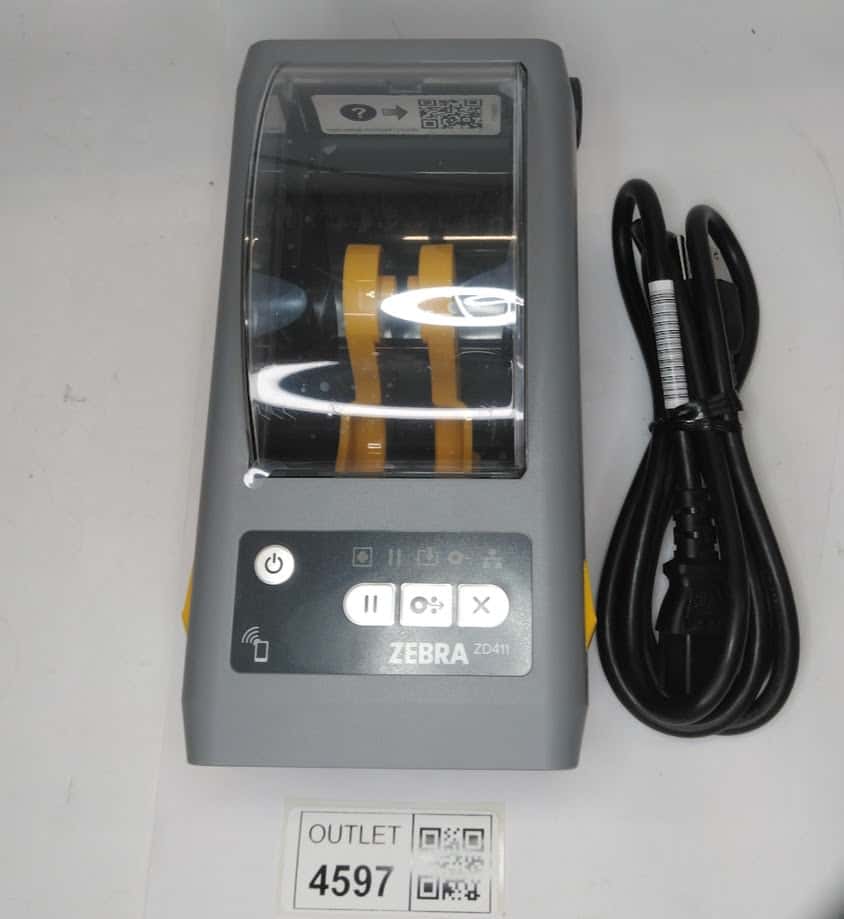

ZD411

ZD4A022-D01M00EZ ZD411 Direct Thermal Label Printer; 203 dpi, USB CID:4597

Item Number: ZD4A022-D01M00EZ

1 Like New Available

CID: 4597

$245.00

Shop ZD411 Accessories

P1117258-030

Dispenser (Peeler) for Zebra ZD411D and ZD611D Direct Thermal Printers. NOT backwards compatible with ZD410 or TLP printers.

$53.62

P1117258-031

Kit, Cutter for Media with a Liner, ZD411D, ZD611D

$268.11

P1117258-230

Dispenser (Peeler) for Zebra ZD411T and ZD611T Thermal Transfer and RFID Printers. NOT backwards compatible with ZD410 or TLP printers.

$112.94

ZD410-BATT-KIT

ZD411/ZD410 Battery Base Kit: Includes battery housing (P1080383-602) and desktop printer battery (P1080383-603)

$550.00

P1079903-026

Replacement Power Supply for Zebra Desktop Printer. 75W/24V with US & EU AC cords. Compatible with: ZD410, ZD411, ZD420, ZD421, ZD620, ZD621, ZD500.

$200.83

P1112640-017A

Wireless Module, WiFi 802.11ac, MFI 3.0, Bluetooth 4.1, USA & Canada, ZD421, ZD621, ZD411

$234.61

105910-174-3PACK

2" Ribbon Take-Up Core For 2" Thermal Transfer Printers. 0.5" OD. (Three Pack)

$15.00

Z1AE-ZD4X1-5C0

Zebra OneCare, Essential, Purchased within 30 days of Device, ZD421d, ZD421t, ZD421c, 5 Years, Comprehensive

$178.00

T44317IO-EA-6-ADDON

Zebra Desktop WAX-RESIN Thermal Transfer Ribbon, Black, 2.24" (56mm) wide x 74m length, .5" Core, 6 Rolls. Compatible with all Zebra 2-Inch Thermal Transfer Printers.

$60.00

Z1AE-ZD4X1-3C0

OneCare, Essential, Purchased within 30 days of Device, ZD411, ZD421d, ZD421t, ZD421c, 3 Years, Comprehensive

$109.20

P1112640-015

Ethernet Module, ZD421D, ZD421T, ZD421C, ZD411D, ZD411T, ZD611D, ZD611T

$167.58

P1080383-603

Battery for Zebra Desktop Printers. Compatible with ZD411, ZD421, ZD621, ZD410, ZD420, and ZD620. Requires Base Housing (P1080383-602 for ZD411/ZD611 / P1080383-600 for ZD421 & ZD621).

$767.50

P1080383-602

Base Housing for Zebra Printer Battery. Compatible with Zebra ZD411, ZD611, ZD410, and ZD610. Purchase Battery (P1080383-603) Separately.

$100.56

P1117258-231

Cutter for Zebra ZD411T and ZD611T Thermal Transfer Printers. NOT Compatible with ZD410 or TLP printers

$447.54

P1117258-036

Kit, Printhead 203 dpi, ZD411D, ZD611D

$157.77

P1117258-037

Kit, Printhead 300 dpi, ZD411D, ZD611D

$179.09

P1117258-232

Kit, Printhead, 203dpi, ZD411T, ZD611T

$157.77

P1117258-233

Kit, Printhead, 300dpi, ZD411T, ZD611T

$179.09

P1130666-017A

Kit, Wireless Module, Kit, Wireless Module, WiFi 6, SISO, 802.11ax, MFI 3.0, Bluetooth 5.3, ZD421D, ZD621D, ZD421T, ZD411D, ZD411T, ZD611D, ZD611T, US and Canada

$365.28

P1134555-017A

Kit, Wireless Module, WiFi6, MIMO, 802.11ax, MFI 3.0, Bluetooth 5.3, USA and Canada, ZD421D, ZD621D, ZD421T, ZD411D, ZD411T, ZD611D, ZD611T

$392.78

P1112640-017A

Kit, Wireless Module, WiFi 802.11ac, Bluetooth 4.1, MFI 3.0, USA & Canada, ZD421D, ZD421T, ZD621D

$234.61

Have Questions?Call Us at: (800) 241-6264

Zebra ZD411

ZD411 (iOS)

Elevate your expectations with advanced, compact printers built for enduring performance

Key Specifications

In the Box

Powerful Printing with Intuitive Operation

Built for the Work Area

Connect and Manage Your Way

Ready for Existing and Future Workflows

Looking for Compatible Labels or Ribbon?

Shop ZD411 Models

ZD4A022-D01M00EZ

ZD4A022-D01E00EZ

ZD4A022-D01X01EZ

ZD4A022-T01M00EZ

ZD4A022-T01E00EZ

ZD4A022-T01W01EZ

ZD4A022-T01X01EZ

ZD4A023-D01X01EZ

ZD4A023-T01X01EZ

ZD4AH22-D01X01EZ

ZD4AH22-D01M00EZ

ZD4A022-D01E00GA

ZD4A023-D01E00EZ

ZD4A023-T01W01EZ

ZD4A023-T01E00EZ

ZD4A023-D01W01EZ

ZD4A023-D01M00EZ

ZD4A023-T01M00EZ

ZD4AH22-D21E00EZ

ZD4AH23-D01E00EZ

ZD4AH22-D01W01EZ

ZD4AH23-D01W01EZ

ZD4AH22-D01E00EZ

Outlet Items

ZD411

ZD411

ZD411

Shop ZD411 Accessories

P1117258-030

P1117258-031

P1117258-230

ZD410-BATT-KIT

P1079903-026

P1112640-017A

105910-174-3PACK

Z1AE-ZD4X1-5C0

T44317IO-EA-6-ADDON

Z1AE-ZD4X1-3C0

P1112640-015

P1080383-603

P1080383-602

P1117258-231

P1117258-036

P1117258-037

P1117258-232

P1117258-233

P1130666-017A

P1134555-017A

P1112640-017A
