Elo TouchSystems Z30
Description
Specifications
Download

Elo TouchSystems Z30

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

A combined Z30 family for complete 15.6-inch POS systems and deployment-ready Z30 stands.

The Elo Z30 brings commercial I/O, a compact countertop footprint and concealed cable routing to checkout, service and assisted-selling workflows. Complete-system configurations pair a 15.6-inch Full HD touchcomputer with the Z30 stand; stand-only configurations provide the connection hub for a compatible Elo I-Series Slate.

Choose Android or Intel, with or without a customer-facing display, then use the Product Type, operating-system, processor and display filters to isolate the required configuration.

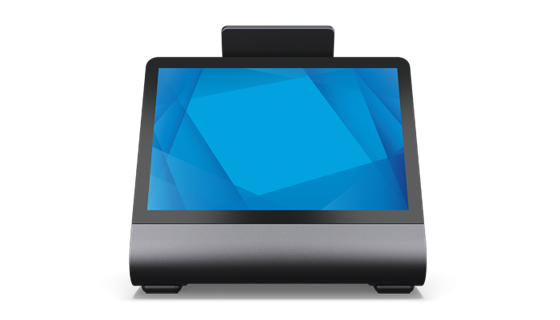

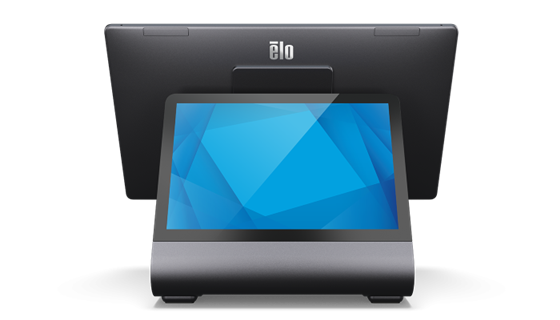

Elo Z30 complete point-of-sale system with customer-facing display

Key Specifications

  • Package type: Complete Z30 system or stand-only package
  • Touch: TouchPro PCAP, up to 10 touches
  • Power: 150W external power brick with regional cord set
  • Mounting: Included base plate and cable-management hardware
  • Main display: 15.6-inch, 1920 x 1080 on complete systems
  • Current Android: Android 14, QCS6490, 8GB RAM, 64GB storage
  • Intel choices: Windows or no-OS configurations as listed
  • Optional CFD: Integrated 10.1-inch, 1280 x 800 TouchPro PCAP
  • Stand I and O: USB-A, Gigabit Ethernet, RJ12, powered USB and USB-C display output
  • Warranty: 2 years on current configurations

In the Box

  • Complete-system option: 15.6-inch touchcomputer and Z30 stand
  • Stand-only option: Z30 stand; compatible I-Series Slate sold separately
  • Integrated 10.1-inch customer display only on CFD configurations
  • 150W power brick and regional power cables
  • Countertop base plate, cable-management hardware and quick installation guide

Configuration cards identify whether the selection is a complete computer or a stand-only package and whether a customer-facing display is included.

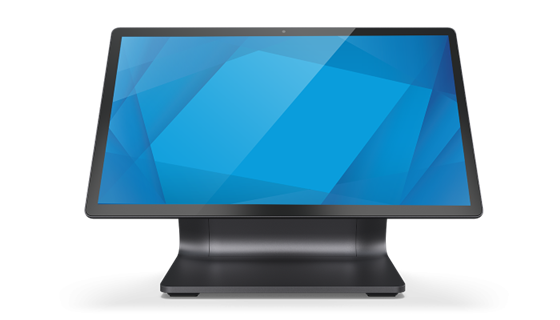

Choose a Complete System

Android or Intel

Current Android 14 configurations use Qualcomm QCS6490 processing with 8GB RAM and 64GB flash. Listed Intel configurations provide a 15.6-inch Full HD display, 8GB RAM and 128GB SSD with Windows or no operating system as identified on the option card.

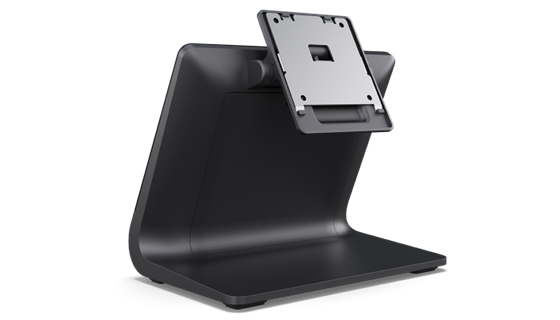

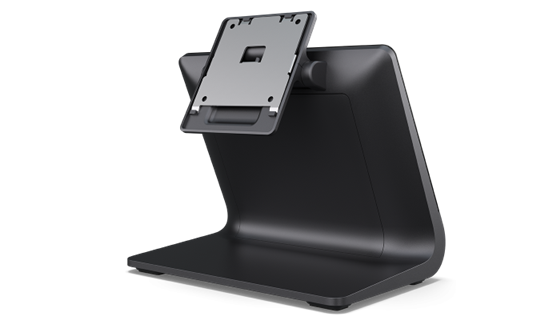

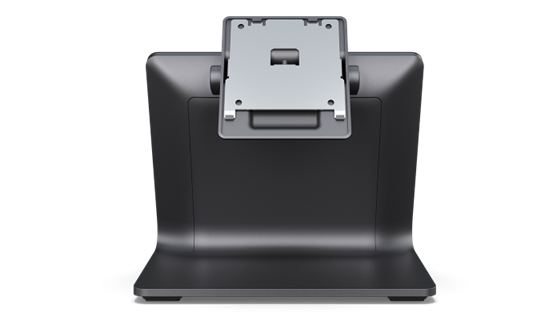

Choose the Stand Only

Connection hub for a compatible Slate

Gen 2 stand options E767561 and E768749 provide power, peripheral I/O, countertop hardware and cable management without the computer. E768749 adds the integrated 10.1-inch customer-facing display.

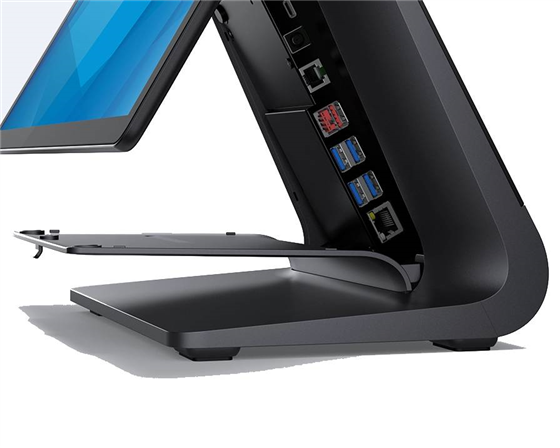

Connect the Checkout

Commercial ports in the base

Four USB-A 3.0 ports, Gigabit Ethernet, an RJ12 serial or cash-drawer port, 24V powered USB and a USB-C display connection support printers, scanners, payment devices, drawers and Elo customer displays.

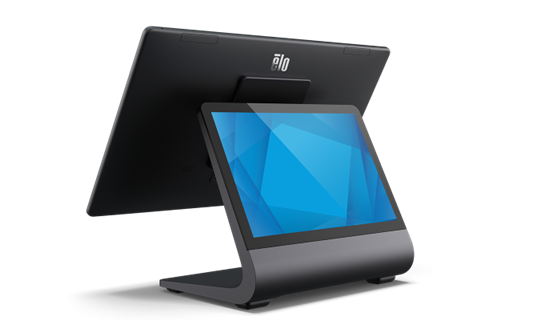

Add Customer Interaction

With or without the integrated CFD

CFD packages add a 10.1-inch 1280 x 800 TouchPro PCAP screen for order review, loyalty, promotions and customer input. Non-CFD packages keep the counter compact and can support compatible external Elo displays.

Keep the Counter Clean

Concealed routing and secure mounting

Cables route through the stand, while the included base plate and mounting hardware secure the installation to a countertop. The compact footprint keeps connected peripherals organized around the operator.

Compare Generations Clearly

Current and earlier configurations remain labeled

Option cards identify the processor, memory, operating system, customer-display state and stand-only status. Exact lifecycle and replacement relationships remain attached to the individual part numbers instead of being inferred from the combined family page.

Product Types
Complete 15.6-inch EloPOS Z30 systems and Z30 stand-only packages
Complete-System Display
15.6-inch active-matrix TFT LCD with LED backlight; 1920 x 1080 at 60 Hz; 16:9
Touch Technology
TouchPro PCAP (projected capacitive), up to 10 touches
Current Android Configuration
Android 14 with Google Play Services; Qualcomm QCS6490; 8GB RAM; 64GB flash storage
Listed Intel Configurations
Pentium processor; 8GB RAM; 128GB SSD; Windows or no operating system as identified by the option
Gen 2 Stand Compatibility
15-inch I-Series 3 Slate with Intel and 15-inch I-Series 5 Slate with Android; compatible models vary by stand part number
Customer-Facing Display
Optional integrated 10.1-inch TouchPro PCAP display; current Gen 2/Android configurations use 1920 x 1200; earlier configurations vary
Stand I/O Ports
DC input; 4 x USB-A 3.0; Gigabit Ethernet; RJ12 cash drawer/serial 12/24V; 24V powered USB; USB-C CFD output with display, touch and up to 27W power
Wireless
Wi-Fi and Bluetooth on complete-system configurations as identified by the option; stand-only packages do not include a computer
Camera and Audio
Current Android complete systems: 8MP camera, two 1W speakers and two digital microphones; Intel and earlier configurations vary
Power
100–240 VAC input through the included 150W external power brick
Dimensions (W x D x H)
Current Android complete system: 14.58 x 11.72 x 7.08 in (370.3 x 297.8 x 179.8 mm); Gen 2 stand: 9.68 x 7.85 x 6.46 in (245.8 x 199.3 x 164.2 mm)
Weight
Current Android complete system: 7.8 lb without CFD or 8.4 lb with CFD; Gen 2 stand: 4.85 lb without CFD or 5.51 lb with CFD
Counter Mounting
Included countertop base plate and cable-management hardware; VHB and fastener requirements vary by generation and installation
Environment
Operating: 32°F to 104°F (0°C to 40°C); storage: -4°F to 122°F (-20°C to 50°C)
MTBF
50,000 hours demonstrated for current Z30 Android systems and Gen 2 stands
Warranty
2 years standard on current Z30 Android systems and Gen 2 stands; coverage for earlier listed configurations follows the exact part number
What's in the Box
Complete-system option: Z30 touchcomputer and stand. Stand-only option: Z30 stand; compatible Slate sold separately. Current packages include 150W power brick, regional cords, countertop base plate, cable-management hardware and quick-install guide; CFD only on CFD configurations.
Elo Z30 Android Gen 2 Specification Sheet
Download
Elo Z30 Android User Guide — English
Download
Elo Z30 Android Quick Installation Guide
Download
Elo Z30 Android Dimensional Drawing
Download
Elo Z30 Android Agency Approvals
Download
Elo Z30 Intel Specification Sheet
Download
Elo Z30 Intel User Guide — English
Download
Elo Z30 Intel Quick Installation Guide
Download
Elo Z30 Intel Dimensional Drawing
Download
Elo Z30 Stand Gen 2 Specification Sheet
Download
Elo Z30 Stand Gen 2 Quick Installation Guide
Download
Elo Z30 Stand Gen 2 Dimensional Drawing
Download

Shop Z30 Models

E543398

Elo 15.6-inch EloPOS Z30 - STANDARD, Android 14 with GMS, 1920 x 1080 display, Qualcomm 6490 Octa-Core Processor, 8GB RAM, 64GB Flash, Projected Capacitive 10-touch, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, EloView compatible, Gray, without CFD

RAM:

8GB

Operating System:

Android

Stand Only:

No

Customer Facing Display:

Not included

Processor:

Qualcomm 6490

$2548.70

E543591

Elo 15.6-inch EloPOS Z30 - STANDARD, Android 14 with GMS, 1920 x 1080 display, Qualcomm 6490 Octa-Core Processor, 8GB RAM, 64GB Flash, Projected Capacitive 10-touch, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, EloView compatible, Gray, with CFD

RAM:

8GB

Operating System:

Android

Customer Facing Display:

Customer Facing Display

Stand Only:

No

Processor:

Qualcomm 6490

$2880.90

E767561

Elo Z30 POS Stand without CFD Gen 2

Processor:

Computer not included

RAM:

Computer not included

Operating System:

Computer not included

Customer Facing Display:

Not included

Stand Only:

Stand Only

$606.10

E768749

Elo Z30 POS Stand with CFD Gen 2

Processor:

Computer not included

RAM:

Computer not included

Operating System:

Computer not included

Customer Facing Display:

Customer Facing Display

Stand Only:

Stand Only

$925.10

E984089

Elo 15.6-inch EloPOS Z30 with Intel, Full HD 1920 x 1080 display, Pentium, No OS, 8GB RAM, 128GB SSD, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, Gray, without CFD, Worldwide

RAM:

8GB

Stand Only:

No

Operating System:

No OS

Customer Facing Display:

Not included

Processor:

Pentium

$1947.52

E984463

Elo 15.6-inch EloPOS Z30 with Intel, Full HD 1920 x 1080 display, Pentium, No OS, 8GB RAM, 128GB SSD, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, Gray, with CFD, Worldwide

RAM:

8GB

Customer Facing Display:

Customer Facing Display

Stand Only:

No

Operating System:

No OS

Processor:

Pentium

$2193.50

E392186

Elo 15.6-inch EloPOS Z30 Standard, Full HD, Android 10 with GMS, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Gray, without CFD

RAM:

4GB

Operating System:

Android

Stand Only:

No

Customer Facing Display:

Not included

Processor:

Qualcomm 660

$1968.45

E482347

Elo 15.6-inch EloPOS Z30 Standard, Full HD, Android 10 with GMS, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Gray, with CFD

RAM:

4GB

Operating System:

Android

Customer Facing Display:

Customer Facing Display

Stand Only:

No

Processor:

Qualcomm 660

$2394.70

Shop Z30 Accessories

E796382

Elo 0702L 7-inch wide LCD Monitor, 800 x 480, Projected Capacitive 10-touch, Anti-Glare, Zero-Bezel, DisplayLink Input, Black, Worldwide. For Z10 Customer Facing Display.

$347.37

E155834

Elo 1002L 10.1-inch wide LCD Monitor, HD 1280 x 800, Projected Capacitive 10-touch, USB Controller, Anti-glare, Zero-bezel, No stand, USB-C, HDMI and VGA Inputs, Black, Worldwide

$484.18

E324341

Elo 1002L 10.1-inch wide LCD Monitor, HD 1280 x 800, Non-touch, USB Controller, Anti-glare, Zero-bezel, No stand, USB-C, HDMI and VGA Inputs, Black, Worldwide

$383.87

E683595

Elo 1302L 13.3-inch Wide LCD Monitor, Full HD 1920 x 1080, Projected Capacitive 10-touch, USB Controller, Anti-Glare, Zero-Bezel, USB-C, HDMI and VGA Inputs, No Stand, Black, Worldwide

$580.48

E710364

Elo 6-foot USB-C to USB-C Cable

$68.43

E819795

All in One 5YR Warranty Coverage

$128.40
