Socket XtremeScan Wear

Name: Socket XtremeScan Wear
Brand: Socket
Price: 579.86 USD
Availability: InStock

Images may not reflect the actual product

XtremeScan Wear (iOS)

Hand-worn Bluetooth barcode readers; choose the scan engine, hand and wrap size.

Keep both hands available for picking, packing and moving goods

XtremeScan Wear XW930 and XW940 put a Bluetooth barcode reader on the back of the hand, so workers can scan without repeatedly putting a handheld scanner down. Choose the XW930 laser for printed 1D codes or the XW940 imager for printed and on-screen 1D/2D codes.

The washable hand wrap fits over a work glove or directly on the hand. Select the correct left/right hand and size; manufacturer sizing assumes a work glove underneath, and recommends sizing down when worn without one.

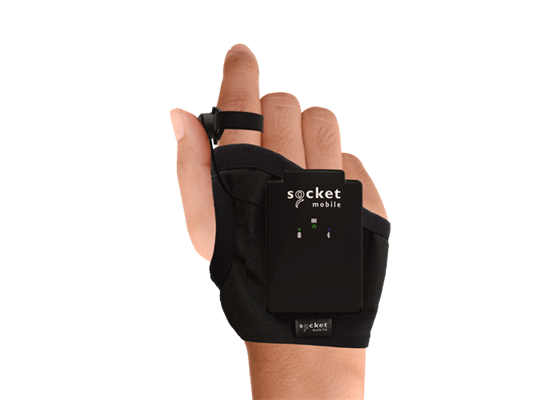

XtremeScan Wear reader and right-hand wrap

Key Specifications

Scanner configuration: Cordless hand-worn reader with selected hand wrap
Barcode capability: XW930: printed 1D; XW940: printed/on-screen 1D/2D
Reading range: Model- and barcode-dependent; see detailed decode ranges in Specs
Interfaces / connectivity: Bluetooth Classic; up to 33 ft (10 m), environment-dependent
Durability: Wearable modular design; numeric drop/tumble rating not published
Environmental sealing: Protection rating varies between manufacturer publications; confirm the required rating before wet/dusty deployment
Dimensions and weight: Reader and wrap vary by configuration; see manufacturer dimensions and sizing information
Warranty: 1 year

In the Box

Selected XW930 or XW940 bundle
- Selected barcode reader
- Selected left- or right-hand wrap in the stated size
- Charging cable
- Get Started Guide

Host device and personal work glove are not included.

Scan while handling goods

The back-of-hand placement keeps the reader available while both hands remain free to pick, pack or move items. The removable scanner module attaches to a washable, breathable wrap.

Choose the right capture engine

XW930 uses a Class 2 laser for printed linear barcodes. XW940 adds omnidirectional 2D and phone-screen scanning with an LED aimer. Both connect to compatible iOS, Android and Windows applications.

Models

XW930 laser 1D and XW940 imager 1D/2D; select exact model, hand and wrap size.

Form factor

Hand-worn Bluetooth reader with removable scanner module and washable breathable hand wrap.

Host platforms

Compatible applications on iOS, Android and Windows; current manufacturer specification also lists macOS. Confirm application and Bluetooth profile support.

Wrap choices

Left or right hand; X-Small, Small, Medium, Large or XL. Sizes assume a work glove underneath; size down when worn without one.

Included items

Selected reader and hand wrap, charging cable and Get Started Guide. Host device and personal work glove not included.

Warranty

1 year

Durability

Numeric drop/tumble rating not published in current manufacturer product specifications.

Reader dimensions

Manufacturer drawing: 1.18 in wide x 1.45 in high x 0.21 in deep; hand wrap and trigger excluded.

Device weight

Not published in current manufacturer text specifications; option shipping weights are separate distributor values.

Ambient Light

From 0 to 100 000 lux. From pitch black to direct sunlight.

Sealing

XW930: current manufacturer web table lists IP65, while its linked DW930 key-selling-points PDF lists IP54. Confirm the required protection rating before deployment. XW940: IP65 per current manufacturer web table.

Charging Temperature

Charging in an ambient temperature above 40° C / 100° F may result in charging issues.

Operating Temperature

0° to 45° C (32° to 113° F)

Relative Humidity

95% at 60° C (140° F) (non-condensing)

Storage Temperature

-40° to 70° C (-40° to 158° F)

Battery Type

1 rechargeable Lithium Ion Polymer (replaceable battery)

Charge Time

8 Hours

Life of battery

500 charge-discharge cycles

Life per full charge

Standby time: 25 hours; active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds)Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery.

Battery weight

12.5g

Percentage lithium

36.3%

mAh

700

Cells per battery

Watts per battery

2.59

Cell type

Proprietary

Chemical composition

Lithium - polymer

Lithium content

4.5g

Voltage

3.7v

Hazmat UN Number

UN3481, P.I. 967

ROHS Compliance

Yes, Included with Scanner

Country of origin

China

Commodity code

8507.60.0000

Bluetooth Profiles

Basic Mode - Human Interface Device (HID)Application Mode - Serial Port Profile (SPP)iOS Application Mode (Default)Some Operating Systems or smartphone/tablet models may support only one profile.

Bluetooth Radio

Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption

Bluetooth Range

Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook).

XW930 Default Barcode Symbologies

XW930 Supported Barcode Symbologies

1D Symbologies: Chinese 2 5, Code 11, Matrix 2 5, Msi,

XW930 Print Contrast

Down to 25%-20%

XW930 Scan Angle

53°

XW930 Decode Ranges

Overall published range: 1.4–16.1 in (3.5–41 cm), barcode-dependent. Code39: 5mil 2.8–5.9 in (7–15 cm); 10mil 1.4–11.0 in (3.5–28 cm); 15mil 1.8–16.1 in (4.5–41 cm). UPC/EAN13mil: 1.6–12.6 in (4–32 cm).

XW940 Default Barcode Symbologies

1D Symbologies: Bookland Ean, Codabar, Code 128, Code 39, Code 93, Ean Jan 13, Ean Jan 8, Gs1 128, Gs1 Databar Expanded, Gs1 Databar Limited, Gs1 Databar Omnidirectional, Interleaved 2 5, Isbt 128 Udi, Trioptic, Upc A, Upc E, 2D Symbologies: Aztec, Composite, Data Matrix, Gs1 Data Matrix, Gs1 Qr, Han Xin, Maxicode, Micropdf417, Micro Qr, Pdf417, Qr, OCR Typeface: Ocr B,

XW940 Supported Barcode Symbologies

1D Symbologies: Chinese 2 5, Code 11, Matrix 2 5, Msi, Postal Codes: Australia Post, Japan Postal, Mailmark, Netherlands Kix, Uk Postal, Us Planet, Us Postnet, Usps 4Cb One Intelligent Mail, OCR Typeface: Micr E13b, Ocr A,

XW940 Print Contrast

Down to 25%-20%

XW940 Scan Angle

44.5° (Horizontal) - 33.5° (Vertical)

XW940 Reading Distance

3.0 to 49.5 cm (1.2 to 19.5 in.) Depends on barcode size, symbology, label media

XW940 Decode Ranges

Overall range: 1.2–19.5 in (3–49.5 cm), barcode-dependent. Code39 5mil:2.4–9.5 in; Code128 5mil:2.8–9.0 in; PDF417 6.67mil:2.4–8.0 in; DataMatrix10mil:2.9–8.5 in; UPCA100%:1.8–19.5 in; QR15mil:1.2–11.5 in; QR20mil:1.2–14.0 in.

CX4149-3216

XtremeScan Wear XW930 1D Laser Barcode Reader with Right Hand Wrap, Large

Wrap Size:

Large

Hand:

Right Hand

Model:

XW930

$579.86

XtremeScan Wear XW940 1D/2D Barcode Reader with Right Hand Wrap, XL

Hand:

Right Hand

Wrap Size:

Model:

XW940

$695.05

CX4202-3283

XtremeScan Wear XW940 1D/2D Barcode Reader with Right Hand Wrap, Small

Hand:

Right Hand

Wrap Size:

Small

Model:

XW940

$695.05

CX4203-3284

XtremeScan Wear XW940 1D/2D Barcode Reader with Right Hand Wrap, Medium

Wrap Size:

Medium

Hand:

Right Hand

Model:

XW940

$695.05

CX4196-3277

XtremeScan Wear XW940 1D/2D Barcode Reader with Left Hand Wrap, X-Small

Hand:

Left Hand

Wrap Size:

X-Small

Model:

XW940

$695.05

CX4197-3278

XtremeScan Wear XW940 1D/2D Barcode Reader with Left Hand Wrap, Small

Hand:

Left Hand

Wrap Size:

Small

Model:

XW940

$695.05

AC4065-1499

7/600/700/800 Series - AC Power Supply USB (NA & Japan) 100-240V, 5V/1A

$28.00
