Zebra WS501

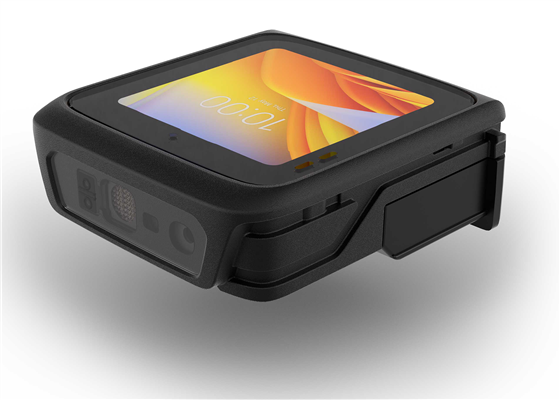

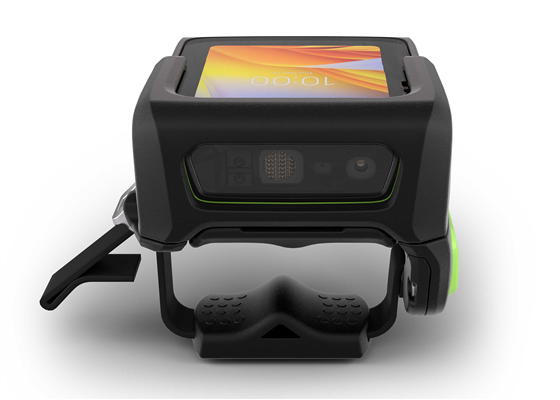

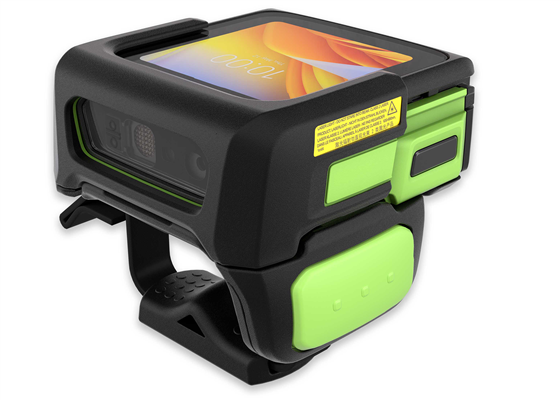

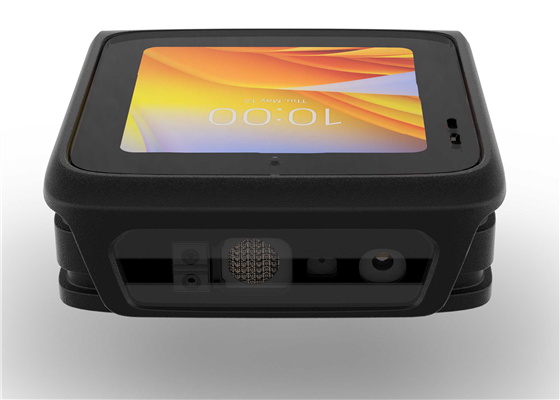

WS501 Wearable Computer
A compact all-in-one Android wearable for scan-intensive work.
The Zebra WS501 combines enterprise mobile applications, 1D/2D barcode scanning and voice features in one hands-free device. Two-finger and back-of-hand configurations keep the display and imager close to the worker for picking, putaway, receiving, loading and other repetitive capture tasks.
Key Specifications
- 2-inch AMOLED 460 x 460 color touchscreen with Gorilla Glass
- Qualcomm QC2290 processor
- 3 GB RAM and 32 GB Flash memory
- Android enterprise platform
- Wi-Fi 6, Bluetooth 5.3 and NFC
- Integrated SE4770 1D/2D enterprise imager
- 1,300 mAh PowerPrecision hot-swappable battery
- Speaker, microphone and programmable buttons
- IP65 sealing, 6 ft. drops and 2,000 tumbles
In the Box
- Selected WS501 wearable computer
- PowerPrecision battery
- Regulatory guide
- Finger, back-of-hand or other mount assembly when the selected option explicitly identifies it
Configuration note: Charging equipment and power components are sold separately unless the selected option explicitly states they are included.
All-in-one hands-free productivity
No separate host computer required
The WS501 runs Android applications and captures barcodes without pairing to another mobile computer. Its SE4770 imager reads supported 1D and 2D codes, including damaged, poorly printed and moving barcodes, while Zebra software can support multi-barcode workflows.
Choose the wearing style
Two-finger and back-of-hand configurations position the screen, scanner and trigger for different movement patterns. Verify the exact mount and trigger assembly included with the selected option.
Connected for demanding applications
Modern wireless performance
Wi-Fi 6 supports roaming and application traffic on compatible enterprise networks. Bluetooth 5.3 connects approved headsets, printers and peripherals, while NFC assists supported pairing and setup workflows.
Full-shift power and communication
The hot-swappable battery preserves the active session during replacement. Speaker, microphone and two programmable buttons support alerts, application shortcuts and compatible push-to-talk software.
Rugged and serviceable
IP65 sealing, 6 ft. drop protection and 2,000 tumbles help the WS501 withstand daily warehouse and manufacturing use. A replaceable front shell protects the display and scan window, while Zebra DataWedge, LifeGuard and management tools support deployment, security and troubleshooting.
Shop WS501 Models
WS5012-0F3J1020ENA
WS501, Finger Mount, 3GB RAM/32GB Flash, SE4770, 1300mAh Battery, North America
Mount Style:
Finger Mount
WS5012-0B3J1020ENA
WS501, Back of Hand Mount, 3GB RAM/32GB Flash, SE4770, 1300mAh Battery, North America
Mount Style:
Back of Hand Mount
Shop WS501 Accessories
23844-00-00R
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
25-MCXUSB-01R
Micro USB Cable
CBL-DC-388A1-01
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
PWR-WUA5V12W0US
Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.
CBL-TC5X-USBC2A-01
USB C to USB A Communications and Charging Cable, 1m Long
BRKT-SCRD-SMRK-01
Rack/Wall bracket, allows to install any Multi-Slot sharecradle on a wall or a 19inch IT rack and provides a holder for pwrs and cords. It also allows to install up to four spare battery chargers. Includes screws required for installation
CBL-WS5X-USB1-01
WS50 Snap-on USB/Charge Cable. Allows WS50 to be charged and also provides USB host and client communications. Requires USB-C cable (CBL-TC5XUSBC2A-01)
PWR-BGA12V108W0WW
Cable, Level VI AC/DC Power Supply Brick. AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.
SG-WEAR-HNWPRM-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Right Hand Medium
SG-WEAR-HNWPLL-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Left Hand Large
SG-WEAR-HNWPLM-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Left Hand Medium
SG-WEAR-HNWPLS-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Left Hand Small
SG-WEAR-HNWPRL-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Right Hand Large
SG-WEAR-HNWPRS-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Right Hand Small
SG-NGWT-WSTPST-01
WT6, Replacement Small/Medium Spare Strap For Wrist Mount.
SG-WS5X-TRGA-01
WS50 Replacement Finger Trigger For Converged Scanner & RFID Scanner
SG-WS5X-SHLCS-01
WS50 Converged Scanner Shell
SAC-WS5X-20S13-01
WS50 Spare Battery Charger, 20 Converged Batteries (1300mAh)
BTRY-WS5X-13MA-01
WS50 Spare Battery, 1300MAH For Converged Scanner.
CBL-WS5X-USBA-01
WS50 Synch / Charge Cable, USB Type A. Cable Length 4 Feet / 1.2 Meters.
SG-WS5X-WSTMT-01
WS50 Wrist Mount, No Straps
SG-WS5X-SHLWR-01
WS50 Wrist Shell
SG-WS5X-SCRNP1-01
WS50 Screen Protector
SG-WS5X-WSTRP-01
WS50 Wrist Strap
SG-WS5X-WSTRS-01
WS50 Wrist Strap, Small
SG-WS5X-BHMT-02
WS50 Back of Hand Mount for Converged Scanner, Rev B. Requires separate purchase of hand wrap.
SG-WS5X-CMPDC-01
Replacement Comfort Pad for WS50 Converged Finger Mount
SG-NGWT-HPMNT-01
WT6 Hip Mount, Allows to Use the Wearable Terminal on a Belt.
PWR-BGA12V50W0WW
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
CRD-WS5X-2SCV-01
WS50 Dual Slot Charge-Only Cradle - Converged. Requires Power Supply (PWRBGA12V50W0WW), DC Line Cord (CBL-DC388A1-01), and AC Line Cord (23844-00-00R or country specific version)
