Zebra WS501-R

Name: Zebra WS501-R
Brand: Zebra
Price: 2721.01 USD
Availability: InStock

Images may not reflect the actual product

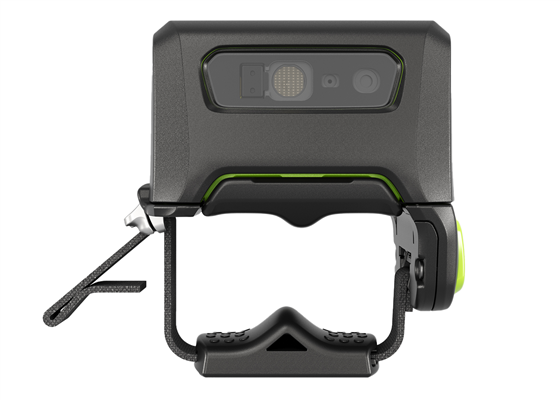

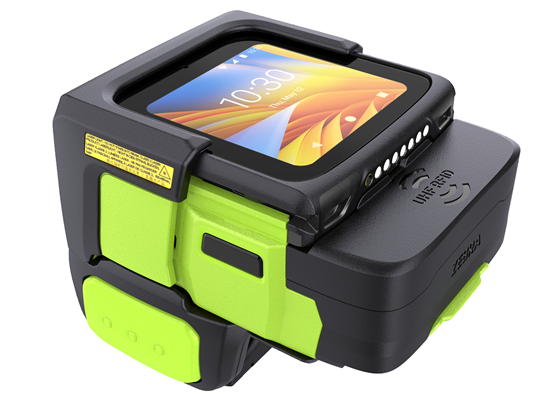

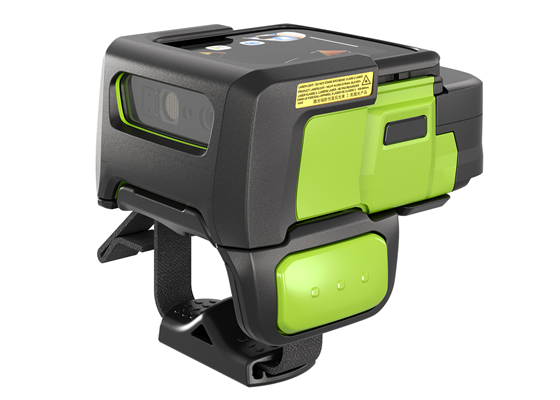

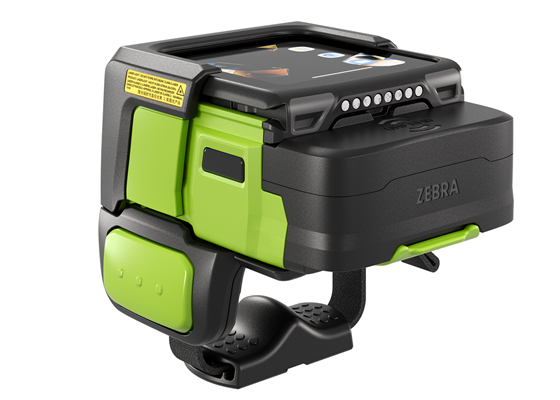

WS501-R RFID Wearable Computer

All-in-one UHF RFID, barcode capture and Android computing in a compact wearable.

The Zebra WS501-R combines mobile applications, an integrated UHF RFID reader and enterprise 1D/2D scanning in one hands-free device. Select the antenna and wearing configuration for item picking, inventory, receiving, putaway, load verification and manufacturing workflows.

Key Specifications

2-inch AMOLED 460 x 460 color touchscreen with Gorilla Glass
Qualcomm QCS2290 platform up to 2.0 GHz
3 GB RAM and 32 GB Flash memory
Android enterprise platform
Wi-Fi 6, Bluetooth 5.3 and NFC
Integrated UHF RFID with configurable read behavior
Integrated SR560 1D/2D enterprise imager
Hot-swappable 1,300 mAh PowerPrecision battery
IP65 sealing and 6 ft. drop protection

In the Box

Selected WS501-R wearable computer
PowerPrecision battery
Regulatory guide
RFID antenna and mount assembly when the selected configuration explicitly identifies them

Configuration note: Other mounts, charging equipment and power components are sold separately unless the selected option explicitly states they are included.

RFID and barcode capture in one device

Configure RFID for the workflow

The integrated upward-facing antenna supports natural reach-and-read tasks. Supported configurations can use a downward-facing antenna and configurable read power for close-range item selection or broader tag capture. Actual range depends on tag type, orientation, material, environment and region.

Enterprise barcode scanning

The SR560 imager reads supported 1D and 2D barcodes, including damaged, poorly printed and moving codes. It provides a barcode fallback when RFID is unavailable and supports multi-barcode workflows through Zebra software.

Wearable productivity

Choose the wearing style

Wrist, two-finger and back-of-hand configurations position the antenna, display and controls for different jobs. The 2-inch AMOLED screen, programmable buttons, microphone, speaker and supported push-to-talk applications keep instructions and communication close at hand.

Full-shift operation

The hot-swappable battery preserves the active session during replacement. Select compatible chargers and mounts for the installed configuration rather than assuming all WS501 accessories fit every WS501-R assembly.

Rugged and manageable

IP65 sealing, 6 ft. drop protection and a replaceable front shell support demanding industrial use. Zebra DataWedge, EMDK, LifeGuard and management tools help deploy applications, control settings, secure devices and deliver RFID or barcode data to enterprise workflows.

Dimensions

H x W x D: 3.18 x 2.4 x 1.49 inches (81 x 61 x 38 mm)

Weight

Finger mount: 6.9 oz. (196 g)

Display

2 inch AMOLED 460 x 460 color display; optically bonded to touch panel

Imager Window

Corning™ Gorilla™ Glass

Touch Panel

Capacitive touch panel; fingertip and glove support; Corning™ Gorilla™ Glass

Power

9.24 Watt Hours; 2400mAh PowerPrecision; Hot Swap (2 minutes, memory persistent)

Network Connections

USB 2.0 High Speed (host and client), WLAN and Bluetooth

Notifications

Audible tone; charge LED; OS notification LED; multi-color Application LEDs (2); haptic feedback

Voice and Audio

Speaker (90dBA); internal mic; PTT ready; Bluetooth headset support

Buttons

Trigger; 2 buttons (programmable)

Interfaces

Docking contacts; Via interface cables: USB 2.0 host/client and charging

CPU

Qualcomm® QCS2290, quad-core, 2.0 GHz

Operating System

Android; for supported Android versions, visit: www.zebra.com/android-versions

Memory

3 GB RAM/32 GB Flash

Operating Temperature

14.0°F to 122.0°F (-10.0°C to 50.0°C)

Storage Temperature

-40.0°F to 158.0°F (-40.0°C to 70.0°C)

Humidity

5% to 95% non-condensing

Drop Specification

5 ft. (1.5 m) drop to concrete per MIL-STD 810G across operating temperature

Tumble Specification

2,000 tumbles @ 1.6 ft. (0.5 m) Meets and exceeds IEC tumble specifications

Sealing

IP65

Vibration

4 g’s PK Sine, 5hz to 2khz, 1 hour duration per axis; 0.04 g2/Hz Random (20 Hz to 2 kHz), 1 hour duration per axis

Electrostatic Discharge (ESD)

+/-15 kV air discharge, +/-8 kV direct/indirect discharge

Light Sensor

Automatically adjusts display backlight brightness

Motion Sensor

6-axis accelerometer with MEMS Gyro

Scanning

SR560 1D/2D standard range omni-directional imager

NFC

Tap to Pair, ISO 14443 Type A and ISO 15693 cards, and Card Emulation via Host (HCE) support

Standards Supported

EPC Class 1 Gen 2; EPC Gen 2 V2

RFID Engine

Zebra proprietary radio technology

Nominal Read Range

~5 ft. (~1.5 m)

Frequency Range/RF System Output

US: 917-928 MHz; 0-24 dBm

Radio

IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; Wi-Fi 6; 2x2 MU-MIMO; Wi-Fi™ certified; IPv4, IPv6

Data Rates

5GHz: 802.11a/n/ac/ax—20MHz, 40MHz, 80MHz - up to 1201 Mbps 2.4GHz: 802.11b/g/n/ax—20MHz up to 286.8 Mbps

Operating Channels

Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20/40/80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption

WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES)—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; Enhanced Open (OWE)

Certifications

Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi QoS Management

Fast Roam

PMKID caching; Cisco CCKM; 802.11r (Over-The-Air); OKC

Bluetooth

Bluetooth 5.3; Classic Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR) and Bluetooth Low Energy (BLE) support; Class 1

Shop WS501-R Models

WS5012-0D3M1030ENA

WS501 RFID Wearable Solution, Back of Hand Mount, SR560 Imager, UHF RFID Reader 900MHz, 3GB/32GB Memory, 2400mAh Battery, North America

Mount Style:

Back of Hand Mount

$2721.01

WS5012-0Y3M103PENA

WS501-R Wearable Solution, Wrist Mount, SR560 Imager, UHF RFID Reader 900MHz, 3GB/32GB Memory, 2400mAh Battery, North America

Mount Style:

Wrist Mount

$2721.01

WS5012-0U3M1030ENA

WS501 RFID Wearable Solution, Finger Mount, SR560 Imager, UHF RFID Reader 900MHz, 3GB/32GB Memory, 2400mAh Battery, North America

Mount Style:

Finger Mount

$2721.01

Shop WS501-R Accessories

SG-WS5X-TRGA-01

WS50 Replacement Finger Trigger For Converged Scanner & RFID Scanner

$175.21

SG-WS5X-SHLCS-01

WS50 Converged Scanner Shell

$175.21

SG-WS5X-WMTRRL-01

Wrist Mount For WS50 RFID, Right Arm, Large

$171.11

SG-WS5X-WMTRRS-01

Wrist Mount For WS50 RFID, Right Arm, Small

$171.11

SG-WS5X-CMPDR-01

Replacement Comfort Pad For WS50 RFID Finger Mount

$21.90

SG-WS5X-DFLTR-01

WS50 Replacement Deflector For RFID Shell

$32.86

SG-WS5X-BHRS-01

WS50 RFID Back Of Hand Mount, With Trigger. Requires Separate Purchase Of Enterprise Hand Wrap Soft Good.

$143.74

SG-WS5X-STRP-10

WS50 Spare Finger Strap For Converged And RFID Trigger, 10 Pack

$98.39

SG-WS5X-BHAHRS-01

WS50 RFID Back Of Hand Antenna Holder, Right Small. Attaches To Enterprise Hand Wrap, Sold Separetely

$85.56

SG-WS5X-BHAHRL-01

WS50 RFID Back Of Hand Antenna Holder, Right Large. Attaches To Enterprise Hand Wrap, Sold Separetely

$85.56

SG-WS5X-BHAHLS-01

WS50 RFID Back Of Hand Antenna Holder, Left Small. Attaches To Enterprise Hand Wrap, Sold Separately

$85.56

SG-WS5X-BHAHLL-01

WS50 RFID Back Of Hand Antenna Holder, Left Large. Attaches To Enterprise Hand Wrap, Sold Separetely

$85.56

23844-00-00R

7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW

$17.94

PWR-BGA12V50W0WW

Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.

$82.33

PWR-BGA12V108W0WW

Cable, Level VI AC/DC Power Supply Brick. AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.

$174.97

CBL-DC-381A1-01

Cable, DC PWR CRD, 4 or 5 Slot Cradle

$44.11

CRD-WS5X-2SRD-01

WS50 Charge Only Cradle, 2 RFID Devices

$373.89

CRD-WS5X-10SRD-01

WS50 Charge Only Cradle, 10 RFID Devices

$1324.95

CRD-WS5X-5SERD-01

WS50 Ethernet Charge Cradle, 5 RFID Devices, 5 RFID Batteries (2400mAh)

$1849.70

SAC-WS5X-4S24-01

WS50 Spare Battery Charger, 4 RFID Batteries (2400mAh)

$523.93

SAC-WS5X-20S24-01

WS50 Spare Battery Charger, 20 RFID Batteries (2400mAh)

$2014.65

BTRY-WS5X-24MA-01

WS50 Spare Battery, 2400mAh for RFID Scanner.

$212.58

SG-WS5X-WSPLRS-01

WS50 RFID Wrist Mount Plate

$98.52

CBL-WS5X-ANTR8S-01

WS50 UHF RFID External Antenna Cable, 800MHz, 210mm Length, EMEA

$88.15

CBL-WS5X-ANTR8L-01

WS50 UHF RFID Antenna Cable, 800MHz, 240mm length for Back of Hand Mount and Wrist Mount Right Hand, EMEA

$88.15

CBL-WS5X-ANTR9S-01

WS50 UHF RFID External Antenna Cable, 900MHz, 210mm Length, North America and Rest of World Minus EMEA

$106.44

CBL-WS5X-ANTR9L-01

WS50 UHF RFID Antenna Cable, 900MHz, 240mm length for Back of Hand Mount and Wrist Mount Right Hand, North America and Rest of World Minus EMEA

$106.44

CBL-DC-388A1-01

7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
