Wall Mount Monitor Arm

Images may not reflect the actual product
Product Image
small product image0
small product image1

Two arm lengths for VESA displays up to 34 inches.

StarTech's aluminum monitor arms move a single display off the counter and let you turn it toward staff, customers or visitors. Both models support 13-34 inch displays up to 30.9 lb (14 kg), with 75 x 75 mm or 100 x 100 mm VESA mounting.

Choose the 20.5-inch dual-swivel ARMWALLDSLP for greater reach, or the 10.2-inch ARMWALLDS2 for a shorter working distance. Both fold back to approximately 5.1 inches from the wall and rotate between portrait and landscape. Neither provides height adjustment.

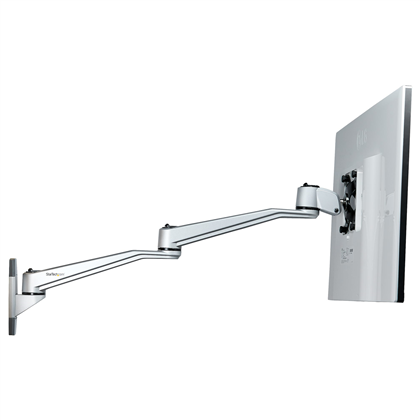

StarTech ARMWALLDSLP dual-swivel wall arm with a monitor; monitor sold separately

Compare the Arm Lengths

StarTech ARMWALLDSLP wall mount; monitor sold separately

Dual-Swivel Wall Mount

ARMWALLDSLP

Reach farther from the wall.

Reach20.5 in (520 mm) maximum extension.
ArmTwo swivel arms; three swivel points.
Display13-34 inches; up to 30.9 lb (14 kg).
VESA75 x 75 or 100 x 100 mm.

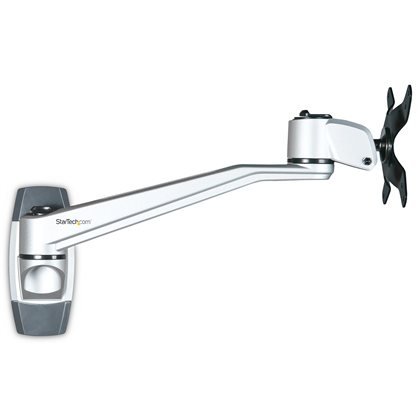

StarTech ARMWALLDS2 wall mount; monitor sold separately

Single-Arm Wall Mount

ARMWALLDS2

Keep the display closer to the wall.

Reach10.2 in (260 mm) maximum extension.
ArmOne swivel arm; two swivel points.
Display13-34 inches; up to 30.9 lb (14 kg).
VESA75 x 75 or 100 x 100 mm.

Both mounts include their mounting hardware. Monitor and display cables are sold separately.

Adjust Your Viewing Angle

Tilt the screen 90 degrees up or 15 degrees down, pan it 180 degrees in either direction, or rotate it through 360 degrees. Adjustable swivel tension lets you set the resistance when repositioning the arm.

Quick Assembly, Routed Cables

Slide-and-click connections join the arm and monitor plate without tools. Cable management routes display cables along the arm, while decorative covers conceal the mounting screws.

Key Specifications

  • Product / application: Single-display wall mount
  • Capacity: Up to 30.9 lb (14 kg)
  • Supported displays: 13-34 in; flat, curved or ultrawide
  • VESA compatibility: 75 x 75 or 100 x 100 mm
  • Connectivity: Mechanical mount; no data interfaces
  • Power: No power required
  • Construction: Silver aluminum; TAA compliant
  • Deployment: Wall mount; no height adjustment
  • Maximum reach: 10.2 or 20.5 in, by model
  • Product weight: Not consistently specified
  • Warranty: 10 years

In the Box

  • Selected ARMWALLDSLP or ARMWALLDS2 wall mount and monitor plate
  • Two swivel arms (ARMWALLDSLP) or one swivel arm (ARMWALLDS2)
  • Four thumb screws and an M3 hex key
  • Two wall plugs and two mounting screws
  • User manual

Monitor and display cables are sold separately.

Models
ARMWALLDSLP; ARMWALLDS2
Mounting type
Articulating wall mount for one display
VESA mounting patterns
75 x 75 mm; 100 x 100 mm
Display size
13 to 34 inches; flat, curved or ultrawide
Maximum supported load
14 kg (30.9 lb)
Maximum arm extension
ARMWALLDSLP: 520 mm (20.5 in); ARMWALLDS2: 260 mm (10.2 in)
Material / finish
Aluminum; silver
Viewing adjustment
Tilt: +90 / -15 degrees; pan: +180 / -180 degrees; display rotation: 360 degrees
Height adjustment
No
Cable management
Yes
Warranty
10 years
UPC
ARMWALLDSLP: 065030881463; ARMWALLDS2: 065030881494
Package quantity
1 mount assembly
Number of displays
1
Articulating
Yes
Minimum wall profile
Approximately 129 mm (5.1 in)
Swivel points
ARMWALLDSLP: 3; ARMWALLDS2: 2
Wall pivot
+180 / -180 degrees
Arm joint rotation
ARMWALLDSLP: 360 degrees at shoulder and elbow; ARMWALLDS2: 360 degrees at elbow
Included components
Wall bracket, monitor plate, 4 thumb screws, M3 hex key, 2 wall plugs, 2 mounting screws and user manual; 2 swivel arms with ARMWALLDSLP or 1 swivel arm with ARMWALLDS2
Environment
Indoor use only
Compliance
TAA compliant
Installation tools required
Phillips screwdriver, level and writing utensil
Product dimensions (L x W x H)
ARMWALLDSLP: 325 x 340 x 122 mm; ARMWALLDS2: 395 x 240 x 115 mm
Package dimensions (W x D x H)
ARMWALLDSLP: 344 x 238 x 107 mm; ARMWALLDS2: 341 x 186 x 103 mm
ARMWALLDSLP Data Sheet
Download
ARMWALLDS2 Data Sheet
Download
ARMWALLDSLP Installation Manual
Download
ARMWALLDS2 Installation Manual
Download
ARMWALLDSLP Dimensional Drawing
Download
ARMWALLDS2 Dimensional Drawing
Download
Wall Mounting Installation Guide
Download

Shop Wall Mount Monitor Arm Models

ARMWALLDSLP

StarTech ARMWALLDSLP Swinging Arm Monitor Wall Mount, dual-swivel, 20.5-inch maximum extension, for displays up to 34 inches and 30.9 lb, 75 x 75 and 100 x 100 mm VESA.

Arm Extension:

20.5 in (520 mm)

$127.09

armwallds2

StarTech ARMWALLDS2 Swinging Arm Monitor Wall Mount, 10.2-inch maximum extension, for displays up to 34 inches and 30.9 lb, 75 x 75 and 100 x 100 mm VESA.

Arm Extension:

10.2 in (260 mm)

$96.08
