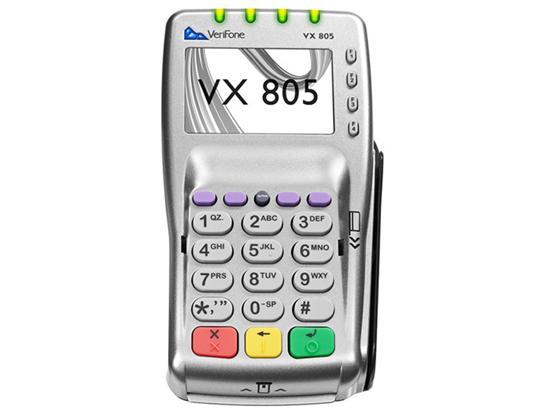

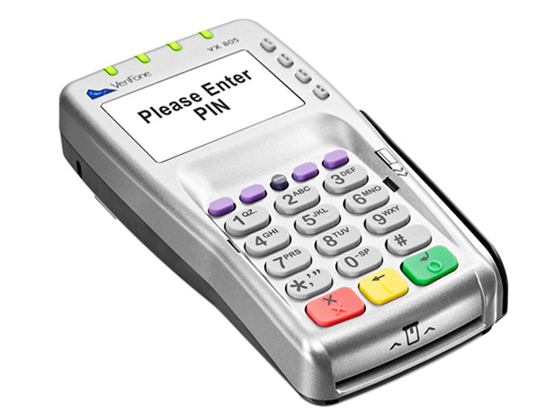

Verifone VX 805

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

All Payment Devices Require Encryption & Injection for Use in Point of Sale Software. This Service is Not Included In Price. Please Call for More Information.

The VX805 is Verifone's next-generation payment processing PIN pad that offers secure acceptance of credit, debit, EMV chip cards and optional contactless payments. The VX805 PIN pad allows merchants to process a variety of transactions without POS software integration - this is ideal if your software is not yet updated to process EMV payments through your current payment processor.

The sleek and compact terminal design is suitable for both large and small retailers. Having a familiar ATM-style keypad and high-resolution white back lit display makes this one of the easiest keypads to use. Along with being PCI and EMV level 1 and 2 compliant the Vx805 also has Verifone’s VeriShield Total Protect encryption incorporated for end to end data security.

Please be sure to provide valid contact information during the check out process to ensure a POSGuys representative can get a hold of you to get your Payment Processing and software information in order to process your EMV Pin Pad Purchase.

Features

  • PCI PTS 3.0 and EMV level 1 & 2 Compliant
  • Three Track Vertical Mag-Stripe Reader and Chip Card Reader Slot
  • Dual Purpose for Handheld or Counter Use
  • Credit, PIN Debit, EMV Chip and NFC/Contactless Transaction Capable
  • USB 2.0 Connectivity (For Serial RS-232 Connection Please Call)
  • Standard 5 Volt USB for Charging

The VX805 is non-refundable. Contact POSGuys at 800-903-6571 before you buy to ensure you purchase the right terminal for your Payment Processor and business.

Credit card processing icon

Want to Make Credit Processing Simple? We Can Do That.

Credit card processing can be confusing. We make it easy. We'll make sure you understand exactly what you're signing up for because we believe you deserve to make an informed decision. We don't try to push you into a payment processing service that doesn't fit your needs or costs more than it should.

Payments Supported
Credit
PIN-based Debit
EMV-based Chip
NFC/Contactless (optional)
Memory
160 MB (128 MB of Flash, 32 MB of SDRAM)
Encryption
3DES encryption, Master/ Session and DUKPT key management
PCI PTS Approved
Yes
EMV Compliant
Level 1 and 2
Interfaces Available
USB
RS 232 Serial
Processor
400 MHz ARM11 32-bit RISC processor
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity, bi-directional
Keypad
3x4 numeric keypad, plus 8 soft function keys and 4 screen-addressable keys
Ports
Single, multi-port connector that supports RS-232, USB 2.0 device and Ethernet (contactless version only)
Operating Temperature
32° to 104° F (0° to 40° C)
Voltage
5-12VDC, 2.5WMax
Display
128x64 white backlight display supports up to 8 lines x 21 characters
Dimensions
Length: 158 mm; Width 83.1 mm; Depth: 31.4 mm;
Warranty
13 Month Limited Warranty
Blank VAR Sheet
Download
Data Sheet
Download
Data Sheet - Spanish
Download

Shop VX 805 Models

M280-703-A3-WWA-3

Verifone VX805 Payment PIN Pad - Grey, 160MB, SC 3SAM, Standard Keypad, Contactless, Cables Not Included --- (order will only be processed once POSGuys determines Payment Processor Compatibility) --- NO Returns

Payment Processor:

Buyer Option

Contactless:

Yes

$399.00

MERCURY-VX805

Mercury Key Injected Verifone VX805 Payment Terminal - Grey, 160MB, SC 3SAM, Standard Keypad, Contactless, Includes Required Cables --- NO Returns

Payment Processor:

Mercury

Contactless:

Yes

$399.00

VX805-Kit

VX805: Power supply and USB cable, Requires Encryption (Call for pricing)

$329.00

M280-703-AD-NAA-3

VX805 Payment Terminal. 192MB. SC 2SAM Standard Keypad. Injection NOT Included In Price.

$371.70

Shop VX 805 Accessories

367-3227

Stand for VX805/820 Low Profile, 0-90 degrees

$76.67

CBL282-033-01-A

Vx805/Vx820 Powered USB Cable to PC/ECR 2M, for Stand Alone Credit Card Processing - Requires Power Supply (PWR282-001-01-A)

$33.19

PWR282-001-01-A

Power Supply for Vx805/Vx820 Powered USB and Powered Serial Cables

$22.00

CBL282-031-02-A

Vx805/Vx820 Powered Serial Cable to PC/ECR DB9 6FT, for Stand Alone Credit Card Processing - Requires Power Supply (PWR282-001-01-A)

$29.99
