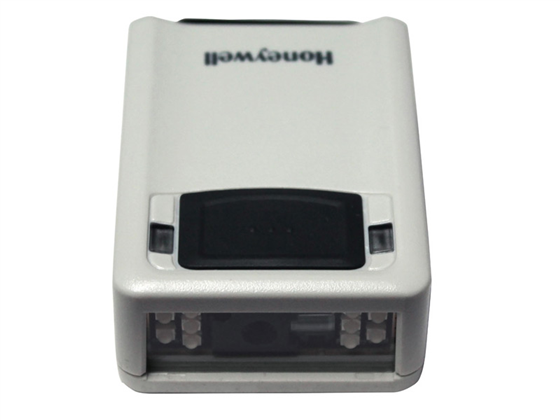

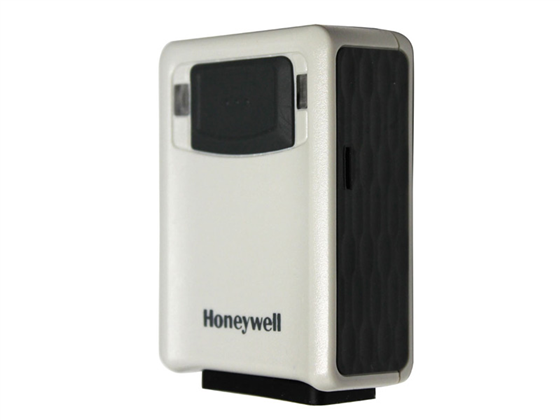

Honeywell Vuquest 3320G
Compact area imaging for printed and on-screen barcodes in presentation, handheld, kiosk, and light-industrial installations.
Brand update: The Vuquest 3320G is now a Brady product, formerly sold as the Honeywell Vuquest 3320G.
The Honeywell Vuquest 3320g is a small 1D/2D area imager built for counters and integrated installations where a full-size presentation scanner is unnecessary. Its 77 g body supports hands-free presentation use, a thumb-activated handheld mode, and universal mounting for kiosks or light-industrial equipment.
Listed configurations include standard, High Density, and Extended Range scanner-only choices plus USB kits in black or ivory. Multi-interface hardware supports USB, RS-232, and keyboard wedge with automatic interface detection; choose a kit when a cable is required and confirm the exact option's licensed decoding features.
Key Specifications
- Scanner configuration: Corded compact area imager for presentation, handheld, kiosk, or fixed-mount use; standard, High Density, and Extended Range local configurations.
- Barcode capability: Reads supported 1D, PDF, 2D, postal, and OCR symbologies; licensed capability depends on the exact configuration.
- Reading range: Typical standard-range performance spans 26 to 435 mm across published test barcodes; High Density and Extended Range versions target different code sizes and working distances.
- Interfaces / connectivity: USB, RS-232, and keyboard wedge with automatic interface detection; 15-position D-sub scanner connector.
- Durability: Designed to withstand 1.5 m (5 ft) drops; suitable for compact retail, kiosk, warehouse, and light-industrial installations.
- Environmental sealing: IP53; operates from -20 to 50°C (-4 to 122°F) and stores from -20 to 70°C (-4 to 158°F).
- Dimensions and weight: 73 x 51 x 26 mm (2.9 x 2.0 x 1.0 in); 77 g (2.7 oz).
- Warranty: 2 years.
In the Box
- Honeywell Vuquest 3320g scanner in the selected color, range, and licensed decoding configuration
- 2.9 m USB Type-A cable and documentation with USB kit options
- EasyDL 2.0 license with options that explicitly identify EasyDL
Scanner-only options do not include a host cable. Stand, mounting hardware, power supply, alternate interface cables, and licensed software features are separate unless the exact option description states otherwise.
Read Printed and Digital Codes
Area imaging with screen-friendly illumination
The 838 x 640 imager reads supported codes on printed labels and reflective mobile-device screens. Laser-free aiming and restrained illumination provide clear scan feedback without the after-image associated with brighter imager lighting.
Fit Compact Installations
Presentation, handheld, and universal mounting
The thumb-activated button supports occasional handheld use, while presentation scanning and universal mounting make the same compact body useful on counters, in kiosks, and within light-industrial equipment.
Match Range and Code Size
Standard, High Density, and Extended Range choices
Standard configurations cover common labels, High Density configurations target smaller dense codes, and Extended Range configurations support applications needing a longer working distance. Select the range before choosing color and kit contents.
Extend Data Processing
TotalFreedom and licensed parsing options
Honeywell TotalFreedom can load compatible decoding and formatting applications directly on the scanner. EasyDL configurations add driver's-license data parsing without requiring the host application to handle the full raw barcode payload.
Shop Vuquest 3320G Models
3320G-2USB-0-N
Vuquest 3320g 2D USB Kit, Black, PDF417, 2.9m USB Cable and Documentation Included
Color:
Black
Data Parsing Software:
Not Included
Scan Range:
Standard Range
Cable:
USB Included
3320G-4USB-0-N
Vuquest 3320g 2D USB Kit, Ivory, PDF417, 2.9m USB Cable and Documentation Included
Color:
Ivory
Data Parsing Software:
Not Included
Scan Range:
Standard Range
Cable:
USB Included
3320G-2USB-0EZDN
Vuquest 3320g 2D USB Kit, Black, PDF417, 2.9m USB Cable and Documentation Included, EasyDL 2.0
Color:
Black
Data Parsing Software:
EasyDL 2.0 Included
Scan Range:
Standard Range
Cable:
USB Included
3320GER-4
Vuquest 3320g 2D Scanner, Ivory, Extended Range, PDF417, RS232/USB/Keyboard Wedge, Cable Not Included
Scan Range:
Extended Range
Color:
Ivory
Cable:
Not Included
Data Parsing Software:
Not Included
3320GHD-4-N
Vuquest 3320g 2D Scanner, Ivory, High Density, PDF417, RS232/USB/Keyboard Wedge, Cable Not Included
Scan Range:
High Density
Color:
Ivory
Cable:
Not Included
Data Parsing Software:
Not Included
3320G-2-N
Vuquest 3320g 2D Scanner, Black, RS232/USB/Keyboard Wedge, Cable Not Included
Color:
Black
Cable:
Not Included
Data Parsing Software:
Not Included
Scan Range:
Standard Range
3320G-4-N
Vuquest 3320g 2D Scanner, Ivory, PDF417, RS232/USB/Keyboard Wedge, Cable Not Included
Color:
Ivory
Cable:
Not Included
Data Parsing Software:
Not Included
Scan Range:
Standard Range
Outlet Items

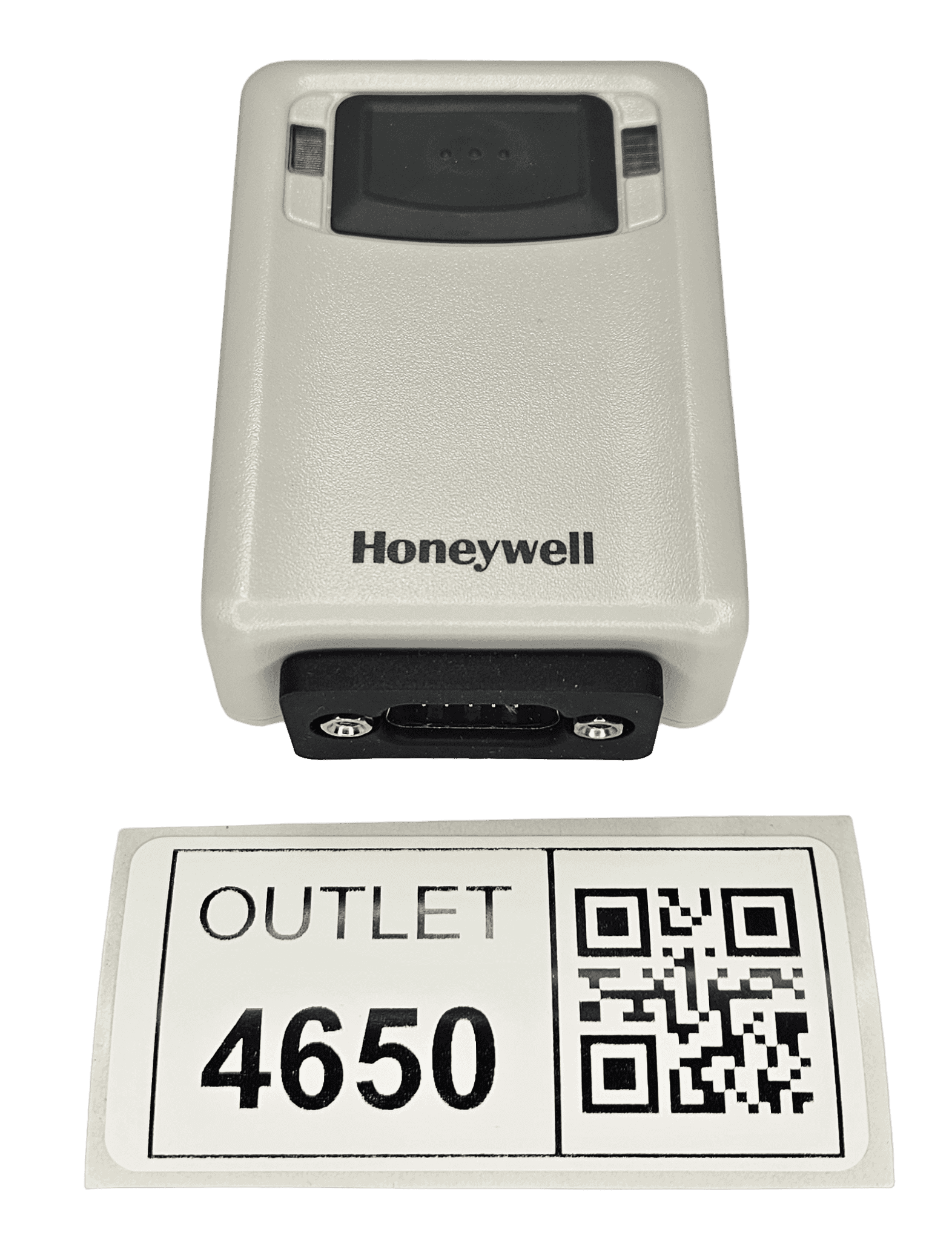

Honeywell Vuquest 3320g
Honeywell Vuquest 3320g 2D Scanner USB Kit (Renewed, Like New). Ivory. (3320G-4USB-0-N) CID: 4650
Item Number: 3320G-4USB-0-N
1 Like New AvailableCID: 4650
Shop Vuquest 3320G Accessories
52-52559-N-3-FR
Vuquest 3320g 2.9 m USB Type-A Cable
52-52561-3-FR
Vuquest 3320g 2.9 m USB Type-A Cable with External I/O
52-52557-3-FR
Vuquest 3320g 2.9 m RS-232 DB9 Cable
46-00525-6
Honeywell Scanner Power Supply, North American Plug, 1.0 A at 5.2 VDC, for Cabled Connections and Xenon/Voyager Bases
46-01210
Vuquest 3320g Presentation Stand and Tray
50129064-001
Vuquest 3320g / Xenon Wall-Mount Holder Kit
