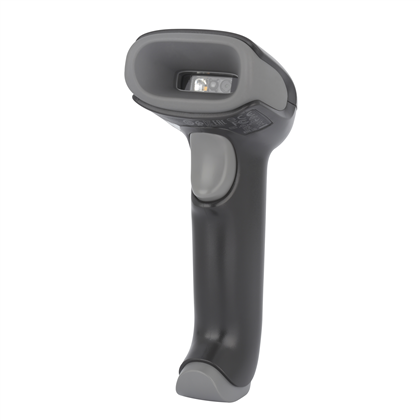

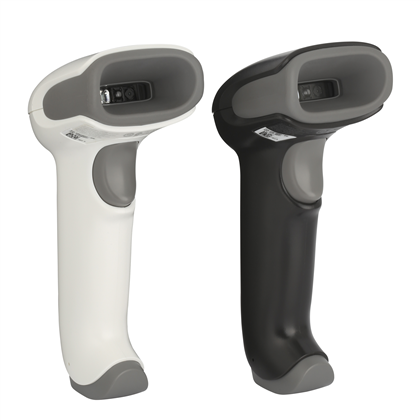

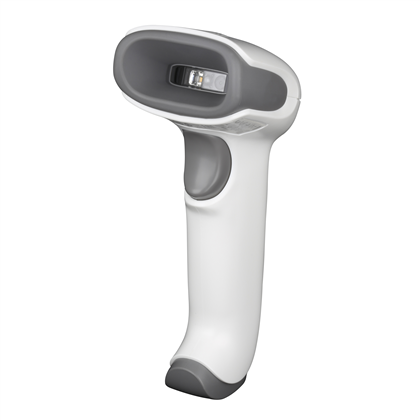

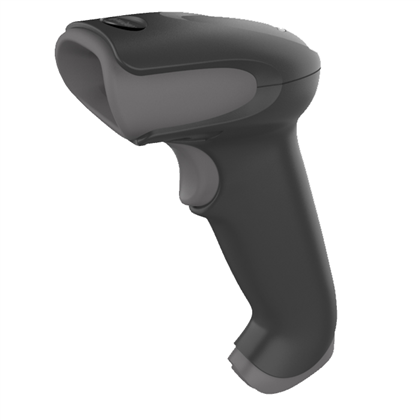

Honeywell Voyager XP 1472g
Voyager XP 1472g (iOS)
Cordless 1D/2D area-imaging scanner for retail and general-duty point of sale.Cordless Scanning for Busy Retail Counters and General-Duty Workflows
Brand update: The Voyager XP 1472g is now a Brady product, formerly sold as the Honeywell Voyager XP 1472g.
The Honeywell Voyager XP 1472g combines cordless freedom with reliable reading of printed and on-screen barcodes. Choose a 1D-only configuration or a 1D/2D model for QR codes and other two-dimensional symbols.
With a compatible Honeywell charge/communication base, Bluetooth 4.2 provides up to 100 m (328 ft.) of line-of-sight range. The scanner is rated for up to 100,000 scans or 28 hours per charge, helping it stay productive through demanding shifts.
Select a scanner-only configuration or a USB kit with the compatible charge and communication base.
Key Specifications
- Scanner configuration: Handheld cordless area imager; 1D-only and 1D/2D configurations
- Barcode capability: 1D; 2D on 2D-enabled configurations
- Reading range: Typical 13 mil UPC range of 0.7 to 15.8 in. (18 to 402 mm)
- Interfaces / connectivity: Bluetooth 4.2 up to 100 m; USB, keyboard wedge and RS-232 through a compatible base or access point
- Durability: 30 drops from 6 ft. (1.8 m) and 1,000 tumbles at 1.6 ft. (0.5 m)
- Environmental sealing: IP52
- Dimensions and weight: 3.2 x 2.5 x 6.8 in. (82 x 62 x 173 mm); 7.4 oz. (210 g)
- Image sensor: 1040 x 720 pixels at 60 fps
- Battery / runtime: 2400 mAh; up to 100,000 scans or 28 hours
- Warranty: 3 years on the scanner; 1 year on the battery
In the Box
- Package contents depend on the selected configuration:
- Power note: An external power supply is sold separately when required by the selected setup.
- Upgrade path: Upgrade the 1D configuration for 2D scanning with Honeywell license SW-2D-147XG.
Reads printed and on-screen codes
Capture everyday retail barcodes from merchandise, printed coupons and mobile screens.
Handles difficult-to-read barcodes
Fast area imaging improves first-pass reading of poor, damaged and small symbols.
Move freely around the workspace
Bluetooth connectivity provides up to 100 m of line-of-sight range with a compatible base.
Work through demanding shifts
The 2400 mAh replaceable battery supports up to 100,000 scans or 28 hours per charge.
Fits common POS environments
USB, keyboard wedge and RS-232 support current and legacy checkout systems through a compatible base or access point.
Configure with EZConfig
Honeywell EZConfig supports firmware updates and configuration barcodes for consistent scanner setup.
Retail-ready durability
IP52 sealing, 30 drops from 6 ft. and 1,000 tumbles help reduce repair and downtime.
Serviceable battery design
The replaceable battery supports long-term use in busy retail environments.
Shop Voyager XP 1472g Models
1472G2D-2USB-5-N
Voyager XP 1472g 2D Bluetooth USB Kit, Black, Cradle and USB Cable Included
Quantity:
1 Unit
Scan Engine:
1D and 2D
Accessories:
Charge Base + USB Cable
Housing:
General Purpose
1472G2D-6USB-5-N
Voyager XP 1472g 2D Bluetooth USB Kit, Black, Disinfectant-Ready, Cradle and USB Cable Included
Quantity:
1 Unit
Scan Engine:
1D and 2D
Accessories:
Charge Base + USB Cable
Housing:
Disinfectant-Ready
1472G1D-2USB-5-N
Voyager XP 1472g 1D Bluetooth USB Kit, Black, Cradle and USB Cable Included
Quantity:
1 Unit
Scan Engine:
1D Only
Accessories:
Charge Base + USB Cable
Housing:
General Purpose
1472G2D-2-N
Voyager XP 1472g 2D Bluetooth Scanner, Black, Cradle and Cable Not Included
Quantity:
1 Unit
Scan Engine:
1D and 2D
Housing:
General Purpose
Accessories:
Not Included
1472G2D-2USB-5-N-50
Voyager XP 1472g 2D Bluetooth USB and Cradle Kit, Black, Pre-Negotiated Wholesale Price for 50+ Units
Scan Engine:
1D and 2D
Quantity:
50 Units
Accessories:
Charge Base + USB Cable
Housing:
General Purpose
Shop Voyager XP 1472g Accessories
SW-2D-147XG
Upgrade Voyager 1470 or 1472 to 2D scanning
46-00525-6
Honeywell Scanner Power Supply, North American Plug, 1.0 A at 5.2 VDC, for Cabled Connections and Xenon/Voyager Bases
CBL-020-500-C00
Cable: 16.4 Foot, RS232, Black, DB9 Female, Coiled, 5V Ext Power
CBL-500-150-S00
Honeywell USB Type-A Scanner Cable, 1.5 m, Straight, Black, 5 V Host Power, Without Ferrite
CBL-500-300-C00
Honeywell USB Type-A Scanner Cable, 3 m, Coiled, Black, 5 V Host Power
CBL-500-400-C00-01
Honeywell USB Type-A Scanner Cable, 4 m, Coiled, Black, 5 V Host Power, Without Ferrite
CBL-503-300-C00
Cable: USB, black, 12V locking, 3m (9.8ft), coiled, 5V host power
CBL-500-500-S00
Honeywell USB Type-A Scanner Cable, 5 m, Straight, Black, 5 V Host Power, Without Ferrite
CBL-503-300-S00
Cable: USB, black, 12V locking, 3m (9.8ft), straight, 5V host power
CBL-503-500-C00
Cable: USB, black, 12V locking, 5m (16.4ft), coiled, 5V host power
CBL-800-300-C00
Honeywell USB Type-C Scanner Cable, 3 m, Coiled, Black, 5 V Host Power, Without Ferrite
CBL-500-300-S00
Honeywell USB Type-A Scanner Cable, 3 m, Straight, Black, 5 V Host Power, Without Ferrite
CBL-500-500-C00
Honeywell USB Type-A Scanner Cable, 5 m, Coiled, Black, 5 V Host Power, Without Ferrite
CBL-020-300-C00
Honeywell RS-232 Scanner Cable, DB9 Female, 3 m, Coiled, Black, 5 V Signals, External or Pin-9 Host Power
CBL-720-300-C00
Honeywell PS/2 Keyboard-Wedge Scanner Cable, 3 m, Coiled, Black, 5 V External or Host Power, Without Ferrite
BAT-SCN01A
Honeywell BAT-SCN01A 2400 mAh Li-Ion Battery for Voyager 1202g, 1452g, and 1472g; Xenon 1902 and 1952g; Granit 1911i, 1981i, and 1991i; Ground Shipping Required
MB4-BAT-SCN01NAD06
Charger: 4 Bay, Desktop Power Supply, NA power supply (46-00525 Level VI), Batteries not included
MB4-BAT-SCN01NAW06
Charger: 4 Bay, Wall Mount Power Supply, NA power supply (46-00525 Level VI), Batteries not included
AP-010BT-07N
Honeywell Class 2 Bluetooth Access Point, 10 m (33 ft) Range, Connects Up to 7 Scanners, Supports RS-232, USB, Keyboard Wedge, and IBM Interfaces; Cable Sold Separately
AP-100BT-07N
Access Point: Class 1 Bluetooth, 100 m (300 ft), Up to 7 Scanners, Cable Sold Separately
CCB01-010BT-V1N-N
Voyager 147xg Charge and Communication Base: Class 2 Bluetooth, 30 m, Cables Sold Separately
