Custom America VKP80III
A compact kiosk printer for dependable ticket and receipt output in unattended applications.

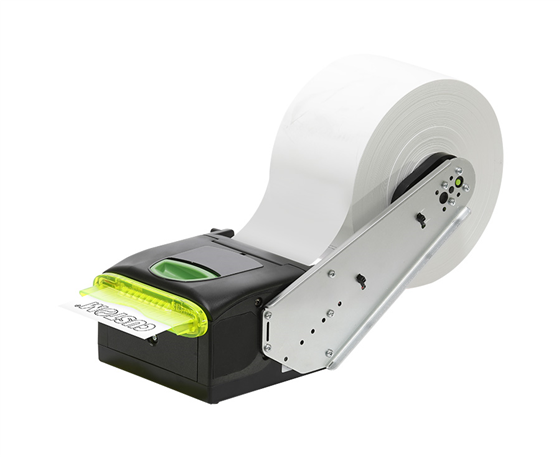

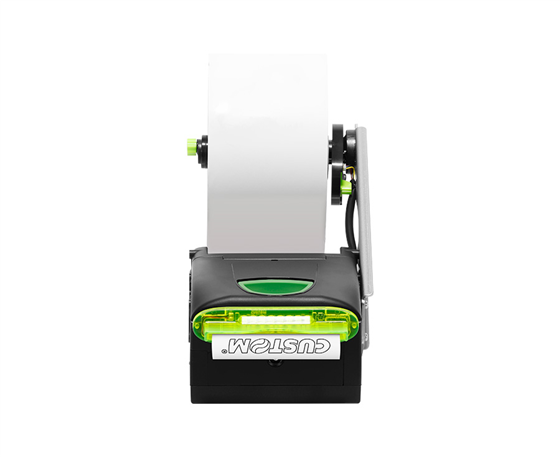

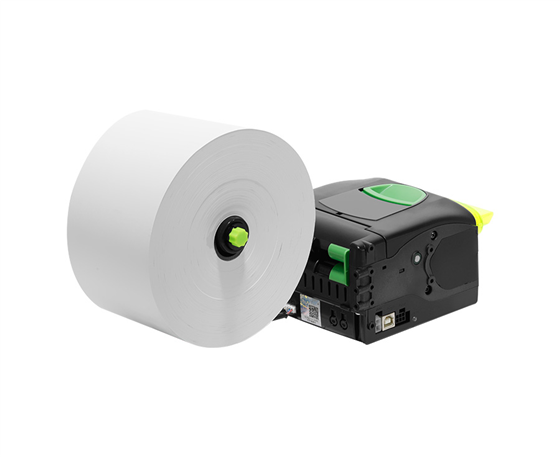

The Custom America VKP80III is a fixed-head thermal kiosk printer for unattended ticketing and receipt applications. Eject-and-retract handling, automatic jam detection and retry, and service-friendly access help keep kiosks operating with less intervention.
It supports 50–82.5 mm media, speeds above 250 mm/s, and connector configurations with USB plus RS-232 or Ethernet plus USB.
Key Specifications
- Print method: Direct thermal with fixed head.
- Print speed: More than 250 mm/sec.
- Paper widths: 50–82.5 mm; up to 150 mm roll diameter or 250 mm with the optional holder.
- Resolution: 203 dpi.
- Interfaces / connectivity: USB and RS-232 serial; Ethernet plus USB on the selected model.
- Cutter and reliability: Cutter rated for 1 million cuts, printhead for 200 km, and electronic-board MTBF for 450,000 hours.
- Platform support: CUSTOM/POS emulation with Windows and Linux drivers.
- Dimensions and weight: 143.5 × 76.4 × 116 mm; 0.8 kg.
- Warranty: 1 year
In the Box
- VKP80III kiosk printer in the selected connector configuration
Power supply 963GE020000143 and AC power cord 976ZZ010000021 are sold separately.
Unattended Media Handling
Eject-and-retract operation can pull back an uncollected ticket, while automatic jam detection and retry support continuous kiosk service.
Installation Flexibility
Available configurations cover Ethernet plus USB or USB plus RS-232, with side, rear, or back connector layouts. Six mounting positions and an optional outdoor shutter support varied kiosk builds.
Shop VKP80III Models
915DX010100J00
VKP80III Kiosk Printer, USB and Ethernet, Side Connectors; power supply and AC cable sold separately.
Connector Position:
Side
Interface:
USB and Ethernet
915DX011700300
VKP80III Kiosk Printer, USB and RS-232, Back Connectors; power supply and AC cable sold separately.
Connector Position:
Back
Interface:
USB and RS-232
915DX011900300
VKP80III Kiosk Printer, USB and RS-232, Side Connectors; power supply and AC cable sold separately.
Connector Position:
Side
Interface:
USB and RS-232
Shop VKP80III Accessories
976DX010000008
Paper Mouth with Shutter for VKP80III Kiosk Printer
976DX010000004
Near-End Paper Sensor Board and Wiring for VKP80III
26300000000579
2-Pin Molex-to-Flying-Lead Power Cable
976ZZ010000021
Custom America AC Power Cable
26500000000352
6-Foot DB9-to-DB9 Serial Cable
26500000000356
6-Foot USB Type-A to Type-B Cable
976DX010000002
Micro-Fit 6-Pin-to-DB9 Serial Converter Cable for VKP80III; Required with Serial Cable 26500000000352
963GE020000143
60 W 2-Pin Molex Power Supply for VKP80III; AC power cable 976ZZ010000021 sold separately
37966861
Paper SK1-31A, SK1-31A L, SK1-V31A, SK1-V31A L, SK1-311, SK1-311 L, SK1-V311, SK1-V311 L, TSP1000: 80mm Width, 1 in core, 420 ft Length, 12 Rolls/Case, Blue Core
10007008
Zebra Kiosk Receipt Paper, Requires 1" Core, 3.125in x 645ft (79.4mm x 196.6m); DT, Z-Perform 1000D 3.5 mil, Value Uncoated, BPA Free, 645/roll, 8/box
974DX010000007
Adjustable Roll Holder Kit for VKP80III
