APG Vasario Series
Description
Specifications
Download

APG Vasario Series

Images may not reflect the actual product

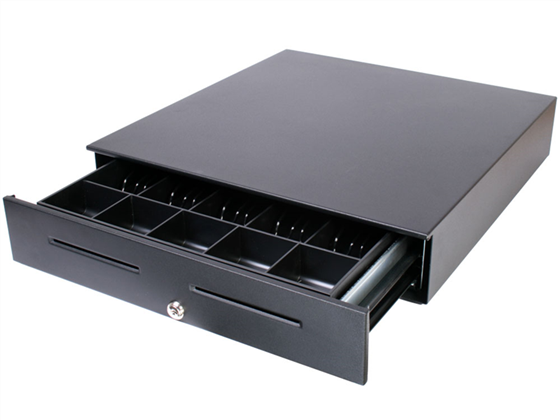

Product Image
small product image0
small product image1
small product image2
small product image3

Vasario Series (iOS)

Vasario Cash Drawer - iOS Compatible Cash Drawer (USB, Serial, Printer-Driven) The APG Vasario cash drawer is a great entry-level cash drawer to secure money at your point of sale. It is designed to work in low- to medium-volume point of sale for temporarily storing money.
  • • Software: Square, Lightspeed, Jonas Club, TouchBistro, Dutchie, Mindbody, GrubHub, DoorDash, Shopify
  • • Warranty: 3-Year
  • • Return Period: 15 Days
  • • Lifetime Support
  • • Free Shipping

Flexible cash storage for everyday retail and hospitality

Reliable, flexible, and built for everyday checkout. The APG Vasario Series gives retail and hospitality businesses dependable cash handling without the premium price. Tested beyond one million transactions, it offers the sizes, till configurations, security features, and connectivity options needed to fit a wide range of POS systems.

Key Specifications

  • Product / application: Standard-duty electronic cash drawer
  • Till capacity: 4 bill / 4 coin, 4 bill / 5 coin, 5 bill / 5 coin, 5 bill / 6 coin or 5 bill / 8 coin, by option
  • Media storage: Single, dual or no front media slots, by model
  • Interface: 320 MultiPRO printer-driven, 554A USB HID or 484A SerialPRO II, by listed option
  • Power: 320: 24V printer connection; USB and serial models require their matching connection
  • Construction: Roller suspension; painted or stainless steel front
  • Security: Four-function lock and drawer-status reporting
  • Mounting: Countertop; under-counter mounting available with compatible brackets
  • Dimensions (W × D × H):
    • 1313: 13.1 × 13.1 × 3.93 in.
    • 1416: 13.8 × 16.3 × 4.0 in.
    • 1616: 16.2 × 16.3 × 4.3 in.
    • 1618: 16.2 × 18.3 × 4.3 in.
    • 1915: 18.8 × 15.2 × 4.3 in.
  • Warranty: 3 years

In the Box

  • APG Vasario cash drawer
  • Till matching the selected part number
  • Two keys

320-1 options include a CD-101A printer cable. Other cable contents depend on the selected option. The under-counter kit includes mounting brackets; brackets and locking till covers are otherwise sold separately.

A practical everyday drawer

The latch and ejection mechanism is tested beyond one million cycles. Roller suspension and plastic bill hold-downs support routine checkout use.

A connection matched to your POS

Printer-driven models open through a compatible receipt printer. USB and serial options connect through their own interfaces; match the exact part number and supported software when choosing a drawer.

Dimensions (W × D × H)
1313: 13.1 × 13.1 × 3.93 in.
1416: 13.8 × 16.3 × 4.0 in.
1616: 16.2 × 16.3 × 4.3 in.
1618: 16.2 × 18.3 × 4.3 in.
1915: 18.8 × 15.2 × 4.3 in.
Warranty
3 years
Color Options
Listed models: Black (BL) or All-White (AW)
Drawer front

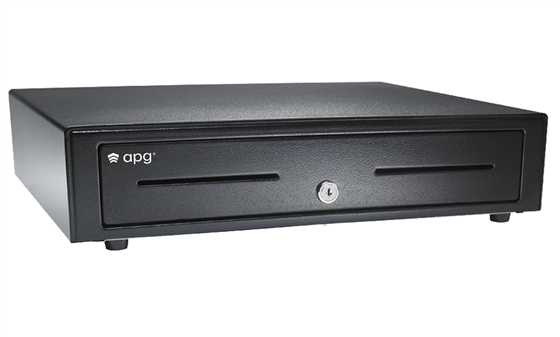

VB / VP: Painted front

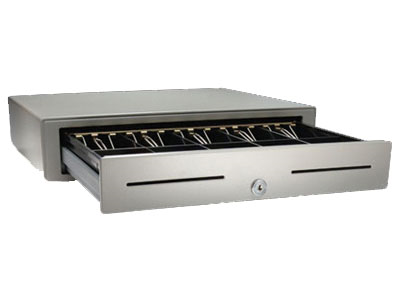

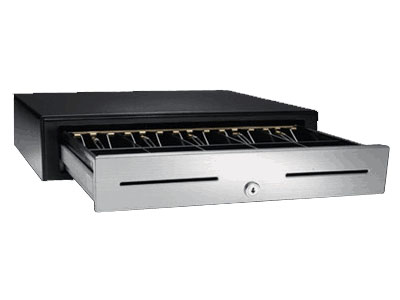

VBS: Stainless steel front
Mounting
Countertop; compatible under-counter brackets sold separately, or included with the listed UCKIT option
Media slots
1313 VB: Single slot
1616 / 1618 / 1915 VB and VBS: Dual slots
VP: No front media slots
1416: Match the exact front configuration
Till configurations
1313 B27: Fixed 4 bill / 4 coin
1416 standard: Adjustable 4 bill / 5 coin
1616 / 1618 standard: Fixed 5 bill / 5 coin
1616 B10: Adjustable 5 bill / 8 coin
1915 standard: Fixed 5 bill / 5 coin
1915 B9: Fixed 5 bill / 6 coin
Suspension
Roller-bearing suspension system
Lock / status
Four-function lock; standard random keying from up to four lock codes
Closed-and-latched drawer-status switch
Interface / cable
320: MultiPRO 24V printer-driven, compatible cable sold separately
320-1: MultiPRO 24V with CD-101A cable
554A: USBPro HID; cable contents vary by listed option
484A: SerialPRO II; match the required serial cable and POS software
Tested service life
Tested beyond one million operating cycles
Accessories Guide
Download
APG Connectivity Guide
Download
Interface Explainer
Download
Vasario Brochure (Rev S)
Download
Manual
Download
OPOS Driver
Download
USB Driver
Download

Shop Vasario Series Models

VB320-1-BL1616

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Color:

Black

Cable / Mount Package:

CD-101A included

Till:

Fixed 5 bill / 5 coin

$147.19

VB554A-BL1616

APG Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, USBPro Interface. USB Cable Included. Compatible with Square Stand

Dimensions:

16" X 16"

Interface:

554A USB HID

Color:

Black

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

USB cable included

$301.76

VB320-1-AW1616

Vasario Cash Drawer, White with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Cable / Mount Package:

CD-101A included

Till:

Fixed 5 bill / 5 coin

Color:

White

$150.13

VBS320-BL1616

Vasario Cash Drawer, Black with Steel Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Color:

Black with Stainless Steel Front

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Printer cable separate

$154.71

VB320-BL1618

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 16" X 18", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

16" X 18"

Interface:

320 Printer-driven

Color:

Black

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Printer cable separate

$157.17

VB320-1-AW1313-B27

Vasario Cash Drawer, White with Painted Front, Single Media Slot, 13" X 13", Fixed 4 Bill/4 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

13" X 13"

Interface:

320 Printer-driven

Cable / Mount Package:

CD-101A included

Till:

Fixed 4 bill / 4 coin

Color:

White

$134.48

VB320-1-BL1313-B27

Vasario Cash Drawer, Black with Painted Front, Single Media Slot, 13" X 13", Fixed 4 Bill/4 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

13" X 13"

Interface:

320 Printer-driven

Color:

Black

Cable / Mount Package:

CD-101A included

Till:

Fixed 4 bill / 4 coin

$136.84

VB320-BL1616

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Color:

Black

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Printer cable separate

$147.99

VP320-BL1416

APG Vasario Series Vasario Cash Drawer 14"x16" 4-Bill/5-Coin Till. Black Painted Front Without Media Slots. 320 MultiPRO Printer-Driven Interface. Printer Cable Not Included.

Dimensions:

14" X 16"

Interface:

320 Printer-driven

Till:

Adjustable 4 bill / 5 coin

Color:

Black

Cable / Mount Package:

Printer cable separate

$144.08

VB320-AW1616

Vasario Cash Drawer, White with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Printer cable separate

Color:

White

$147.99

VP320-1-BL1416

Vasario Cash Drawer, Black with Painted Front, No Media Slot, 14" X 16", Adjustable 4 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

14" X 16"

Interface:

320 Printer-driven

Till:

Adjustable 4 bill / 5 coin

Color:

Black

Cable / Mount Package:

CD-101A included

$141.29

VB320-1-AW1416

Vasario Cash Drawer, White with Painted Front, Dual Media Slots, 14" X 16", Adjustable 4 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

14" X 16"

Interface:

320 Printer-driven

Till:

Adjustable 4 bill / 5 coin

Cable / Mount Package:

CD-101A included

Color:

White

$141.29

VB320-BL1616-B10

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 16" X 16", Adjustable 5 Bill/8 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Till:

Adjustable 5 bill / 8 coin

Color:

Black

Cable / Mount Package:

Printer cable separate

$147.99

VB320-1-BL1616-B10

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 16" X 16", Adjustable 5 Bill/8 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Till:

Adjustable 5 bill / 8 coin

Color:

Black

Cable / Mount Package:

CD-101A included

$147.19

VB320-1-AW1616-B10

Vasario Cash Drawer, White with Painted Front, Dual Media Slots, 16" X 16", Adjustable 5 Bill/8 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Till:

Adjustable 5 bill / 8 coin

Cable / Mount Package:

CD-101A included

Color:

White

$113.79

VBS320-1-BL1616

Vasario Cash Drawer, Black with Steel Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Color:

Black with Stainless Steel Front

Cable / Mount Package:

CD-101A included

Till:

Fixed 5 bill / 5 coin

$156.85

VBS320-1-BL1915

Vasario Cash Drawer, Black with Steel Front, Dual Media Slots, 19" X 15", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

19" X 15"

Interface:

320 Printer-driven

Color:

Black with Stainless Steel Front

Cable / Mount Package:

CD-101A included

Till:

Fixed 5 bill / 5 coin

$178.57

VB320-1-BL1915

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 19" X 15", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface. CD-101A Interface Cable Included.

Dimensions:

19" X 15"

Interface:

320 Printer-driven

Color:

Black

Cable / Mount Package:

CD-101A included

Till:

Fixed 5 bill / 5 coin

$170.32

VB320-BL1915

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 19" X 15", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

19" X 15"

Interface:

320 Printer-driven

Color:

Black

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Printer cable separate

$168.17

VB320-BL1616-UCKIT

Vasario Cash Drawer with Under Counter Mount, Black with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

16" X 16"

Interface:

320 Printer-driven

Color:

Black

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Mount brackets; printer cable separate

$232.00

VBS320-BL1915

Vasario Cash Drawer, Black with Steel Front, Dual Media Slots, 19" X 15", Fixed 5 Bill/5 Coin Till, Printer Driven, 320 MultiPRO Interface Printer Cable Sold Separately, See Accessories for CD-101A.

Dimensions:

19" X 15"

Interface:

320 Printer-driven

Color:

Black with Stainless Steel Front

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Printer cable separate

$174.89

VP554A-BL1416

Vasario Cash Drawer, Black with Painted Front, No Media Slots, 14" X 16", Adjustable 4 Bill/5 Coin Till, USB HID Interface, USB Cable Sold Separately.

Dimensions:

14" X 16"

Interface:

554A USB HID

Till:

Adjustable 4 bill / 5 coin

Color:

Black

Cable / Mount Package:

USB cable separate

$292.91

VB554A-AW1616

Vasario Cash Drawer, White with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, USB HID Interface, USB Cable Sold Separately.

Dimensions:

16" X 16"

Interface:

554A USB HID

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

USB cable separate

Color:

White

$301.76

VB484A-BL1616

Vasario Cash Drawer, Black with Painted Front, Dual Media Slots, 16" X 16", Fixed 5 Bill/5 Coin Till, SerialPRO II Interface. SerialPRO II Cable Sold Separately.

Dimensions:

16" X 16"

Interface:

484A Serial

Color:

Black

Till:

Fixed 5 bill / 5 coin

Cable / Mount Package:

Serial cable separate

$368.59

VB320-BL1915-B9

Vasario Cash Drawer, Black W/Media Slots, 320 MultiPRO Interface, B9 Till - 5 Bill/6 Coin, MultiPRO Cable Sold Separately

Dimensions:

19" X 15"

Interface:

320 Printer-driven

Color:

Black

Till:

Fixed 5 bill / 6 coin

Cable / Mount Package:

Printer cable separate

$168.17

Shop Vasario Series Accessories

CD-D1D2

Cash Drawer Cable Splitter, Enables 2 Cash Drawer Support from Single Ithaca or Star Printer

$13.77

CD-D1D2EP

Cash Drawer Cable Splitter, Enables 2 Cash Drawer Support from Single Epson Printer

$13.77

CD-009A

RJ11 Cable for Ithaca Printers- 5ft Length

$7.99

VPK-15B-1A-BX

Spare Till, Adjustable 4x5, for 1416 Drawers

$42.83

VPK-15B-2A-BX

Spare Till, Fixed 5 Bill / 5 Coin, for Vasario 1616 and 1618 Drawers

$47.42

VPK-15B-3-BX

Spare Till, Fixed 5x5, for 1915 case

$57.70

VPK-14B-4-BX

Locking Steel Till Cover for Vasario VPK-15B-2A Tills

$41.00

VPK-14B-5-BX

Locking Steel Till Cover for 19"x15" case

$36.78

CD-003A

Interface Cable for 1st Cash Drawer - Axiohm (A470)

$7.99

CD-003B

Interface Cable for 2nd Cash Drawer - Axiohm (A470)

$7.00

VPK-27B-15-BX

Under Counter Mounting Bracket, fits Vasario 1915 Cash Drawers

$72.30

VPK-27B-16-BX

Under Counter Mounting Bracket, fits Vasario 1616 and 1416 Cash Drawers

$59.72

CD-101A

320 MultiPro Cable (Drawer #1, Epson TM, Star TSP, SP, SCP, HSP) 5ft Length - Replaced CD-014A

$9.99

PK-354-1

External USB A/B cable for USBProTM Interface

$28.00

VPK-14B-3A-BX

Locking Till Cover for Vasario VPK-15B-1A and VPK-15B-4A Tills

$38.50

CD-102A

APG, MultiPro Cable, Printer Cable For Various Printers, Epson, Citizen, Dell Datamax, Bematech, Drawer A

$15.00

CD-102B

APG, MultiPro Cable, Printer Cable For Various Printers, Epson, Citizen, Dell, Datamax, Bematech Star, Drawer B

$15.75

VPK-8K-243

2 Key Set (Type 243) for the Vasario Cash Drawer

$17.36

VPK-8LS-243

Vasario 2 Key Set (Type 243)

$29.44

VPK-8LS-235

Vasario Lock Parts Kit (Keyed for #235)

$29.44

VPK-8K-435

2 Key Set (Type 435) for the Vasario Cash Drawer

$17.36

VPK-8LS-435

Vasario Tumbler Assembly (for 435 Key, Comes with Lock and 2 Keys)

$29.44

VPK-8K-235

2 Key Set (Type 235) for the Vasario Cash Drawer

$17.36

VPK-8K-542

2 Key Set (Type 542) for the Vasario Cash Drawer

$17.36

VPK-8LS-542

Vasario Lock Parts Kit (Keyed for #542)

$29.44
Have Questions?Call Us at: (800) 241-6264
