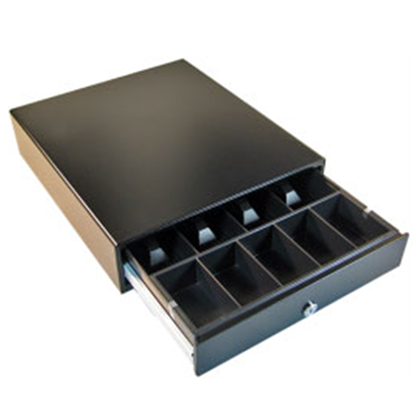

APG Vasario Manual
Push-button cash access without a printer or power connection
The APG Vasario Manual is a standard-duty cash drawer with a front push button for standalone operation. Its roller suspension and removable till provide straightforward cash handling in a choice of two counter footprints.
Key Specifications
- Product / application: Manually operated cash drawer
- Till capacity: 1416 standard: 4 bill / 5 coin; 1616 standard: 5 bill / 5 coin. Other tills vary by option.
- Media storage: VP models have no front media slots
- Compatibility / operation: Standalone push-button operation; no electronic POS connection
- Power: No external power required
- Construction: Roller suspension; painted front
- Mounting: Countertop; compatible under-counter brackets sold separately
- Dimensions (W × D × H): 1416: 13.8 × 16.3 × 4.0 in.; 1616: 16.2 × 16.3 × 4.3 in.
- Warranty: 3 years
In the Box
- APG Vasario Manual cash drawer
- Removable till matching the selected option
- Two keys
Till layout and key code depend on the selected part number. Mounting brackets and spare tills are sold separately.
Manual operation
Use the front push button to open the drawer when unlocked. The manual lock operates independently of a receipt printer or POS application.
Removable cash storage
Lift out the coin and bill tray for cash handling. Choose the drawer size and till configuration that suit your currency arrangement.
Shop Vasario Manual Models
VP101-BL1416
Vasario Manual Cash Drawer, Color: Black with Painted Front, Push Button, without Media Slots, 14 x 16, 4 Bill/5 Coin Till
Dimensions:
14" × 16"
Tray Type:
4 bill / 5 coin
VP101-BL1616
Vasario Manual Cash Drawer, Color: Black with Painted Front, Push Button, without Media Slots, 16 x 16, 5 Bill/5 Coin Slots
Dimensions:
16" × 16"
Tray Type:
5 bill / 5 coin
VP101-BL1416-235
Vasario Manual Cash Drawer, Color: Black with Painted Front, Push Button, without Media Slots, 14 x 16, 4 Bill/5 Coin Slots, Keyed to #235
Dimensions:
14" × 16"
Tray Type:
4 bill / 5 coin
VP101-BL1416-B4
Vasario Manual Cash Drawer, Color: Black with Painted Front, Push Button, without Media Slots, 14 x 16, Adjustable 4 Bill/8 Coin Till
Dimensions:
14" × 16"
Tray Type:
4 bill / 8 coin
VP101-BL1616-B10
Vasario Manual Cash Drawer, Color: Black with Painted Front, Push Button, without Media Slots, 16 x 16, 5 Bill/8 Coin Till
Dimensions:
16" × 16"
Tray Type:
5 bill / 8 coin
VP101-BL1616-B11
Vasario Manual Cash Drawer, Color: Black with Painted Front, Push Button, without Media Slots, 16 x 16, Adjustable 8 Bill/8 Coin Till
Dimensions:
16" × 16"
Tray Type:
8 bill / 8 coin
VP101-BL1616-B5
Vasario Manual Cash Drawer, Color: Black with Painted Front, Push Button, without Media Slots, 16 x 16, Adjustable 4 Bill/8 Coin Till
Dimensions:
16" × 16"
Tray Type:
4 bill / 8 coin
Shop Vasario Manual Accessories
VPK-27B-16-BX
Under Counter Mounting Bracket, fits Vasario 1616 and 1416 Cash Drawers
VPK-15B-1A-BX
Spare Till, Adjustable 4x5, for 1416 Drawers
VPK-15B-2A-BX
Spare Till, Fixed 5 Bill / 5 Coin, for Vasario 1616 and 1618 Drawers
VPK-14B-3A-BX
Locking Till Cover for Vasario VPK-15B-1A and VPK-15B-4A Tills
VPK-14B-4-BX
Locking Steel Till Cover for Vasario VPK-15B-2A Tills
VPK-8K-235
2 Key Set (Type 235) for the Vasario Cash Drawer
VPK-8K-243
2 Key Set (Type 243) for the Vasario Cash Drawer
VPK-8K-435
2 Key Set (Type 435) for the Vasario Cash Drawer
VPK-8K-542
2 Key Set (Type 542) for the Vasario Cash Drawer
VPK-8PLS-235
Drawer Lock Parts Kit (for Push Button Cash Drawer Key #235)
VPK-8PLS-243
Drawer Lock Parts Kit (for Push Button Cash Drawer Key #243)
VPK-8PLS-435
Drawer Lock Parts Kit (for Push Button Cash Drawer Key #435)
VPK-8PLS-542
Drawer Lock Parts Kit (for Push Button Cash Drawer Key #542)
