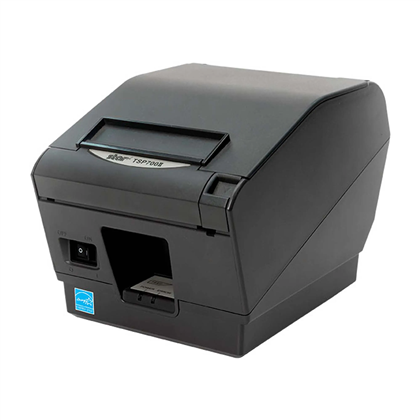

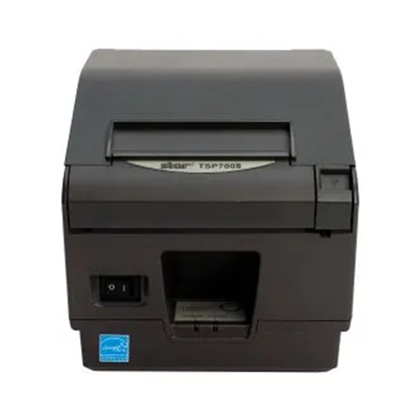

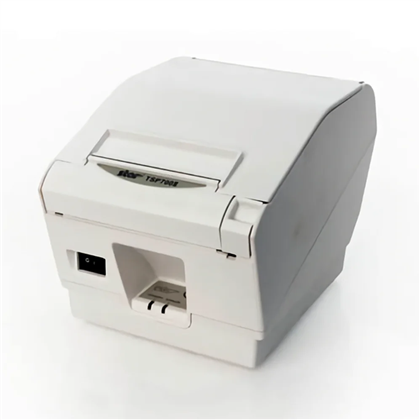

Star Micronics TSP700II Series
High-speed thermal receipt and label printing for demanding point-of-sale and service counters.
The Star Micronics TSP743II combines 250 mm/s printing with receipt, ticket, and black-mark label support. Its compact, spill- and dust-resistant design fits busy retail, hospitality, kitchen, pharmacy, and service environments.
Choose parallel, serial, USB, Ethernet, or CloudPRNT/WLAN connectivity. Swappable interface options, rear paper feed, and horizontal, vertical, or wall-mounted placement make the printer easy to adapt as a system changes.
Key Specifications
- Print Method: Direct line thermal
- Print Speed: Up to 250 mm/s
- Paper Widths: 80 mm standard; 82.5 mm and 58 mm with guides
- Resolution: 203 × 203 dpi; 406 × 203 dpi mode
- Interfaces / Connectivity: Option-dependent parallel, serial, USB, Ethernet, WLAN, and CloudPRNT
- Cutter and Reliability: Full or partial guillotine cut; 2 million cuts; 60 million lines MCBF
- Platform Support: Windows and macOS driver support; Linux and mobile support varies by interface and SDK
- Dimensions and Weight: 147 × 148 × 213 mm; 1.75 kg
- Warranty: 2-year full manufacturer warranty
In the Box
- TSP743II printer
- Wall-mount bracket
- Interface cover
- 58 mm paper guide
- Power-switch cover
- Starter paper roll
- Setup guide
Current configurations require the PS60A external power supply, sold separately. Interface cables are configuration-dependent and not included with every model.
Receipts, Tickets, and Labels
One platform for mixed media
Print standard receipts, tickets, and black-mark labels from 58 mm to 82.5 mm wide. The rear feed slot supports larger externally mounted rolls, while PDF417, QR Code, and other 2D barcode support suit transaction and labeling workflows.
Connected for Modern POS
Choose the interface that fits
Current models cover familiar wired connections and CloudPRNT deployments. Swappable interface boards let supported installations change connectivity without replacing the printer.
Built for Busy Counters
Fast loading and durable operation
Drop-in paper loading, a 60-million-line MCBF, and a cutter rated for 2 million cuts support steady print volume. The extended cover and internal dampening help limit dust, moisture, noise, and vibration.
Flexible Placement
Counter, vertical, or wall-mounted
Use the TSP743II horizontally, vertically with the optional stand, or on a wall with the included bracket. The interface cover helps protect connected cables in each orientation.
Looking for Compatible Receipt Paper?
Shop Star Micronics 80 mm direct-thermal receipt paper for dependable feeding and print quality. Choose compatible 25-roll or 50-roll cases for the TSP743II.
Need help matching receipt paper or black-mark labels? Call our POS specialists at 800-903-6571.
Shop Compatible Star Receipt Paper →Shop TSP700II Series Models
39442511
TSP743IIU Thermal Printer, Color: Gray with Auto Cutter, USB Interface, External Power Supply 30782110 Required
Color:
Gray
Interface:
USB
37999950
TSP743IIL Thermal Printer, Color: Gray with Auto Cutter, Ethernet Interface, External Power Supply 30782110 Required
Interface:
Ethernet
Color:
Gray
37966670
Star Micronics TSP743IIW-24L GRY Thermal Receipt and Label Printer, Ethernet, Wi-Fi, USB, CloudPRNT, Gray, External Power Supply Required
Interface:
Ethernet, USB, Wi-Fi, CloudPRNT
Color:
Gray
37966680
Star Micronics TSP743IICLOUDPRNT-24L GRY Thermal Receipt and Label Printer, Ethernet, USB, and CloudPRNT, Gray, External Power Supply Required
Interface:
Ethernet, USB, CloudPRNT
Color:
Gray
39442210
TSP743IIC Thermal Printer, Color: Gray with Auto Cutter, Parallel Interface, External Power Supply 30782110 Required
Color:
Gray
Interface:
Parallel
39442310
TSP743IID Thermal Printer, Color: Gray with Auto Cutter, Serial Interface, External Power Supply 30782110 Required
Color:
Gray
Interface:
Serial
Shop TSP700II Series Accessories
39570010
Splash Proof Cover for TSP700II
28102
6-Foot Black USB Type-A-to-Type-B Printer Cable
39607200
RS232 Serial Interface Board for TSP650, TSP700, TSP800 & TUP500 Series'
39607211
Parallel Interface Board TSP650, TSP700, TSP800 & TUP500 Series'
39607820
Swappable USB Interface Board (IFBD-HU07) for TSP654II, TSP700, and TSP800 Printers
39607804
Ethernet Interface Board IFBD-HE07 for TSP650, TSP700II, TSP800II, TSP828, TUP500 SERIES' - Replaces 39607802 & 39607803
37967470
Labels TSP700: 80mm Roll Width, 3 x 1 Inch Labels, Black Mark on back side, 1600 Labels/Roll, 12 Rolls/Case, Blue Core
37967480
Labels TSP700: 80mm Roll Width, 3 x 2 Inch Labels, Black Mark on back side, 900 Labels/Roll, 12 Rolls/Case, Blue Core (TRL80-3x2-BM-D100-C31, 12PK)
30782110
External Power Supply for Star Micronics Printer
37966870
2-Year Swap-A-Star Enhanced Warranty for Star Micronics Thermal Printers. Adds Next Business Day Shipment Via 2nd Day Air to Standard 2 Year Warranty. Can Be Added Up to 30 Days After Product Purchase. Note: This Warranty Does Not Carry Over to the Replacement Printer.
37966980
3-Year Swap-A-Star Enhanced Warranty for Star Micronics Thermal Printers. Provides next-business-day replacement via 2nd Day Air during the standard 2-year warranty and extends coverage by 1 year. May be added within 30 days of printer purchase. Coverage does not transfer to the replacement printer. NCNR (non-cancelable, non-returnable).
XWP-T220PF-10-ADD
Phenol-Free Thermal Receipt Paper, 3.125 Inches by 220 Feet, 10-Roll Pack; Introductory Pack Price, Ground Shipping Only
37951740
3.15" (80 mm) x 230 ft. Thermal Receipt Paper: BPA-, BPS-, and Phenol-Free, Case of 25 Rolls, Blue Eco
30729190
Cable, USB, 6 Ft, Black
39594002
Ticket Alarm for Compatible Star Printers (Connects to the RJ11 Port and Sounds When a Print Job Is Sent)
37966880
3-Year Extend-A-Star Enhanced Warranty for Star Micronics Thermal Printers. Adds An Additional 1 Year to Printer's Standard 2 Year Warranty. Can Be Added Up to 30 Days After Product Purchase. Note: This Warranty Does Not Carry Over to the Replacement Printer. NCNR (Non-Cancelable, Non-Returnable).
37995310
Star Micronics Automotive 12 V to 24 V Power Adapter for TSP800II and TSP847II
39607041
Star Micronics HI01X CloudPRNT Ethernet and USB Interface Board for TSP800II and TSP847II
37967000
Star Micronics Four-Year Extend-A-Star Warranty for Thermal Printers, NCNR
37951750
Paper, Thermal, Star Blue Eco, TSP143, mC-Print3, TSP654II, TSP743II: 80 mm Width, 230 ft Length, 83 mm Diameter, 17 mm Core, 50 Rolls/Case
37967670
Labels TSP700: 80mm Roll Width, 3 x 3 Inch Labels, Black Mark on back side, 525 Labels/Roll, 12 Rolls/Case, Blue Core
37967750
Labels TSP700: 80mm Roll Width, 3 x 4 Inch Labels, Black Mark on back side, 450 Labels/Roll, 12 Rolls/Case, Blue Core
