Elo TouchSystems TouchPro OEM Display Modules
Touchscreen and LCD assemblies for embedded OEM designs.
Elo TouchPro Display Modules combine a projected capacitive touchscreen, chip-on-flex touch controller and commercial LCD in one assembly. Choose a 7-inch 800 × 480 module or a 10.1-inch 1280 × 800 module, each with up to 10 touches and anti-glare cover glass.
These components use USB for touch and LVDS for the LCD. Integration requires compatible host/display electronics and an enclosure. E270763 is a noncancelable, nonreturnable distributor item with a 100-unit minimum; confirm project requirements and availability before ordering.
Key Specifications
- Product / application: OEM touchscreen LCD assemblies for embedded integration
- Host platform: External host and compatible display electronics required
- Display / resolution: 7-inch 800 × 480 or 10.1-inch 1280 × 800
- Touch input: TouchPro PCAP; up to 10 touches
- Touch interface: USB; chip-on-flex controller
- Video interface: LVDS LCD connection
- Brightness: 400 nits, LCD panel
- Cover glass: Chemically strengthened soda lime; anti-glare
- Mount / enclosure: OEM mechanical integration required
- Power: Supplied by integrated system electronics
- Dimensions: 183.4 × 124.2 mm or 242.0 × 165.6 mm
- Warranty: 2 years
In the Box
- Selected E271156 7-inch or E270763 10.1-inch touchscreen display module
- LCD bonded with TouchPro PCAP touchscreen and chip-on-flex touch controller
- Host electronics, enclosure and development/demo kit are separate
Touch and LCD in one assembly
The Glass-Film-Film construction combines a TouchPro Pro-F PCAP touchscreen and COF controller with the LCD to simplify component sourcing and assembly. USB touch reports at more than 100Hz with ±2.5 mm accuracy.
Strengthened anti-glare glass
Chemically strengthened soda lime cover glass and anti-glare treatment support commercial and industrial equipment designs. The 7-inch and 10.1-inch modules have different glass thicknesses and operating ranges; match the selected module to your application.
Shop TouchPro OEM Display Modules Models

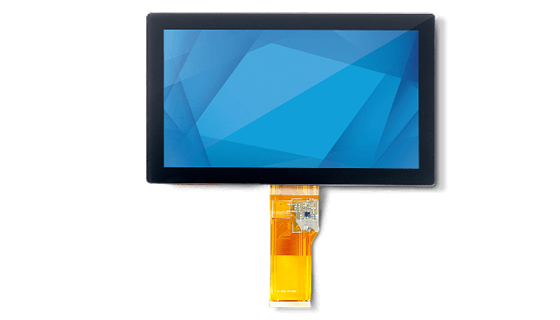

E271156
Elo 7-inch TouchPro OEM touchscreen LCD module, 800 × 480, 400-nit LCD, up to 10-touch PCAP, anti-glare glass, USB touch and LVDS display interfaces; external host and integration required
Size:
7-inch

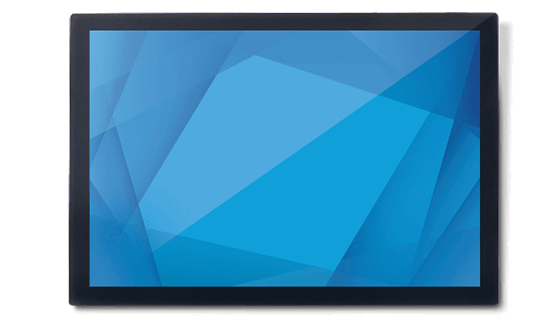

E270763
Elo 10.1-inch TouchPro OEM touchscreen LCD module, 1280 × 800, 400-nit LCD, up to 10-touch PCAP, anti-glare glass, USB touch and LVDS display interfaces; minimum order 100 units, noncancelable/nonreturnable; external host and integration required
Size:
10.1-inch
