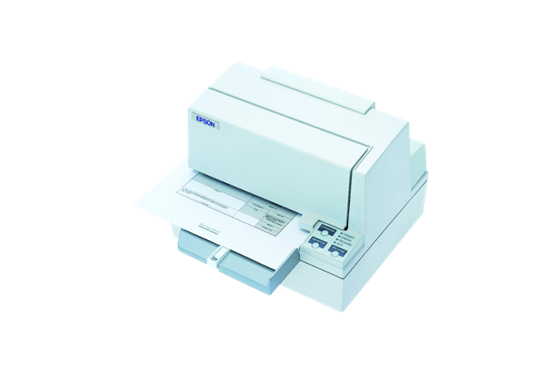

Epson TM-U590R Slip/Check Printer
TM-U590R Slip/Check Printer (iOS)
Epson TM-U590R slip/check printer for wide multipart documents; choose the interface and bundle required for your installation.Impact slip and check printing for wide business documents
The Epson TM-U590 handles slips, checks and invoices in banking and other document-heavy workflows. Its 9-pin impact mechanism prints on an original plus up to four copies, with up to 88 columns of text.
The extended paper table helps feed larger forms straight through the printer. Epson Connect-It interfaces support different host connections; the C31C196A8941 bundle includes a UB-S01 serial interface.
Key Specifications
- Print method: 9-pin serial impact dot matrix
- Print speed: Up to 311 characters/second
- Paper widths: 70–210 mm slips
- Resolution: Not published by Epson
- Interfaces / connectivity: UB-S01 serial interface in C31C196A8941; other Connect-It interfaces vary by SKU
- Cutter and reliability: Slip printer without a cutter; 180,000-hour MTBF, 29 million-line MCBF
- Platform support: Epson POS drivers and technical resources; confirm host software compatibility
- Dimensions and weight: 252 × 266 × 185 mm (W × D × H); approximately 5 kg (11 lb)
In the Box
- C31C196A8941 — TM-U590R-251 bundle
- TM-U590R-251 slip/check printer
- UB-S01 serial interface
- Power supply
- Black ribbon
Confirm the host cable and regional power cord required for the installation before ordering.
Wide multipart slips
Prints on forms from 70 × 70 mm to 210 × 297 mm, with paper thickness from 0.09 to 0.36 mm. The extended table supports flat insertion of larger documents.
Impact printing and serviceability
Bi-directional logic-seeking printing reaches 311 characters per second. The ERC-31 black ribbon is rated for 4.5 million characters, and jammed slips can be removed from the paper path.
Shop TM-U590R Slip/Check Printer Models
C31C196A8941
Epson TM-U590R-251 Slip/Check Printer, Cool White, UB-S01 Serial, Power Supply and Black Ribbon
