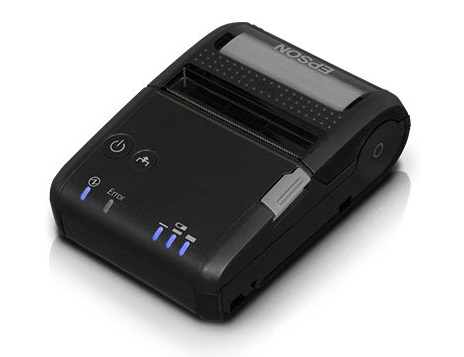

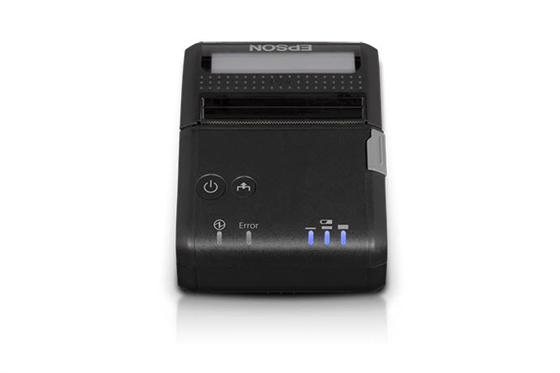

Epson TM-P20

Images may not reflect the actual product
Product Image
small product image0
small product image1

TM-P20 (iOS)

Epson's Mobilink P20 is an ultra compact 2" receipt printer that weighs only .50 lbs pounds and fits in the palm of your hand. It delivers all the features you need to print anywhere, anytime. Featuring Epson’s ePOS-Print technology, it can print directly from any mobile devices running an iOS, Android or Windows operating system.

Highlighted Features

  • Multi-platform printing — mPOS friendly; compatible with iOS®, Android™ and Windows® mobile devices; easy setup with included TM Printer Utility
  • Operational up to 26 hours (Bluetooth®), or up to 16 hours (wireless)
  • 100 mm/sec Print Speed
  • Easy wireless configuration — 802.11 a/b/g/n with 2.4 GHz/5 GHz compatibility, plus Bluetooth 3.0 (EDR supported); supports wireless security WEP, WPA and WPA2-Enterprise
  • Rugged design — 6.5-foot drop rating and IP54-ready with padded case
  • Incliudes ESC/POS®, OPOS and JavaPOS™ drivers
  • Paper-saving options — reduce your paper usage by up to 23 percent

BOX CONTENTS
  • Mobilink P20
  • Battery
  • Printer Charger
  • AC adapter — Type C
  • AC cable
  • USB cable
  • Belt clip
  • Roll paper (for initial check)
  • CD-ROM
  • Set-up guide

  • Epson's Mobilink P20 is an ultra compact 2" receipt printer that weighs only .50 lbs pounds and fits in the palm of your hand. It delivers all the features you need to print anywhere, anytime. Featuring Epson’s ePOS-Print technology, it can print directly from any mobile devices running an iOS, Android or Windows operating system.

    Highlighted Features

    • Multi-platform printing — mPOS friendly; compatible with iOS®, Android™ and Windows® mobile devices; easy setup with included TM Printer Utility
    • Operational up to 26 hours (Bluetooth®), or up to 16 hours (wireless)
    • 100 mm/sec Print Speed
    • Easy wireless configuration — 802.11 a/b/g/n with 2.4 GHz/5 GHz compatibility, plus Bluetooth 3.0 (EDR supported); supports wireless security WEP, WPA and WPA2-Enterprise
    • Rugged design — 6.5-foot drop rating and IP54-ready with padded case
    • Incliudes ESC/POS®, OPOS and JavaPOS™ drivers
    • Paper-saving options — reduce your paper usage by up to 23 percent


    BOX CONTENTS

    • Mobilink P20
    • Battery
    • Printer Charger
    • AC adapter — Type C
    • AC cable
    • USB cable
    • Belt clip
    • Roll paper (for initial check)
    • CD-ROM
    • Set-up guide
    Dimensions (W x D x H)
    3.11" x 4.71" x 1.71" (79.0 x 119.8 x 43.6mm)
    Weight
    Receipt version: 0.5 lbs (228g) with battery, without roll paper and belt clip
    Print Resolution
    Dots / inch: 203 dpi
    Print Speed
    100mm/sec (max.)
    Operating Temperature
    10 to 50° C (14 to 122° F°) Bluetooth model 0 to 50° C (32 to 122° F°) Wi-Fi model
    Max Paper Width
    58mm
    Roll Diameter
    40.4mm
    Connectivity
    802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) orBluetooth 3.0 (EDR supported)
    Printer Reliability
    10 million printing lines
    Drop Specifications
    Test rating of 6.5 feet
    Warranty
    1 Year Manufacture Warranty
    Battery Life
    Up to 16 hours with WiFi, up to 26 hours with Bluetooth
    What's In the Box
    Battery, Printer Charger, AC adapter — Type C, AC cable, USB cable, Belt clip, Roll paper (for initial check), CD-ROM, Set-up guide
    TM-P20 Technical Reference Guide
    Download

    Shop TM-P20 Models

    C31CE14551

    P20 - Ultra Compact Mobile Receipt Printer, 2", Bluetooth, Black, Battery & Charger

    $352.04

    C31CE14012

    P20 - Ultra Compact Mobile Receipt Printer, 2", 802.11a/b/g/n, Black, Battery & Charger

    $427.56

    Shop TM-P20 Accessories

    C32C881001

    Battery Spacer for P20 Printer; OT-BS20-001

    $23.50
