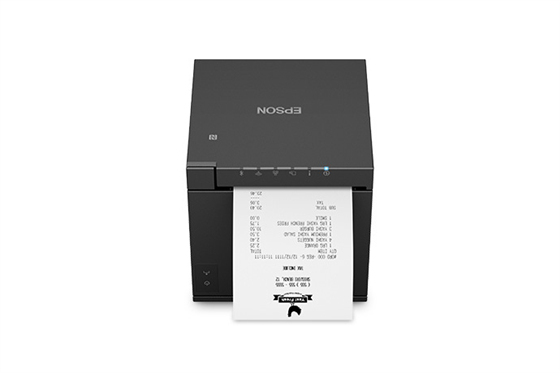

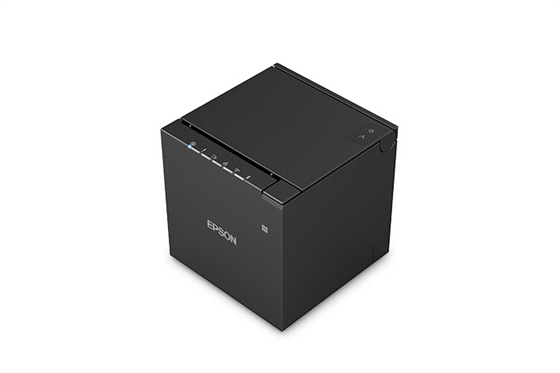

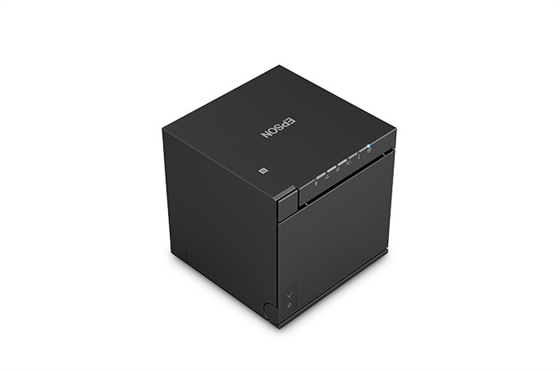

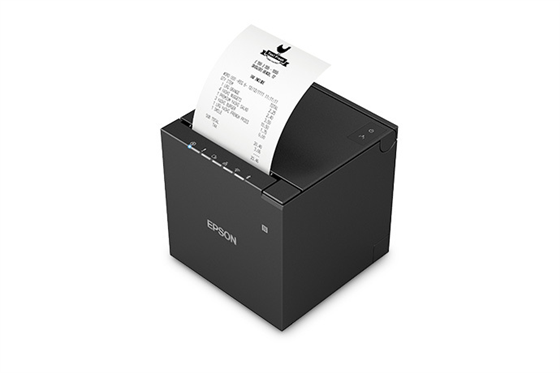

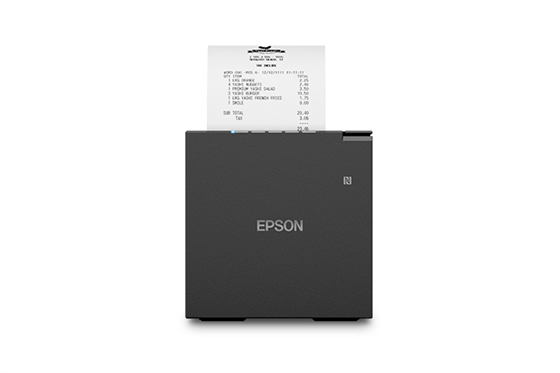

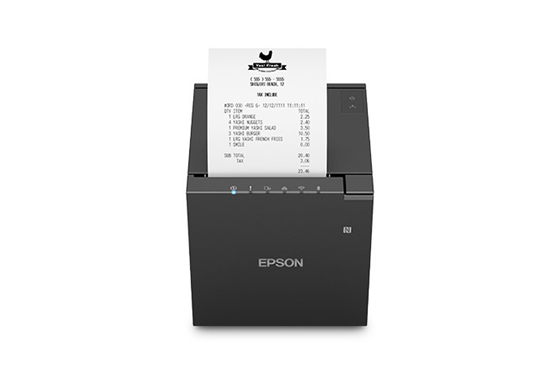

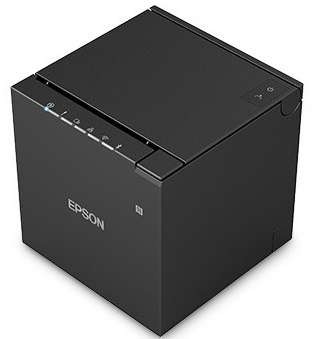

Epson TM-M50II

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

TM-M50II (iOS)

TM-M50II - iOS Compatible Thermal Receipt Printer (USB, Bluetooth, WiFi) Combining sleek, modern design with exceptional iOS compatibility, the OmniLink® TM-m50II wireless thermal receipt printer offers ultra-fast print speeds of up to 500 mm/sec, making it ideal for high-volume retail and hospitality environments.
  • Max Print Width: 3 Inches
  • Warranty: 2-Year
  • Return Period: 15 Days
  • Lifetime Support
  • Free Shipping

Compact receipt printing for high-volume POS

The Epson OmniLink TM-m50II is a compact 3-inch receipt printer for high-volume use. It supports traditional and mobile POS systems, with front or top paper exit and built-in connections for established POS hardware.

Epson TM-M50II printer

Key Specifications

  • Print method: Direct Thermal
  • Print speed: Up to 500 mm/sec
  • Paper widths: 58 or 80 mm
  • Resolution: 180 dpi
  • Interfaces / connectivity: Base: USB, Ethernet and serial; H: expanded USB hub, Ethernet, Bluetooth and Wi-Fi
  • Cutter and reliability: Auto cutter: 2.2 million partial cuts; printhead: 200 km
  • Platform support: Traditional POS and compatible iOS, Android and Windows applications
  • Dimensions and weight: Top exit: 127 × 127 × 130 mm; front exit: 127 × 128 × 129 mm (W × D × H); 1.3 kg
  • Warranty: 4 years

In the Box

  • Selected TM-m50II or TM-m50II-H printer
  • PS-190 power supply and AC cable
  • Starter receipt roll and 58 mm paper guide

The H model supports up to four USB peripherals, USB-C charging and tablet tethering.

Fast receipt printing

Print speeds reach up to 500 mm/sec with Epson-approved media.

Flexible placement

Choose front or top paper exit. A standard near-end sensor monitors the remaining roll.

Online order support

Server Direct Print retrieves cloud print jobs when the printer has an Internet connection.

Easy-clean enclosure

The IPX2 water-resistant enclosure is designed for easy cleaning. Paper-saving functions reduce unused receipt space.

Print Method
Direct Thermal
Print Speed
500 mm/sec
Print Resolution
180 dpi
Print Direction
Vertical and horizontal
Printer Reliability
20 million printing lines
Auto Cutter Lifespan
2.2 million cuts
Dimensions (W x D x H)
Top exit: 127 × 127 × 130 mm (5.0 × 5.0 × 5.1 in); front exit: 127 × 128 × 129 mm (5.0 × 5.0 × 5.1 in), W × D × H
Weight
2.87 lb
Warranty
4-year limited warranty; optional extended service plans available
Media Width
80 mm paper: 79.5 ± 0.5 mm; 58 mm paper: 57.5 ± 0.5 mm, with included spacer
Maximum Roll Diameter
83 mm (3.27 in)
Minimum Core Diameter
18 mm (0.71 in)
Paper Thickness
48–80 µm
Media Handling
Direct thermal roll paper; friction feed with backfeed; drop-in loading; top or front exit
Cutter
Partial cut by default; full cut selectable
Interfaces
USB 2.0 Type-B, 10/100Base-T/TX Ethernet, RS-232C serial and one USB Type-A peripheral port. Optional OT-WL06 Wi-Fi adapter.
Fonts and Column Capacity
Font A: 12 × 24 dots, 42 columns; Font B: 9 × 24 dots, 56 columns; Kanji Font A: 24 × 24 dots, 24 columns; Kanji Font B: 16 × 16 dots, 32 columns (Korean)
Character Size
Font A: 1.41 × 3.39 mm; Font B: 0.99 × 3.39 mm; Kanji A: 3.39 × 3.39 mm; Kanji B: 2.26 × 2.26 mm
Character Sets
95 alphanumeric; 18 international; 128 × 43 graphic; Japanese, simplified Chinese, traditional Chinese and Korean sets
Barcodes
UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF, Codabar, GS1-128, GS1 DataBar and Code 128 Auto
2D Symbols
PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, two-dimensional GS1 DataBar and composite symbology
Printhead Life
200 km under Epson test conditions
MTBF / MCBF
360,000 hours MTBF; 70 million lines MCBF, under Epson test conditions
Spill Resistance
IPX2 in front-exit orientation only
Buffer Memory
Receive: 4 KB or 45 bytes; NV bit image: 12 KB maximum; NV graphics: 384 KB maximum
Sensors and Indicators
Paper-end, cover-open and near-end sensors; power, error, paper and Ethernet LEDs
Power Supply
PS-190; operating consumption 39.1 W, standby 1.6 W at AC 115 V/60 Hz
Operating Environment
5–45°C; 10–90% relative humidity
Acoustic Noise
55 dBA under Epson test conditions
Supported Platforms
iOS, Android, Windows, macOS and GNU/Linux; availability depends on the driver or SDK
Software
Epson APD, TM Virtual Port Driver, Mac Printer Driver and CUPS Driver; TM Utility, TM-m50II Utility, EpsonNet Config, Deployment Tool, Monitoring Tool and Firmware Updater
Developer Support
Epson ePOS SDK for iOS, Android and JavaScript; TM Print Assistant; OPOS, OPOS for .NET and JavaPOS
Setup and Cloud Printing
NFC and QR code setup; Server Direct Print requires an Internet network connection
Cash Drawer Support
Drawer-kick connector; one USB POS peripheral device supported
Case Colors
Epson White (ENB9) or Epson Black (EBCK)
Standards
FCC Class A, ICES-003 Class A; UL 62368-1 / CSA C22.2 No. 62368-1; ENERGY STAR qualified on select SKUs; RoHS compliant
In the Box
OmniLink TM-m50II, PS-190 power supply and AC cable, starter receipt-paper roll, setup guide and 58 mm paper guide
TM-M50II Spec Sheet
Download
TM-m50II Technical Reference Guide — Revision G
Download
TM-m50II Advanced Printer Driver v6.12 for Windows
Download
TM-m50II Utility v1.30
Download
TM-m50II Printer Driver v3.0.1 and User Manual for Mac
Download
Web Config Reference Guide — Revision K
Download

Shop TM-M50II Models

C31CK52001

TM-M50II - Sleek 3" Thermal Receipt Printer, Built in Serial, USB, Ethernet Interface, IPX2, White

USB-Hub:

1 peripheral port

Interface:

USB, Ethernet, Serial

Color:

White

$469.29

C31CK52052

TM-M50II-H - Sleek 3" Thermal Receipt Printer, Built in Serial, USB, Ethernet Interface, Bluetooth & WiFi, IPX2, 4 Port USB-Hub with Sync & Charge 18w USB, Black

USB-Hub:

4 peripheral ports (H model)

Color:

Black

Interface:

USB, Ethernet, Serial, Bluetooth & WiFi

$577.32

C31CK52051

TM-M50II-H - Sleek 3" Thermal Receipt Printer, Built in Serial, USB, Ethernet Interface, Bluetooth & WiFi, IPX2, 4 Port USB-Hub with Sync & Charge 18w USB, White

USB-Hub:

4 peripheral ports (H model)

Interface:

USB, Ethernet, Serial, Bluetooth & WiFi

Color:

White

$577.32

C31CK52002

TM-M50II - Sleek 3" Thermal Receipt Printer, Built in Serial, USB, Ethernet Interface, IPX2, Black

USB-Hub:

1 peripheral port

Color:

Black

Interface:

USB, Ethernet, Serial

$469.29

Shop TM-M50II Accessories

C32C891321

USB Wireless Adapter Dongle (2.4GHz/5.0GHz), OT-WL06-321

$135.49

C825343

PS-180 Power Supply For Epson Receipt Printers (120/220V). Includes AC Cord (205498100). Energy Star Rated.

$63.03

EPPSDSITAA3

Epson 3-Year Spare-in-the-Air Advanced Replacement Warranty For All TM-T TM-L TM-M and DM Series Receipt Printers. Includes Paid Two-Way Next Business Day Shipping of Replacement Unit.

$109.58

EPPSDEXTA3

Epson Three Year Extended Warranty Coverage for Epson TM-T TM-L & TM-m Receipt Printer. Adds 3 Additional Years of Coverage to a Printer's Standard Warranty. Two-Way Shipping Is Included By Epson.

$128.41

XWP-T220PF-10-ADD

Phenol-Free Thermal Receipt Paper, 3.125 Inches by 220 Feet, 10-Roll Pack; Introductory Pack Price, Ground Shipping Only

$45.00

C32C890634

External Beeper with Volume Control, Optional Accessory for Epson Point of Sale Printers

$49.45

EPPSDSITAA1

Epson Preferred Plus Extended Service Plans - 1 Year SITA - Category A Service Plan

$38.45

EPPSDSITAA1S

Epson Preferred Plus Extended Service Plans - 1Year Renewal SITA Coverage Extension

$66.00

EPPSDSITAA2

Epson Preferred Plus Extended Service Plans - 2 Year SITA - Category A Service Plan

$75.36

C32C825381

PS-190 Power Supply for Epson Printers. AC Cable Not Included (205498100)

$52.52

EPPSDEXTA1

Epson Preferred Plus 1-Year Return-for-Repair extended service plan for compatible Epson POS products. Adds one year to the standard warranty and includes two-way shipping.

$25.00

EPPSDSITAA4

Epson Preferred Plus 4-Year Spare-in-the-Air service plan for compatible Epson POS products. Includes next-business-day replacement and two-way shipping.

$72.00

EPPSDSITAA5

Epson Preferred Plus 5-Year Spare-in-the-Air service plan for compatible Epson POS products. Includes next-business-day replacement and two-way shipping.

$89.00

C32C881017

Epson OT-WH30 wall-hanging bracket set for compatible TM-m30 Series receipt printers.

$47.00

A61CF26101

Epson DM-D30 USB-powered customer display, white, with a two-line, 20-column blue-and-white LCD.

$256.69

A61CF26111

Epson DM-D30 USB-powered customer display, black, with a two-line, 20-column blue-and-white LCD.

$256.69
