TSC TH240/DH240
Description
Specifications
Download

TSC TH240/DH240

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

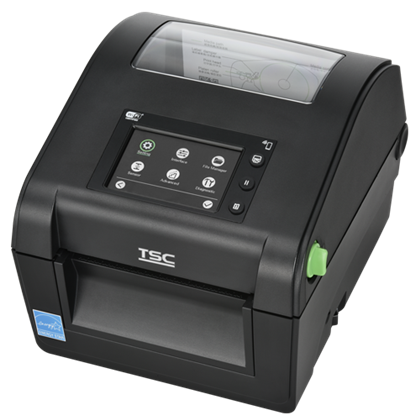

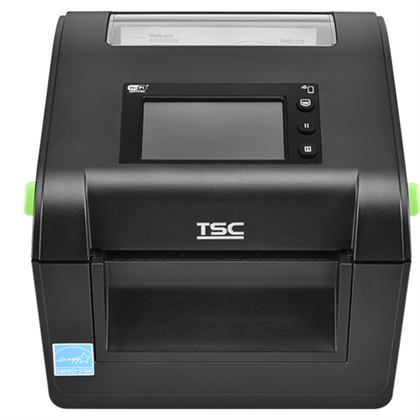

4-inch direct thermal and thermal-transfer desktop printers

Fast, adaptable label printing in a compact footprint

The TSC TH240/DH240 Series brings direct thermal and thermal-transfer printing together on one compact desktop platform for shipping, retail, food service, warehouse, and product-labeling workflows. Choose ribbon-free DH models or TH models that support both direct thermal and long-run thermal-transfer media.

203 or 300 dpiChoose everyday speed or finer detail
Up to 8 ipsFast output on 203 dpi models
4.72 in. mediaSupports media from 0.59 to 4.72 inches wide
DT or TTChoose ribbon-free or thermal-transfer printing

Designed to fit existing operations

Simplified deployment

Automatic printer-language emulation helps the TH240/DH240 Series work with established label formats. USB, USB Host, serial, and Ethernet connectivity are available on core configurations, with wireless options offered on selected models.

Tools for uptime

Remote monitoring and management support includes the embedded web interface, virtual control panel, TSC Console, TSC Console Web, and SOTI Connect. Toolless printhead and platen-roller replacement helps simplify routine service.

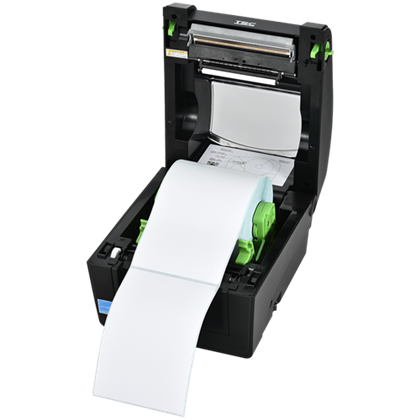

Precise media handling

A stabilizing media damper and adjustable print controls support small, long, thick, and application-specific labels. Optional narrow-media adapters extend support down to 10 mm media.

Choose the right print resolution

Model family
Resolution
Top speed
Best fit
DH240 / DH240T
203 dpi
8 ips
Ribbon-free shipping, inventory, retail, and general-purpose labels
TH240 / TH240T
203 dpi
8 ips
Direct thermal or thermal-transfer labels with the fastest output
DH340 / DH340T
300 dpi
6 ips
Ribbon-free labels with smaller text, compact barcodes, and fine graphics
TH340 / TH340T
300 dpi
6 ips
Direct thermal or thermal-transfer labels with fine detail and dense barcodes

Configuration and upgrade choices

Connectivity

  • USB 2.0, USB Host, RS-232, and Ethernet
  • Optional Wi-Fi with Bluetooth combination module
  • Optional Bluetooth and MFi Bluetooth configurations

Media handling

  • Optional full/partial-cut guillotine cutter
  • Optional peel-off module
  • Available linerless tear and linerless cutter configurations

Expandable platform

  • 128 MB RAM and 128 MB flash memory
  • microSD expansion up to 512 GB
  • TSPL-EZD with major printer-language compatibility

What's in the box

Standard package

  • TSC TH240- or DH240-series printer
  • Auto-switching power adapter
  • Power cord
  • USB interface cable
  • User setup guide
  • TH models also include two ribbon spindles, a ribbon paper core, and adapters for 120 mm-wide media
Print Method
Direct thermal
Resolution
203 dpi (8 dots/mm) or 300 dpi (12 dots/mm), depending on model
Maximum Print Speed
Up to 8 ips at 203 dpi; up to 6 ips at 300 dpi
Maximum Print Width
4.25 in. (108 mm) at 203 dpi; 4.16 in. (105.7 mm) at 300 dpi
Maximum Print Length
1,000 in. (25,400 mm) at 203 dpi; 450 in. (11,430 mm) at 300 dpi
Interfaces
USB 2.0, USB Host, RS-232, and 10/100 Ethernet; optional Wi-Fi and Bluetooth by configuration
Memory
128 MB Flash, 128 MB SDRAM, and microSD expansion up to 512 GB
Media Width
0.59–4.72 in. (15–120 mm); optional narrow-media adapter supports 0.39 in. (10 mm)
Media Capacity
5 in. (127 mm) outside diameter; 1–1.5 in. (25.4–38.1 mm) core
Media Types
Continuous, die-cut, black mark, fanfold, outside-wound notched, and linerless with the appropriate option
Dimensions
8.19 in. W × 6.69 in. H × 9.25 in. D (208 × 170 × 235 mm)
Weight
4.63 lb (2.1 kg), printer only
Printer Language
TSPL-EZD; compatible with EPL, ZPL, ZPL II, and DPL
Sensors
Transmissive gap, position-adjustable reflective black mark, and printhead-open
Operating Environment
32–104°F (0–40°C); 25–85% RH, non-condensing
Warranty
2 years for the printer; printhead and platen coverage subject to TSC limits
DH240 Series Datasheet (Americas, April 2026)
Download
DH240 Series User Manual (English)
Download
DH240 Series Setup Guide
Download

Shop TH240/DH240 Models

DH240-A001-0001

DH240T direct thermal desktop label printer, 203 dpi, color touchscreen, USB, serial and Ethernet.

DPI:

203

Interface:

USB, USB Host, Serial, Ethernet

$509.68

TH240-A001-0001

TH240T thermal-transfer desktop label printer, 203 dpi, color touchscreen, USB, serial and Ethernet.

DPI:

203

Interface:

USB, USB Host, Serial, Ethernet

$556.73

TH240-A001-0101

TH240TW thermal-transfer desktop label printer, 203 dpi, color touchscreen, Wi-Fi and Bluetooth.

DPI:

203

Interface:

USB, Wi-Fi and Bluetooth

$731.93

TH340-A001-0001

TH340T thermal-transfer desktop label printer, 300 dpi, color touchscreen, USB, serial and Ethernet.

DPI:

300

Interface:

USB, USB Host, Serial, Ethernet

$708.76

DH240-A001-0201

DH240TB direct thermal desktop label printer, 203 dpi, color touchscreen, MFi Bluetooth 5.0.

DPI:

203

Interface:

USB, MFi Bluetooth 5.0

$632.75

DH240-A001-0101

DH240TW direct thermal desktop label printer, 203 dpi, color touchscreen, Wi-Fi and Bluetooth.

DPI:

203

Interface:

USB, Wi-Fi and Bluetooth

$684.88

DH340-A001-0001

DH340T direct thermal desktop label printer, 300 dpi, color touchscreen, USB, serial and Ethernet.

DPI:

300

Interface:

USB, USB Host, Serial, Ethernet

$660.99

Shop TH240/DH240 Accessories

WF-TH240-1001

Wi-Fi and Bluetooth combo module kit for TSC DH240 Series

$205.46

BT-TH240-0001

Bluetooth 5.0 module kit for TSC DH240 Series

$123.08

TEAR-DH240-0001

Linerless tear-off kit for TSC DH240 Series

$119.31

OP-DH240-0001

10 mm narrow-media adapter kit for TSC DH240 Series

$24.25

CUT-DH240-0001

Linerless cutter kit for TSC DH240 Series

$477.99

CUT-TH240-0001

Guillotine cutter module, full/partial cut, for TSC DH240 Series

$233.48

PEL-TH240-0001

Peel-off module for TSC DH240 Series

$37.25
