TSC TH220 DH220

Images may not reflect the actual product

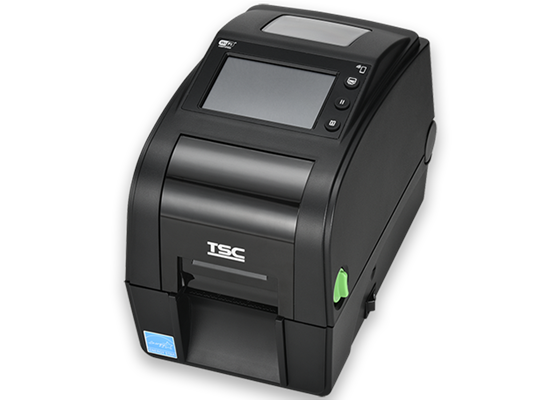

Product Image
small product image0
small product image1

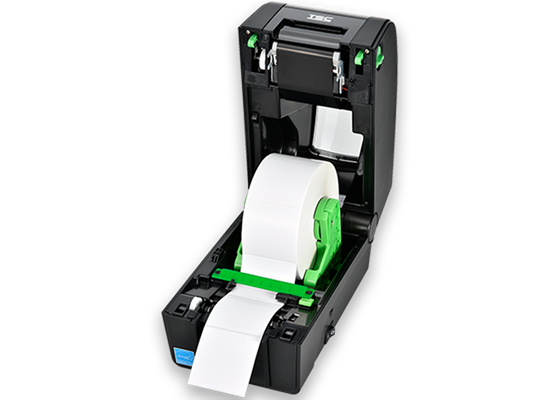

small product image2

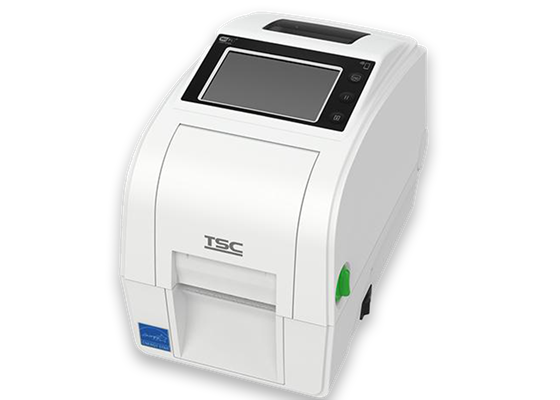

small product image3

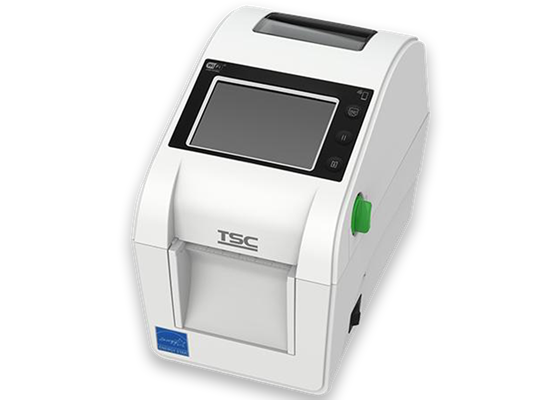

small product image4

2-inch desktop label printers

One compact platform for labels, tags, and wristbands

The TSC TH/DH Series combines 203 or 300 dpi output with direct-thermal, thermal-transfer, healthcare, and large-roll configurations. Choose the print method, interface, and media handling that fit the job without moving to a larger printer.

Up to 8 ipsFast 203 dpi output for busy counters and workstations
203 or 300 dpiChoose everyday speed or finer small-label detail
Direct thermal or transferRibbon-free DH models or ribbon-capable TH models
Up to 6.5-inch rollsDH-L models extend unattended media capacity

Choose the right configuration

Model family
Resolution
Top speed
Best fit
TH220 / TH320
203 / 300 dpi
8 / 6 ips
Labels and tags that may require thermal-transfer ribbon
DH220 / DH320
203 / 300 dpi
8 / 6 ips
Receipts, wristbands, and short-life direct-thermal labels
DH220L / DH320L
203 / 300 dpi
Varies
Large-roll, linerless, cutter, and peel workflows
Healthcare / E models
203 / 300 dpi
Varies
Disinfectant-ready or simplified USB-only deployments

Configuration and workflow choices

Wired and wireless choices

Standard models offer USB, USB Host, serial, and Ethernet. Wi-Fi with Bluetooth and MFi Bluetooth configurations are available.

Finish labels at the printer

Select tear, peel, cutter, linerless cutter, or linerless tear configurations to match the media workflow.

Operator choices

LED models suit fixed workflows, while color-touchscreen models add guided setup and clearer status information.

What's in the box

Standard package

  • TSC TH220/DH220-series printer
  • Auto-switching power adapter
  • Power cord
  • USB interface cable
  • User setup guide
  • TH220 thermal-transfer models also include a ribbon paper core
Print Method
TH220/TH320: direct thermal and thermal transfer; DH220/DH320/DH220L/DH320L: direct thermal only
Resolution
203 dpi (8 dots/mm) on 220 models; 300 dpi (12 dots/mm) on 320 models
Maximum Print Speed
Up to 8 ips (203 mm/s) at 203 dpi; up to 6 ips (152 mm/s) at 300 dpi
Maximum Print Width
2.13 in. (54 mm) at 203 dpi; 2.24 in. (56.9 mm) at 300 dpi
Maximum Print Length
1,000 in. (25,400 mm) at 203 dpi; 450 in. (11,430 mm) at 300 dpi
Interfaces
USB 2.0, USB Host, RS-232 and 10/100 Ethernet; Wi-Fi/Bluetooth and MFi Bluetooth by configuration; DH220E/DH320E are USB-only
Memory
Standard TH/DH: 128 MB Flash and 128 MB SDRAM; DH-L: 512 MB Flash and 256 MB SDRAM; microSD expansion up to 512 GB where supported
Media Width
Standard TH/DH: 0.59–2.36 in. (15–60 mm); DH-L: 0.39–2.36 in. (10–60 mm)
Media Capacity
Standard TH/DH: 5 in. (127 mm) OD; DH-L: 6.5 in. (165 mm) OD; 1–1.5 in. core
Ribbon
TH Series only: up to 90 m on 0.5 in. core; DH Series is ribbon-free direct thermal
Media Types
Continuous, die-cut, black mark, fanfold and outside-wound notched media; DH-L also supports linerless media (with linerless option) and wristbands
Dimensions
TH220/TH320: 5.75 W × 7.05 H × 9.09 D in.; DH220/DH320: 5.43 W × 6.77 H × 8.27 D in.; DH-L varies by configuration
Weight
TH220/TH320: 3.97 lb (1.8 kg); DH220/DH320: 3.53 lb (1.6 kg); DH-L shipping weight is approximately 7.28 lb by configuration
Printer Language
TSPL-EZD; compatible with EPL, ZPL, ZPL II and DPL
Sensors
Transmissive gap, position-adjustable reflective black mark and printhead-open; TH adds ribbon-end sensing
Operating Environment
32–104°F (0–40°C); 25–85% RH, non-condensing
Warranty
Printer: 2 years; printhead: 25 km or 12 months; platen: 50 km or 12 months, whichever comes first
TH220/DH220 Series User Manual (English)
Download
DH220L/DH220LT Series User Manual (English)
Download

Shop TH220 DH220 Models

DH220E-A001-0001

DH220E direct thermal 2-inch label printer, 203 dpi, LED status indicator, USB.

DPI:

203

Print Method:

Direct Thermal

User Interface:

LED

Add Ons:

Tear

Interface:

USB

$259.17

DH220HC-A001-0001

DH220THC direct thermal 2-inch label printer, 203 dpi, color touchscreen, USB, USB Host, serial and Ethernet, healthcare enclosure.

DPI:

203

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Extra Features:

Health Care Plastics

Add Ons:

Tear

Interface:

USB, Ethernet, Serial

$485.79

DH220-A001-0201

DH220TB direct thermal 2-inch label printer, 203 dpi, LCD status display, MFi Bluetooth.

DPI:

203

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Tear

Interface:

USB, Ethernet, Serial, Bluetooth MFi

$529.21

DH220-A001-0101

DH220TW direct thermal 2-inch label printer, 203 dpi, LCD status display, Wi-Fi and Bluetooth.

DPI:

203

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Tear

Interface:

USB, Ethernet, Serial, WiFi, Bluetooth

$581.35

DH320L-A001-0021

DH320L direct thermal 2-inch label printer, 300 dpi, LCD status display, USB, USB Host, serial and Ethernet, factory-installed cutter, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Add Ons:

Cutter

Print Method:

Direct Thermal

Interface:

USB, Ethernet, Serial

$681.27

DH320L-A001-0031

DH320L direct thermal 2-inch label printer, 300 dpi, LCD status display, USB, USB Host, serial and Ethernet, factory-installed linerless cutter, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Linerless Cutter

Interface:

USB, Ethernet, Serial

$904.96

DH320L-A001-0041

DH320L direct thermal 2-inch label printer, 300 dpi, LCD status display, USB, USB Host, serial and Ethernet, linerless tear configuration, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Linerless Tear

Interface:

USB, Ethernet, Serial

$606.69

DH320L-A001-0101

DH320LW direct thermal 2-inch label printer, 300 dpi, LCD status display, Wi-Fi and Bluetooth, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Tear

Interface:

USB, Ethernet, Serial, WiFi, Bluetooth

$681.99

DH320L-A001-0111

DH320LW direct thermal 2-inch label printer, 300 dpi, LCD status display, Wi-Fi and Bluetooth, factory-installed peeler, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Peeler

Interface:

USB, Ethernet, Serial, WiFi, Bluetooth

$721.80

DH320L-A001-0121

DH320LW direct thermal 2-inch label printer, 300 dpi, LCD status display, Wi-Fi and Bluetooth, factory-installed cutter, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Add Ons:

Cutter

Print Method:

Direct Thermal

Interface:

USB, Ethernet, Serial, WiFi, Bluetooth

$856.45

DH320L-A001-0131

DH320LW direct thermal 2-inch label printer, 300 dpi, LCD status display, Wi-Fi and Bluetooth, factory-installed linerless cutter, 6.5-inch media-roll capacity.

DPI:

300

Interface:

USB, Ethernet, Serial, WiFi, Bluetooth

$1080.17

TSC-TH220A0010001

TH220T thermal transfer 2-inch label printer, 203 dpi, color touchscreen, USB, USB Host, serial and Ethernet.

DPI:

203

User Interface:

Color Touch LCD

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$477.81

TH220-A001-0011

TH220T thermal transfer 2-inch label printer, 203 dpi, LCD status display, USB, USB Host, serial and Ethernet, factory-installed peeler.

DPI:

203

User Interface:

Color Touch LCD

Add Ons:

Peeler

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$517.64

TSC-TH220HCA0010001

TH220THC thermal transfer 2-inch label printer, 203 dpi, color touchscreen, USB, USB Host, serial and Ethernet, healthcare enclosure.

DPI:

203

User Interface:

Color Touch LCD

Extra Features:

Health Care Plastics

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$557.47

TSC-TH220HCA0010001

TH220THC thermal transfer 2-inch label printer, 203 dpi, color touchscreen, USB, USB Host, serial and Ethernet, healthcare enclosure.

DPI:

203

User Interface:

Color Touch LCD

Extra Features:

Health Care Plastics

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$557.47

TH220-A001-0101

TH220TW thermal transfer 2-inch label printer, 203 dpi, color touchscreen, Wi-Fi and Bluetooth.

DPI:

203

User Interface:

Color Touch LCD

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial, WiFi, Bluetooth

$697.55

TSC-TH320A0010001

TH320T thermal transfer 2-inch label printer, 300 dpi, color touchscreen, USB, USB Host, serial and Ethernet.

DPI:

300

User Interface:

Color Touch LCD

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$573.39

TH320HC-A001-0001

TH320THC thermal transfer 2-inch label printer, 300 dpi, color touchscreen, USB, USB Host, serial and Ethernet, healthcare enclosure.

DPI:

300

User Interface:

Color Touch LCD

Extra Features:

Health Care Plastics

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$653.03

TH220HC-A001-0001

TH220THC thermal transfer 2-inch label printer, 203 dpi, color touchscreen, USB, USB Host, serial and Ethernet, healthcare enclosure.

DPI:

203

User Interface:

Color Touch LCD

Extra Features:

Health Care Plastics

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$557.47

TSC-TH320HCA0010001

TH320THC thermal transfer 2-inch label printer, 300 dpi, color touchscreen, USB, USB Host, serial and Ethernet, healthcare enclosure.

DPI:

300

User Interface:

Color Touch LCD

Extra Features:

Health Care Plastics

Add Ons:

Tear

Print Method:

Thermal Transfer

Interface:

USB, Ethernet, Serial

$653.03

TSC-DH220A0011001

DH220 direct thermal 2-inch label printer, 203 dpi, LED status indicator, USB, USB Host, serial and Ethernet.

DPI:

203

Print Method:

Direct Thermal

User Interface:

LED

Add Ons:

Tear

Interface:

USB, Ethernet, Serial

$358.37

TSC-DH220EA0010001

DH220E direct thermal 2-inch label printer, 203 dpi, LED status indicator, USB.

DPI:

203

Print Method:

Direct Thermal

User Interface:

LED

Add Ons:

Tear

Interface:

USB

$259.17

DH320-A001-1001

DH320 direct thermal 2-inch label printer, 300 dpi, LED status indicator, USB, USB Host, serial and Ethernet.

DPI:

300

Print Method:

Direct Thermal

User Interface:

LED

Add Ons:

Tear

Interface:

USB, Ethernet, Serial

$453.93

DH320E-A001-0001

DH320E direct thermal 2-inch label printer, 300 dpi, LED status indicator, USB.

DPI:

300

Print Method:

Direct Thermal

User Interface:

LED

Add Ons:

Tear

Interface:

USB

$378.64

DH320HC-A001-0001

DH320THC direct thermal 2-inch label printer, 300 dpi, color touchscreen, USB, USB Host, serial and Ethernet, healthcare enclosure.

DPI:

300

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Extra Features:

Health Care Plastics

Add Ons:

Tear

Interface:

USB, Ethernet, Serial

$581.35

DH320L-A001-0001

DH320L direct thermal 2-inch label printer, 300 dpi, LCD status display, USB, USB Host, serial and Ethernet, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Tear

Interface:

USB, Ethernet, Serial

$506.79

DH320L-A001-0011

DH320L direct thermal 2-inch label printer, 300 dpi, LCD status display, USB, USB Host, serial and Ethernet, factory-installed peeler, 6.5-inch media-roll capacity.

DPI:

300

Extra Features:

6.5 in. Media Capacity

User Interface:

Color Touch LCD

Print Method:

Direct Thermal

Add Ons:

Peeler

Interface:

USB, Ethernet, Serial

$546.60

Shop TH220 DH220 Accessories

BT-DH220-0001

TSC, ACCESSORY BLUETOOTH MODULE KIT, WITHOUT BATTERY DH220 0

$124.52

WF-DH220-1001

TSC, ACCESSORY WI-FI+BT COMBO MODULE KIT, WITHOUT BATTERY, US, DH220 0

$175.20

BP-4000-0001

TSC, ACCESSORY BP-4000 BATTERY PACK + ESSENTIALS KIT (1SET), TH240/DH240/TH220/DH220/DH220L, US AND CANADA ONLY Battery

$651.57

BP-4000-0002

TSC, ACCESSORY BP-4000 BATTERY PACK (1SET), TH240/DH240/TH220/DH220/DH220L, US AND CANADA ONLY Battery

$579.17

CUT-DH220-0001

TSC, ACCESSORY CUTTER MODULE, LINERLESS CUTTER KIT, DH220/DH220HC (1SET/BOX) 0

$398.19

CUT-TH220-0001

TSC, ACCESSORY CUTTER MODULE, FULL/PARTIAL CUT, TH220/DH220/TH220HC/DH220HC (1SET/BOX) 0

$174.48

PEL-TH220-0001

TSC, ACCESSORY PEEL-OFF MODULE, TH220/DH220/TH220HC/DH220HC (1SET/BOX) 0

$39.81

TEAR-DH220-0001

TSC, SPARE PART TEAR MODULE, LINERLESS TEAR KIT, DH220/DH220HC (1SET/BOX) 0

$119.31
Have Questions?Call Us at: (800) 241-6264
