DataLogic TD1100
Description
Specifications
Download

DataLogic TD1100

Images may not reflect the actual product
Product Image
small product image0
small product image1

Close-contact 1D scanning in two reading-window sizes

The Datalogic TD1100 is a corded linear imager for close-contact barcode reading at service counters, specialty stores, libraries and document workflows. Choose the 65 mm window for standard codes or the 90 mm window for wider labels. Lite models provide either USB or RS-232/Keyboard Wedge connectivity; Pro models support USB, RS-232, Keyboard Wedge and Wand Emulation. Its compact design fits lower-throughput applications that need dependable 1D reading.

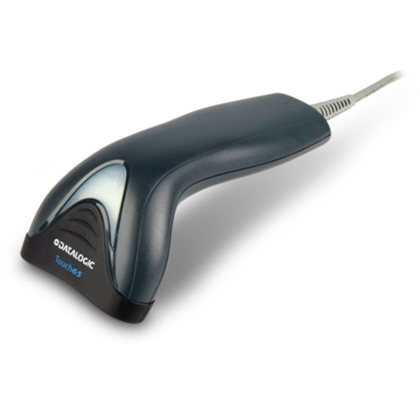

Datalogic TD1100 close-contact corded barcode reader

Key Specifications

  • Scanner configuration: Corded close-contact linear imager
  • Barcode capability: 1D and supported GS1 stacked codes
  • Reading range: EAN13 13 mil: contact to 15 cm
  • Interfaces / connectivity: USB, RS-232/KBW or Pro multi-interface
  • Durability: Repeated 1.5 m drops to concrete
  • Environmental sealing: IP30
  • Weight: TD1100 65: 130 g; TD1100 90: 153 g
  • Reading-window choices: 65 mm or 90 mm
  • Warranty: 5 years

The reading distance depends on barcode size, print quality, lighting and scan angle. 65 versions measure 16.0 × 8.4 × 5.8 cm; 90 versions measure 17.0 × 10.4 × 6.7 cm. These are linear barcode readers, rather than general-purpose QR/Data Matrix imagers.

In the Box

  • TD1120 USB kits — 65K1 / 90K1
    • Selected 65 or 90 Lite USB scanner
    • Matching read-through holder
    • 90A052065 enhanced straight USB cable
  • Models without a cable
    • Selected TD1120, TD1170 or TD1130 scanner
    • Order the correct USB, serial or Keyboard Wedge cable separately
    • Choose the holder that matches the 65 or 90 reading window when required

Select the interface and cable for the host connection. A separate power supply may be required for the selected serial cable and host configuration.

A window sized for the label

The two reading-window sizes let users match the reader to ordinary labels or wider codes on books, documents and bills. The contact-reading design handles standard linear barcodes, including damaged or poorly printed codes, while its 1.5 m drop resistance supports regular counter use.

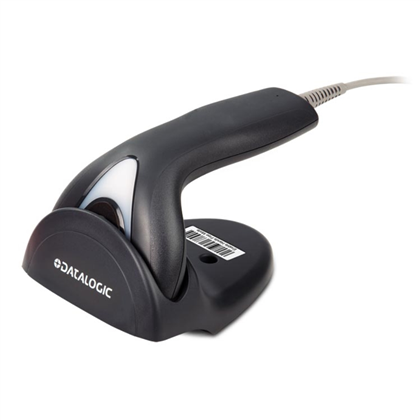

Read-through holder for small items

A matching desk/wall holder gives the reader a hands-free position for documents and small items. USB kit models include a holder and cable; the other models let users select connection components for their host. Datalogic Aladdin supports configuration, and a good-read LED and adjustable-tone beeper confirm successful scans.

Scanner Configuration
Corded close-contact linear imager; 65 / 90 Lite and Pro versions. Intended for low-throughput 1D reading.
1D Barcode Support
Auto-discriminates standard 1D codes including GS1 DataBar linear codes.
Stacked Code Support
GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omnidirectional.
Operating Current
Typical less than 100 mA at 5 VDC.
Standby / Idle Current
Typical 20 mA at 5 VDC.
Input Voltage
5 VDC ±0.5 V.
Ambient Light
0–20,000 lux.
Drop Resistance
Repeated drops from 1.5 m / 5 ft onto concrete.
ESD Protection
Air discharge: 16 kV.
Humidity
5–95%, non-condensing.
Environmental Sealing
IP30.
Operating Temperature
0–50°C / 32–122°F.
Storage / Transport Temperature
−20 to 70°C / −4 to 158°F.
Interfaces
65/90 Lite: USB models or RS-232 / Keyboard Wedge models. 65/90 Pro: RS-232, USB, Keyboard Wedge and Wand Emulation multi-interface.
Colors
Black; other colors and custom logos subject to manufacturer minimum quantities.
Reading Window
65 versions: 6.5 cm / 2.6 in; 90 versions: 9.0 cm / 3.5 in.
Dimensions
65 Lite / Pro: 16.0 × 8.4 × 5.8 cm / 6.3 × 3.3 × 2.3 in. 90 Lite / Pro: 17.0 × 10.4 × 6.7 cm / 6.7 × 4.1 × 2.7 in.
Weight
65 Lite / Pro: 130 g / 4.6 oz. 90 Lite / Pro: 153 g / 5.4 oz.
Light Source
640 nm LED illumination.
Print Contrast
Minimum 25%.
Reading Angle
Pitch ±65°; roll/tilt ±45°; skew/yaw ±70°.
Reading Indicators
Beeper with adjustable tone and good-read LED.
Maximum Resolution
0.102 mm / 4 mil.
Reading Range Conditions
Minimum distance depends on symbol length and scan angle; range depends on printing resolution, contrast and ambient light.
Code 39 Reading Ranges
7.5 mil: 0–8.1 cm / 0–3.2 in. 10 mil: 0–12.0 cm / 0–4.7 in.
EAN 13 Reading Range
13 mil: 0–15.0 cm / 0–6.0 in.
Agency Approvals
Meets applicable safety and regulatory approvals for intended use; consult the Quick Reference Guide for the certification list.
Environmental Compliance
China RoHS and EU RoHS.
Configuration Utility
Datalogic Aladdin available at no charge.
OPOS / JavaPOS
Utilities available at no charge.
Remote Host Download
Supported for remote servicing and operational updates.
Warranty
5-year factory warranty.
TD1100 Data Sheet
Download

Shop TD1100 Models

TD1120-BK-90K1

TD1100 90 Lite, Black, USB Kit (Includes Scanner, 90 mm Holder and 90A052065 Enhanced USB Cable)

Reading Window:

90 mm

Accessories:

Holder & 90A052065 USB Cable

Interface:

USB

$98.53

TD1120-BK-65K1

TD1100 65 Lite, Black, USB Kit (Includes Scanner, 65 mm Holder and 90A052065 Enhanced USB Cable)

Reading Window:

65 mm

Accessories:

Holder & 90A052065 USB Cable

Interface:

USB

$98.53

TD1120-BK-90

TD1100 90 Lite, 1D Black, USB Interface - no cable

Reading Window:

90 mm

Accessories:

No Cable

Interface:

USB

$84.37

TD1130-BK-65

TD1100 65 Pro, 1D Black, Multi-Interface - no cable

Reading Window:

65 mm

Interface:

Multi-Interface

Accessories:

No Cable

$108.56

TD1170-BK-65

TD1100 65 Lite, 1D Black, RS-232/KBW Interface - no cable

Reading Window:

65 mm

Accessories:

No Cable

Interface:

RS-232/KBW

$84.37

TD1170-BK-90

TD1100 90 Lite, 1D Black, RS-232/KBW Interface - no cable

Reading Window:

90 mm

Accessories:

No Cable

Interface:

RS-232/KBW

$84.37

TD1130-BK-90

TD1100 90 Pro, 1D Black, Multi-Interface - no cable

Reading Window:

90 mm

Interface:

Multi-Interface

Accessories:

No Cable

$108.56

TD1120-BK-65

TD1100 65 Lite, 1D Black, USB Interface - no cable

Reading Window:

65 mm

Accessories:

No Cable

Interface:

USB

$84.37

Shop TD1100 Accessories

HLD-T010-90-BK

Datalogic TD1100 90 mm desk/wall read-through holder, black. For Touch 90 models; use the corresponding 65 mm holder for Touch 65.

$18.97

ZSC1TD11X51

Datalogic Ease of Care for TD1100: 5-year comprehensive coverage with overnight replacement service.

$22.00

90A052043

Cable, USB, Type A, Coiled, 9', CAB-424E

$39.00

90A052065

Cable, USB Type A, 2M Straight, Enhanced, For Datalogic Scanners

$15.40

90A051230

Cable, RS-232, 9P, Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.

$16.70

90A051360

CAB-365 IBM PS/2 Coiled Cable, MiniDin Wedge

$25.00

90ACC0287

Power Supply, 5V 3A, Line Cord Not Included

$28.00

90ACC1886

Datalogic US 2-Pin AC Power Cord

$4.00
