Zebra TC22 / TC22R / TC27
Affordable enterprise mobility for indoor, field and RFID workflows
The Zebra TC22 and TC27 combine a 6-inch FHD+ display, enterprise barcode capture and a removable battery in a smartphone-style Android mobile computer. Choose the Wi-Fi 6E TC22 for facility-based work or the TC27 for 5G, private 5G, CBRS and Wi-Fi 6E connectivity.
For integrated inventory and asset tracking, select a TC22R configuration with built-in UHF RFID. Each model is designed for managed business deployments with Zebra DNA tools for staging, security, data capture and lifecycle management.
See the Zebra TC22 and TC27 mobile computers in action.
Key Specifications
- TC22/TC27: 6-inch FHD+ 1080 x 2160 display, 450 nits and Corning® Gorilla® Glass
- Qualcomm™ 5430 hex-core 2.1 GHz processor
- 6 GB RAM/64 GB Flash or 8 GB RAM/128 GB Flash
- SE4710 standard-range or SE55 Advanced Range 1D/2D scan engine
- 16 MP rear and 5 MP front cameras; NFC for supported contactless workflows
- TC22: Wi-Fi 6E; TC27: 5G, private 5G, CBRS and Wi-Fi 6E; Bluetooth 5.2
- TC22/TC27: removable 3,800 mAh standard, 5,200 mAh extended or supported BLE battery configuration
- TC22R: integrated UHF RFID, SE4710, Wi-Fi 6 and removable 7,000 mAh battery
- TC22/TC27: IP68/IP65 sealing, 4.5 ft. drop rating and 500 tumbles at 1.6 ft.
In the Box
- Selected Zebra TC22, TC27 or TC22R mobile computer
- Battery defined by the selected configuration
- Manufacturer-supplied regulatory documentation
Configuration note: Applicable cables, power supplies, cradles, stands, mounts and other accessories are sold separately unless the selected option explicitly states they are included.
Choose the Right Model and Capture Range
TC22 for Wi-Fi Workflows
Use the TC22 for retail, hospitality, warehouse and service tasks that stay within managed Wi-Fi coverage. Wi-Fi 6E and Bluetooth 5.2 support voice, application data and approved peripherals.
TC27 for Field Connectivity
The TC27 adds 5G cellular, private 5G, US CBRS support and dual-band GNSS for delivery, field service and large indoor/outdoor facilities.
Enterprise Barcode Capture
The SE4710 handles everyday 1D/2D scanning, while the SE55 Advanced Range engine with IntelliFocus™ supports items in hand and barcodes on higher warehouse shelves. Camera options support documentation, video collaboration and visual applications.
Integrated RFID with TC22R
The all-touch TC22R combines a TC22-class mobile computer, SE4710 scanner and UHF RFID reader in one managed device. Zebra rates RFID capture at up to 1,300 tags per second under test conditions; actual throughput and range vary by tag, material, orientation, region and application.
Built for Daily Business Use
Readable, Rugged and Serviceable
The 6-inch FHD+ display provides room for forms, inventory and customer-service applications. Gorilla Glass protects the display and scan window. IP68/IP65 sealing and published drop/tumble ratings support routine work around dust, rain and accidental drops; an optional protective boot adds protection for supported configurations.
Battery Choices for the Shift
Select standard, extended or BLE battery configurations according to runtime and device-location needs. Removable batteries let teams exchange power without retiring the device for the full charging cycle.
Charging and Workstation Options
Supported single- and multi-slot cradles, USB charging, trigger handles, protective accessories and Workstation Connect components can adapt TC22/TC27 devices to scan-intensive, desktop and hybrid point-of-sale work. Match every cradle and power chain to the exact connector and protective-boot configuration.
Zebra DNA and Lifecycle Support
Zebra DNA Professional tools support staging, application control, barcode integration, diagnostics and security maintenance. Optional Zebra DNA Enterprise and Zebra OneCare offerings add capabilities and service coverage; availability and licensing vary by configuration and agreement.
Common Applications
Retail, Hospitality and Field Service
Price checks, item lookup, mobile point of sale, ticketing, task management, delivery, payment on delivery, site service and customer assistance.
Warehouse and RFID
Picking, sortation, shipping and receiving, click-and-collect, cycle counting, inventory visibility and asset tracking.
Shop TC22 / TC22R / TC27 Models
WLMT0-T22B6ABC2-NA
TC22 Mobile Computer, Standard Range Scanner with WiFi. 6GB RAM/64GB Flash. 2-Pin I/O, Standard Battery.
Pin Setup:
2-Pin
Battery:
3,800 mAh
Memory:
6GB RAM/64GB
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Barcode Scanner:
Standard SE4710
Connectivity:
WiFi
WLMT0-T22B6ABE2-NA
TC22 Mobile Computer, Standard Range Scanner with WiFi. 6GB RAM/64GB Flash. 2-Pin I/O, Extended Battery.
Pin Setup:
2-Pin
Battery:
5,200 mAh
Memory:
6GB RAM/64GB
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Barcode Scanner:
Standard SE4710
Connectivity:
WiFi
WLMT0-T22B6CBC2-NA
TC22 Mobile Computer, Advanced Range Scanner with WiFi. 6GB RAM/64GB Flash. 2-Pin I/O, Standard Battery, GMS.
Pin Setup:
2-Pin
Battery:
3,800 mAh
Memory:
6GB RAM/64GB
Barcode Scanner:
Advanced SE55
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Connectivity:
WiFi
WLMT0-T22B8ABD8-NA
TC22 Mobile Computer, Standard Range Scanner with WiFi. 8GB RAM/128GB Flash. 8-Pin I/O, Standard Battery with BLE.
Memory:
8GB RAM/128GB
Pin Setup:
8-Pin
Battery:
BLE battery: 3,800 mAh
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Barcode Scanner:
Standard SE4710
Connectivity:
WiFi
WLMT0-T22B8CBD8-NA
TC22 Mobile Computer, Advanced Range Scanner with WiFi. 8GB RAM/128GB Flash. 8-Pin I/O, Standard Battery with BLE.
Memory:
8GB RAM/128GB
Pin Setup:
8-Pin
Barcode Scanner:
Advanced SE55
Battery:
BLE battery: 3,800 mAh
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Connectivity:
WiFi
WCMTA-T27B6ABC2-NA
TC27 Mobile Computer, Standard Range Scanner with WiFi & Cellular. 6GB RAM/64GB Flash. 2-Pin I/O, Standard Battery.
Pin Setup:
2-Pin
Battery:
3,800 mAh
Memory:
6GB RAM/64GB
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Barcode Scanner:
Standard SE4710
Connectivity:
WiFi & Cellular
WCMTA-T27B6ABE2-NA
TC27 Mobile Computer, Standard Range Scanner with WiFi & Cellular. 6GB RAM/64GB Flash. 2-Pin I/O, Extended Battery.
Pin Setup:
2-Pin
Battery:
5,200 mAh
Memory:
6GB RAM/64GB
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Barcode Scanner:
Standard SE4710
Connectivity:
WiFi & Cellular
WCMTA-T27B6CBC2-NA
TC27 Mobile Computer, Advanced Range Scanner with WiFi & Cellular. 6GB RAM/64GB Flash. 2-Pin I/O, Standard Battery.
Pin Setup:
2-Pin
Battery:
3,800 mAh
Memory:
6GB RAM/64GB
Barcode Scanner:
Advanced SE55
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Connectivity:
WiFi & Cellular
WCMTA-T27B8ABD8-NA
TC27 Mobile Computer, Standard Range Scanner with WiFi & Cellular. 8GB RAM/128GB Flash. 8-Pin I/O, Standard Battery with BLE.
Memory:
8GB RAM/128GB
Pin Setup:
8-Pin
Battery:
BLE battery: 3,800 mAh
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Barcode Scanner:
Standard SE4710
Connectivity:
WiFi & Cellular
WCMTA-T27B8CBD8-NA
TC27 Mobile Computer, Advanced Range Scanner with WiFi & Cellular. 8GB RAM/128GB Flash. 8-Pin I/O, Standard Battery with BLE.
Memory:
8GB RAM/128GB
Pin Setup:
8-Pin
Barcode Scanner:
Advanced SE55
Battery:
BLE battery: 3,800 mAh
Camera:
Front and Rear
RFID:
No
Region / Compliance:
North America
Connectivity:
WiFi & Cellular
TC2205-0G1250SS-FT
TC22R Integrated Handheld RFID Reader, Gun, Wi-Fi 6, Android GMS, SE4710 + FF/FF Cameras + Standard Range RFID, 6GB 64GB, Standard 7,000mAh Battery, US Only, TAA Compliant
Pin Setup:
2-Pin
Memory:
6GB RAM/64GB
Battery:
7,000mAh
Camera:
Front and Forward
RFID:
RFID
Barcode Scanner:
Standard SE4710
Region / Compliance:
US Only - TAA Compliant
Connectivity:
WiFi
TC2205-0G1250SS-US
TC22R Integrated Handheld RFID Reader, Gun, Wi-Fi 6, Android GMS, SE4710 + FF/FF Cameras + Standard Range RFID, 6GB 64GB, Standard 7,000mAh Battery, US, Canada, & Puerto Rico Only
Pin Setup:
2-Pin
Memory:
6GB RAM/64GB
Battery:
7,000mAh
Camera:
Front and Forward
RFID:
RFID
Barcode Scanner:
Standard SE4710
Region / Compliance:
US / Canada / Puerto Rico
Connectivity:
WiFi
Outlet Items

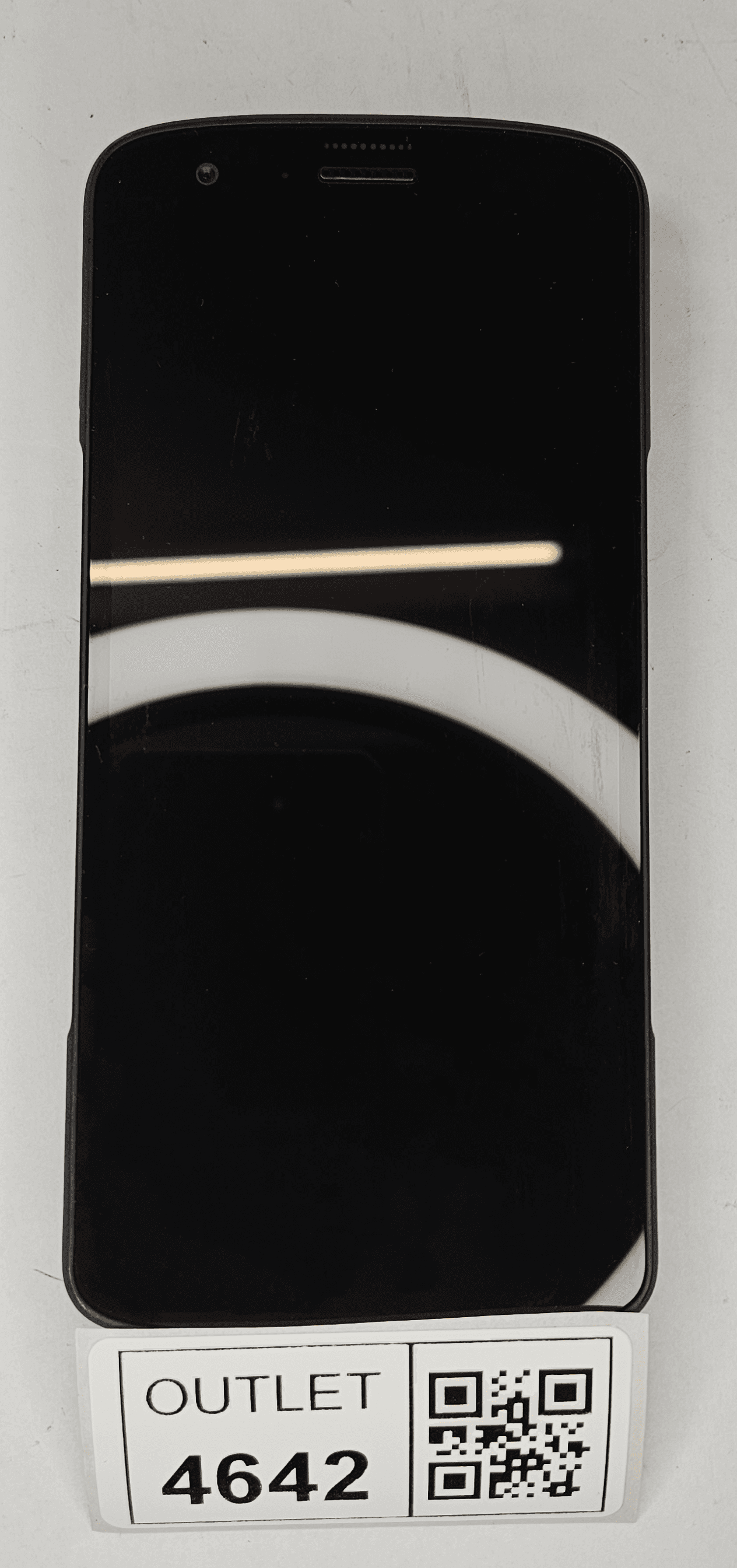

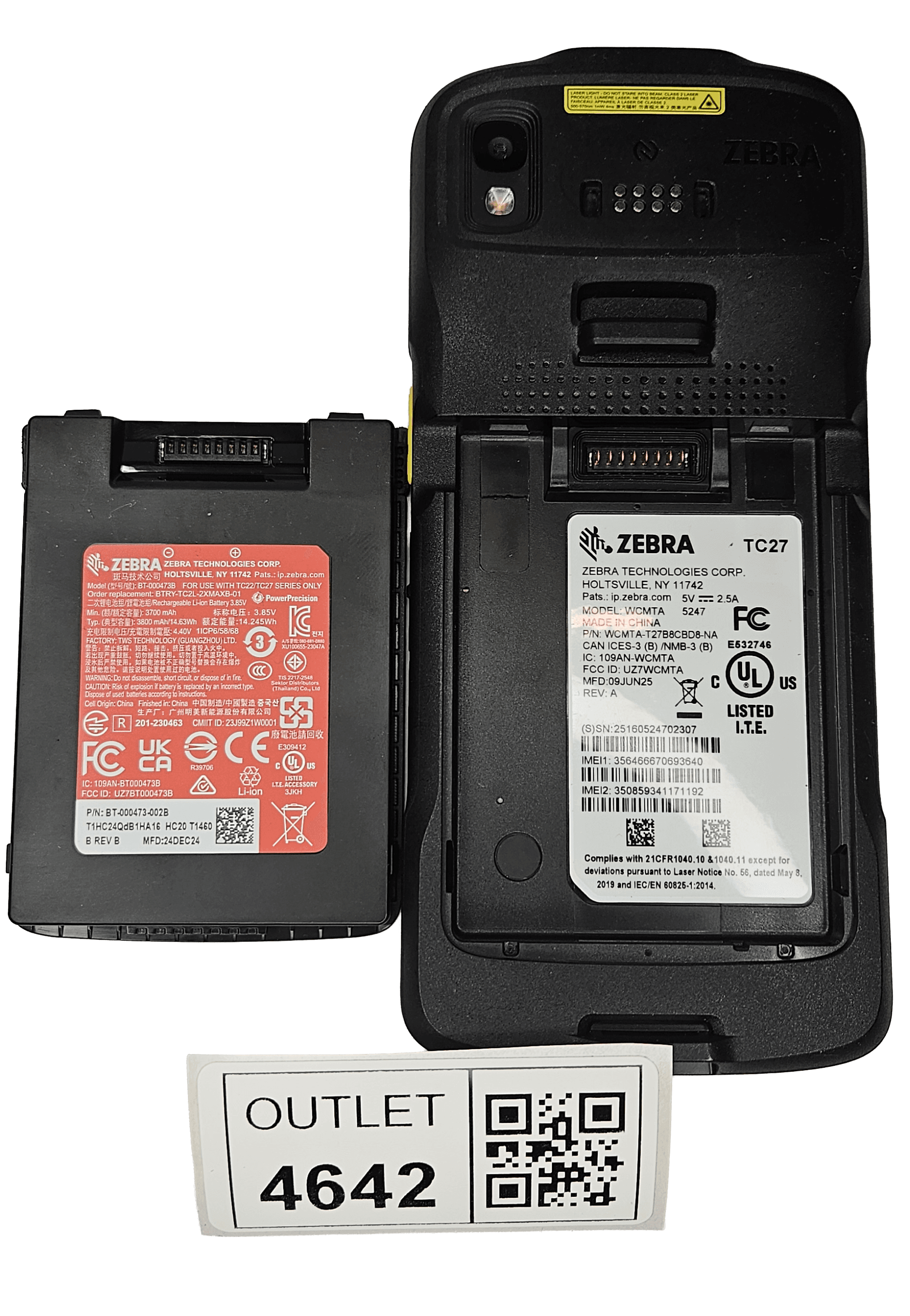

Zebra TC27
Zebra TC27 Mobile Computer (Renewed, Like New). Advanced Range Scanner. WiFi, Cellular. 8GB RAM, 128GB Flash. (WCMTA-T27B8CBD8-NA) CID: 4642
Item Number: WCMTA-T27B8CBD8-NA
1 Like New AvailableCID: 4642
Shop TC22 / TC22R / TC27 Accessories
BTRY-TC2L-2XMAXB-01
TC22/TC27 Standard PowerPrecision LI-ON Battery with BLE Beacon - 3800 mAh - Single
CRD-TC2L-BS11B-01
TC22/TC27 Single Slot Charge Only Cradle for 1 device & 1 battery (shim included). Supports device with boot/trigger handle after shim is removed. Power supply(PWR-BGA12V50W0WW ), DC cable(CBL-DC-388A1-01), country specific AC Line Cord (23844-00-00R) sold separately.
CRD-TC2L-BS1CO-01
TC22/TC27 Single Slot Charge Only Cradle - Compatible with 2-Pin & 8-Pin Models. Power supply and USB cable sold separately (PWR-WUA5V45W1US, CBL-EC5X-USBC3A-01)
CRD-TC2L-BS5CO-01
5-Slot Charge Only Cradle (shims included). Supports device with boot/trigger handle after shim is removed. Power supply, DC cable, and country specific AC line cord sold separately (PWR-BGA12V108W0WW, CBL-DC-381A1-01)
CRD-TC2L-SE5ET-01
5-Slot Charge & Communication Cradle (shims included). Supports device with boot/trigger handle after shim is removed. Power supply, DC cable, and AC line cord sold separately (PWR-BGA12V108W0WW, CBL-DC-381A1-01)
BTRY-TC2L-2XMAXX-01
TC22/TC27 Standard PowerPrecision LI-ON Battery - 3800 mAh - Single
BTRY-TC2L-3XMAXX-01
TC22/TC27 Extended PowerPrecision LI-ON Battery - 5200 mAh - Single
CRD-TC2L-SE1ET-01
TC22/TC27 Single Slot Charge & Communication Cradle (shim included). Supports device with boot/trigger handle after shim is removed. Power supply, DC cable, and AC line cord sold separately (PWR-BGA12V50W0WW, CBL-DC-388A1-01).
SG-TC2L-WMADP1-02
TC22/TC27 BOA rotatable wrist mount adapter, black, dial strap length 265mm, supports device with either basic or extended battery (works without the boot)
SG-TC2L-ARMNT-01
TC22/TC27 Rotatable Arm Mount with velcro straps, supports device with either basic or extended battery (works without the boot)
SG-TC2L-WMADP1-01
TC22/TC27 BOA rotatable wrist mount, black, dial strap length 191mm, supports device with either basic or extended battery (works without the boot)
SAC-TC2L-4SCHG-01
4-Slot Battery Charger; Charges up to four Li-ion batteries. Power Supply, DC cable and country specific AC line cord sold separately (PWR-BGA12V50W0WW, CBL-DC-388A1-01)
SG-TC2L-HLSTR1-01
TC22/TC27 Holster, supports device with boot and trigger handle
SG-TC2L-SCRNPT1-01
TC22/TC27 Tempered Glass Screen Protector
SG-TC2L-BOOT-01
TC22/TC27 Protective Boot
SG-TC2L-HSTRP1-01
TC22/TC27 Handstrap
TRG-TC2L-SNP1-01
TC22/TC27 Trigger Handle, supports device with either basic or extended battery (requires Protective Boot, sold separately)
Z1AE-TC22XX-3C00
OneCare Contract for Zebra TC22. 3 Year. Essential. Comprehensive Coverage. Purchased within 30 Days of Device. Does Not Include Coverage For Cradles.
Z1AE-TC27XX-3C00
OneCare Contract for Zebra TC27. 3 Year. Essential. Comprehensive Coverage. Purchased within 30 Days of Device. Does Not Include Coverage For Cradles.
PWR-WUA5V12W0US
Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.
CBL-TC5X-USBC2A-01
USB C to USB A Communications and Charging Cable, 1m Long
CBL-DC-388A1-01
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
PWR-BGA12V108W0WW
Cable, Level VI AC/DC Power Supply Brick. AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.
CBL-DC-381A1-01
Cable, DC PWR CRD, 4 or 5 Slot Cradle
PWR-BGA12V50W0WW
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
PWR-WUA5V45W1US
USB Type C Power Supply Adaptor With US Plug. Used With USB-C Cable (CBL-EC5X-USBC3A-01) To Charge Device. USB PD 3.1 Power Supply With An Input Of 100-240VAC And A Self-Adjusting Output Ranging From 5V/3A To 20V/2.25A.
CRD-TC2L-BS1COB-01
Single-slot charge cradle for TC22 / TC27 devices with protective boots. USB-C cable (CBL-TC5X-USBC2A-01) and USB power adapter (PWR-WUA5V45W1SUS) are sold separately. Order this SKU for devices with a protective boot to avoid discarding the shim.
CBL-EC5X-USBC3A-01
USB-C To USB-C Communications And Charging Cable, 1.2m Long; Supports 3.0 Superspeed And Fast Charge
CRD-TC2L-BS11BB-01
Single-slot and spare battery charging cradle for TC22 / TC27 devices with protective boot and its spare battery. Power supply (PWR-BGA12V50W0WW), DC cable (CBL-DC-388A1-01), and country-specific AC cable are sold separately.Order this SKU for devices with a protective boot to avoid discarding the shim.
ADPTR-TC2L-USBC-01
TC22/27 Clip-On USB-C Adapter Cup used for Charging with a Standard USB-C Cable.
50-12500-066
Wrist Strap, Attaches to bottom of Snap-on Trigger Handle (SKU# TRG-TC2L-SNP1-01).
