Zebra TC201

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

The new standard in cost-effective mobile computing for the frontline

The Zebra TC201 advances the TC2 Series with faster application performance, a rugged 6-inch form factor and enterprise security for retail, field service, transportation and warehouse teams.

Choose Wi-Fi 7 or 5G/Wi-Fi 7 connectivity, SR500 standard-range or AC670 advanced-range scanning, 6 GB/64 GB or 8 GB/128 GB memory, and standard, extended or supported hot-swap battery configurations.

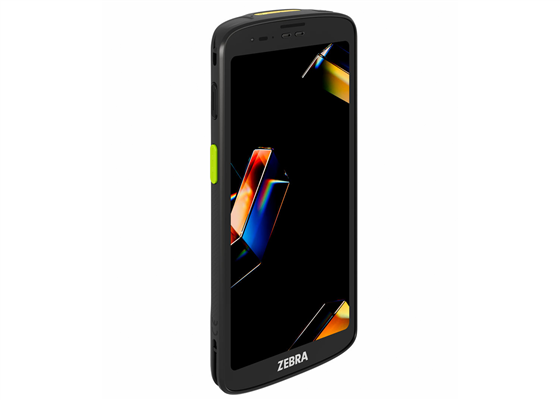

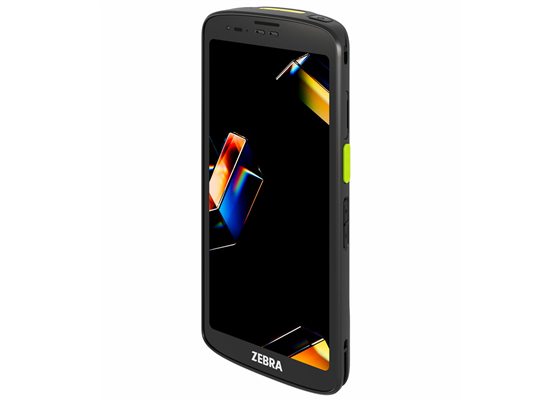

Zebra TC201 mobile computer side view

The TC201 combines a 6-inch display with enterprise scanning and wireless options.

Key Specifications

  • Qualcomm Dragonwing Q-6690 processor up to 2.0 GHz
  • Android enterprise mobile-computer platform
  • 6-inch FHD+ 2160 x 1080 display with Gorilla Glass
  • Wi-Fi 7, Bluetooth 6.0 and optional 5G WWAN
  • SR500 1D/2D or AC670 advanced-range color scan engine
  • 16 MP rear and 5 MP front cameras
  • 3,800 mAh standard or 5,200 mAh extended battery
  • IP65/IP68 sealing and 5 ft. drop rating

In the Box

  • TC201 mobile computer in the selected configuration
  • Selected standard or extended PowerPrecision battery

Configuration note: Cradles, cables, power components, protective accessories and other applicable accessories are sold separately unless the selected option explicitly states they are included.

Next generation power, durability and security

The TC201 supports simultaneous frontline applications with LPDDR5 memory and UFS storage. LifeGuard for Android helps keep operating systems current, while select Secure Element configurations protect sensitive data and support higher-security deployments.

Gorilla Glass protects the display and scanner window. IP65/IP68 sealing, subzero operation and drop/tumble ratings support indoor and outdoor work, with an optional rugged boot for added protection.

More ways to automate data capture

The SR500 handles everyday 1D/2D barcode capture. The AC670 reads barcodes at distances up to 100 ft. and can capture high-resolution color images, reducing the need to bend, climb or carry a second device.

All listed North American configurations include a dedicated scan engine. Option filters identify scanner, connectivity, memory, back I/O, battery and Secure Element differences.

All the fastest wireless networks

Wi-Fi 7 provides high-capacity indoor connectivity, while WWAN configurations add 5G Release 17, private 5G and CBRS support where available. Bluetooth 6.0 supports modern peripherals with improved range, speed and efficiency.

The Zebra difference—more value, more productivity

Zebra DNA tools support staging, security, device management, data capture and collaboration. Many TC22/TC27 batteries and charging accessories are backward compatible; confirm the exact accessory and selected TC201 back-I/O configuration before ordering.

Dimensions
L x H x D: 6.5 x 3.0 x 0.49 inches (165 x 77.95 x 12.5 mm)
Weight
8.64 oz. (245 g) with standard capacity battery 9.55 oz. (270 g) with extended capacity battery
Display
6.0 inch color Full High Definition+ (2160 x 1080); LED backlight; 450 NITS; optically bonded to touch panel; Corning® Gorilla® Glass
Imager Window
Corning® Gorilla® Glass
Touch Panel
Multi-mode capacitive touch with bare or light gloved fingertip input; water droplet rejection; fingerprint-resistant anti-smudge coating
Power
User removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 3800 mAh/14.63Wh; Extended Capacity: 5200 mAh/20.02Wh; Hot Swap battery mode (select SKUs only)
Expansion Slot
User accessible MicroSD card; supports up to 2 TB
SIM
One physical SIM and Dual eSIM
Network Connections
WLAN Wi-Fi 7, WPAN (Bluetooth 6.0), WWAN 5G
Notifications
Audible tone; multi-color LEDs; vibration
Keypad
On-screen keypad
Voice and Audio
Stereo speakers; two microphones; audio headset support via USB-C port or Bluetooth wireless headset; BLE Audio 5.3 compatible; VoNR; VoLTE; Cellular Circuit Switch voice; HD voice; VoIP including full band (FB), SWB Audio, and PTT support
Buttons
Programmable buttons: dual scan buttons, push-to-talk button, volume up/ down buttons
Interface Ports
USB Type C (USB 3.1); Back I/O (USB 2.0)
CPU
Qualcomm® Dragonwing™ Q-6690 processor; up to 2.0 GHz
Operating System
Android
Memory
6 GB LPDDR5 RAM/64 GB UFS 2.2 Flash 8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash
Operating Temp.
-4°F to +122°F (-20°C to +50°C)
Storage Temp.
-40°F to +158°F (-40°C to +70°C)
Humidity
5%-95% non-condensing
Sealing
IP68 and IP65 per IEC 60529 standard
Tumble Specification
750 1.6 ft. (0.5 m) tumbles 750 3.3 ft. (1.0 m) tumbles with rugged boot Angled Scanner: 500 1.6 ft. (0.5 m) tumbles 500 3.3 ft. (1.0 m) tumbles with rugged boot
Drop Specifications
Exceeds MIL-STD-810H: 5 ft. (1.53 m) to concrete at +14°F to +122°F (-10°C to +50°C) 6 ft. (1.83 m) to concrete @ room temperature With rugged boot: 6 ft. (1.83 m) to concrete at 14°F to +122°F (-10°C to +50°C) 7 ft. (2.13 m) to concrete @ room temperature Angled Scanner: 4 ft. (1.22 m) to concrete at +14°F to +122°F (-10°C to +50°C) With rugged boot: 5 ft. (1.53 m) to concrete at +14°F to +122°F (-10°C to +50°C
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge; ±8 kV indirect discharge
Scanning
AC670 Advanced Range Color 1D/2D Scan Engine; SR500 1D/2D Scan Engine; SR560 60° angled 1D/2D Scan Engine (available in APAC and LATAM); Camera-based scanning, leveraging Zebra’s advanced decoder library for accurate and efficient data capture— complimentary with the device
Rear Camera
16 MP auto-focus camera with user controllable LED flash
Front Camera
5 MP; fixed focus
Spec Sheet
Download
TC201 Quick Start Guide
Download
TC201 Product Reference Guide
Download
Accessory Guide
Download

Shop TC201 Models

TC201G-383P4BA11-NA

TC201 Mobile Computer, 5G, Wi-Fi 7, SR500 2D Scanner, 6" Display, 8GB RAM/128GB Storage, 16MP Rear Camera, 5MP Front Camera, 8-Pin Back I/O, Hot-Swappable Standard Battery, Secure Element

Connectivity:

5G + Wi-Fi 7

Memory:

8GB RAM/128GB

Pin:

8-Pin

Battery:

Hot-Swappable Standard Battery

Secure Element:

Secure Element

Scanner:

SR500 2D

$1570.49

TC2010-0S3P6BE00-NA

TC201 Mobile Computer, Wi-Fi 7, SR500 2D Scanner, 6" Display, 6GB RAM/64GB Storage, 16MP Rear Camera, 5MP Front Camera, Extended Battery

Pin:

2-Pin

Memory:

6GB RAM/64GB

Battery:

Extended Battery

Secure Element:

No

Scanner:

SR500 2D

Connectivity:

Wi-Fi 7

$1281.13

TC2010-083P4BA01-NA

TC201 Mobile Computer, Wi-Fi 7, SR500 2D Scanner, 6" Display, 8GB RAM/128GB Storage, 16MP Rear Camera, 5MP Front Camera, 8-Pin Back I/O, Standard Battery, Secure Element

Memory:

8GB RAM/128GB

Pin:

8-Pin

Secure Element:

Secure Element

Scanner:

SR500 2D

Battery:

Standard Battery

Connectivity:

Wi-Fi 7

$1422.97

TC201G-3S3S6BA00-NA

TC201 Mobile Computer, 5G, Wi-Fi 7, AC670 2D Scanner, 6" Display, 6GB RAM/64GB Storage, 16MP Rear Camera, 5MP Front Camera, 2-Pin Back I/O, Standard Battery

Pin:

2-Pin

Connectivity:

5G + Wi-Fi 7

Memory:

6GB RAM/64GB

Scanner:

AC670 2D

Secure Element:

No

Battery:

Standard Battery

$1559.15

TC201G-3S3P6BE00-NA

TC201 Mobile Computer, 5G, Wi-Fi 7, SR500 2D Scanner, 6" Display, 6GB RAM/64GB Storage, 16MP Rear Camera, 5MP Front Camera, 2-Pin Back I/O, Extended Battery

Pin:

2-Pin

Connectivity:

5G + Wi-Fi 7

Memory:

6GB RAM/64GB

Battery:

Extended Battery

Secure Element:

No

Scanner:

SR500 2D

$1371.92

TC201G-383P4BA01-NA

TC201 Mobile Computer, 5G, Wi-Fi 7, SR500 2D Scanner, 6" Display, 8GB RAM/128GB Storage, 16MP Rear Camera, 5MP Front Camera, 8-Pin Back I/O, Standard Battery, Secure Element

Connectivity:

5G + Wi-Fi 7

Memory:

8GB RAM/128GB

Pin:

8-Pin

Secure Element:

Secure Element

Scanner:

SR500 2D

Battery:

Standard Battery

$1513.76

TC2010-0S3P6BA00-NA

TC201 Mobile Computer, Wi-Fi 7, SR500 2D Scanner, 6" Display, 6GB RAM/64GB Storage, 16MP Rear Camera, 5MP Front Camera, Standard Battery

Pin:

2-Pin

Memory:

6GB RAM/64GB

Secure Element:

No

Scanner:

SR500 2D

Battery:

Standard Battery

Connectivity:

Wi-Fi 7

$1241.41

TC2010-0S3S6BA00-NA

TC201 Mobile Computer, Wi-Fi 7, AC670 2D Scanner, 6" Display, 6GB RAM/64GB Storage, 16MP Rear Camera, 5MP Front Camera, Standard Battery

Pin:

2-Pin

Memory:

6GB RAM/64GB

Scanner:

AC670 2D

Secure Element:

No

Battery:

Standard Battery

Connectivity:

Wi-Fi 7

$1468.37

TC201G-3S3P6BA00-NA

Zebra TC201 Mobile Computer, 5G, Wi-Fi 7, SR500 2D Scanner, 6" Display, 6GB RAM/64GB Storage, 16MP Rear Camera, 5MP Front Camera, Standard Battery

Pin:

2-Pin

Connectivity:

5G + Wi-Fi 7

Memory:

6GB RAM/64GB

Secure Element:

No

Scanner:

SR500 2D

Battery:

Standard Battery

$1332.20

TC2010-083P4BA11-NA

TC201 Mobile Computer, Wi-Fi 7, SR500 2D Scanner, 6" Display, 8GB RAM/128GB Storage, 16MP Rear Camera, 5MP Front Camera, 8-Pin Back I/O, Hot-Swappable Standard Battery, Secure Element

Memory:

8GB RAM/128GB

Pin:

8-Pin

Battery:

Hot-Swappable Standard Battery

Secure Element:

Secure Element

Scanner:

SR500 2D

Connectivity:

Wi-Fi 7

$1479.72

Shop TC201 Accessories

CBL-EC5X-USBC3A-01

USB-C To USB-C Communications And Charging Cable, 1.2m Long; Supports 3.0 Superspeed And Fast Charge

$21.00

PWR-WUA5V45W1US

USB Type C Power Supply Adaptor With US Plug. Used With USB-C Cable (CBL-EC5X-USBC3A-01) To Charge Device. USB PD 3.1 Power Supply With An Input Of 100-240VAC And A Self-Adjusting Output Ranging From 5V/3A To 20V/2.25A.

$43.89

SG-TC2L-HSTRP1-01

TC22/TC27 Handstrap

$45.25

TRG-TC2L-SNP1-01

TC22/TC27 Trigger Handle, supports device with either basic or extended battery (requires Protective Boot, sold separately)

$335.37

SG-TC2L-ARMNT-01

TC22/TC27 Rotatable Arm Mount with velcro straps, supports device with either basic or extended battery (works without the boot)

$172.81

PWR-BGA12V50W0WW

Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.

$82.33

CBL-DC-388A2-01

DC Line Cord for running the ET4X Point of Sale Stand from a Single Level VI Power Supply PWR-BGA12V50W0WW

$19.41

23844-00-00R

7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW

$17.94

SG-TCVT-BOOT-01

TC201 Rugged Boot

$46.00

SG-TCVT-SCRNPT-01

TC201 Screen Protector

$20.00

CRD-TC2L-1SNWS-01

TC22/TC27/TC201 Connect Cradle, Supports External Monitor and Peripherals (HDMI, Ethernet, 3.5 mm and 4x USB-A)

$782.61
