Name: APG Stratis
Brand: APG
Price: 198.95 USD
Availability: InStock

Stratis Integration System Brochure (Rev H)

till

Stratis



Organized cash handling for a tablet-based checkout


The APG Stratis combines a removable cash till with concealed cable routing for a tidy tablet POS station. Its flat top accepts the optional magnetic Stratis tablet stand, while dual media slots let you store checks and large bills without opening the drawer.
Drawer-only models use a MultiPRO 320 printer-driven connection. Match the separately ordered cable to your receipt printer; the USB power port beneath the cover is for charging, not a USB cash-drawer interface.







Key Specifications

Product / application: Cash drawer for tablet POS checkout stations
Till capacity: Removable US 5 bill / 5 coin till
Media storage: Two front media slots
Interface / power: MultiPRO 320; 24V solenoid; matching printer cable sold separately
Durability: Tested to more than 1 million cycles
Security: Four-function lock
Mounting / tablet support: Countertop drawer; magnetic tablet stand sold separately unless specified in a kit
Dimensions (W &times; D &times; H): 16.2 &times; 17.25 &times; 5.25 in. with feet
Warranty: 3 years



In the Box

APG Stratis cash drawer in the selected finish

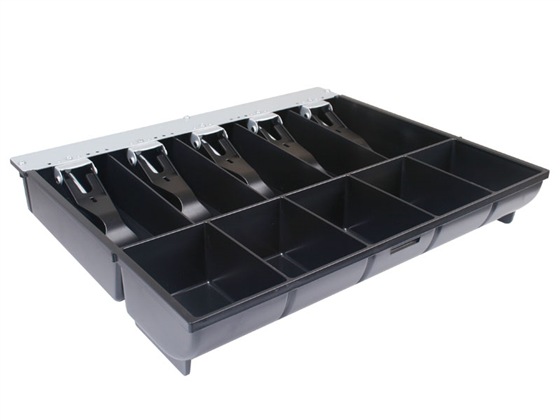

Removable 5 bill / 5 coin till

Drawer-only models do not include the printer cable or tablet stand. Complete-kit listings specify their included cable and stand. Tablet and other POS equipment are sold separately.

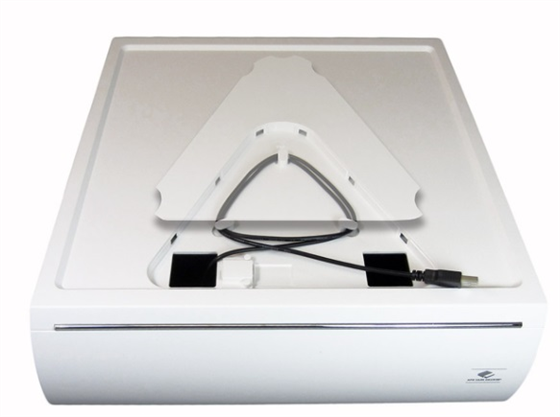

Concealed cable routing
Two concealed routing paths and an under-cover USB power port help organize the cables serving your checkout equipment.


Optional rotating tablet stand
The separate Stratis stand attaches magnetically and rotates between cashier and customer. Its quick-release clamp accepts tablets measuring 6.625&ndash;8.5 inches across the clamped dimension.




<p><a href="https://www.youtube.com/watch?v=WbKEvaqsz8E">APG Stratis Cash Drawer for Tablets Video</a></p>

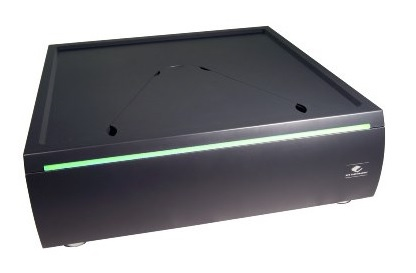

<p>Hi, this is April at POSGuys.com. Today we’re showing you a new product. It is the APG Stratis Cash Drawer System. It’s designed for tablet point of sale systems. It has all the same standard features that you would see on other APG Vasario drawers. We have a standard five-bill till that is removable, two media slots, and a three position key lock. Some unique features for this drawer are the customer facing side includes a chrome strip, and if you want to go for a fancier version, you can get the LED lighted strip.</p> <p>Another feature is an undercover cable management system, so it has a USB port right here along with larger holes here to run larger cables through. And this is plastic, so if you need to run a very large capable through it, you can drill through it, if you wish. It keeps them all nice and tidy, so you have a nice clean looking cash register. An additional accessory for this cash register is its magnetic stand, so you can position it anywhere you’d like on top of the cash drawer. It also has a smooth gliding system so you can see and then you can turn it to your customer facing side. That glide allows you to have everything plugged in without your cable getting twisted up as you’re sliding it to the customer side. It also can be positioned in this view.</p> <p>Another unique feature on this stand is its quick release, so you can change out your tablet whenever you need to. Right now we have an iPad in there. You can also fit a 10-inch Windows tablet in here. It is designed to hold tablets between 6.6 inches and 8.5 inches in height, so make sure that you check your measurements on your tablet. Here’s a nice final setup. You have everything you need here to run a transaction with your card reader, your scanner, and your thermal receipt printer. It comes in a 16 x 18 inch size. At this point in time there’s just one size and it does come in two colors; black or white. You can get it with a chrome strip or the LED lighted strip, if you choose. For more information or to purchase the Stratis, please visit us at POSGuys.com.</p>
