Zebra SP72
The industry’s fastest and most intuitive single-plane scanner—available in horizontal and vertical models

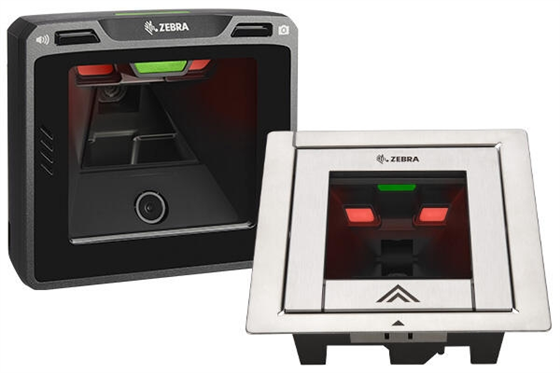

The Zebra SP72 Series brings high-performance single-plane scanning to grocery, supermarket, convenience, pharmacy, and specialty retail. Available as the on-counter SP72-V or zero-footprint in-counter SP72-H, it combines compact installation with the speed and intuitive operation retailers expect from a multi-plane scanner.
A 2.3 megapixel imager and Zebra PRZM Intelligent Imaging capture 1D, 2D, Digimarc, paper, and mobile barcodes, including damaged, crinkled, and faded symbols. SP7201 configurations provide core high-performance scanning, while premium SP7208 configurations add selected integration and loss-prevention capabilities.
Zebra demonstrates SP72 vertical and horizontal checkout scanning, self-checkout integration, and configuration-specific loss-prevention capabilities.
Key Specifications
- Scanner configuration: Fixed single-plane presentation scanner; SP72-V vertical on-counter and SP72-H horizontal in-counter
- Barcode capability: 1D and 2D barcodes, including QR, PDF417 and Digimarc
- Reading range: 13 mil UPC from contact to 8.6 in. (21.8 cm) on SP72-V and 7.2 in. (18.2 cm) on SP72-H
- Interfaces / connectivity: USB, RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485; auxiliary ports vary by configuration
- Durability: Fixed-use design; drop/tumble rating not published
- Environmental sealing: IP52
- Dimensions and weight: SP72-V: 5.4 x 6.0 x 3.3 in., 20.3 oz.; SP72-H: 6.0 x 6.0 x 3.4 in., 29.4-30.4 oz. depending on glass
- Warranty: 3 years
- Imaging performance: 2.3 megapixels (1920 x 1200); up to 120 in. (305 cm) per second
- Specialized configurations: Checkpoint and Sensormatic EAS compatibility; optional color camera on SP72-V
In the Box
- Selected SP72 scanner configuration (SP7201 or SP7208)
- SP72 Quick Reference Guide (p/n MN-004637-xx)
Configuration note: Checkpoint EAS configurations include the CBL-CE0072 EAS cable. Host interface cables, mounting hardware and other applicable accessories are sold separately unless the selected option explicitly states they are included. SP7208 requires an external 12V power supply only when an auxiliary scanner or color camera is used.
Faster, More Intuitive Checkout
Performance Proven at the Checkout
In Zebra’s controlled ergonomics study, the SP72-V scanned items up to 40% faster than competitive single-plane scanners. Its scan area was up to 44% larger, helping cashiers and shoppers find the read zone quickly, while a multi-color aiming and decode system made scanning up to twice as intuitive in tested self-checkout tasks.
Capture More Than Barcodes

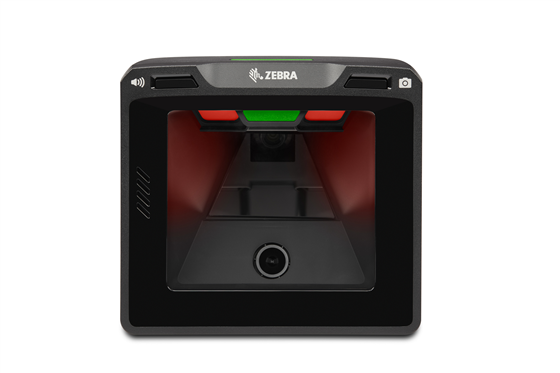

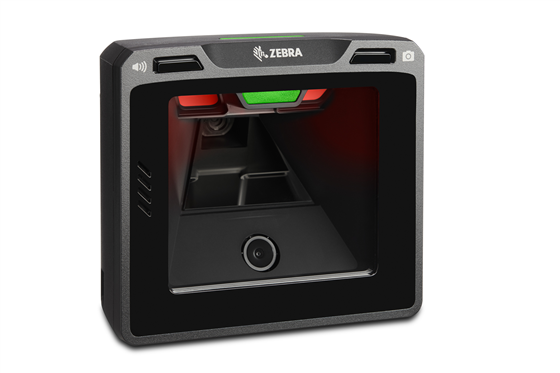

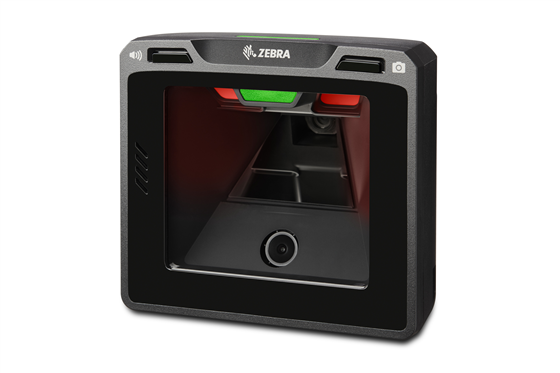

The 2.3 MP imager reads 1D, 2D, Digimarc and mobile barcodes, including GS1 Digital Link. An optional color camera supports Zebra Aurora Focus vision applications for loss prevention, product recognition and event capture without adding a separate camera.
Versatility With a Lower Cost of Ownership
Build the Right Checkout

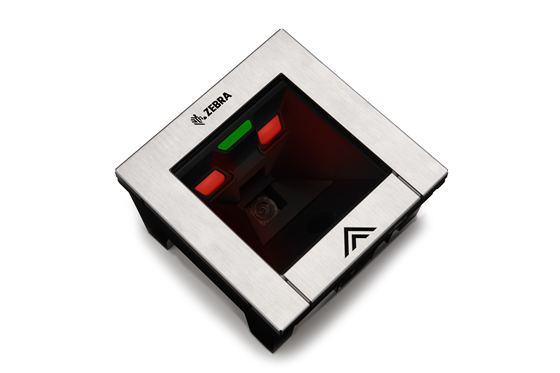

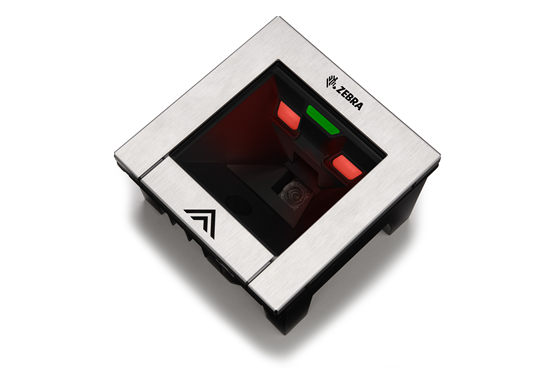

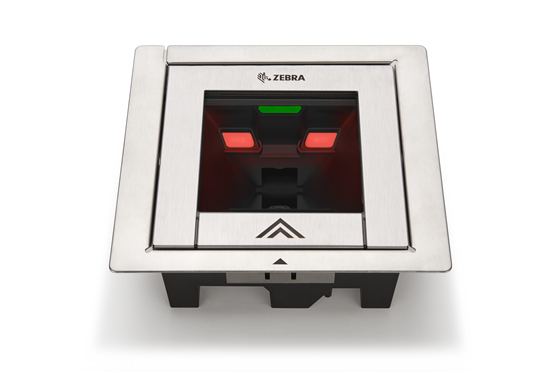

Choose the on-counter SP72-V or zero-footprint in-counter SP72-H. Both support host interfaces and optional Checkpoint or Sensormatic EAS; SP72-H can add an auxiliary handheld scanner, while upward-facing good-decode LEDs can coordinate with video-based loss-prevention systems.
Designed for Everyday Use
Eye-friendly intelligent illumination activates when an item enters the scan zone. Custom tones, selectable label identifiers and multiple decode indicators make feedback clear in staffed and self-checkout environments. IP52 sealing, sapphire or DLC scan-window choices, a 32–122°F operating range and field-replaceable cable access help protect uptime.
Deploy and Manage With Zebra DNA
123Scan supports configuration and staged deployment. Scanner Management Solution enables remote management, IoT Connector exposes decode and health data, and Zebra DNA tools help configure, secure, manage and optimize the scanner fleet.
Markets and Applications
The SP72 is intended for staffed POS and self-checkout lanes in grocery, supermarkets and hypermarkets, pharmacies, convenience stores, and specialty retail. It handles paper and mobile barcodes, while EAS and vision-based loss prevention remain optional capabilities that require the appropriate configuration and surrounding solution.
Shop SP72 Models
SP7201-SV00004ZCWW
SP72 Single Plane Presentation Scanner, Vertical, USB Only, No AUX Port, Standard Range, Midnight Black, Checkpoint EAS (EAS CBL-CE0072 cable included, Power Supply Not Required).
Checkpoint EAS:
Included
Color:
Midnight Black
Glass:
Not Applicable
Driver's License Parsing:
Not Included
Interface:
USB Only
Horizontal or Vertical:
Vertical
SP7201-DV00004ZCNA
SP72 Single Plane Presentation Scanner, Vertical, USB Only, No AUX Port, DL Parsing, Midnight Black, Checkpoint EAS (EAS CBL-CE0072 cable included, No Power Supply Needed).
Checkpoint EAS:
Included
Driver's License Parsing:
Included
Color:
Midnight Black
Glass:
Not Applicable
Interface:
USB Only
Horizontal or Vertical:
Vertical
SP7208-SV00004ZCWW
SP72 Single Plane Presentation Scanner, Vertical, Multi-Interface, AUX Port, Standard Range, Midnight Black, Checkpoint EAS (EAS CBL-CE0072 cable included, PWR-BGA12V50W0WW Power Supply Required Only with an AUX Scanner)
Checkpoint EAS:
Included
Color:
Midnight Black
Interface:
Multi-Interface
Glass:
Not Applicable
Driver's License Parsing:
Not Included
Horizontal or Vertical:
Vertical
SP7208-DV00004ZCNA
SP72 Single Plane Presentation Scanner, Vertical, Multi-Interface, AUX Port, DL Parsing, Midnight Black, Checkpoint EAS (EAS CBL-CE0072 cable included, PWR-BGA12V50W0WW Power Supply Required Only with an AUX Scanner).
Driver's License Parsing:
Included
Checkpoint EAS:
Included
Color:
Midnight Black
Interface:
Multi-Interface
Glass:
Not Applicable
Horizontal or Vertical:
Vertical
SP7201-SH00004SCWW
SP72 Single Plane Presentation Scanner, Horizontal, USB Only, No AUX Port, Standard Range, Midnight Black, Sapphire Glass Checkpoint EAS (EAS CBL-CE0072 cable included, No Power Supply Needed).
Horizontal or Vertical:
Horizontal
Checkpoint EAS:
Included
Color:
Midnight Black
Driver's License Parsing:
Not Included
Glass:
Sapphire
Extra:
Sapphire Glass
Interface:
USB Only
SP7208-SH00004SCWW
SP72 Single Plane Presentation Scanner, Horizontal, Multi-Interface, AUX Port, Standard Range, Midnight Black, Sapphire Glass, Checkpoint EAS (EAS CBL-CE0072 cable included, PWR-BGA12V50W0WW Power Supply Required Only with an AUX Scanner).
Horizontal or Vertical:
Horizontal
Checkpoint EAS:
Included
Color:
Midnight Black
Interface:
Multi-Interface
Driver's License Parsing:
Not Included
Glass:
Sapphire
Extra:
Sapphire Glass
SP7208-DH00004SCNA
SP72 Single Plane Presentation Scanner, Horizontal, Multi-Interface, AUX Port, DL Parsing, Midnight Black, Sapphire Glass, Checkpoint EAS (CBL-CE0072 cable included, PWR-BGA12V50W0WW Power Supply Required Only with an AUX Scanner).
Horizontal or Vertical:
Horizontal
Driver's License Parsing:
Included
Checkpoint EAS:
Included
Color:
Midnight Black
Interface:
Multi-Interface
Glass:
Sapphire
Extra:
Sapphire Glass
SP7208-SH00004DCWW
SP72 Single Plane Presentation Scanner, Horizontal, Multi-Interface, AUX Port, Standard Range, Midnight Black, Diamond-like Glass, Checkpoint EAS (EAS CBL-CE0072 cable included, PWR-BGA12V50W0WW Power Supply Required Only with an AUX Scanner).
Glass:
Diamond-Like
Extra:
Diamond-Like Glass
Horizontal or Vertical:
Horizontal
Checkpoint EAS:
Included
Color:
Midnight Black
Interface:
Multi-Interface
Driver's License Parsing:
Not Included
SP7201-SV00004ZZWW
SP72 Single Plane Presentation Scanner, Vertical, USB Only, No AUX Port, Standard Range, Midnight Black (No Power Supply Needed, Order Interface Cables Separately).
Color:
Midnight Black
Glass:
Not Applicable
Checkpoint EAS:
Not Included
Driver's License Parsing:
Not Included
Interface:
USB Only
Horizontal or Vertical:
Vertical
SP7208-SV00004ZZWW
SP72 Single Plane Presentation Scanner, Vertical, Multi-Interface, AUX Port, Standard Range, Midnight Black (PWR-BGA12V50W0WW Power Supply Required Only with an AUX Scanner, Order Interface Cables Separately).
Color:
Midnight Black
Interface:
Multi-Interface
Glass:
Not Applicable
Checkpoint EAS:
Not Included
Driver's License Parsing:
Not Included
Horizontal or Vertical:
Vertical
Shop SP72 Accessories
CBL-DC-376A1-01
DC Line Cord to PWRBGA12V50W0WW (straight connector)
CBL-CE0072
Checkpoint EAS Cable for SP72, SM72
BRKT-TM0072-04
Table Mount for SP72-V, Midnight Black
BRKT-BM0072-00
Bucket Mount for SP72-H
MISC-SG0072
Sapphire Glass Platter for SP72-H
MISC-DG0072
Diamond-like Glass Platter for SP72-H
CBA-U21-S07ZBR
Shielded USB: Series A Connector, 7Ft. (2.1M), Straight, BC1.2
CBA-U23-S07ZBR
Cable - Shielded USB: Power Plus Connector, 7ft. (2m), Straight, 12V
CBA-R01-S07PBR
Cable - RS-232, DB9 female, 7 ft. (2 m), straight; requires external 5V power supply
CBA-R37-C09ZBR
CABLE - RS232: DB9F, 9FT (2.8M)CL, PWR PIN9, W/ TTL CURRENT LIMIT PROTECTION
PWR-WUA5V4W0US-1
5v Power Supply Wall Adapter, w/Captive DC cable and US Adapter Clip (For Serial Units Only)
Z1AE-SP7208-3C00
3-Year Comprehensive Coverage for Zebra SP72. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.
23844-00-00R
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
PWR-BGA12V50W0WW
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
