Star Micronics SP700

Name: Star Micronics SP700
Brand: Star Micronics
Price: 261.16 USD
Availability: InStock

Images may not reflect the actual product

High-speed, two-color impact printing for demanding restaurant kitchens.

The Star Micronics SP700 is a compact impact receipt printer built for kitchen orders, tickets, and other environments where heat, humidity, and grease make thermal printing less suitable. Its clamshell design supports fast drop-in paper loading, while an internal power supply helps keep the counter tidy.

Choose tear-bar or autocutter models with serial, parallel, USB, or Ethernet connectivity. User-swappable interface boards make the printer easier to adapt as the POS system changes.

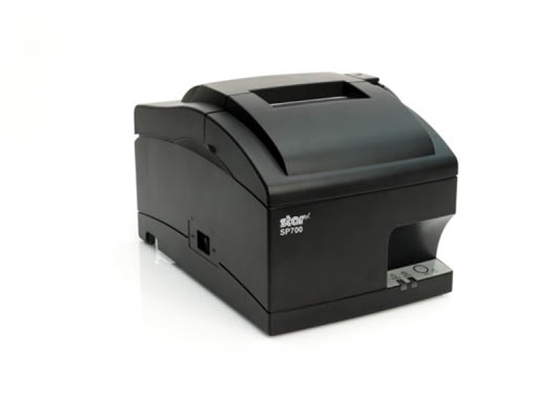

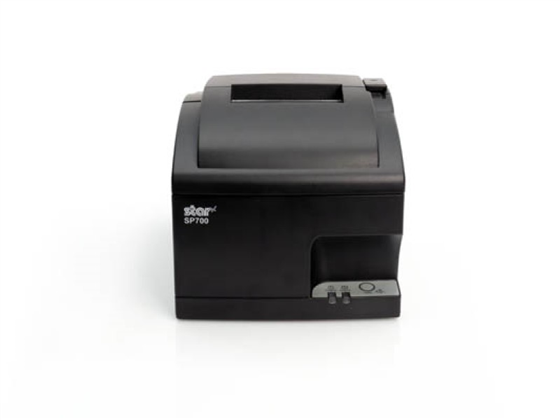

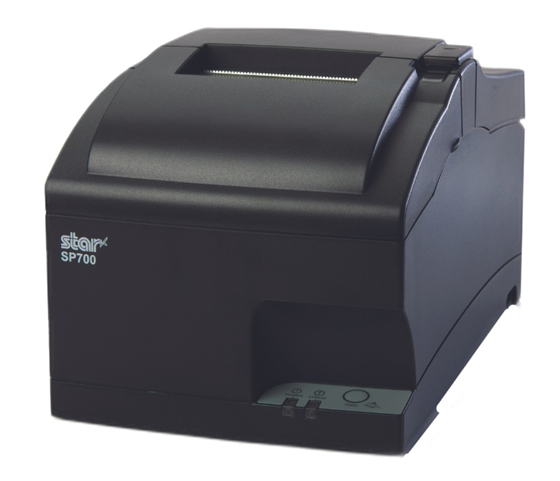

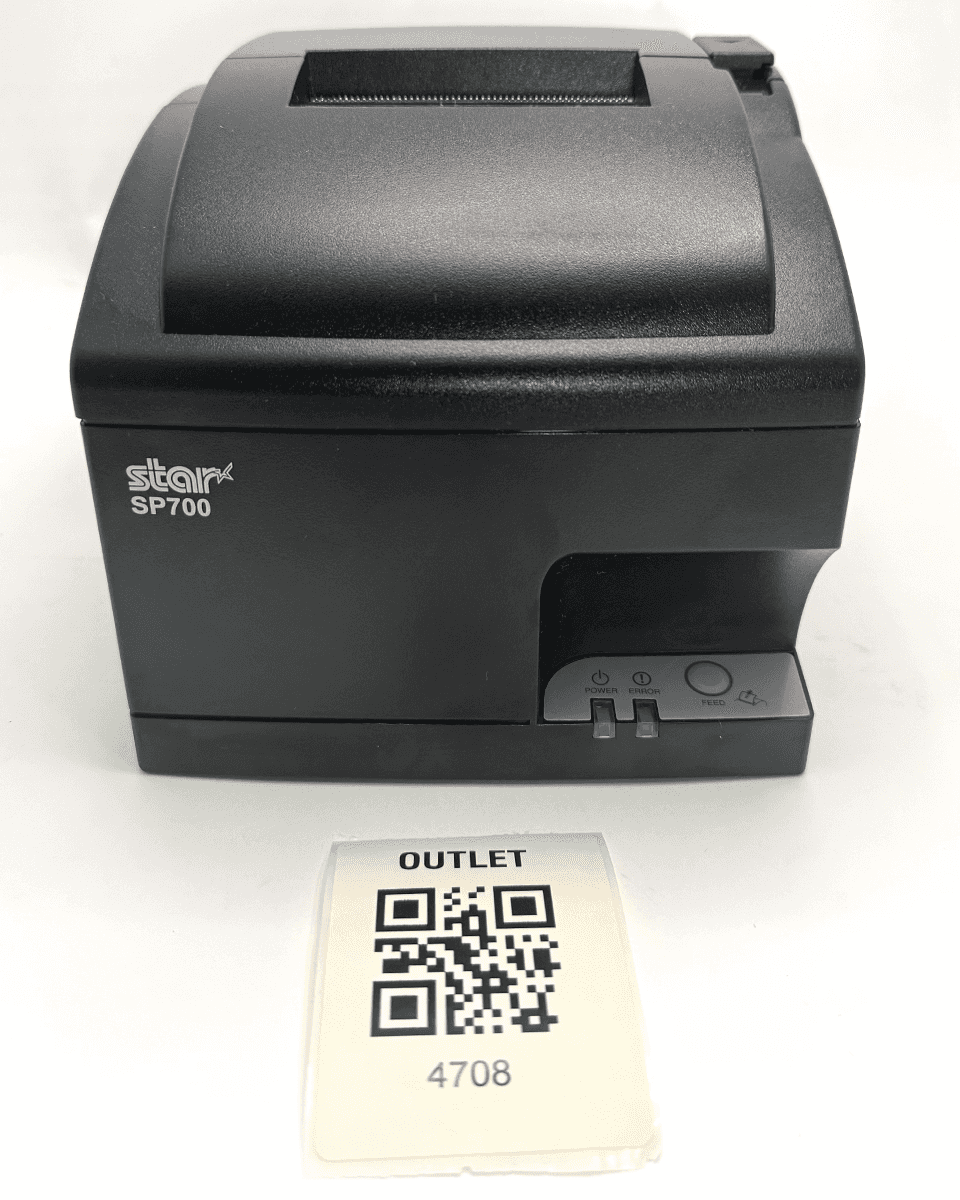

Star Micronics SP700 impact receipt printer

Key Specifications

Print Method: Serial impact dot matrix
Print Speed: Up to 13 six-inch receipts per minute; 4.7 lines per second
Paper Widths: 76 mm standard; 69.5 mm or 58 mm with paper guide
Print Mechanism: 9-pin serial impact dot matrix
Interfaces / Connectivity: Option-dependent serial, parallel, USB, Ethernet (LAN), Apple MFi Bluetooth, WebPRNT/CloudPRNT, and WLAN
Cutter and Reliability: SP712 tear bar; SP742 partial-cut guillotine; 22 million-line MCBF; 150 million-character head life; 1 million cutter cuts
Platform Support: Windows, macOS, Linux, iOS, and Android support varies by interface, driver, and SDK
Dimensions and Weight: 160 x 152 x 245 mm non-rewinder; 164 x 152 x 245 mm rewinder; 2.96 to 3.65 kg by configuration
Warranty: 2-year full manufacturer warranty

In the Box

Star Micronics SP700 printer
Embedded power supply
Power cord
Paper guide
Power-switch cover
Setup guide
Configuration Utility and Value Add Utility

Only part 39336570 (SP742ME GRY LC6 US) is specified by Star to include a 6 m LAN cable; other interface cables are not stated as standard box contents.

Built for Kitchen Service

Fast, legible order output

Two-color printing can emphasize modifiers and priority items, and the mechanism supports one original plus up to two copies for multi-station workflows.

Flexible Installation

Configure it for the station

Use the printer horizontally or vertically with the supported stand, add the ticket alarm for audible order notification, or swap an interface board without replacing the printer.

Star Micronics Media

Use Impact-Printer Ribbons

The SP700 requires an impact ribbon: choose RC700B black, RC700BR black/red, or RC700D indelible black. Thermal paper and thermal-printer supplies are not compatible substitutes.

Need help matching the right ribbon? Call our POS specialists at 800-903-6571.

Shop Compatible Star SP700 Ribbons →

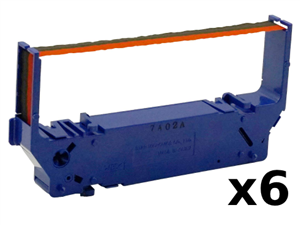

Compatible Star SP700 impact printer ribbon

Dimensions

Non-rewinder: 160 W x 152 H x 245 D mm; rewinder: 164 W x 152 H x 245 D mm

Weight

Tear bar: 2.96 kg; autocutter: 3.18 kg; tear bar with rewinder: 3.43 kg; autocutter with rewinder: 3.65 kg

Case Color

Putty or gray; current U.S. configurations are gray

Interfaces / Connectivity

Option-dependent serial, parallel, USB, Ethernet (LAN), Apple MFi Bluetooth, WebPRNT/CloudPRNT, and WLAN; user-swappable interface boards on supported models

Print Method

Serial impact dot matrix

Print Speed

Up to 13 six-inch receipts per minute; 4.7 lines per second

Emulation and Peripheral Drive

Star Mode; ESC/POS on supported configurations; two 24 V peripheral-drive circuits

Drivers / Platforms

Windows, macOS, Linux, iOS, and Android support varies by interface, driver, and SDK; OPOS, JavaPOS, CUPS, and digitally signed (WHQL) Windows drivers are available where applicable

Character Sets / Code Pages

95 alphanumeric characters; 32 international character sets; 40 code pages

Characters per Inch and Line Spacing

16.9 or 14.1 characters per inch; 1/6-inch standard line spacing; 42 or 35 columns at 76 mm

Font Matrix and Character Size

5 x 9 and 7 x 9 dots; character sizes 1.2 W x 2.42 H mm and 1.5 W x 2.42 H mm

Operating Conditions

0°C to 50°C; 0–90% RH, non-condensing

Reliability

22 million-line MCBF; 150 million-character print-head life; 1 million autocutter cuts

Ribbon Specifications

RC700B black: 3 million characters; RC700BR black/red: 1.5 million black / 0.75 million red characters; RC700D indelible black for laundry applications

Cutter

SP742 guillotine partial cut; SP712 tear bar

Mounting and Installation

Horizontal or vertical use; Star lists wall-mount and vertical-stand options

Paper Handling

Drop-in loading; 76 mm standard, 69.5 mm or 58 mm with guide; 85 mm maximum roll diameter; 63, 57, or 45 mm print widths

Paper Thickness and Copies

One-ply: 0.065–0.085 mm; two-ply: original + 1, 0.05–0.08 mm per piece, total under 0.14 mm; three-ply: original + 2, 0.05–0.08 mm per piece, total under 0.20 mm

Two-Color Printing

Yes; red/black printing requires Star RC700BR ribbon (30980721)

Sensors

Paper-out standard; paper-low optional; cover-open sensor included

Model Types

SP712 tear bar and SP742 autocutter models; configurations with or without rewinder

Memory

16 Mbit flash program ROM; 256 KB NV bit-image memory

Configuration and Setup Utilities

Star Configuration Utility, Value Add Utility, Ethernet Setup Utility, Printer Memory Setup Utility, and virtual serial port utility for supported interfaces

In The Box

Printer, embedded power supply, power cord, paper guide, power-switch cover, setup guide, Configuration Utility, and Value Add Utility. Part 39336570 also includes a 6 m LAN cable.

Power Requirements and Consumption

Internal power supply; power cable included; approximately 36 W during ASCII printing and 10 W in standby, excluding peripheral-drive load

Journal and Label Support

Journal capability requires a rewinder model; label support is not applicable

Storage Conditions

-20°C to 70°C; 5–95% RH

Safety Standards

UL, C-UL, TÜV, CB, FCC Class A, VCCI Class A, EN55022, and CE

Warranty

Two-year full manufacturer warranty

Compatible Options

Kitchen buzzer, vertical stand, near-end paper sensor, swappable interfaces, and eligible Star warranty programs; Star also lists the WB-S700 wall mount, but the exact part is distributor-EOL

SP700

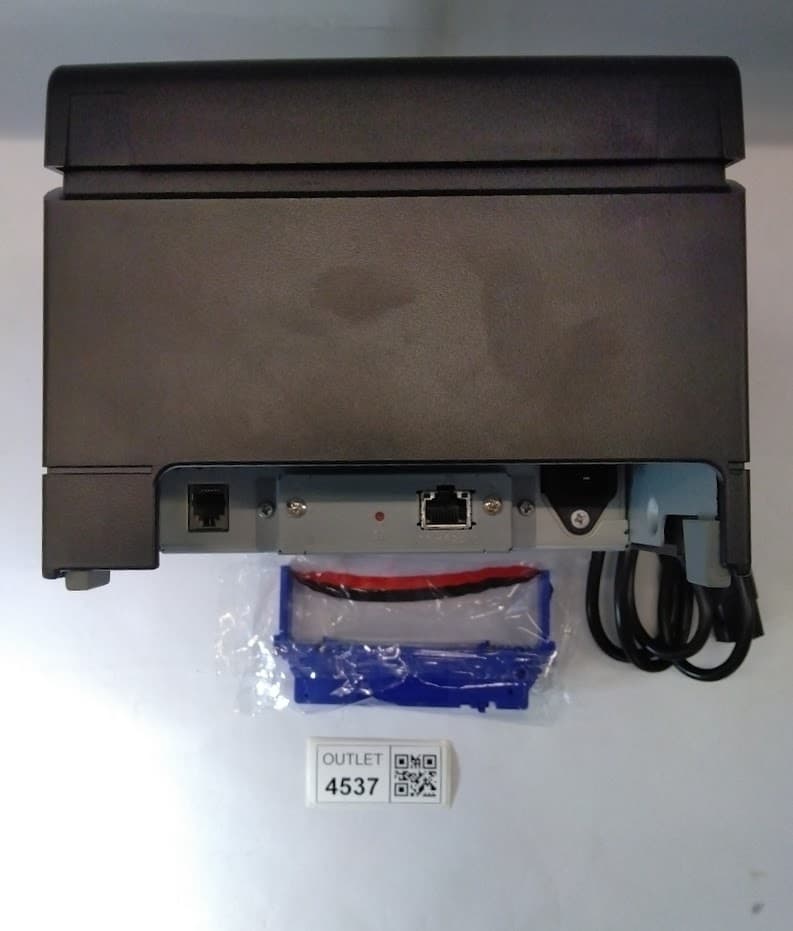

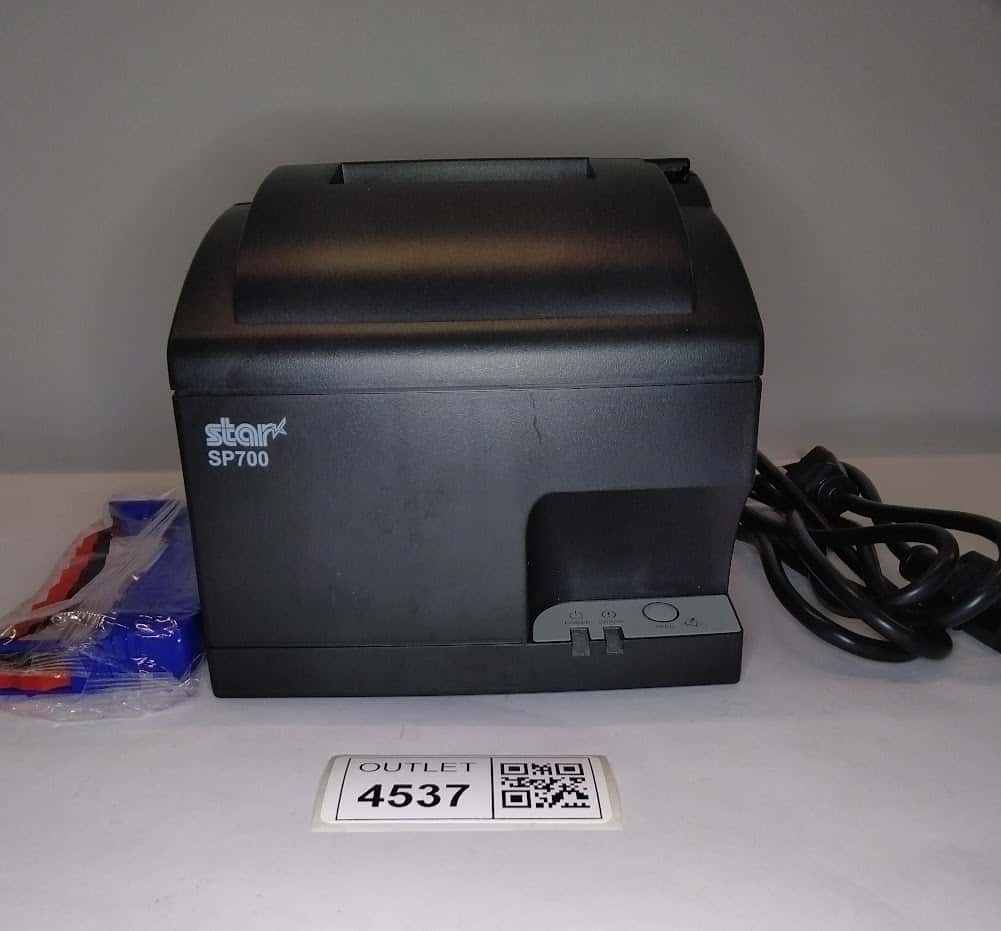

39336532 SP742ME GRY US, Cutter, Ethernet (LAN), Gray, Power Supply CID:4537

Item Number: 39336532

1 Like New Available

CID: 4537

$300.00

SP700

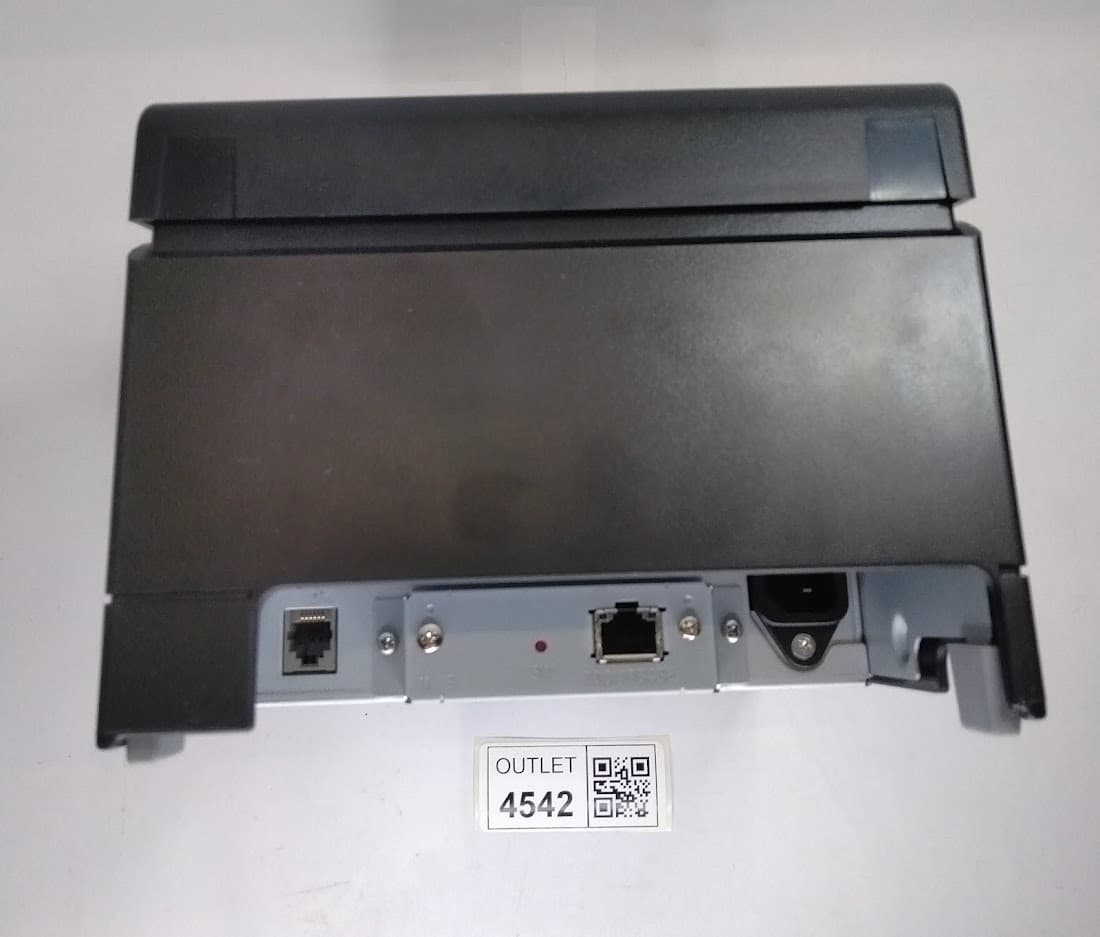

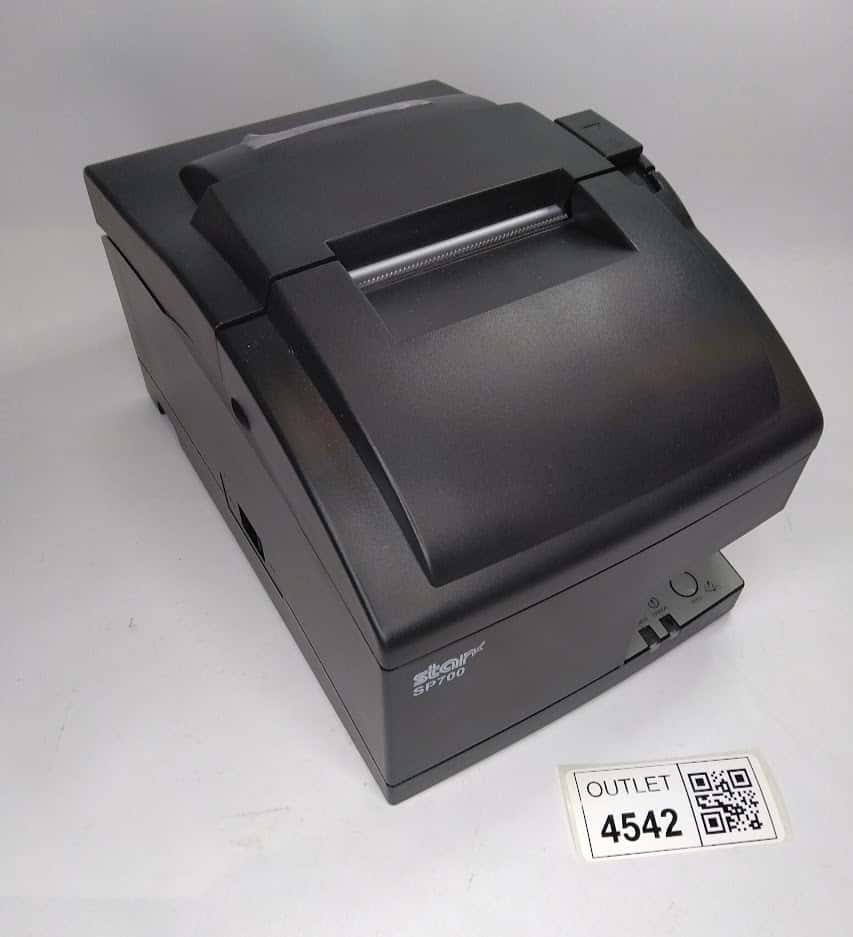

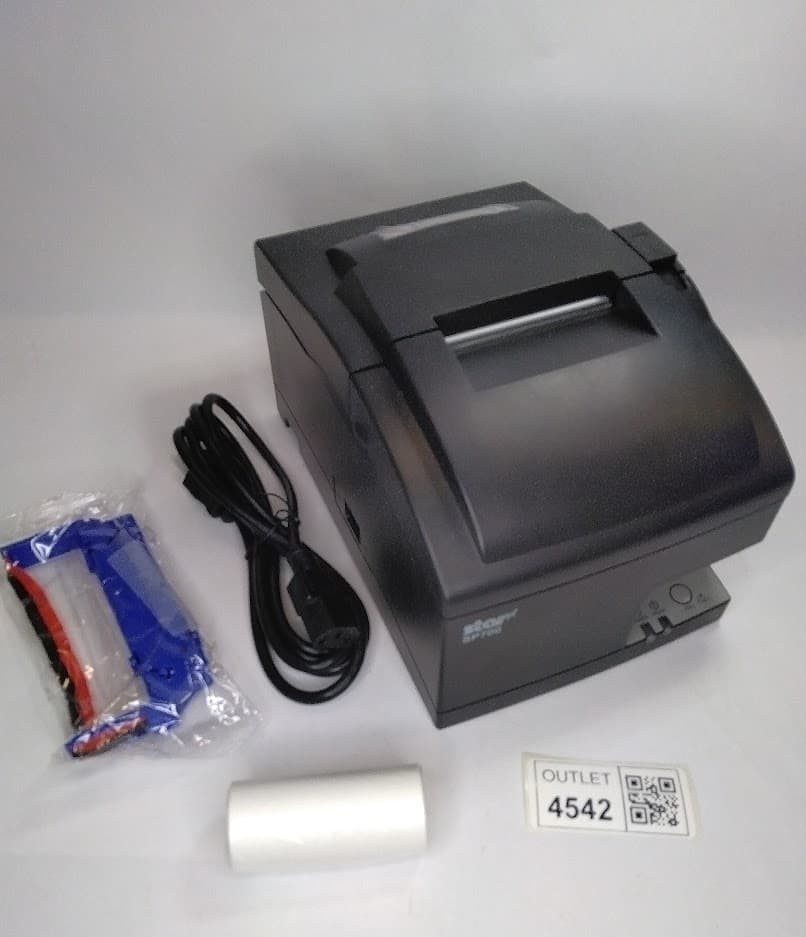

39336532 SP742ME GRY US, Cutter, Ethernet (LAN), Gray, Power Supply CID:4542

Item Number: 39336532

1 Open Box Available

CID: 4542

$330.00

SP700

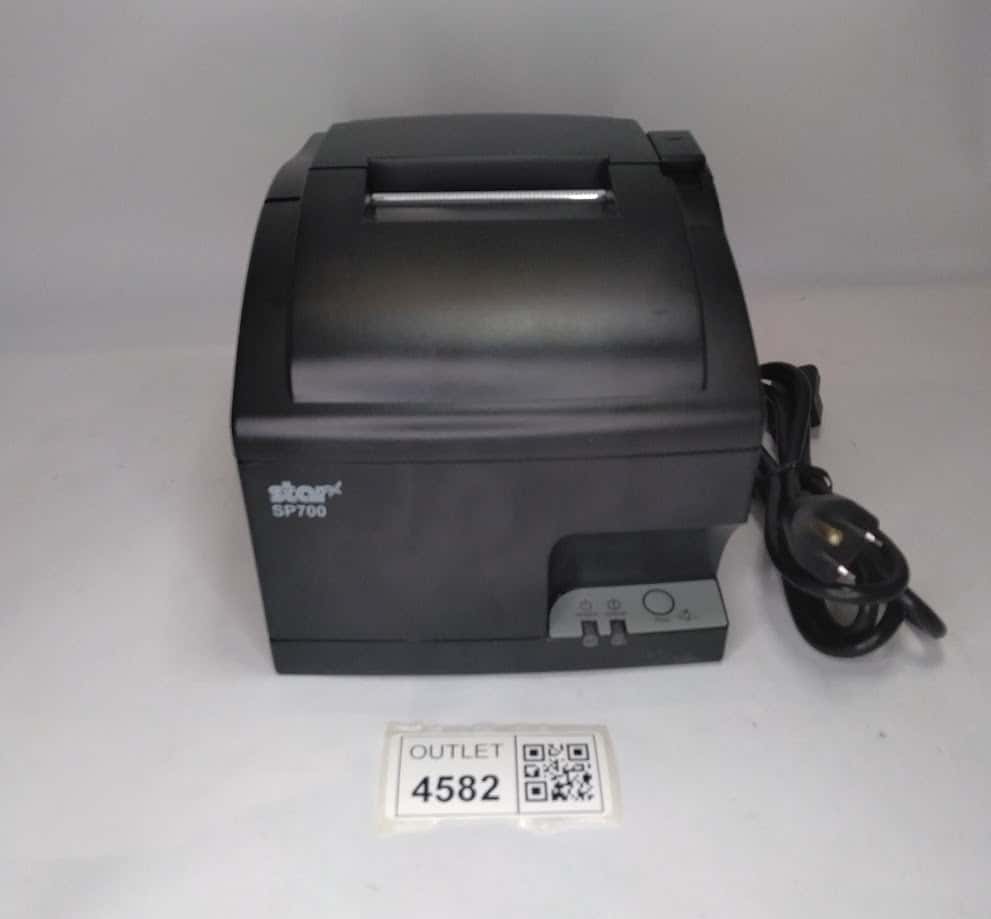

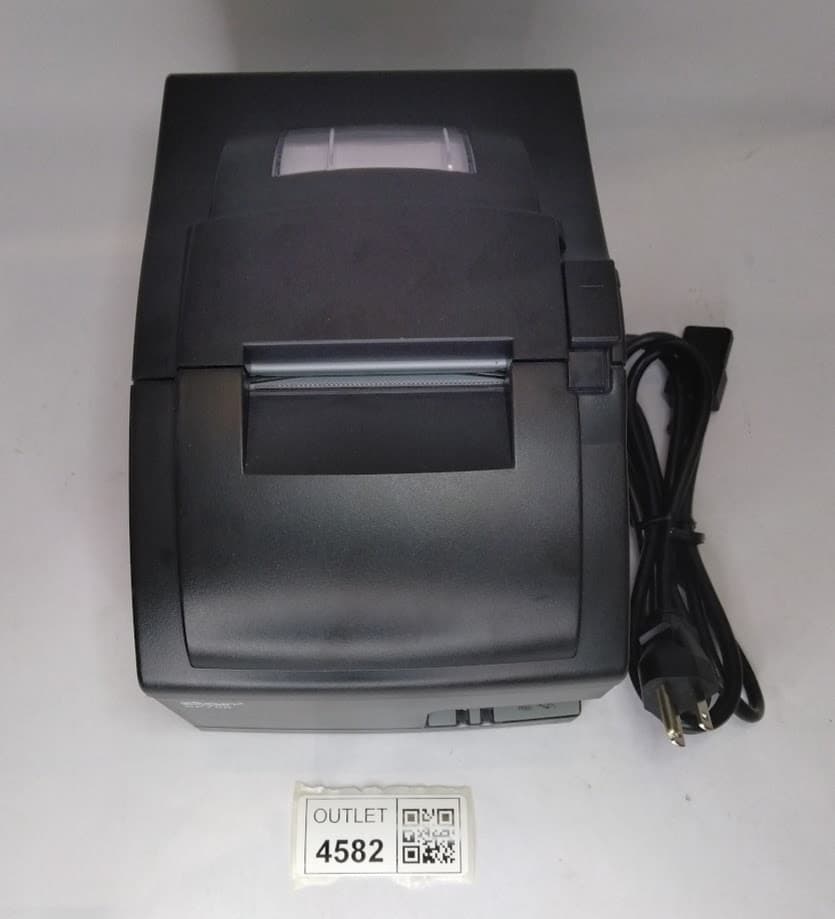

39336532 SP742ME GRY US, Cutter, Ethernet (LAN), Gray, Power Supply - Replaces 37999320 CID:4582

Item Number: 39336532

1 Open Box Available

CID: 4582

$300.00
