Honeywell Solaris XP 7990g
Fast, high-throughput 1D and 2D scanning for busy checkout lanes
The Honeywell Solaris XP 7990g is a corded vertical slot scanner built for convenience, drug, specialty, liquor and grocery checkout. Honeywell XP imaging delivers a wide field of view and strong motion tolerance for damaged labels, printed codes and mobile barcodes.
Its compact housing fits enclosures used by earlier Solaris models, while auxiliary-scanner and EAS connections support established high-volume retail workflows.

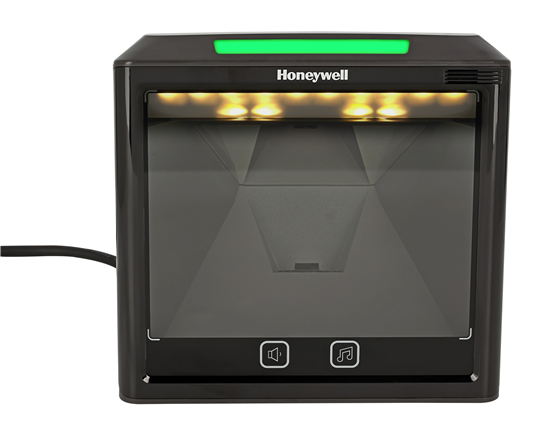

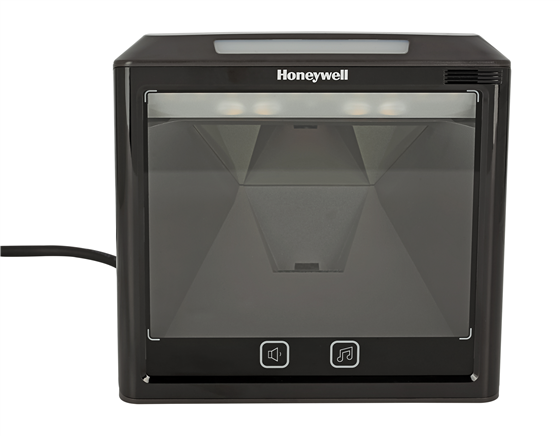

Solaris XP 7990g vertical slot scanner for high-volume checkout.
Key Specifications
- Scanner configuration: corded fixed vertical-slot 1D/2D area imager
- Barcode capability: 1D, PDF, 2D, postal and OCR symbologies
- Reading range: standard-range engine; official 0–1 m class, barcode dependent
- Interfaces / connectivity: USB, RS-232, RS-485 or keyboard wedge, depending on configuration
- Durability: fixed-use checkout design; drop/tumble rating not published
- Environmental sealing: IP53
- Dimensions and weight: 148 × 152 × 85 mm; 527 g
- Warranty: 3-year Honeywell factory warranty
- Image sensor: 1,280 × 960 pixels
In the Box

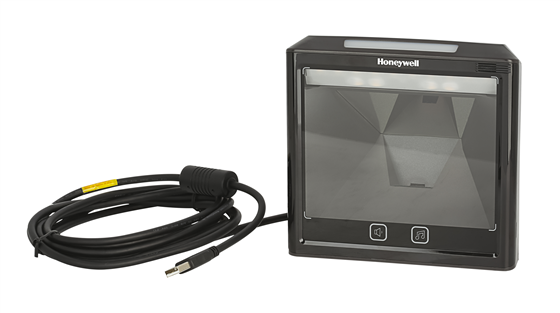

- 7990G-2USBX-1: black Solaris XP 7990g scanner and 3 m USB Type-A cable; external power supply not included
- 7990G-2USBA-1-6: black Solaris XP 7990g scanner, 3 m USB Type-A cable and North American Level VI 5.2 V / 1.0 A power supply
Configuration note: The USB kit can use host power. RS-232 and keyboard-wedge installations require the compatible power supply.
High-throughput checkout scanning
XP scan performance
A wide field of view and fast motion capture help cashiers read damaged labels and mobile barcodes with less repositioning.
Simple Solaris upgrades
Backwards-compatible dimensions support straightforward replacement in many existing Solaris enclosures.
Retail integration
Auxiliary-scanner ports plus Checkpoint and Sensormatic EAS support fit demanding lane workflows.
Configuration support
Honeywell EZConfig supports scanner setup, firmware updates and reusable programming configurations.
Shop Solaris XP 7990g Models
7990G-2USBX-1
Solaris XP 7990g 2D Presentation Scanner USB Kit, Black, Power Supply Not Included
Power Supply:
Not Included
7990G-2USBA-1-6
Solaris XP 7990g 2D Presentation Scanner USB Kit, Black, North American Power Supply Included
Power Supply:
Included
Shop Solaris XP 7990g Accessories
CBL-000-300-S00
Cable: RS232, black, DB9 Female, 3m (9.8ft), straight, 5V host power
CBL-200-500-S00
Cable: RS232, black, DB9 Male, 5m (16.3ft), straight, 5V host power.
CBL-500-300-S00-04
Cable: USB, black, Type A, 3m (9.8ft), straight, 5V host power
CBL-700-300-S00
Cable: Key Board Wedge, black, PS2, 3m (9.8ft), straight, 5V host power
CBL-860-100-S02
7980g Cable: Checkpoint EAS with Interlock, black, 1 m (3.3ft) for Solaris
CBL-860-200-S04
Cable: Sensormatic EAS with Interlock, black, 2 m (6.6ft) for Solaris 7980g
PS-05-1000W-A-6
Cable: NA level 6 Power Supply, 1.0A @ 5.2VDC, 90-255VAC @ 50-60Hz
