Socket SocketScan S550 NFC Reader
Description
Specifications
Download

Socket SocketScan S550 NFC Reader

Images may not reflect the actual product
Product Image
small product image0

Tap-and-go NFC wallet and contactless credential reading for counters with limited space.

The SocketScan S550 is a compact, battery-powered 13.56 MHz NFC reader/writer for mobile wallet passes, contactless cards, HF RFID tags and supported mobile IDs. Bluetooth LE links the reader to a compatible application on iOS, Android or Windows. Choose black or white SM Link bundles, with a security base when specified by the selected option.

The S550 is for NFC workflows. It does not scan barcodes or process credit and debit card payments.

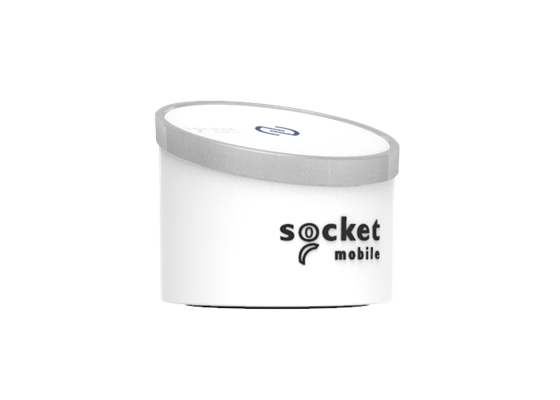

White SocketScan S550 NFC reader

Key Specifications

  • Product type / application: Countertop NFC/HF RFID reader and writer
  • Core performance: 13.56 MHz; 0.4 to 2 in (10 to 50 mm) NFC read range
  • Supported media: Eligible mobile wallet passes, contactless cards, HF tags and mobile IDs; no barcode scanning
  • Platform / compatibility: iOS, Android and Windows with compatible application
  • Interfaces / connectivity: Bluetooth LE; all listed bundles include SM Link
  • Power / battery: Rechargeable, replaceable 1,000 mAh Li-ion polymer or connected power
  • Durability / environment: Countertop use; no published IP rating
  • Deployment / form factor: Portable or security-base configuration, by option
  • Dimensions and weight: Not published in the manufacturer text specification
  • Warranty: 1 year

In the Box

  • Selected S550 SM Link bundle
    • Selected black or white S550 NFC reader
    • SM Link
    • Barrel-jack to USB-A charging cable
    • Get Started Guide
    • Security base only when specified by the selected option

Mobile wallet credentials

Apple VAS certified reading supports eligible mobile passes and tap-and-go loyalty, ticketing and check-in workflows when your application is integrated.

Reader/writer flexibility

Read supported ISO 14443, ISO 15693 and NFC Forum media, or use compatible software for writing through PC/SC mode. Validate card type and application support before ordering.

Model and SKU
SocketScan S550 NFC reader-writer. Listed black and white SM Link bundles are offered with or without a security base, as specified by the selected option.
Data capture
NFC/HF RFID reader/writer for mobile wallet passes, compatible contactless cards, tags and mobile IDs. No barcode scanning.
NFC frequency and range
13.56 MHz; maximum read range 0.4 to 2 in (10 to 50 mm), credential dependent.
NFC standards
ISO/IEC 14443 A/B, ISO/IEC 15693, ISO/IEC 18092, NFC Forum tags, MIFARE and FeliCa.
Mobile wallet support
Apple Value-Added Services (VAS) certified; supports eligible Apple Wallet and Google Wallet passes. Application integration required.
Digital ID support
Manufacturer states support for credentials following ISO 18013-5 mobile driver license standard. Verify application and jurisdiction requirements.
Write mode
PC/SC over Bluetooth LE; card type, content and authentication govern compatibility.
Bluetooth radio
Bluetooth Low Energy (BLE).
Bluetooth profiles
Smart Reader Mode (default), PC/SC Coupler Reader/Writer Mode and Basic/HID keyboard-emulation mode.
Host operating systems
Manufacturer lists Apple iOS, Android and Windows 11; workflows require compatible application.
Battery
Rechargeable, replaceable 1,000 mAh lithium-ion polymer battery; 4-hour charge time.
Battery endurance
Manufacturer lists up to 16 hours standby or 2,400 active reads per full charge.
Operating environment
0 to 45 C (32 to 113 F); storage -40 to 70 C (-40 to 158 F); up to 95% relative humidity at 60 C, non-condensing.
Ingress protection
No manufacturer IP rating published.
Selected bundle contents
Selected black or white S550 reader with SM Link, barrel-jack to USB-A charging cable and Get Started Guide. Security base is included only when the selected option states it.
Payment card handling
Not a credit or debit card reader.
Warranty
1 year standard hardware warranty.
S550 Quickstart Guide
Download
S550 User Guide
Download
