Socket SocketScan 800 Series

Name: Socket SocketScan 800 Series
Brand: Socket
Price: 340.99 USD
Availability: InStock

Images may not reflect the actual product

SocketScan 800 Series (iOS)

Attachable Bluetooth barcode readers with Klip. Choose S840 for printed/on-screen 1D/2D codes or S860 for additional supported MRZ/OCR workflows.

Attachable Bluetooth barcode scanners for one-handed mobile work

The SocketScan 800 Series pairs a thin, pocketable scanner with a phone or tablet for mobile point-of-sale, inventory, and field workflows. The S840 reads common printed and on-screen 1D/2D codes; the S860 adds travel-document MRZ/OCR support for ID and hospitality work.

Both models use Bluetooth Classic and include a Klip for attachment. Confirm the host application supports the scanner and the selected data types before purchase.

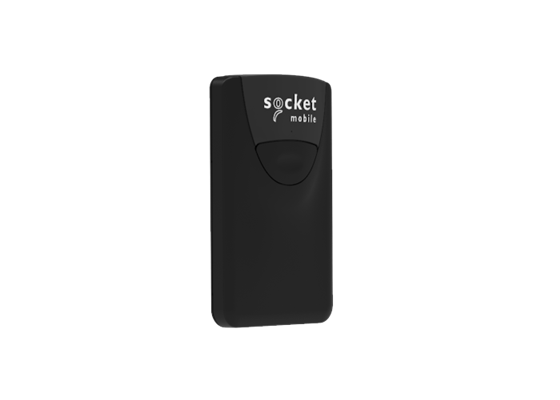

Socket Mobile SocketScan 800 Series attachable scanner

Key Specifications

Scanner configuration: Attachable cordless area imagers
Barcode capability: S840: 1D/2D; S860: 1D/2D plus MRZ/OCR and postal codes
Reading range: S840 1.2–19.5 in; S860 up to 36.1 in, code/media dependent
Interfaces / connectivity: Bluetooth Classic wireless
Durability: 4 ft drop to linoleum
Environmental sealing: IP rating not published
Dimensions and weight: Approximately credit-card footprint, under 0.5 in thick and under 2 oz reader weight
Warranty: 1 year

In the Box

S840 or S860 base package
- Selected data reader
- Klip for mobile-device attachment
- Charging cable
- Get Started Guide

One-handed mobile capture

The included Klip holds the slim reader with a mobile device, keeping barcode capture close to the workflow without a separate full-size handheld scanner.

Travel-document option

Choose S860 when the same scanner must read barcodes and supported passport MRZ/OCR data; choose S840 for standard mobile 1D/2D work.

Ambient Light

From 0 to 100 000 lux. From pitch black to direct sunlight.

Print Contrast

Down to 25%-20%

Battery Type

1 rechargeable Lithium Ion Polymer (replaceable battery)

Charge Time

8 Hours

Life of battery

500 charge-discharge cycles

Life per full charge

Standby time: 25 hours; active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds)Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery.

Battery weight

12.5g

Percentage lithium

36.3%

mAh

700

Cells per battery

Watts per battery

2.59

Cell type

Proprietary

Chemical composition

Lithium - polymer

Lithium content

4.5g

Voltage

3.7v

Hazmat UN Number

UN3481, P.I. 967

ROHS Compliance

Yes, Included with Scanner

Country of origin

China

Commodity code

8507.60.0000

S840 Default Barcode Symbologies

1D Symbologies: Bookland Ean, Codabar, Code 128, Code 39, Code 93, Ean Jan 13, Ean Jan 8, Gs1 128, Gs1 Databar Expanded, Gs1 Databar Limited, Gs1 Databar Omnidirectional, Interleaved 2 5, Isbt 128 Udi, Trioptic, Upc A, Upc E, 2D Symbologies: Aztec, Composite, Data Matrix, Han Xin, Maxicode, Micropdf417, Micro Qr, Pdf417, Qr,

S840 Supported Barcode Symbologies

1D Symbologies: Code 11, Matrix 2 5, Msi, Postal Codes: Australia Post, Japan Postal, Mailmark, Netherlands Kix, Uk Postal, Us Planet, Us Postnet, Usps 4Cb One Intelligent Mail,

S860 Default Barcode Symbologies

S860 Supported Barcode Symbologies

1D Symbologies: Code 11, Matrix 2 5, Msi, Postal Codes: Australia Post, Japan Postal, Mailmark, Netherlands Kix, Uk Postal, Us Planet, Us Postnet, Usps 4Cb One Intelligent Mail, OCR Typeface: Micr E13b,

Models and SKUs

S840 (CX3388-1846): attachable 1D/2D barcode scanner. S860 (CX3443-1899): attachable 1D/2D, MRZ/OCR and postal-code scanner.

Scan engine

Omnidirectional area imager for printed and on-screen codes.

Default 1D symbologies

Code 128, Code 39, Code 93, Codabar, EAN/JAN 8/13, GS1-128, GS1 DataBar, Interleaved 2 of 5, UPC A/E and others listed by Socket Mobile.

Default 2D symbologies

Aztec, Composite, Data Matrix, Han Xin, MaxiCode, Micro PDF417, Micro QR, PDF417 and QR.

OCR and MRZ

S860 only: OCR-A, OCR-B and passport machine-readable zones. Application support may be required.

Postal codes

Both S840 and S860 list support for Australian, Japanese, UK, US and other specified postal symbologies. S860 also supports specified OCR types.

Decode range

S840: manufacturer overall range1.2–19.5in (3.0–49.5cm). S860: manufacturer20milCode39 decode-table row1.6–36.1in (4.1–91.7cm). Ranges depend on barcode size, symbology and media.

Scan angle

44.5 degrees horizontal by 33.5 degrees vertical.

Bluetooth radio

Class 2 Bluetooth 2.1 + EDR; up to 33 ft (10 m) depending on host and environment.

Bluetooth profiles

Basic HID, Application Mode SPP, and iOS Application Mode. Host support may vary.

Host operating systems

Socket Mobile lists iOS, Android, macOS and Windows; validate the selected application and current OS support.

Battery

Replaceable rechargeable 700 mAh lithium-ion polymer battery; approximately 8-hour charging.

Battery endurance

Manufacturer specifies up to 25 hours standby or 10,000 scans in 11 hours; depends on use and environment.

Durability

4 ft drop to linoleum. IP sealing rating is not published in current manufacturer specifications.

Operating environment

0 to 45 C (32 to 113 F); storage -40 to 70 C (-40 to 158 F); up to 95% relative humidity at 60 C, non-condensing.

Size and reader weight

Approximately credit-card footprint, under 0.5 in thick and under 2 oz; excludes Klip and packaging.

Included items

Selected S840 or S860 data reader, Klip, charging cable and Get Started Guide.

Warranty

1 year standard hardware warranty.

Shop SocketScan 800 Series Models

CX3388-1846

SocketScan S840 Attachable 1D/2D Bluetooth Barcode Reader, Black, with Klip and Charging Cable

Data Capture:

1D/2D barcodes

Model:

S840

$340.99

CX3443-1899

SocketScan S860 Attachable 1D/2D and MRZ/OCR Bluetooth Reader, Black, with Klip and Charging Cable

Data Capture:

1D/2D barcodes + MRZ/OCR

Model:

S860

$554.38

Shop SocketScan 800 Series Accessories

AC4064-1498

SocketScan 800 Series USB Charging Cable

$21.25

AC4069-1503

SocketScan 800 Series Universal Klip Case, Black

$17.75
