Socket SocketScan 300 Series
Description
Specifications
Download

Socket SocketScan 300 Series

Images may not reflect the actual product
Product Image
small product image0

Countertop barcode and mobile-wallet readers for customer-presented credentials

SocketScan S320 and S370 provide compact, hands-free capture at a checkout, service desk, or event counter. The S320 focuses on QR and other 1D/2D barcodes shown on a phone or printed pass. The S370 adds NFC tap reading and writing for supported mobile-wallet and contactless credentials.

Both use Bluetooth LE and can operate from a rechargeable battery or external power. All listed bundles include SM Link; confirm the host application and credential type before choosing a model.

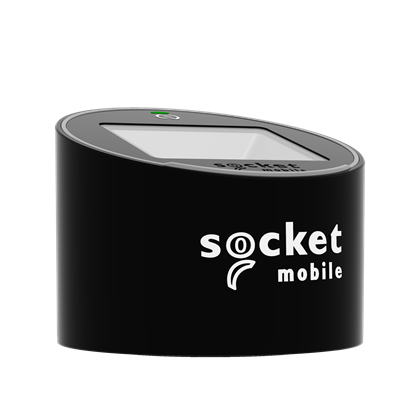

SocketScan S370 countertop barcode and NFC reader

Key Specifications

  • Scanner configuration: Countertop cordless data readers
  • Barcode capability: Both: 1D/2D and QR; S370 also reads NFC/HF RFID
  • Reading range: Depends on code or credential type; see model Specs
  • Interfaces / connectivity: Bluetooth LE; all listed bundles include SM Link
  • Durability: Fixed-use design; drop/tumble rating not published
  • Environmental sealing: Not rated by the manufacturer
  • Dimensions and weight: Compact countertop form; model and bundle dimensions/weight vary
  • Warranty: 1 year

In the Box

  • S320 SM Link bundle
    • S320 reader
    • USB-C charging cable and package insert
    • SM Link
  • S370 SM Link bundle
    • S370 reader
    • Charging cable and Get Started Guide
    • SM Link

Secure adhesive pad is included only when stated by the selected option.

Present a code

Both models read popular printed and on-screen 1D/2D codes, including QR and PDF417, without requiring a handheld scanning motion.

Add NFC with S370

The S370 adds tap-and-go NFC for supported mobile passes and contactless cards; choose it when the application must accept both barcode and NFC credentials.

Models
S320: countertop 1D/2D and QR barcode reader. S370: countertop 1D/2D barcode and NFC/HF RFID reader.
Capture types
S320: printed and on-screen 1D/2D barcodes, including QR. S370: 1D/2D barcodes plus NFC/HF RFID credentials and mobile IDs.
Default 1D symbologies
Both: Code 128, Code 39, Code 93, Codabar, EAN/JAN 8/13 and UPC A/E. S370 additionally lists GS1 DataBar and Interleaved 2 of 5.
Default 2D symbologies
Both: Data Matrix, Micro PDF417, Micro QR, PDF417 and QR. S370 additionally lists Aztec, Han Xin and MaxiCode.
NFC support
S370 only: Apple VAS, Google Smart Tap, mobile passes, NFC Forum, ISO 14443 A/B, ISO 15693, ISO 18092, MIFARE and FeliCa.
NFC write mode
S370 only: PC/SC over Bluetooth LE; ability to write depends on card type, content and authentication.
NFC carrier frequency
S370 only: 13.56 MHz.
Wireless interface
Bluetooth LE. All listed SM Link bundles include SM Link; direct Bluetooth LE operation requires compatible application software.
Host compatibility
Manufacturer lists iOS, Android and Windows; application support is required for intended workflows.
Battery
Both: field-replaceable 1,800 mAh rechargeable lithium-ion cell; 4-hour charge time.
Battery endurance
Manufacturer specifies up to 25 hours standby and 10,000 scans within 11 hours, subject to use and environment.
Operating environment
0 to 45 C (32 to 113 F); storage -40 to 70 C (-40 to 158 F); up to 95% relative humidity at 60 C, non-condensing.
Ingress protection
No manufacturer IP rating published for S320 or S370.
Included items
Selected S320 or S370 reader, model-specific charging cable and setup insert/guide, plus SM Link. A secure adhesive pad is included only when the selected option states it.
Warranty
1 year standard hardware warranty.
S320 Get Started Guide
Download
S320 User Guide
Download
S320 Programming Guide
Download
S370 Get Started Guide
Download
S370 User Guide
Download

Shop SocketScan 300 Series Models

CX4869-4196

SocketScan S320 countertop QR reader with SM Link, black

Color:

Black

NFC capability:

No NFC

Secure Pad:

Not included

Model:

S320

$222.73

CX4870-4197

SocketScan S320 Countertop 1D/2D QR Code Reader, White, with SM Link

NFC capability:

No NFC

Secure Pad:

Not included

Model:

S320

Color:

White

$222.73

CX4874-4201

SocketScan S320 Countertop 1D/2D QR Code Reader, White, with SM Link and Secure Adhesive Pad

Secure Pad:

Included

NFC capability:

No NFC

Model:

S320

Color:

White

$234.25

CX4873-4200

SocketScan S320 Countertop 1D/2D QR Code Reader, Black, with SM Link and Secure Adhesive Pad

Color:

Black

Secure Pad:

Included

NFC capability:

No NFC

Model:

S320

$234.25

TX4185-4208

SocketScan S370 Countertop 1D/2D Barcode and NFC Reader, Black, with SM Link and Secure Adhesive Pad

Color:

Black

Secure Pad:

Included

NFC capability:

NFC read/write

Model:

S370

$441.61

TX4183-4206

SocketScan S370 Countertop 1D/2D Barcode and NFC Reader, White, with SM Link

NFC capability:

NFC read/write

Secure Pad:

Not included

Model:

S370

Color:

White

$430.09

TX4187-4210

SocketScan S370 Countertop 1D/2D Barcode and NFC Reader, White, with SM Link and Secure Adhesive Pad

Secure Pad:

Included

NFC capability:

NFC read/write

Model:

S370

Color:

White

$441.61

TX4181-4204

SocketScan S370 countertop 1D/2D barcode and NFC reader with SM Link, black

Color:

Black

NFC capability:

NFC read/write

Secure Pad:

Not included

Model:

S370

$430.09
