DataLogic Smart Portal
Description
Specifications
Download

DataLogic Smart Portal

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

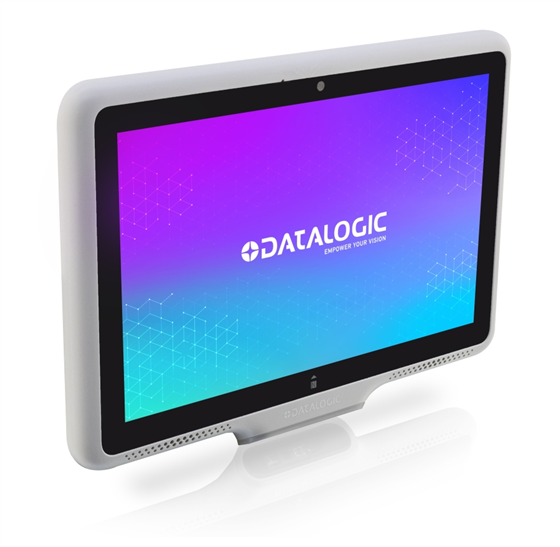

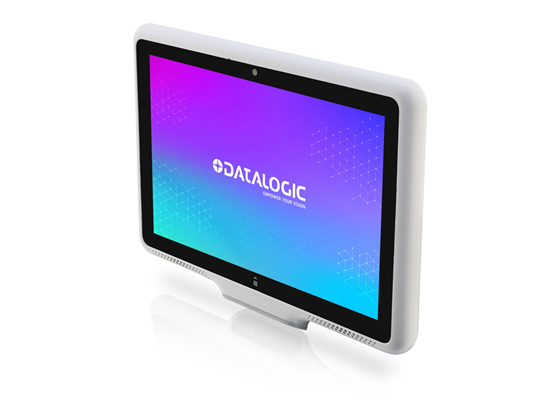

A compact hub for self-service

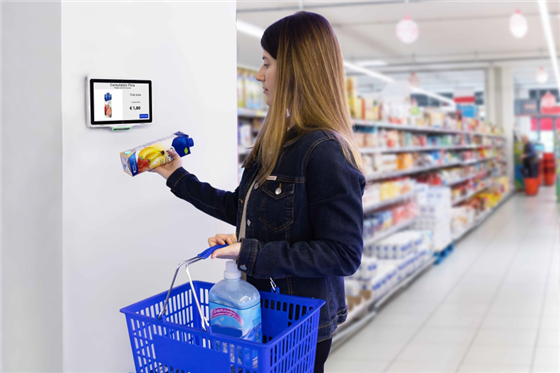

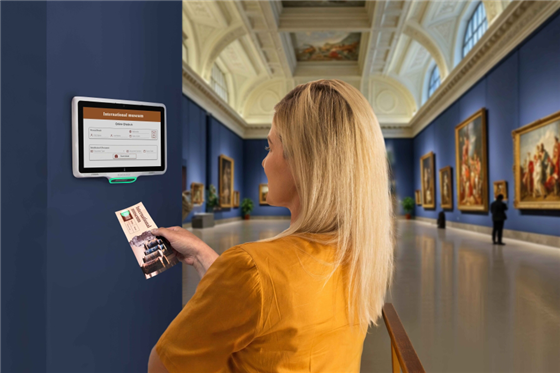

The Datalogic Smart Portal brings an 8.6-inch touchscreen, barcode scanning and NFC to price checking, shopper identification and check-in applications. Its Green Spot read confirmation, status LEDs and front-facing audio help guide customers through self-service interactions.

Wi-Fi 6E, Bluetooth 5.3 and Gigabit Ethernet connect the terminal to business systems. VESA 75 mounting and a choice of PoE+ or DC power support fixed installations on walls or furniture.

Key Specifications

  • Processor: Qualcomm QCx4490, octa-core 2.4 GHz
  • Memory and storage: 6 GB RAM; 128 GB flash; microSD up to 2 TB
  • Display and touch: 8.6-inch HD, 1340 × 800; 5-point capacitive touch
  • Operating system: Android 15; upgrade path through Android 19
  • Data capture: Halogen DE2121-DL 1D/2D imager, NFC, 5 MP camera
  • Ports and connectivity: Wi-Fi 6E, Bluetooth 5.3, Gigabit Ethernet, USB-A/C/OTG
  • Mounting / deployment: VESA 75; optional wall/cabinet brackets
  • Power: IEEE 802.3at PoE+ (Type 2) or external DC supply
  • Durability / environment: IP42; operating range 0–40 °C
  • Dimensions: 227 × 164.5 × 32 mm
  • Weight: 638 g
  • Warranty: 1 year

In the Box

  • Smart Portal terminal in Light Gray (912000001) or Black (912000002)
  • Equipment fixing screws
  • Quick Start Guide and Safety & Regulatory Addendum

Mounting bracket, power supply, US line cord and connection cables are sold separately unless expressly included in the selected package.

For DC power, use 94ACC0197 with the separate 95ACC1113 US cord. For PoE+, use compatible grounded network equipment and a shielded Ethernet cable. The terminal has no internal battery; use one power method at a time.

Clear feedback for customer interactions

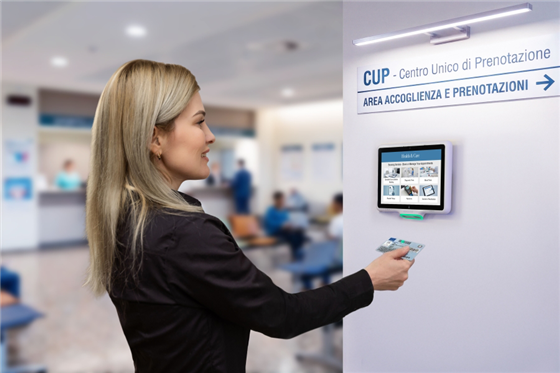

Green Spot confirms barcode reads, while the touchscreen, status LEDs, microphones and speakers support guided or assisted service. The front camera and NFC reader add identification options for supported applications.

An Android platform for ongoing deployment

Datalogic Mobility Suite supports configuration, development and device management. Datalogic Shield offers Android security patches and OS upgrades as a service; application integration and service terms depend on the deployment.

Local Area Network (WLAN)
Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/e/h/i/k/r/v/w/mc; country-dependent 2.4, 5 and 6 GHz bands; 2 × 2 MIMO; WPA3 Enterprise 192-bit mode.
Personal Area Network (WPAN)
Bluetooth 5.3, Classic and Bluetooth Low Energy (BLE).
NFC Communication
Tag types 2, 3, 4 and 5; ISO 14443-4 A/B, ISO 15693, MIFARE and FeliCa.
Power
IEEE 802.3at PoE+ (Type 2) or external DC power supply. Continuous external power required; no internal battery. Do not use both power methods simultaneously.
Chemical Resistance
Listed cleaning agents: isopropyl alcohol 70% / alcohol wipes 70%; Glassex with ammonia / Formula 409 Glass and Surface Cleaner / Windex; sodium hypochlorite 0.8% / Clorox bleach; ethyl alcohol 70%; hydrogen peroxide 3%. Follow the user manual cleaning instructions.
Temperature
Operating: 0 to 40 °C / 32 to 104 °F. Storage/transport: −30 to 70 °C / −22 to 158 °F.
Humidity
5% to 95% non-condensing across the operating temperature range.
ESD
15 kV air discharge; 8 kV contact discharge.
Dimensions
227 × 164.5 × 32 mm / 8.93 × 6.47 × 1.26 in.
Weight
638 g / 22.5 oz.
Primary Display
8.6-inch color HD, 1340 × 800 pixels, 16:10, 450 nits.
Keys
Power on/off, volume up/down and reset.
Touch Panel
5-point capacitive multi-touch with optical bonding; glove and stylus support, water-drop rejection and anti-fingerprint finish.
LED Indicators
Light guide around the scan engine for good-read feedback; LED backlight.
Camera
Front-facing 5-megapixel camera.
Scan Engine
Halogen DE2121-DL 1D/2D imager with Datalogic Green Spot good-read feedback.
Proximity Sensing
Time-of-flight sensor supports automatic scan triggering.
Interfaces
USB host: one USB-C and one USB-A (USB 2.0). One USB-C OTG port. Gigabit-compatible RJ45 Ethernet.
Microphones
Two microphones.
Loudspeaker
Two speakers, 1.3 W (1.5 W short term), 90 dBA.
Headset
Bluetooth headset support.
Agency Approvals
The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance
Complies to EU RoHS
Protection
Shield - Android Security Updates. Launcher - to lockdown device to kiosk mode. Enterprise Browser – for secure browsing. Integrity KIT - to safeguard HW interfaces.
Configuration
Scan2Deploy - configure, stage and enroll device. OEMConfig - for UEM/EMM compatibility. AE QR Generator - for easy EMM/UEM enrollment. Wi-Fi QR Generator – Enroll device with Wi-Fi network.
Development
SDKs (Java, Kotlin, Xamarin, .NET, MAUI, JavaScript). Visual Formatter – visually code flow for barcode formatting. Wedge - configurable barcode scanning input methods.
Optimization
Logger - collect advanced device events log. Wi-Fi Guard - collect Wi-Fi data and statistics. Snap OCR - digitizes text, streamlining data entry label parsing.
Empower
SoftSpot - draggable touch scanner trigger. QuickBoard – customizable on-screen virtual keyboard.
Provisioning
Android Zero-Touch, Android Enterprise QR Code, NFC Bump, EMM Token, DPC Identifier enrollment
UEM/EMM
SOTI MobiControl, VMWare Workspace One, Microsoft Intune, 42Gears Sure MDM, Ivanti Neurons, Ivanti and any OEM Config compliant UEM/EMM, Terminal Emulator and PTT; Compatibility Highlight Ivanti Velocity, StayLinked Smart TE, Zello PTT
Memory
6 GB RAM; 128 GB flash storage.
Microprocessor
Qualcomm QCx4490 octa-core, 2.4 GHz.
Expansion Slots
One microSD slot, up to 2 TB.
Operating System
Android 15, with a manufacturer-stated upgrade path through Android 19.
Real-Time Clock
Time and date stamping under software control.
Environmental Sealing
IP42.
Mounting
VESA 75. Optional 94ACC0464 wall/cabinet bracket or 94ACC0465 bracket with power supply support; choose according to cable and power-supply space behind the unit.
Warranty
1-year factory warranty.
Spec Sheet
Download
Quick Start Guide
Download
User Manual
Download

Shop Smart Portal Models

912000001

Smart Portal Entrance Unit / Price Checker, Wi-Fi 6E, Bluetooth 5.3, 2D Imager with Green Spot, Autoscan, 5MP Camera, 6GB RAM / 128GB Storage, Qualcomm Octa-Core 2.4GHz, Android 15, NFC, PoE+ (Type 2), MicroSD, USB-C OTG, USB-C, USB-A, Power Port (Light Gray)

Color:

Light Gray

$848.83

912000002

Smart Portal Entrance Unit / Price Checker, Wi-Fi 6E, Bluetooth 5.3, 2D Imager with Green Spot, Autoscan, 5MP Camera, 6GB RAM / 128GB Storage, Qualcomm Octa-Core 2.4GHz, Android 15, NFC, PoE+ (Type 2), MicroSD, USB-C OTG, USB-C, USB-A, Power Port (Black)

Color:

Black

$848.83

Shop Smart Portal Accessories

95ACC1113

AC Power Line Cord. Datalogic. 3-Pin. 120 Volt. North America.

$17.00

94ACC0197

Power Supply for Memor 10/11, Smart Portal (North America Power Line Cord 95ACC1113 to be Purchased Separately)

$43.40

94ACC0464

Smart Portal Wall Bracket (On Cabinets with Empty Space Behind the Bracket)

$48.45

94ACC0465

Smart Portal Wall Bracket with Power Supply Support (On Walls Without any Space Behind the Bracket)

$52.66

94ACC0467

USB C-C, Black 1-Meter USB 2.0

$14.75

94ACC0468

PoE Ethernet Cable

$18.26

94ACC0466

USB-A to USB-C Cable, Black, 1 Meter, USB 2.0, for Smart Portal

$14.04
