Emerge Power Solutions Smart Cord
Description
Specifications
Download

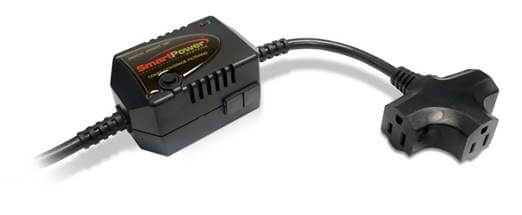

Emerge Power Solutions Smart Cord

Images may not reflect the actual product
Product Image
small product image0

Compact computer-grade power protection

The Emerge Smart Cord UTBF07SG-175 provides transformer-based power filtering for POS equipment and computers in space-limited installations. This 120V, 7A configuration has three NEMA 5-15R outlets.

TBF technology addresses spikes, transient noise and prolonged overvoltage. Smart Ground protection helps address ground-loop disruption in networked systems.

Smart Cord three-outlet configuration

Key Specifications

  • Product / application: Power conditioner for POS and computers
  • Capacity: 7A total
  • Input / output: 120V
  • Equipment connection: NEMA 5-15R
  • Outlets: Three
  • Power connection: 5-15P, 6 ft cord
  • Environment: Dry indoor locations
  • Form factor: Compact cord-mounted filter
  • Dimensions: 2 x 4.1 x 2.48 in (H x W x D)
  • Net weight: 1.18 lb
  • Warranty: Limited lifetime; terms apply

In the Box

  • UTBF07SG-175
    • Smart Cord power conditioner with three 5-15R outlets and 6 ft input cord

Applicable accessories are sold separately unless explicitly included with the selected option.

Model / Part Number
UTBF07SG-175
Product Type
Smart Cord electronic power conditioner / transformer-based filter
Input / Output Voltage
120V
Output Current
7A total
Output Receptacles
Three NEMA 5-15R
Input Plug
NEMA 5-15P
Input Cord
6 ft
Network Protection
RJ45 available on Smart Plus models only; not this SKU
Smart Ground
Yes
Color
Black
Dimensions (H x W x D)
2 x 4.1 x 2.48 in
Net Weight
1.18 lb / 0.53 kg; not shipping weight
EMI / RFI (30 kHz to 30 MHz)
>70 dB
Output Crest Factor
4 minimum
Distortion
<1% THD added
Load Power Factor
0.3 leading to 0.3 lagging
Overload Capability
1000% for 1 second
Frequency
50/60 Hz
Response Time
Instant
Efficiency
99%
Common Mode Noise Rejection (150 kHz to 6 MHz)
>80 dB
Normal Mode Noise Rejection (150 kHz to 6 MHz)
>65 dB
Single Pulse Energy Rating
1020 joules
Spike Transient Let-through, Common Mode (N-G)
<0.5V
Spike Transient Let-through, Normal Mode (L-N)
<10V
Safety
UL 1449 3rd Edition, UL 991, UL 1283 (manufacturer published)
Test Standard
IEEE C62.41 Cat. A & B ring wave
Operating Environment
Dry indoor locations only
GFCI Compatibility
Compatible; follow user guide installation requirements
Warranty
Limited lifetime; original purchaser, nontransferable, lifetime of original registered connected equipment; manufacturer terms apply
Smart Cord Data Sheet (07/24)
Download
Smart Cord User Guide (Rev. 07/24)
Download

Shop Smart Cord Models

UTBF07SG-175

Emerge Smart Cord power conditioner, 120V, 7A, three NEMA 5-15R outlets, 6 ft cord

$106.56
