UniTech SL220 iOS Sled Scanner
Description
Specifications
Download

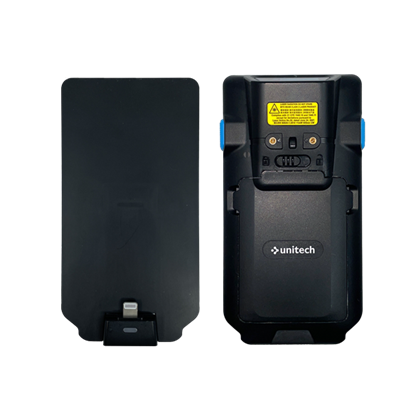

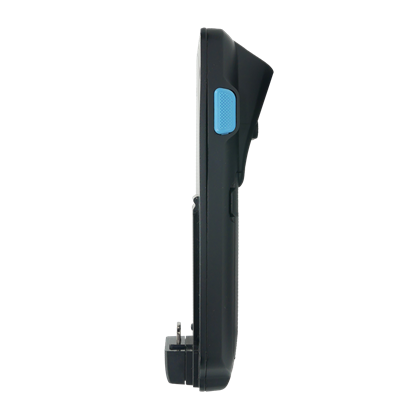

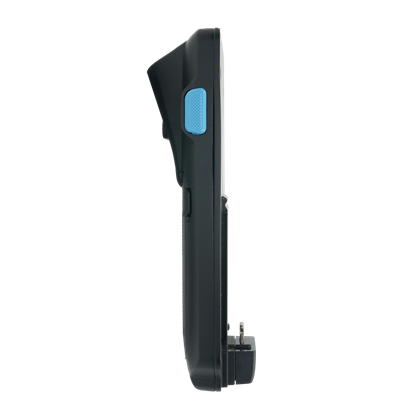

UniTech SL220 iOS Sled Scanner

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

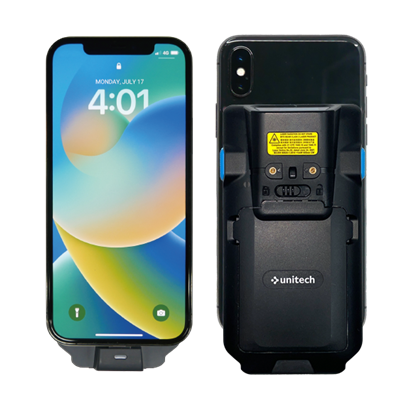

Turn your iPhone or iPad into an enterprise scanner

The Unitech SL220 combines an iOS device with an enterprise barcode scanner for inventory checks, cycle counting and asset tracking. Its OtterBox uniVERSE mounting design lets you match the sled with a compatible case for your device.

The listed models use a Lightning host connector. Choose standard-range or flex-range scanning to suit your work.

Key Specifications

  • Scanner configuration: iOS sled, corded area imager
  • Barcode capability: 1D, 2D, QR and PDF417
  • Reading range: Standard or flex range; up to 10 m on flex-range codes
  • Interfaces / connectivity: Lightning host on listed models; USB-C charging
  • Durability: 1.2 m drop resistance
  • Environmental sealing: IP65
  • Dimensions: 125 × 64 × 27 mm
  • Weight: 102 g sled
  • Warranty: 15 months

In the Box

  • SL220 standard package
    • SL220 sled scanner
    • 1150 mAh battery
    • QC 3.0 / PD power supply and USB-C cable

iPhone/iPad, compatible case, cradle, wrist lanyard and regional AC power cord are sold separately.

Superior 2D Scanning Performance

Pick List helps target the intended barcode among nearby labels. The flex-range model reaches up to 10 m on large barcodes; working distance varies with the engine and barcode size.

Support PD fast charge

Recharge the sled and connected iOS device together. Charging completes within two hours with an iPhone SE 3rd generation; actual time varies with the host model.

Operating system
iOS 15 or later
Scan keys
Two

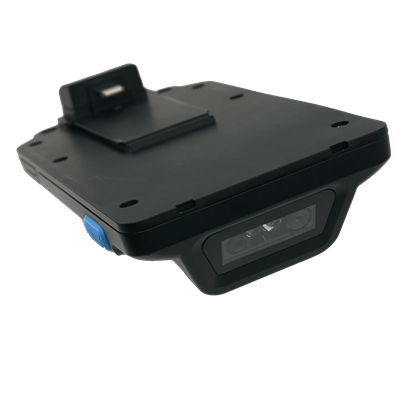

Sensor
1280 × 800 global shutter
Aimer
Red laser
Illumination
White LED, exempt risk group
Ambient light
100,000 lux, sunlight
Skew angle
±60°
Pitch angle
±60°
Roll angle
0–360°
Print contrast
20% minimum
Depth of field — standard range
PCS 80%: 13 mil UPC, 4.4–57.3 cm; 5 mil Code 39, 7–30.1 cm; 10 mil Code 39, 4–51.7 cm; 20 mil Code 39, 4.4–80 cm; 15 mil Code 128, 4.2–65 cm; 10 mil Data Matrix, 7.2–29.7 cm; 6.7 mil PDF417, 8.4–24.4 cm; 15 mil QR Code, 3.9–41.4 cm
Depth of field — flex range
PCS 80%: 13 mil UPC, 6.8–169 cm; 5 mil Code 39, 13.7–39.6 cm; 10 mil Code 128, 9–139.9 cm; 20 mil Code 39, 8.8–284.8 cm; 55 mil Code 39, up to 591.2 cm; 100 mil Code 39, up to 984.9 cm; 7 mil PDF417, 13.7–41.5 cm; 10 mil QR Code, 12.8–41.2 cm
1D barcodes
Codabar; Code 11; Code 128; Code 2 of 5; Code 39; Code 93 and 93i; EAN/JAN-13; EAN/JAN-8; IATA Code 2 of 5; Interleaved 2 of 5; Matrix 2 of 5; MSI; GS1 DataBar; UPC-A; UPC-E; UPC-A/EAN-13 with Extended Coupon Code; Coupon GS1; Code 32 (PARAF); EAN-UCC emulation; TLC39
2D stacked barcodes
Codablock A; Codablock F; PDF417; MicroPDF417
2D matrix barcodes
Aztec Code; Data Matrix; MaxiCode; QR Code; Chinese Sensible (Han Xin); Grid Matrix; Dot Code
Postal barcodes
Australian Post; British Post; Canadian Post; China Post; Japanese Post; Korea Post; Netherlands Post; Planet Code; Postnet
Data formatting
Prefix; suffix; Code ID; date reformatting
Host interface

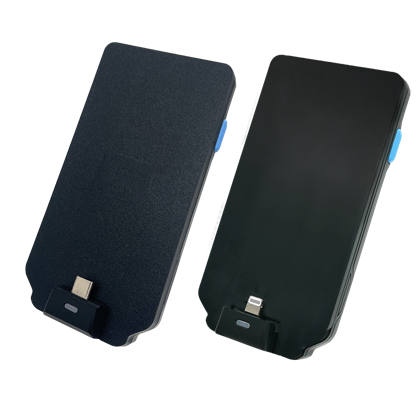

Lightning (MFi) on listed SL220-ZMLU00-SG and SL220-YMLU00-SG models. Manufacturer family also has separate USB-C host versions; the included USB-C charging cable does not change the host connector.
Dimensions
125 × 64 × 27 mm, sled only
Weight
102 g, sled only
Trigger switch life
1,000,000 operations
Cradle dimensions
142 × 96 × 95 mm
Indicators
Beep; LED
Battery
Replaceable 3.7 V, 1150 mAh lithium battery
Charging time
Within two hours with iPhone SE 3rd generation; varies with host model
Operating time
Up to 8.5 hours
Drop resistance
1.2 m
Environmental sealing
IP65
ESD protection
±8 kV contact; ±12 kV air discharge
Operating temperature
0°C to 35°C
Storage temperature
−20°C to 60°C
Regulatory approvals
Apple MFi; FCC; CE; BSMI
Optional accessories
QC 3.0 / PD power adapter; one-slot charging cradle; compatible OtterBox uniVERSE case. US power cord sold separately.
Host compatibility

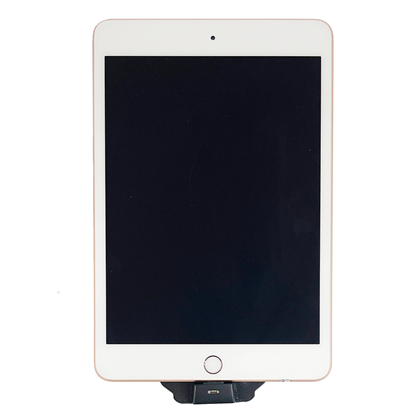

Lightning: iPhone 7, 8, XR, XS, 11, 12, 13, 14, 14 Plus and SE; iPad 7th, 8th, 9th, Pro 10.5-inch, Air 3rd and Mini 5th. Separate USB-C host versions: iPhone 15; iPad 10th and Mini 6th. Match the exact device and case.
Standard package
SL220 sled; 1150 mAh battery; QC 3.0 / PD power supply with USB-C cable. Power cord, iOS device, case, cradle and wrist lanyard are separate.
Warranty
15 months, US hardware warranty
SL220 Data Sheet (Rev. M)
Download
ScanBridge iOS User Manual (Issue 1, Rev. 3)
Download
SL220 Quick Start Guide (v1.6; firmware and wrist lanyard)
Download
SL220 Single-Slot Charging Cradle Guide (v1.1)
Download

Shop SL220 iOS Sled Scanner Models

SL220-ZMLU00-SG

SL220 iOS sled scanner, N6703SR Standard Range scan engine, MFi Lightning host connector, USB-C charging cable included; use with a compatible OtterBox uniVERSE case

Scan Engine:

N6703SR Standard Range

$444.97

SL220-YMLU00-SG

SL220 iOS sled scanner, N6803FR Flex-Range scan engine, MFi Lightning host connector, USB-C charging cable included; use with a compatible OtterBox uniVERSE case

Scan Engine:

N6803FR Flex Range

$659.59

Shop SL220 iOS Sled Scanner Accessories

1010-900072G

RT112/SL220 USB-C PD power adapter, QC3.0 & PD3.0, 5V/3A, 9V/3A, 12V/3A, 15V/3A, or 20V/2.25A

$36.68

1400-900066G

Unitech RP902 / SL220 replacement lithium-ion battery, 3.7 V, 1150 mAh.

$27.35

5000-900127G

SL220 1-slot charging cradle; use with the SL220 USB-C PD power supply and a regional AC power cord. Cradle only.

$113.94

1550-905931G

US Power Cord for RT112 & SL220, 3 Pin, 1.5m

$21.33
