DataLogic Skorpio X5
Description
Specifications
Download

DataLogic Skorpio X5

Images may not reflect the actual product

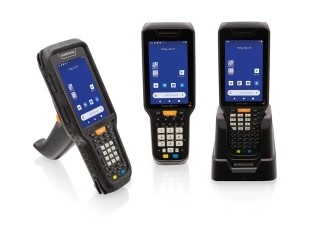

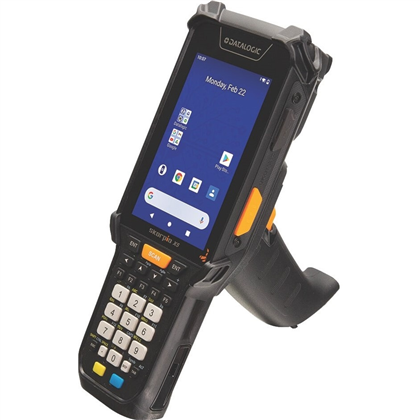

Product Image
small product image0
small product image1

Physical keys and flexible scanning for demanding warehouse work

The Datalogic Skorpio X5 pairs a 4.3-inch touchscreen with a backlit keyboard for inventory, picking and receiving. Choose a handheld or pistol-grip configuration, then match the keypad and scan engine to the distances and labels your team handles.

Scan engine choices range from linear 1D scanning to extra-long-range 2D imaging. Hot-swappable batteries and a choice of contact or wireless charging help support shared devices across shifts.

Key Specifications

  • Operating system / support horizon: Android with GMS; Android 13 firmware available. Installed OS varies.
  • Processor: Qualcomm SDA660, 2.3 GHz
  • Memory and storage: 3 GB / 32 GB or 4 GB / 64 GB; microSD up to 256 GB
  • Display and input: 4.3-inch 800 × 480 touchscreen; 28, 38 or 47 keys
  • Scan engine: 1D, standard-range 2D, mid-range 2D or extra-long-range 2D
  • Wireless connectivity: Wi-Fi 5 and Bluetooth 5.0; NFC on non-XLR models
  • Ruggedness and sealing: IP65; repeated 1.8 m drops; XLR with boot: 2 m
  • Battery / power: Hot-swap 3500 or 6200 mAh battery; contact or wireless dock charging by model
  • Form factor: Handheld or pistol grip
  • Dimensions: Standard front: 218 × 78.5 mm
  • Weight: From 488 g
  • Warranty: 1 year

Listed configurations may ship with Android 10. Datalogic lists Android 13 firmware as active; Android 10 and 11 support has expired. Verify the installed OS and update eligibility for your deployment. XLR models omit NFC and the rear camera. Memory, scan engine and charging method vary by model.

In the Box

  • Computer-only models: selected computer, battery and documentation; handhelds include a hand strap and lower bridge, while pistol models include a lanyard.
  • 943500057 handheld / 943500058 pistol kits: computer, 94A150107 contact charging dock, 91ACC0048 power supply, 94ACC0323 protective boot and 94ACC0050 holster.

Kits require a separately purchased country-specific AC cord; use 95ACC1113 for the US. Docks, power supplies and USB cables are sold separately for computer-only models. Match contact or wireless docks to the selected computer.

Scanning from close range to high shelves

Choose 1D for linear labels, standard-range 2D for everyday scanning, or mid-range and XLR imaging for greater reach. XLR can read selected large barcodes at up to 20 m; actual range depends on barcode size, condition and lighting.

Built for repeated handling

IP65 sealing and repeated 1.8 m drop resistance support busy warehouse and shop-floor work. The glove-compatible touchscreen and physical keys give operators two ways to enter data, while interchangeable batteries keep charging separate from the working device.

Operating System and Support
Android with Google Mobile Services. Listed configurations retain their documented Android 10 shipping specification. Datalogic currently lists Android 13 firmware as active and Android 10/11 support as expired. Installed OS and upgrade eligibility depend on the device and update history; no support end date is promised.
Processor and Memory
Qualcomm SDA660 System-on-Chip at 2.3 GHz. Configurations: 3 GB RAM / 32 GB flash or 4 GB RAM / 64 GB flash; flash is partly reserved for firmware. MicroSDXC expansion up to 256 GB. See selected model for memory.
Display and Touch
4.3-inch TFT/transflective LCD; 800 × 480 WVGA; LED backlight for indoor/outdoor visibility. Six-point capacitive multi-touch with Gorilla Glass 3; supports gloves and stylus.
Keyboard and Form Factor
Handheld and pistol-grip versions. Backlit 28-key numeric, 38-key function-numeric or 47-key alphanumeric keyboard, according to model.
Scan Engines
Linear 1D: 2500-pixel CCD with green LED scan line. Standard-range 2D: DE2112-SR. Mid-range 2D: DE2112-MR. Extra-long-range 2D: DE2172-AF. 2D engines also read supported 1D codes; scan engine is model-specific.
1D Reading Performance
Typical 13 mil EAN reading distance: 4–74 cm. Minimum print contrast: 15%. Actual range depends on symbol density, quality and conditions.
Standard-Range 2D Performance
White LED illumination; 650 nm laser aim; minimum print contrast 25%. Typical range: 13 mil EAN 4.5–74 cm; 15 mil Data Matrix 6.5–40 cm.
Mid-Range 2D Performance
White LED illumination; minimum print contrast 25%. Typical range: 13 mil EAN 8–100 cm; 55 mil Data Matrix up to 160 cm; 100 mil Code 39 up to 500 cm; 160 mil Data Matrix up to 400 cm.
XLR 2D Performance
Red LED illumination; minimum print contrast 20%. Typical maximum ranges: 13 mil EAN 320 cm; 55 mil Data Matrix 650 cm; 40 mil Code 128 and 100 mil Data Matrix 1000 cm; 100 mil Code 128 2000 cm. Range depends on barcode size and quality.
Barcode Support
1D: CodaBar, Code 128, GS1-128, ISBT 128, Code 39/93, Discrete/Interleaved/Matrix 2 of 5, UPC/EAN, GS1 DataBar linear and MS. 2D engines: Aztec, Data Matrix, MaxiCode, Micro QR and QR; DotCode on XLR only. Postal: Australian Post, Japan Post, KIX, PLANET, POSTNET, RM4SCC and USPS Intelligent Mail. Stacked: MicroPDF417, PDF417, GS1 DataBar stacked formats, UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1-128 Composite.
Wi-Fi
IEEE 802.11 a/b/g/n/ac with d/e/h/i/k/r/v/w/mc; IPv4/IPv6; 2×2 MU-MIMO. Country-dependent 2.4 GHz and 5 GHz operation.
Bluetooth and NFC
Bluetooth 5.0 Class 2 with BR/EDR and BLE. NFC on non-XLR models: ISO 14443-4 Type A/B, ISO 15693, Mifare and Felica. NFC is not available on XLR versions.
Battery
Removable hot-swappable rechargeable Li-ion, 3.7 V. Standard battery: 3500 mAh typical / 3460 mAh rated, 12.8 Wh; standard on handheld models. Extended battery: 6200 mAh typical / 6080 mAh rated, 22.1 Wh; standard on pistol-grip models.
Charging and Interfaces
USB-C for charging and USB 3.1 Gen 1 (USB 3.2 Gen 1×1) host/device data. Charging contacts or 15 W wireless charging according to configuration; match the dock to the device. Gigabit Ethernet through the compatible three-slot contact dock. Docks require the specified power supply and regional AC cord.
Sealing and Durability
IP65. Repeated 1.8 m / 6 ft drops onto steel or concrete to IEC 60068-2-32 procedure 1; XLR with rubber boot: 2 m / 6.6 ft. Withstands 2000 tumbles from 1 m to procedure 2. Chemical-cleanser and industrial-oil resistant.
Temperature
Operating: −20 to 50°C / −4 to 122°F. Storage/transport: −30 to 70°C / −22 to 158°F.
Dimensions
Standard front: 218 × 78.5 mm / 8.58 × 3.09 in; maximum thickness 31.3 mm at head and 35.6 mm at wireless-coil/hand-strap area. XLR front: 220.3 × 89.2 mm / 8.67 × 3.51 in; maximum thickness 52.6 mm.
Weight
Handheld: 488 g with standard or 514 g with extended battery. Pistol grip: 600 g with standard or 626 g with extended battery. XLR pistol grip with extended battery: 665 g.
Camera, Sensors and Audio
Non-XLR models: 13 MP rear camera with user-controlled LED flash. XLR can capture images with its scan engine but has no rear camera. Three-axis accelerometer, gyroscope and ambient-light sensor. ToF presentation sensor on non-XLR 2D models only. Android wideband HD speech support.
Software and Deployment
Pre-licensed 42Gears device/browser lockdown; Datalogic WiFi Guard and SoftSpot; Zello PTT compatibility. Provisioning: Scan2Deploy Studio, Android Zero-Touch and QR enrollment. Configuration: Scan2Deploy Studio and OEMConfig. Datalogic Shield provides eligible security/firmware/OS maintenance under applicable service terms.
Development and Management
Datalogic Android, Xamarin, Ionic Cordova and React Native SDKs. Management compatibility: SOTI MobiControl, VMware AirWatch, Ivanti Avalanche, 42Gears SureMDM and Microsoft Intune. Terminal emulation: StayLinked SmartTE and Ivanti Velocity. Separate licenses may be required.
Safety and Compliance
EU RoHS Directive 2011/65/EU. VLD Class 2 to IEC/EN 60825-1; 21 CFR 1040.10 with Laser Notice 50 deviations. LED Exempt Risk Group to IEC/EN 62471. Select the appropriate regional configuration.
Warranty and Service
1-year factory warranty. Optional EASEOFCARE plans provide coverage under the selected service agreement; service plans are sold separately.
Skorpio X5 Datasheet
Download
Skorpio X5 Quick Start Guide
Download
Skorpio X5 User Manual
Download

Shop Skorpio X5 Models

943500057

Skorpio X5 handheld kit: 943500009, 3GB/32GB, 47-key, SR 2D, Android 10; 94A150107 contact dock, 91ACC0048 power supply, 94ACC0323 boot and 94ACC0050 holster. Country-specific AC cord sold separately.

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Keyboard Layout:

47-Key Alpha-Numeric

Charging Method:

Contacts

Form Factor:

Handheld

Kit:

Kit

$2050.88

943500058

Skorpio X5 pistol kit: 943500029, 3GB/32GB, 28-key, SR 2D, Android 10; 94A150107 contact dock, 91ACC0048 power supply, 94ACC0323 boot and 94ACC0050 holster. Country-specific AC cord sold separately.

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Charging Method:

Contacts

Kit:

Kit

Form Factor:

Pistol Grip

$2324.93

943500007

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 2D Imager SR w Green Spot, Android 10; contact charging.

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Handheld

$1409.92

943500045

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 28-Key Numeric, 2D Imager XLR, Android 10, with Extended Battery; contact charging.

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager XLR

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Pistol Grip

$2100.36

943500048

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 28-Key Numeric, Contactless, 2D Imager XLR, Android 10, with Extended Battery

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager XLR

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Form Factor:

Pistol Grip

Charging Method:

Wireless

$2383.20

943500049

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 38-Key Functional, Contactless, 2D Imager XLR, Android 10, with Extended Battery

Scan Engine:

2D Imager XLR

Keyboard Layout:

38-Key Functional

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Form Factor:

Pistol Grip

Charging Method:

Wireless

$2382.09

943500050

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless, 2D Imager XLR, Android 10, with Extended Battery.

Scan Engine:

2D Imager XLR

Keyboard Layout:

47-Key Alpha-Numeric

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Form Factor:

Pistol Grip

Charging Method:

Wireless

$2383.20

943500047

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, 2D Imager XLR, Android 10, with Extended Battery; contact charging.

Scan Engine:

2D Imager XLR

Keyboard Layout:

47-Key Alpha-Numeric

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Pistol Grip

$2326.74

943500009

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager SR w Green Spot, Android 10; contact charging.

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Keyboard Layout:

47-Key Alpha-Numeric

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Handheld

$1741.44

943500010

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, Contactless 2D Imager SR w Green Spot, Android 10.

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Kit:

Computer Only

Form Factor:

Handheld

Charging Method:

Wireless

$1764.37

943500042

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless 2D Imager MR w Green Spot, Android 10.

Scan Engine:

2D Imager MR w Green Spot

Keyboard Layout:

47-Key Alpha-Numeric

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Form Factor:

Handheld

Charging Method:

Wireless

$2087.41

943500056

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless 2D Imager MR w Green Spot, Android 10.

Scan Engine:

2D Imager MR w Green Spot

Keyboard Layout:

47-Key Alpha-Numeric

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Form Factor:

Pistol Grip

Charging Method:

Wireless

$2205.73

943500001

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 1D Imager w Green Spot, Android 10; contact charging.

Scan Engine:

1D Imager w Green Spot

Keyboard Layout:

28-Key Numeric

RAM & Storage:

3GB RAM/32GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Handheld

$1625.92

943500055

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager MR w Green Spot, Android 10; contact charging.

Scan Engine:

2D Imager MR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Keyboard Layout:

47-Key Alpha-Numeric

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Pistol Grip

$1923.72

943500013

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 28-Key Numeric, 2D Imager SR w Green Spot, Android 10; contact charging.

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Handheld

$1972.39

943500031

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager SR w Green Spot, Android 10; contact charging.

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Keyboard Layout:

47-Key Alpha-Numeric

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Pistol Grip

$1852.44

943500025

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 1D Imager w Green Spot, Android 10; contact charging.

Scan Engine:

1D Imager w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Keyboard Layout:

47-Key Alpha-Numeric

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Pistol Grip

$1859.62

943500018

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless, 2D Imager SR w Green Spot, Android 10.

Scan Engine:

2D Imager SR w Green Spot

Keyboard Layout:

47-Key Alpha-Numeric

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Form Factor:

Handheld

Charging Method:

Wireless

$1990.75

943500041

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 2D Imager MR w Green Spot, Android 10; contact charging.

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager MR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Handheld

$1992.70

943500037

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless, 2D Imager SR w Green Spot, Android 10.

Scan Engine:

2D Imager SR w Green Spot

Keyboard Layout:

47-Key Alpha-Numeric

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Form Factor:

Pistol Grip

Charging Method:

Wireless

$2142.23

943500043

Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager MR w Green Spot, Android 10; contact charging.

Scan Engine:

2D Imager MR w Green Spot

RAM & Storage:

3GB RAM/32GB Flash

Keyboard Layout:

47-Key Alpha-Numeric

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Handheld

$1816.19

943500036

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 38-Key Functional, 2D Imager SR w Green Spot, Android 10; contact charging.

Scan Engine:

2D Imager SR w Green Spot

Keyboard Layout:

38-Key Functional

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Pistol Grip

$2042.61

943500035

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3" display, BT V5, 4GB RAM/64GB Flash, 28-Key Numeric, 2D Imager SR w Green Spot, Android 10; contact charging.

Keyboard Layout:

28-Key Numeric

Scan Engine:

2D Imager SR w Green Spot

RAM & Storage:

4GB RAM/64GB Flash

Kit:

Computer Only

Charging Method:

Contacts

Form Factor:

Pistol Grip

$2042.61

Shop Skorpio X5 Accessories

94A150108

Skorpio X5 / X40 / X45 three-slot wireless charging dock; requires 91ACC0048 power supply and regional AC cord, sold separately

$462.00

94A150110

Skorpio X5 / X40 / X45 three-slot contact charging dock with Ethernet; requires 91ACC0048 power supply and regional AC cord, sold separately

$532.40

94A150106

Skorpio X5 / X40 / X45 single-slot wireless charging dock; requires 91ACC0048 power supply and regional AC cord, sold separately

$122.50

94A150107

Skorpio X5 single-slot contact charging dock; requires 91ACC0048 power supply and regional AC cord, sold separately

$158.00

94ACC0274

Skorpio X5 / X40 / X45 and Falcon X60 / X65 four-slot battery charger; requires 91ACC0048 power supply and regional AC cord, sold separately

$193.90

91ACC0093

Skorpio X5 / X40 / X45 extended battery pack, 6200 mAh typical capacity (batteries must ship by ground)

$134.20

91ACC0092

Skorpio X5 / X40 / X45 standard battery pack, 3500 mAh typical capacity (batteries must ship by ground)

$91.70

94ACC0050

Skorpio X3 / X5 belt holster for handheld or pistol-grip configurations; belt clip included, belt sold separately

$49.74

94ACC0081

Lanyard kit, 5 pack, for Skorpio X5 / X40 / X45, Falcon X60 / X65 and Memor 11 / 12-17 / 30-35 pistol-grip configurations

$21.00

94ACC0332

Skorpio X5 pistol-grip to handheld conversion kit

$29.99

94ACC0330

Skorpio X5 XLR Belt Holster

$43.40

94ACC0331

Skorpio X5 XLR protective rubber boot

$34.38

94ACC0327

USB-A to USB-C cable, 1.2 m

$22.68

94ACC0329

Skorpio X5 USB-type C wall adapter

$30.28

94A150109

Skorpio X5 three-slot locking wireless charging dock; requires 91ACC0048 power supply and regional AC cord, sold separately

$513.80

94ACC0325

Skorpio X5 attachable pistol-grip handle

$112.64

94ACC0326

Skorpio X5 hand straps, 5 pack

$113.36

94ACC0324

Skorpio X5 Screen Protector (5 pcs)

$51.40

94ACC0323

Skorpio X5 protective rubber boot for standard handheld and pistol-grip models; XLR models use 94ACC0331

$34.38

91ACC0048

Datalogic Joya/Memor and Skorpio X5 / X40 / X45 dock power supply; requires a separately purchased AC line cord

$75.00

95ACC1113

AC Power Line Cord. Datalogic. 3-Pin. 120 Volt. North America.

$17.00

ZSC2SK531

Skorpio X5 EASEOFCARE 3-year comprehensive service agreement, 2-day turnaround

$309.66
Have Questions?Call Us at: (800) 241-6264
