DataLogic Skorpio X40/45

Name: DataLogic Skorpio X40/45
Brand: DataLogic
Price: 1511.75 USD
Availability: InStock

Images may not reflect the actual product

Comfortable handling and physical keys for busy mobile workflows

The Datalogic Skorpio X40/X45 combines a compact, balanced body with a 4-inch touchscreen and large physical keys for retail, light warehousing and manufacturing. A detachable handle lets operators adapt the device to data entry or repeated scanning.

Standard and long-range 2D imagers provide Green Spot scan confirmation. Wi-Fi 6/6E and a 7000 mAh hot-swap battery support work across shifts. X45 adds cellular 5G; the models currently listed here are Wi-Fi X40 configurations.

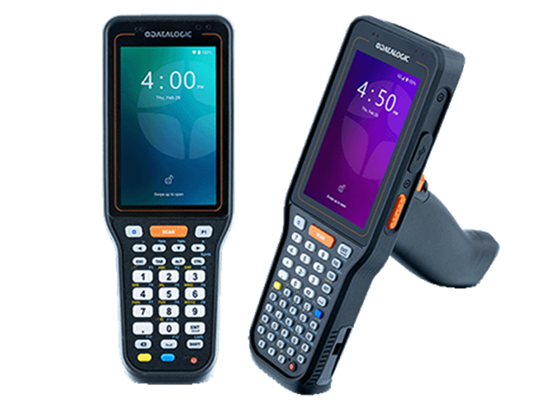

Datalogic Skorpio X40/X45 mobile computer

Key Specifications

Operating system / support horizon: Android 15; platform upgradeable to Android 19
Processor: Qualcomm Dragonwing 4490, octa-core 2.4 GHz
Memory and storage: 6 GB RAM / 128 GB flash; microSD up to 2 TB
Display and input: 4-inch 480 × 800 touchscreen; 29, 39 or 48 physical keys
Scan engine: Standard-range or long-range 1D/2D imager with Green Spot
Wireless connectivity: Wi-Fi 6/6E, Bluetooth 5.3 and NFC; 5G on X45 only
Ruggedness and sealing: IP65/IP67; 2.4 m ambient or 1.8 m full-temperature drops
Battery / power: 7000 mAh hot-swap battery; contact or 10 W wireless charging by model
Dimensions: 210 × 75 mm; handheld depth: 27 mm; pistol depth: 155 mm
Weight: Handheld: 445 g; pistol: 575 g
Warranty: 1 year

Drop ratings apply to concrete: 2.4 m at ambient temperature and 1.8 m from −20 to 50°C. Android upgrade availability and security maintenance depend on Datalogic release and service terms. Charging method, keyboard and scan range vary by model.

In the Box

Selected Skorpio X40 computer with 7000 mAh rechargeable battery and keyboard overlays.
Handheld: hand strap and lower bridge.
Pistol grip: anti-drop wrist lanyard.
Quick-start and safety documentation.

Charging dock, power supply, regional AC cord, USB cable and protective boot are sold separately. Match contact or wireless charging to the selected computer. Compatible docks require their specified power supply and a regional cord; use 95ACC1113 for the US.

Comfort for repeated handling

The compact enclosure and balanced grip support frequent one-handed use. Three keyboard choices provide large, spaced keys for confident input with gloves, while the field-detachable handle suits scanning-intensive tasks.

Clear confirmation at the label

Green Spot projects a visual confirmation onto the barcode after a successful read. Choose standard-range imaging for everyday labels or long-range imaging for greater reach, up to 10 m with suitable symbols; actual range depends on label size and conditions.

Operating System

Android 15; GMS and AOSP configurations by region. Platform upgradeable to Android 19; upgrade availability and security maintenance depend on Datalogic release and service terms.

Processor and Expansion

Qualcomm Dragonwing 4490 octa-core at 2.4 GHz. One microSD slot supports cards up to 2 TB; cards sold separately.

Memory

System RAM: 6GB; UFS Flash: 128 GB

Primary Display

4.0-inch LCD A-Si IPS - WVGA 480 x 800 resolution; LED backlight and integrated touch screen; 450 NITS typical

Touch Panel

Touch Screen: 5 points multi-touch capacitive panel with hardened Corning® Gorilla® Glass Victus® and optical bonding; Support for gloves and stylus; water drops rejection and anti-fingerprint surface finishing

Keys

Physical Keyboards: 29-key Numeric; 39-key Functional Numeric; 48-key Alphanumeric; Physical Keys: 2 side scan keys; Power On/Off Software keys: 3 Android soft keys

Scan Engine

Halogen™ DE2121-DL 1D/2D scan engine; Halogen™ DE2121-ER Extended Range 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback on all scan engines

Scanning Distance and Feedback

Standard and long-range 1D/2D imaging with Green Spot good-read feedback. Long-range imaging reaches up to 10 m with suitable symbols; actual range depends on label size, quality and conditions.

Wi-Fi

Wi-Fi 6/6E: IEEE 802.11 a/b/g/n/ac/ax and d/h/i/k/r/v/w/mc; 2×2 MU-MIMO. Country-dependent 2.4, 5 and 6 GHz bands. WPA3 Enterprise 192-bit mode supported.

Bluetooth and NFC

Bluetooth 5.3 Classic and BLE. NFC tag types 2/3/4/5, ISO 14443-4 A/B, ISO 15693, Mifare and Felica; reader and card-emulation modes.

Cellular, SIM and Positioning

Skorpio X45 only: data-only 3G/4G LTE-Advanced/5G FR1, private networks and CBRS support. One nano-SIM and one eSIM. GPS, Galileo, GLONASS and BeiDou with A-GPS and dual-band L1/L5 GNSS. X40 has no cellular modem or GNSS.

Battery and Charging

Removable hot-swappable rechargeable Li-ion battery; 3.63 V, 7000 mAh typical, 25.445 Wh. USB-C charging. Wireless models support WPC Qi EPP 10 W charging; contact models require a compatible contact dock. Docks, power supplies and regional AC cords sold separately.

Interfaces

USB 3.2 Gen 1 host/client through USB-C; USB 2.0 at bottom I/O. Gigabit Ethernet through a compatible multi-slot dock. Docks and cables sold separately.

Drop Resistance

Multiple 2.4m/8ft drops to concrete at ambient temperature per MIL STD 810H; Multiple 1.8m/6ft drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) per MIL STD 810H

Tumbles

3000 1.0m/3.3 ft tumbles at room temperature, meets and exceed IEC 60068-2-32 Procedure 2 specification

Particulate and Water Sealing

IP65 and IP67 with battery, per IEC60529 specification

Temperature

Operating: -20 to 50 ºC / -4 to 122 ºF Storage/Transport: -30 to 70 ºC / -22 to 158 ºF

Chemical Resistance

Resists industrial oils and specified cleaners: 0.8% sodium hypochlorite solution, Windex/Glassex with ammonia, Formula 409 glass/surface cleaner, 70% ethyl or isopropyl alcohol, and 3% hydrogen peroxide. Follow manufacturer cleaning instructions.

ESD

15 kV air discharge and 8 kV contact discharge.

Dimensions

Handheld: 210 x 75 x 27 mm / 8.27 x 2.95 x 1.06 in Pistol Grip: 210 x 75 x 155 mm / 8.27 x 2.95 x 6.10 in

Weight

Handheld: with battery: 445 g / 15.7 oz Pistol Grip: with battery 575 g / 20.3 oz

Camera

Rear Camera: 13-megapixel resolution; Auto focus Illumination: user controllable LED flash (torch mode)

Sensors and Audio

Three-axis accelerometer, gyroscope, ambient-light and proximity sensors, magnetometer and programmable vibration. Barometer on X45 only. Two microphones with noise cancellation; speaker for hands-free data calls and audio.

Software and Deployment

Datalogic Mobility Suite includes Shield, Launcher, Enterprise Browser, Scan2Deploy, OEMConfig, SDKs, Visual Formatter, Wedge, Wi-Fi Guard and Battery Manager tools. Android enterprise enrollment and compatible UEM/EMM, terminal-emulation and push-to-talk solutions supported; licenses/service terms may apply.

Safety and Regulatory

EU RoHS compliant. Class 2 laser to IEC/EN 60825-1; 21 CFR 1040.10 with stated Laser Notice 50 deviations. LED Exempt Risk Group to IEC/EN 62471. Use a configuration approved for the intended region.

Warranty

1-Year Factory Warranty

Shop Skorpio X40/45 Models

946400007

Skorpio X40 Hand held, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 48-Key Full Alphanumeric, Standard Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, hand-strap, keyboard overlays; contact charging.

Keyboard Layout:

48 Key

Gun or Brick Style:

Brick Style

Charging Method:

Contact

Barcode Scanner:

Standard Range

$1511.75

946400005

Skorpio X40 Pistol Grip, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 29-Key Numeric, Long Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, lanyard, keyboard overlays; contact charging.

Keyboard Layout:

29 Key

Charging Method:

Contact

Gun or Brick Style:

Gun Style

Barcode Scanner:

Long Range

$1741.48

946400002

Skorpio X40 Pistol Grip, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 29-Key Numeric, Standard Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, lanyard, keyboard overlays; contact charging.

Keyboard Layout:

29 Key

Charging Method:

Contact

Gun or Brick Style:

Gun Style

Barcode Scanner:

Standard Range

$1600.68

946400006

Skorpio X40 Pistol Grip, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 39-Key Functional Numeric, Long Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, lanyard, keyboard overlays; contact charging.

Keyboard Layout:

39 Key

Charging Method:

Contact

Gun or Brick Style:

Gun Style

Barcode Scanner:

Long Range

$1741.48

946400003

Skorpio X40 Pistol Grip, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 39-Key Functional Numeric, Standard Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, lanyard, keyboard overlays; contact charging.

Keyboard Layout:

39 Key

Charging Method:

Contact

Gun or Brick Style:

Gun Style

Barcode Scanner:

Standard Range

$1600.68

946400011

Skorpio X40 Pistol Grip, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 48-Key Full Alphanumeric, Contactless, Standard Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, lanyard, kbd overlays.

Keyboard Layout:

48 Key

Gun or Brick Style:

Gun Style

Barcode Scanner:

Standard Range

Charging Method:

Wireless

$1600.68

946400004

Skorpio X40 Pistol Grip, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 48-Key Full Alphanumeric, Long Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, lanyard, keyboard overlays; contact charging.

Keyboard Layout:

48 Key

Charging Method:

Contact

Gun or Brick Style:

Gun Style

Barcode Scanner:

Long Range

$1741.48

946400001

Skorpio X40 Pistol Grip, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 48-Key Full Alphanumeric, Standard Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, lanyard, keyboard overlays; contact charging.

Keyboard Layout:

48 Key

Charging Method:

Contact

Gun or Brick Style:

Gun Style

Barcode Scanner:

Standard Range

$1600.68

946400010

Skorpio X40 Hand held, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 29-Key Numeric, Long Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, hand-strap, keyboard overlays; contact charging.

Keyboard Layout:

29 Key

Gun or Brick Style:

Brick Style

Charging Method:

Contact

Barcode Scanner:

Long Range

$1652.55

946400008

Skorpio X40 Hand held, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 29-Key Numeric, Standard Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, hand-strap, keyboard overlays; contact charging.

Keyboard Layout:

29 Key

Gun or Brick Style:

Brick Style

Charging Method:

Contact

Barcode Scanner:

Standard Range

$1511.75

946400009

Skorpio X40 Hand held, Wi-Fi6E, 4" display, 6GB RAM/128GB Flash, 39-Key Functional Numeric, Standard Range 2D Imager w/Green Spot feedback, Camera (13MP), Android 15. Includes: Google Mobile Services, battery 7000 mAh, hand-strap, keyboard overlays; contact charging.

Keyboard Layout:

39 Key

Gun or Brick Style:

Brick Style

Charging Method:

Contact

Barcode Scanner:

Standard Range

$1511.75

Shop Skorpio X40/45 Accessories

91ACC0048

Datalogic Joya/Memor and Skorpio X5 / X40 / X45 dock power supply; requires a separately purchased AC line cord

$75.00

94A150108

Skorpio X5 / X40 / X45 three-slot wireless charging dock; requires 91ACC0048 power supply and regional AC cord, sold separately

$462.00

94A150110

Skorpio X5 / X40 / X45 three-slot contact charging dock with Ethernet; requires 91ACC0048 power supply and regional AC cord, sold separately

$532.40

94A150106

Skorpio X5 / X40 / X45 single-slot wireless charging dock; requires 91ACC0048 power supply and regional AC cord, sold separately

$122.50

94ACC0274

Skorpio X5 / X40 / X45 and Falcon X60 / X65 four-slot battery charger; requires 91ACC0048 power supply and regional AC cord, sold separately

$193.90

91ACC0093

Skorpio X5 / X40 / X45 extended battery pack, 6200 mAh typical capacity (batteries must ship by ground)

$134.20

91ACC0092

Skorpio X5 / X40 / X45 standard battery pack, 3500 mAh typical capacity (batteries must ship by ground)

$91.70

94ACC0327

USB-A to USB-C cable, 1.2 m

$22.68

94ACC0380

Power supply for compatible Datalogic Memor 12/17 and 30/35, Skorpio X40/X45 and Falcon X60/X65 charging docks; regional AC cord sold separately.

$41.69

94A150151

Skorpio X5 / X40 / X45 and Falcon X60 / X65 single-slot contact dock; requires 91ACC0048 power supply and regional AC cord, sold separately

$103.25

94A150143

Skorpio X40 / X45 and Falcon X60 / X65 four-slot contact charging dock; requires 94ACC0380 power supply and regional AC cord, sold separately; bootless adapters included

$292.05

94A150144

Skorpio X40 / X45 and Falcon X60 / X65 four-slot contact dock with Ethernet; requires 94ACC0380 power supply and regional AC cord, sold separately; bootless adapters included

$409.46

94ACC0440

Skorpio X40 / X45 and Falcon X60 / X65 battery pack, 7000 mAh typical capacity

$102.52

94ACC0441

Skorpio X40/X45 protective rubber boot for handheld and pistol-grip models

$24.58

94ACC0443

Belt holster for Skorpio X40/X45 handheld and pistol-grip models; belt clip included, belt sold separately

$42.14

94ACC0445

Handle for Skorpio X40/X45

$101.12

94ACC0447

Skorpio X40/X45 pistol-grip-to-handheld conversion kit

$25.98

95ACC1113

AC Power Line Cord. Datalogic. 3-Pin. 120 Volt. North America.

$17.00

94ACC0081

Lanyard kit, 5 pack, for Skorpio X5 / X40 / X45, Falcon X60 / X65 and Memor 11 / 12-17 / 30-35 pistol-grip configurations

$21.00

94ACC1240

Shoulder Strap (5 pcs)

$55.47

94ACC0383

Datalogic wall power adapter with USB-A output and four regional plugs; USB-A to USB-C cable sold separately

$26.40

94ACC0451

Datalogic screen protectors for Skorpio X40/X45; five protectors per pack.

$78.99
