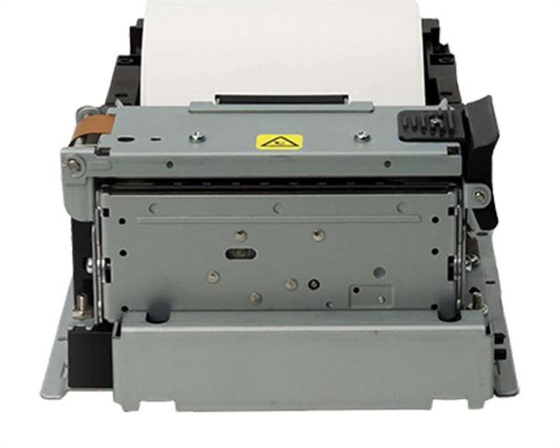

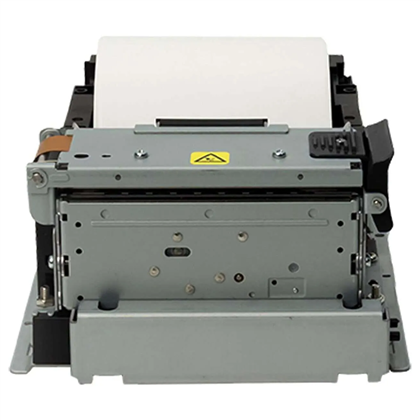

Star Micronics SK1-321
Compact 3-inch receipt, ticket, and label printing for space-constrained kiosks
The Star Micronics SK1-321 family is a compact direct-thermal kiosk platform for installations where enclosure space is limited but 3-inch output is still required. Current models use drop-in paper loading with an integrated paper basket and connect over USB and RS-232C.
Standard-left and right-hinge configurations support receipt, ticket, and black-mark label media at up to 250 mm/second.
Key Specifications
- Print Method: Direct line thermal
- Print Speed: Up to 250 mm/second
- Paper Widths: 58, 60, 80, or 83 mm
- Resolution: 203 dpi
- Interfaces / Connectivity: USB 2.0 and RS-232C
- Cutter and Reliability: Command-selectable full or partial cut
- Platform Support: Windows 10/11 through the StarPRNT SK Series driver
- Dimensions and Weight: 127 × 137 × 75 mm
- Warranty: 1 year parts and labor
In the Box
- SK1-321 kiosk printer
- Integrated paper-basket output assembly
An external power supply, interface hardware, mounting hardware, and compatible media are required unless the selected configuration explicitly includes them.
Compact Paper-Basket Design
Drop-in loading for tight enclosures
The integrated paper basket keeps servicing straightforward where roll-arm clearance is limited.
Two Output Configurations
Standard-left or right-hinge layout
Both configurations use the same print engine, interface set, and electrical integration so the enclosure layout can drive the selection.
Looking for Compatible Labels or Receipt Paper?
Labels: Choose compatible label or black-mark ticket media for the SK1-321 mechanism.
Receipt paper: Choose 58 mm, 60 mm, 80 mm, or 83 mm direct-thermal receipt paper, matched to the installed paper guide.
Need help matching media to your exact configuration? Call our POS specialists at 800-903-6571.
Shop SK1-321 Models
37963580
Star SK1-321 3-inch Kiosk Printer, Paper Basket, USB/Serial, Right Hinge (External Power Supply Required)
Paper Basket Layout:
Right Hinge
Paper Basket Layout:
Right Hinge
37963464
Star SK1-321 3-inch Kiosk Printer, Paper Basket, USB/Serial, Standard Left (External Power Supply Required)
Paper Basket Layout:
Standard Left
Paper Basket Layout:
Standard Left
Shop SK1-321 Accessories
37965520
SK1, LED Bezel, Blue/Red, Requires SK1 Type II Printer
37967330
Sanei Serial connector on 1 side, and a 9-Pin serial connector on the other. Pin out information available.
37967920
SK1, LED Bezel, Green/Red, Requires SK1 Type II Printer
37969260
65W 24V 2.5A Power Supply for Sanei Printers
37966861
Paper SK1-31A, SK1-31A L, SK1-V31A, SK1-V31A L, SK1-311, SK1-311 L, SK1-V311, SK1-V311 L, TSP1000: 80mm Width, 1 in core, 420 ft Length, 12 Rolls/Case, Blue Core
37967040
Extends SK-1 standard warranty to total of two (2) years. Valid in US / CA / Latin America. See terms & conditions for details. NCNR (Non-Cancelable, Non-Returnable).
37966890
Extends standard warranty to total of three (3) years. Valid in US / CA / Latin America. See terms & conditions for details. NCNR (Non-Cancelable, Non-Returnable).
37966900
4-Year Extend-A-Star Warranty for Star Micronics Kiosk Printers. Extends the standard warranty to 4 years. Valid in the US, Canada, and Latin America. See terms and conditions for details. NCNR (non-cancelable, non-returnable).
37950080
SK1, Power Conversion Cable, SK1-PS-M US, Molex to 2 Pin Molex
37963490
SK1, Standard Bezel, Paper Sensor, No Separator
37963730
Adjustable External Large Paper Roll Holder for SK1-21/31 Series
37964690
Star Micronics SK1-PS-M US Power Supply AC (M) Adapter AC Cable Included
