APG Series 4000
Series 4000 (iOS)

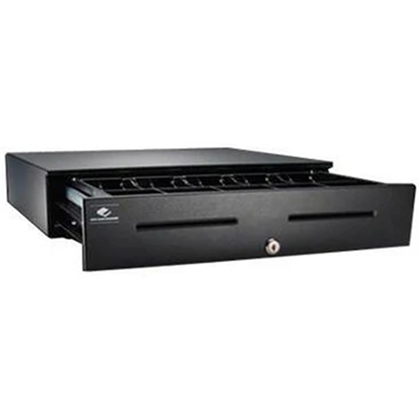

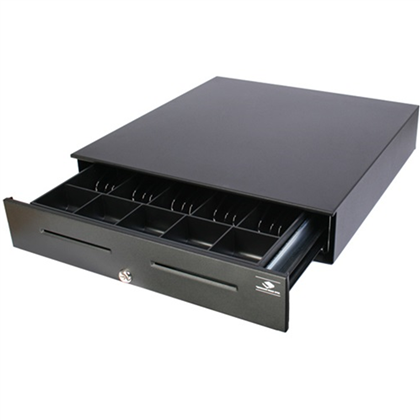

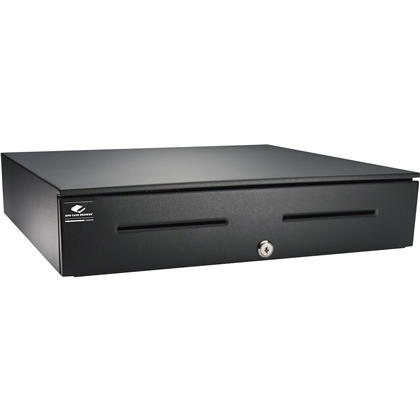

Series 4000 Cash Drawer - iOS Compatible Cash Drawer (Printer Driven, Parallel, Serial, and USB)The APG Series 4000 cash drawer is built to withstand even the harshest environments, featuring industrial-grade components for exceptional durability. This heavy-duty cash drawer features a robust steel frame, available in cloud white or black, is powder-coated for scratch and damage resistance.
- • Warranty: 2-Year
- • Return Period: 15 Days
- • Lifetime Support
- • Free Shipping
Heavy-duty cash handling for busy checkout counters
The APG Series 4000 combines a steel cabinet, ball-bearing slides and a robust latch for high-volume retail and hospitality. Choose the footprint, drawer front and connection that fit your counter and POS system.
Key Specifications
- Product / application: Heavy-duty cash drawer
- Till capacity: Listed models have 5 bill / 5 coin tills; -C models include coin-roll storage
- Media storage: Dual front slots on listed 1816, 1820 and 1821 models
- Connection: 320 or 520 printer-driven, 484A serial, or NetPRO Ethernet, by option
- Power: 320: 24V; 520: 12/24V. Other interfaces use their specified connection and power arrangement.
- Construction: Steel cabinet and steel ball-bearing slides
- Security: Four-function lock; closed-and-latched status switch
- Mounting: Countertop; compatible under-counter brackets sold separately
- Dimensions (W × D × H):
- 1816: 18.0 × 16.7 × 4.2 in.
- 1820: 18.8 × 20.0 × 4.2 in.
- 1821: 18.8 × 21.0 × 4.2 in.
- Warranty: 5 years; limited lifetime with APG registration within 30 days of purchase
In the Box
- APG Series 4000 cash drawer
- Till matching the selected part number
- Two keys
Listed 484A serial options include a cable. Printer-driven 320 and 520 options require a compatible cable purchased separately. Mounting brackets, spare tills and locking till covers are optional.
Built for repeated use
The drawer platform is tested beyond four million operating cycles. Steel slides support repeated opening and closing at demanding checkout stations.
Storage suited to your counter
Choose a standard fixed till or a till with coin-roll storage. The 1821 cabinet adds a rear cable-storage area with a removable back panel.
Shop Series 4000 Models
JB320-BL1816-C
Series 4000 Cash Drawer, Color: Black with Painted Front, Dual Media Slots, 18 × 16.7 × 4.2 in. and Coin Roll Storage Till, 320 MultiPRO Interface, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 16"
Interface:
320 MultiPRO
Color:
Black
Till Type:
Coin-roll storage
Front:
Painted
JB320-BL1820-C
Series 4000 Cash Drawer, Color: Black with Painted Front, Dual Media Slots, 18.8 × 20 × 4.2 in. and Coin Roll Storage Till, 320 MultiPRO Interface, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 20"
Interface:
320 MultiPRO
Color:
Black
Till Type:
Coin-roll storage
Front:
Painted
JB320-BL1821-C
Series 4000 cash drawer, black painted front, dual media slots, 18.8 × 21 × 4.2 in., 320 MultiPRO 24 V, coin-roll-storage till; compatible printer cable sold separately.
Dimensions:
18" × 21"
Interface:
320 MultiPRO
Color:
Black
Till Type:
Coin-roll storage
Front:
Painted
JB480-1A-BL1816-C
Series 4000 cash drawer, Black with painted front, dual media slots, 18.0 × 16.7 × 4.2 in., NetPRO Ethernet interface, 5 bill / 5 coin till with coin-roll storage (PK-15TA-03-BX), standard random keying from 10 codes
Dimensions:
18" × 16"
Color:
Black
Till Type:
Coin-roll storage
Interface:
NetPRO Ethernet
Front:
Painted
JD320-BL1816-C
Series 4000 Cash Drawer, Color: Black with Steel Front, Dual Media Slots, 18 × 16.7 × 4.2 in. and Coin Roll Storage Till, 320 MultiPRO Interface, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 16"
Interface:
320 MultiPRO
Color:
Black
Till Type:
Coin-roll storage
Front:
Stainless Steel
JD320-BL1820-C
Series 4000 Cash Drawer, Color: Black with Steel Front, Dual Media Slots, 18.8 × 20 × 4.2 in. and Coin Roll Storage Till, 320 MultiPRO Interface, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 20"
Interface:
320 MultiPRO
Color:
Black
Till Type:
Coin-roll storage
Front:
Stainless Steel
JD320-CW1816-C
Series 4000 Cash Drawer, Color: White with Steel Front, Dual Media Slots, 18 × 16.7 × 4.2 in. and Coin Roll Storage Till, 320 MultiPRO Interface, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 16"
Interface:
320 MultiPRO
Color:
Cloud White
Till Type:
Coin-roll storage
Front:
Stainless Steel
JB320-CW1820-C
Series 4000 Cash Drawer, Color: White with Painted Front, Dual Media Slots, 320 MultiPRO Interface, 18.8 × 20 × 4.2 in. and Coin Roll Storage Till, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 20"
Interface:
320 MultiPRO
Color:
Cloud White
Till Type:
Coin-roll storage
Front:
Painted
JB320-BL1816
Series 4000 Cash Drawer, Color: Black with Painted Front, Dual Media Slots, 18 × 16.7 × 4.2 in., 320 MultiPRO 24v Interface, Fixed Till, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 16"
Interface:
320 MultiPRO
Color:
Black
Till Type:
Fixed till
Front:
Painted
JD320-BL1816
Series 4000 Cash Drawer, Color: Black with Steel Front, Dual Media Slots, 18 × 16.7 × 4.2 in., 320 MultiPRO Interface, Fixed Till, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 16"
Interface:
320 MultiPRO
Color:
Black
Till Type:
Fixed till
Front:
Stainless Steel
JD520-BL1816-C
Series 4000 Cash Drawer, Color: Black with Steel Front, Dual Media Slots, 18 × 16.7 × 4.2 in. and Coin Roll Storage Till, 520 MultiPRO Interface, (Requires Cash Drawer Cable, See Accessories)
Dimensions:
18" × 16"
Interface:
520 MultiPRO
Color:
Black
Till Type:
Coin-roll storage
Front:
Stainless Steel
JB484A-BL1816-C
Series 4000 Cash Drawer, Color: Black with Painted Front, Dual Media Slots, 18 × 16.7 × 4.2 in. and Coin Roll Storage Till, Serial PRO II Interface, Cash Drawer Cable Included
Dimensions:
18" × 16"
Interface:
484A Serial
Color:
Black
Till Type:
Coin-roll storage
Front:
Painted
JB484A-BL1820-C
Series 4000 Cash Drawer, Color: Black with Painted Front, Dual Media Slots, 18.8 × 20 × 4.2 in. and Coin Roll Storage Till, Serial PRO II Interface, Cable Included
Dimensions:
18" × 20"
Interface:
484A Serial
Color:
Black
Till Type:
Coin-roll storage
Front:
Painted
JD484A-BL1816-C
Series 4000 Cash Drawer, Color: Black with Steel Front, Dual Media Slots, 18 × 16.7 × 4.2 in. and Coin Roll Storage Till, 484A Serial PRO II Interface, Cable Included
Dimensions:
18" × 16"
Interface:
484A Serial
Color:
Black
Till Type:
Coin-roll storage
Front:
Stainless Steel
Outlet Items
Serial, Color:Black, APG Series 4000 Cash Drawer, Serial PRO II Interface, Dual Media Slots, Painted Front, DB9F & DB25F Connectors Included, Power Supply Furnished, Coin Roll Storage Till, CID:3928
Item Number: JB484A-BL1816-C
1 Open Box AvailableCID: 3928

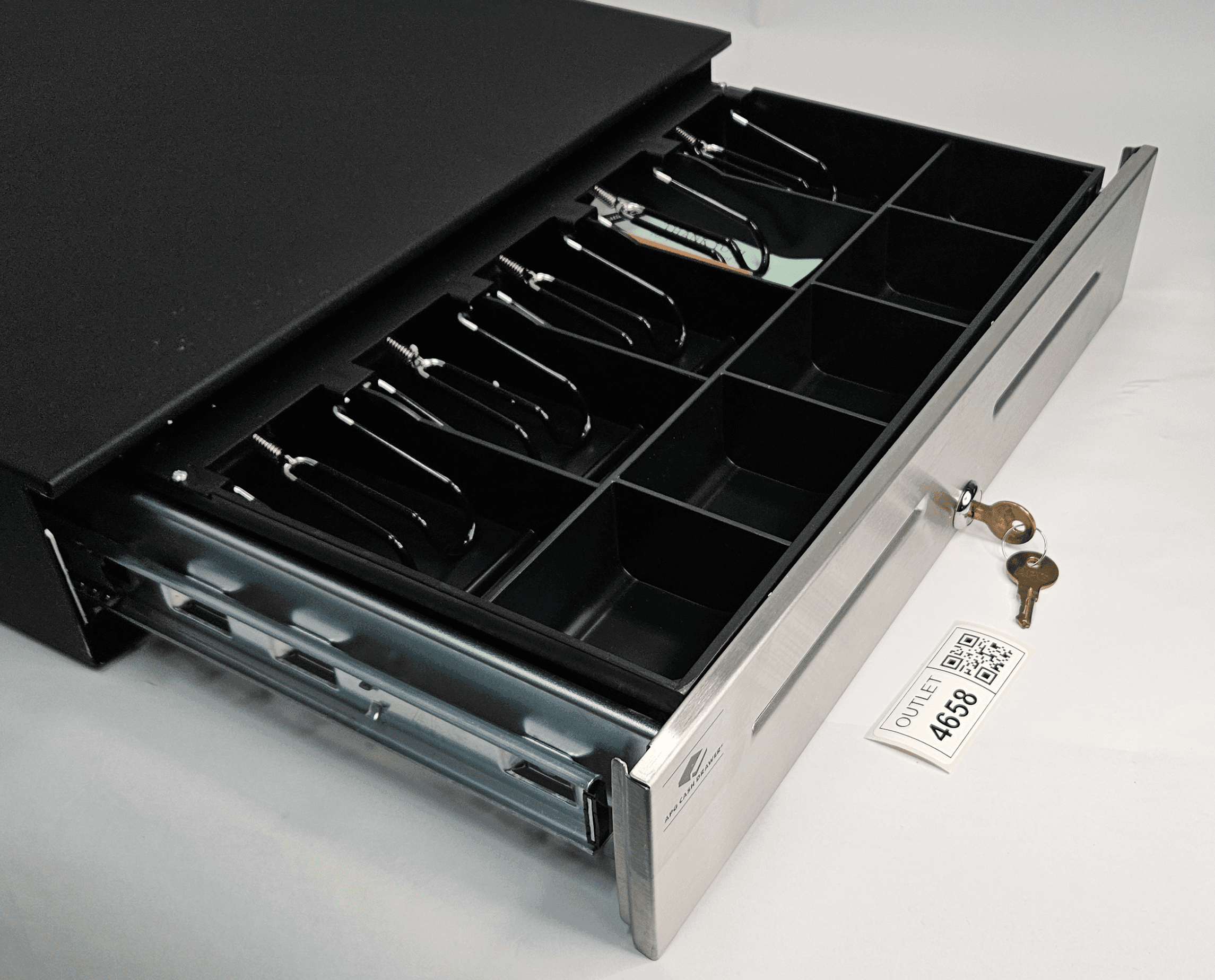

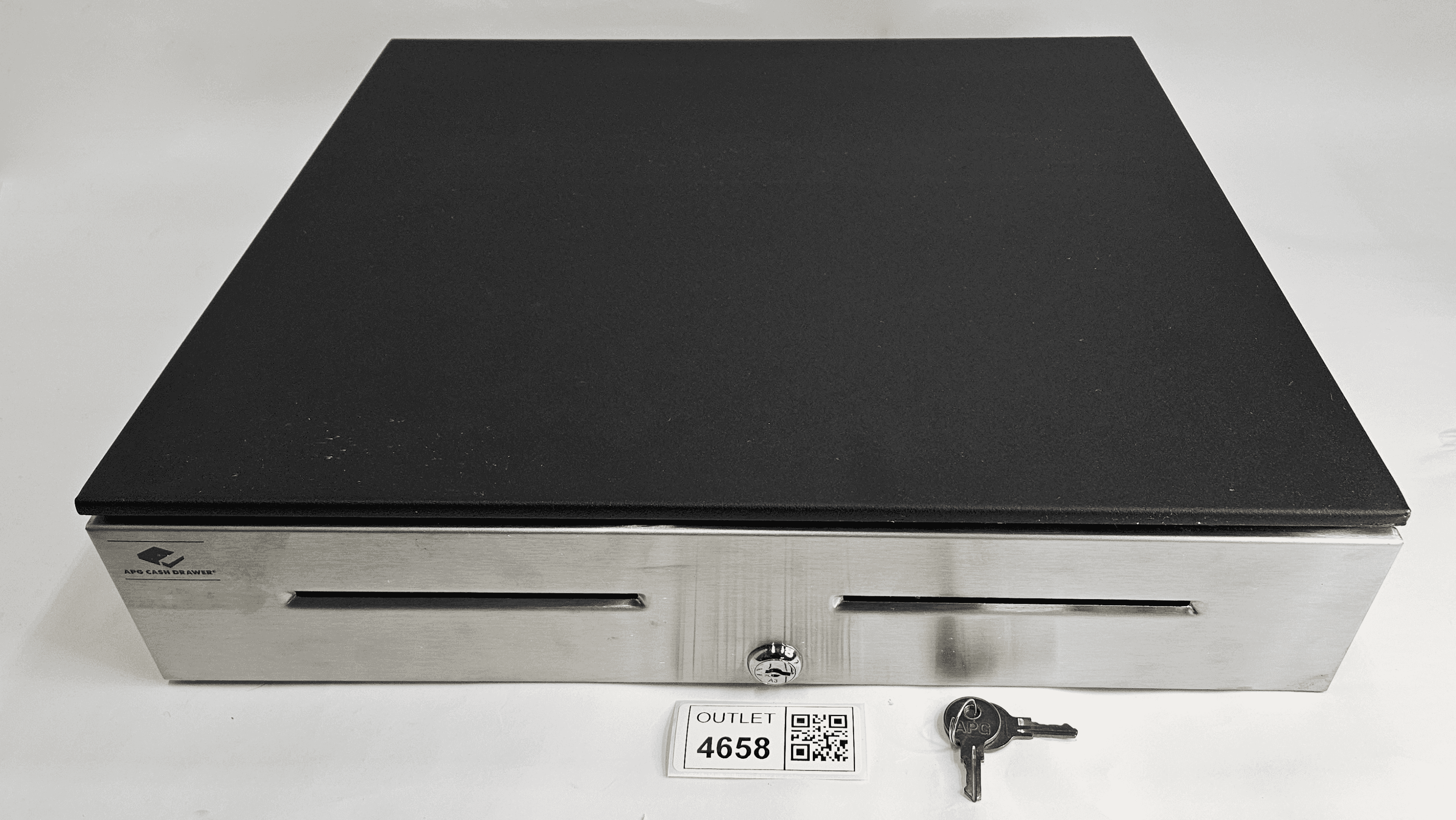

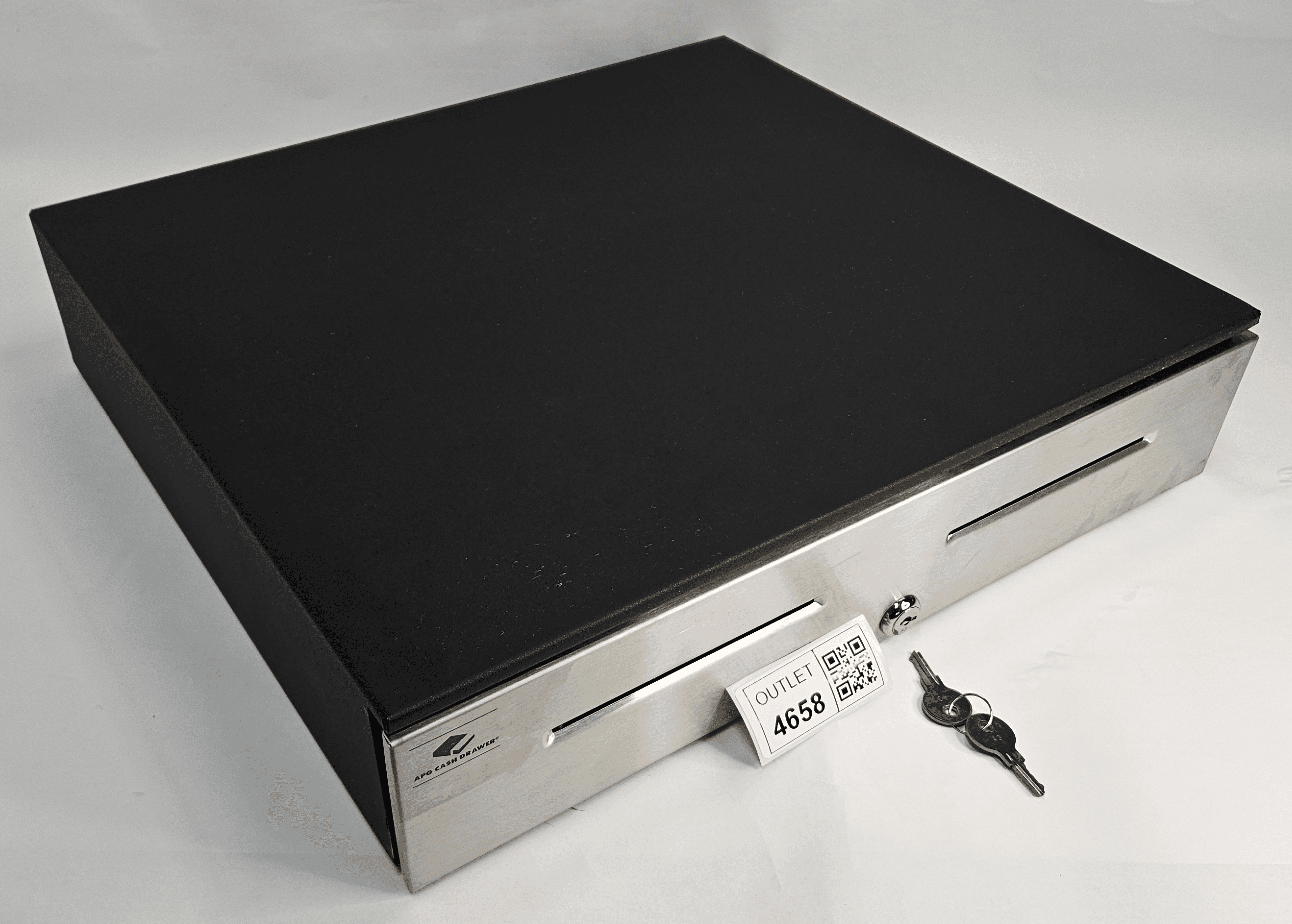

Series 4000 Cash Drawer
Black with Steel Front, Dual Media Slots, 18 inch x 16 inch and Coin Roll Storage Till, 320 MultiPRO Interface, (Requires Cash Drawer Cable, See Accessories)
Item Number: JD320-BL1816-C
1 Good AvailableCID: 4658
Shop Series 4000 Accessories
CD-D1D2
Cash Drawer Cable Splitter, Enables 2 Cash Drawer Support from Single Ithaca or Star Printer
CD-D1D2EP
Cash Drawer Cable Splitter, Enables 2 Cash Drawer Support from Single Epson Printer
PK-27-D-BX
Mounting brackets for S4000 and Classic Standard Series
CD-003A
Interface Cable for 1st Cash Drawer - Axiohm (A470)
CD-003B
Interface Cable for 2nd Cash Drawer - Axiohm (A470)
CD-009A
RJ11 Cable for Ithaca Printers- 5ft Length
CD-101A
320 MultiPro Cable (Drawer #1, Epson TM, Star TSP, SP, SCP, HSP) 5ft Length - Replaced CD-014A
PK-15TA-03-BX
Standard till for Series 4000 Cash Drawers - Fixed Bill/Coin = 5 x 5 with Coin Roll Storage
PK-14L-03-R-BX
Steel Locking Till Cover for PK-15TA-03 Till, Standard Series 4000, Till Cover Only
PK-808LS-A2
Tumbler Assembly (for Key A2) for the Series 4000 Cash Drawer Series
PK-808LS-A5
Tumbler Assembly (for Key A5) for the Series 4000 Cash Drawer Series
PK-808LS-A7
Tumbler Assembly (for Key A7) for the Series 4000 Cash Drawer Series
PK-808LS-A18
TUMBLER ASSEMBLY FOR KEY A18 S4000 SERIES
PK-808LS-A19
TUMBLER ASSEMBLY FOR KEY A19 S4000 SERIES
PK-808LS-A14
TUMBLER ASSEMBLY FOR KEY A14 S4000 SERIES
PK-808LS-A17
TUMBLER ASSEMBLY FOR KEY A17 S4000 SERIES
PK-808LS-A15
TUMBLER ASSEMBLY FOR KEY A15 S4000 SERIES
PK-808LS-A13
TUMBLER ASSEMBLY FOR KEY A13 S4000 SERIEs
PK-808LS-A16
TUMBLER ASSEMBLY FOR KEY A16 S4000 SERIE
PK-808LS-A11
Tumbler Assembly (for Key A11 Lock Pin) for the S4000 Series
PK-808LS-A4
Tumbler Assembly (for Key A4 - S4000 Series)
PK-808LS-A1
Tumbler Assembly (for Key A1) for the Series 4000 Cash Drawer Series
PK-808LS-A6
Tumbler Assembly (for Key A6 - S4000 Series)
PK-680LS-229
Double Bitted Lock Set (Lock Code 229) for the S4000
PK-805A-BL
LOCK COVER KIT, BLACK, S4000
PK-808LS-A10
Tumbler Assembly (for Key A10 - S4000 Series)
PK-808LS-A3
Tumbler Assembly (for Key A3 - S4000 Series)
PK-808LS-A20
Tumbler Assembly (for Key A20 Lock Pin) for the S4000 Series
PK-808LS-A8
Tumbler Assembly (for Key A8) for the S4000 Series
PK-680LS-225
Double Bitted Lock Set (Lock Code 225) for the S4000
PK-808LS-A12
Tumbler Assembly (for Key A12 Lock Pin) for the S4000 Series
PK-680LS-230
Double Bitted Lock Set (Lock Code 230) for the S4000
PK-808LS-A9
Tumbler Assembly (for Key A9 - S4000 Series)
PK-808LS-A22
Tumbler Assembly (for Key A22 Lock Pin) for the S4000 Series
PK-8K-A7
2 Key Set (Key Type A7) for all Heavy Duty Drawers
PK-8K-A4
Key Set (Two, Key Type A4) for all Heavy Duty Drawers
PK-8K-A13
2 Key Set (Key Type A13) for all APG Heavy Duty Drawers
PK-8K-A2
Key Set (Two, Key Type A2) for all Heavy Duty Drawers
PK-8K-A9
2 Key Set (Key Type A9) for all Heavy Duty Drawers
PK-8K-A1
2 Key Set (Key Type A1) for all Heavy Duty Drawers
PK-8K-A11
2 Key Set (Key Type A11) for all APG Heavy Duty Drawers
PK-8K-A14
2 Key Set (Key Type A14) for all APG Heavy Duty Drawers
PK-8K-A24
2 Key Set (Key Type A24) for all APG Heavy Duty Drawers
PK-8K-A10
2 Key Set (Key Type A10) for all Heavy Duty Drawers
PK-8K-A3
Key Set (Two, Key Type A3) for all Heavy Duty Drawers
PK-408K-A2
Replacement key set (2 keys), code A2, for APG heavy-duty drawers with matching A2 locks
PK-408K-A6
Replacement key set (2 keys), code A6, for APG heavy-duty drawers with matching A6 locks
PK-8K-A6
Key Set (Two, Key Type A6) for all Heavy Duty Drawers
PK-8K-A8
2 Key Set (Key Type A8) for all Heavy Duty Drawers
M-80KDB-225
Set of Double-Bitted Keys (for Heavy Duty Drawers)
PK-8K-A5
Key Set (Two, Key Type A5) for all Heavy Duty Drawers
