APG Series 100
Series 100 (iOS)
Series 100 Cash Drawer - iOS Compatible Cash Drawer (Printer Driven, USB, Serial)The Series 100 cash drawer offers a compact 16" footprint with a deep, configurable till and adjustable media slot, fitting small counter spaces efficiently without compromising storage. This compact cash drawer is proven beyond four million cycles
- • Warranty: 2-Year
- • Return Period: 15 Days
- • Lifetime Support
- • Free Shipping
A compact cash drawer for demanding checkout environments

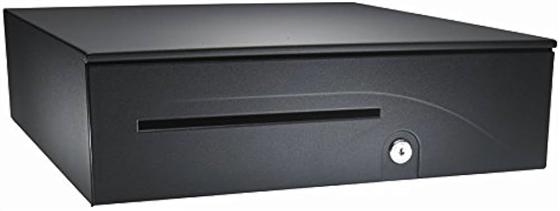

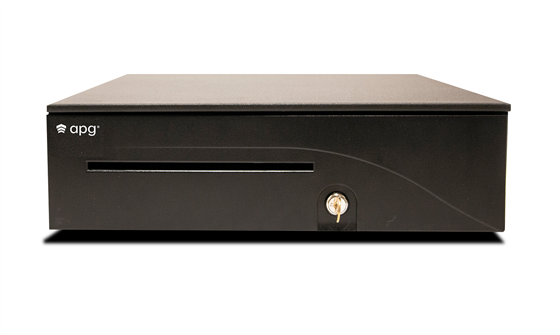

The APG Series 100 combines a narrow, 16-inch-wide footprint with a full-size till and deep under-till storage. Its adjustable media divider keeps checks, coin rolls and packaged currency organized.
Steel ball-bearing slides, a heavy-duty latch and a powder-coated finish support frequent use. Choose the drawer depth, till and interface that fit your checkout.
Key Specifications
- Product type / application: Heavy-duty cash drawer for medium- and high-volume checkout
- Capacity: Full-size till; standard 5 bill / 5 coin configuration, with option-specific alternatives
- Media / workload: Adjustable media divider and under-till currency storage; tested beyond 4 million transactions
- Platform / compatibility: Printer-driven models require a matching printer cable; USB, serial and Ethernet models require compatible POS software
- Interfaces: MultiPRO printer-driven, hardwired printer, USBPro, SerialPRO II or NetPRO, depending on option
- Power: MultiPRO 320: 24 V; 420: 12 V; 520: 12/24 V. Other interfaces depend on the selected configuration.
- Durability / environment: Steel ball-bearing slides; operating temperature 0 to 40 degrees C; 10–95% non-condensing humidity
- Deployment / form factor: Countertop drawer; compatible under-counter brackets sold separately
- Dimensions / shipping weight:
- 1616: 16.0 x 16.8 x 4.9 in. (W x D x H); 23 lb shipping weight
- 16195: 16.0 x 19.5 x 4.9 in.; 30 lb shipping weight
- Warranty: 5 years
In the Box
- Series 100 configuration selected
- APG Series 100 cash drawer with selected till
- Drawer keys
- Cable-equipped options
- 320-1: CD-101A printer cable
- 237A: hardwired printer connection
- 554B options: USB cable when specified in the selected option
MultiPRO 320, 420 and 520 options require a separately ordered compatible cable unless the selected option includes it. Additional accessories are sold separately.
Compact storage

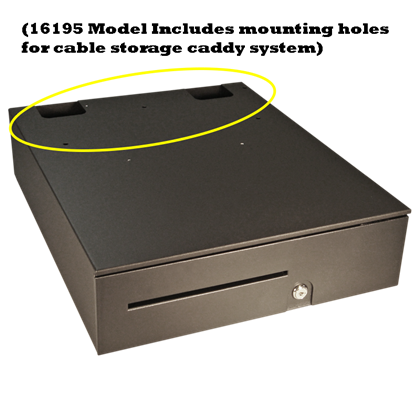

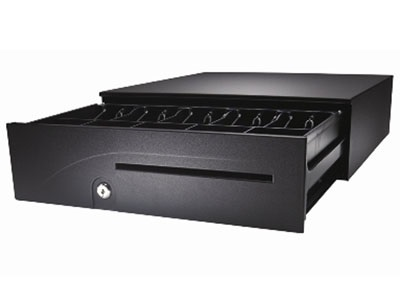

The full-size till sits above a deep, configurable compartment. An adjustable divider separates media, while the deeper 16195 model adds rear cable storage with a removable panel.
Durable daily operation
The four-function lock and closed-and-latched status switch support controlled drawer operation. Steel ball-bearing slides and a robust latch provide the foundation for repeated opening and closing.
Shop Series 100 Models
T320-1-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/5-coin till; CD-101A cable included.
Dimensions:
16" × 16"
Interface:
320 MultiPRO
Color:
Black
Tray Type:
United States
T320-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/5-coin till; compatible printer cable sold separately.
Dimensions:
16" × 16"
Interface:
320 MultiPRO
Color:
Black
Tray Type:
United States
T320-BL16195
Series 100 cash drawer, Black, 16.0 x 19.5 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/5-coin till; compatible printer cable sold separately.
Dimensions:
16" × 19.5"
Interface:
320 MultiPRO
Color:
Black
Tray Type:
United States
T237A-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 237A hardwired Epson TM, 5-bill/5-coin till; hardwired cable.
Dimensions:
16" × 16"
Color:
Black
Interface:
Epson TM Series
Tray Type:
United States
T554B-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 554B USBPro, 5-bill/5-coin till; USB cable included.
Dimensions:
16" × 16"
Color:
Black
Tray Type:
United States
Interface:
USB PRO
T520-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 520 MultiPRO, 5-bill/5-coin till; compatible printer cable sold separately.
Dimensions:
16" × 16"
Interface:
520 MultiPRO
Color:
Black
Tray Type:
United States
T554B-BL1616-C
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 554B USBPro, 5-bill/5-coin till with coin-roll storage.
Dimensions:
16" × 16"
Color:
Black
Tray Type:
United States
Interface:
USB PRO
T320-BL16195-U6
Series 100 cash drawer, Black, 16.0 x 19.5 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/6-coin adjustable Canadian till; compatible printer cable sold separately.
Dimensions:
16" × 19.5"
Interface:
320 MultiPRO
Color:
Black
Tray Type:
Canadian
T320-CW1616
Series 100 cash drawer, Cloud White, 16.0 x 16.8 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/5-coin till; compatible printer cable sold separately.
Dimensions:
16" × 16"
Interface:
320 MultiPRO
Tray Type:
United States
Color:
White
T320-BL1616-M3
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/8-coin Canadian till; compatible printer cable sold separately.
Dimensions:
16" × 16"
Interface:
320 MultiPRO
Color:
Black
Tray Type:
Canadian
T320-BL1616-K1
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/5-coin till; compatible printer cable sold separately; A1/K1 key code.
Dimensions:
16" × 16"
Interface:
320 MultiPRO
Color:
Black
Tray Type:
United States
T484A-BL16195
Series 100 cash drawer, Black, 16.0 x 19.5 x 4.9 in. (W x D x H), 484A SerialPRO, 5-bill/5-coin till.
Dimensions:
16" × 19.5"
Color:
Black
Interface:
Serial
Tray Type:
United States
T484A-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 484A SerialPRO, 5-bill/5-coin till.
Dimensions:
16" × 16"
Color:
Black
Interface:
Serial
Tray Type:
United States
T320-BL1616-U6
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 320 MultiPRO, 5-bill/6-coin adjustable Canadian till; compatible printer cable sold separately.
Dimensions:
16" × 16"
Interface:
320 MultiPRO
Color:
Black
Tray Type:
Canadian
T420-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 420 MultiPRO, 5-bill/5-coin till; compatible printer cable sold separately.
Dimensions:
16" × 16"
Interface:
420 MultiPro
Color:
Black
Tray Type:
United States
T470-BL1616
Series 100 cash drawer, Black, 16.0 x 16.8 x 4.9 in. (W x D x H), 470 NetPRO Ethernet, 5-bill/5-coin till.
Dimensions:
16" × 16"
Color:
Black
Interface:
Ethernet
Tray Type:
United States
T484A-CW1616
Series 100 cash drawer, Cloud White, 16.0 x 16.8 x 4.9 in. (W x D x H), 484A SerialPRO, 5-bill/5-coin till.
Dimensions:
16" × 16"
Interface:
Serial
Tray Type:
United States
Color:
White
Shop Series 100 Accessories
CD-003A
Interface Cable for 1st Cash Drawer - Axiohm (A470)
CD-003B
Interface Cable for 2nd Cash Drawer - Axiohm (A470)
CD-010A
Interface Cable for 1st Cash Drawer - Ithaca BCN Printers- 5ft Length
CD-009A
RJ11 Cable for Ithaca Printers- 5ft Length
PK-27-BX
Mounting Brackets for Series 100 (S100) and Classic Media Series
CD-D1D2
Cash Drawer Cable Splitter, Enables 2 Cash Drawer Support from Single Ithaca or Star Printer
CD-D1D2EP
Cash Drawer Cable Splitter, Enables 2 Cash Drawer Support from Single Epson Printer
PK-15U-6-BX
Adjustable Canadian Till: 5 Bill Slots, 6 Coin Slots
PK-14L-R-BX
Steel locking till cover for PK-15VTA-BX and PK-15U-6-BX tills
PK-14P5-R-BX
Plastic Locking Till Cover for PK-15VTA and PK-15UX Tills (Series 100)
PK-15VTA-BX
Replacement/Spare Till For Series 100 Cash Drawer: 5 Bill/5 Coin
CD-101A
320 MultiPro Cable (Drawer #1, Epson TM, Star TSP, SP, SCP, HSP) 5ft Length - Replaced CD-014A
PK-408K-A6
Replacement key set (2 keys), code A6, for APG heavy-duty drawers with matching A6 locks
PK-408K-A2
Replacement key set (2 keys), code A2, for APG heavy-duty drawers with matching A2 locks
PK-8K-A12
2 Key Set (Key Type A12) for all APG Heavy Duty Drawers
PK-8K-A15
2 Key Set (Key Type A15) for all APG Heavy Duty Drawers
PK-8K-A6
Key Set (Two, Key Type A6) for all Heavy Duty Drawers
PK-8K-A3
Key Set (Two, Key Type A3) for all Heavy Duty Drawers
PK-608LS-A9
Tumbler Kit (A9/K9 Lock) for the S4000 and S100
PK-8K-A16
2 Key Set (Key Type A16) for all APG Heavy Duty Drawers
PK-8K-A7
2 Key Set (Key Type A7) for all Heavy Duty Drawers
PK-8K-A4
Key Set (Two, Key Type A4) for all Heavy Duty Drawers
PK-8K-A13
2 Key Set (Key Type A13) for all APG Heavy Duty Drawers
PK-8K-A2
Key Set (Two, Key Type A2) for all Heavy Duty Drawers
PK-8K-A9
2 Key Set (Key Type A9) for all Heavy Duty Drawers
PK-8K-A1
2 Key Set (Key Type A1) for all Heavy Duty Drawers
PK-8K-A8
2 Key Set (Key Type A8) for all Heavy Duty Drawers
PK-608LS-A4
Tumbler Kit (A4/K4 Lock) for the S4000 and S100
PK-8K-A11
2 Key Set (Key Type A11) for all APG Heavy Duty Drawers
PK-8K-A14
2 Key Set (Key Type A14) for all APG Heavy Duty Drawers
PK-8K-A5
Key Set (Two, Key Type A5) for all Heavy Duty Drawers
M-80KDB-225
Set of Double-Bitted Keys (for Heavy Duty Drawers)
PK-8K-A24
2 Key Set (Key Type A24) for all APG Heavy Duty Drawers
PK-8K-A10
2 Key Set (Key Type A10) for all Heavy Duty Drawers
CD-005A-1
Generic cash drawer cable for APG Cash Drawers and Epson TM Style printers.
