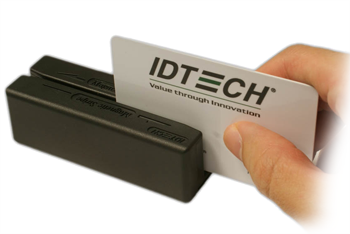

ID Tech SecureMag
Encrypted magnetic stripe capture for integrated payment systems
ID TECH SecureMag combines intelligent magnetic stripe reading with encrypted data output. The compact reader supports integration with a suitable decryption service, with USB keyboard and USB HID configurations available.
TDES or AES encryption and DUKPT key management depend on the selected configuration. Payment software, encryption keys and decryption services must be compatible with the ordered part.
Key Specifications
- Product type / application: Encrypting magnetic stripe reader
- Track capacity / swipe speed: Up to three tracks; 3–60 in/sec
- Supported cards: ISO magnetic stripe and AAMVA formats
- Platform / compatibility: Compatible payment and decryption software
- Interfaces / connectivity: USB keyboard emulation or USB HID
- Power: 5 V DC ±10%
- Durability / environment: 0–55°C operation
- Mounting / form factor: Compact flat-surface reader
- Dimensions: 100 × 35 × 30 mm
- Weight: 7 oz
- Warranty: 1 year
In the Box
- SecureMag USB reader
- Selected encrypted magnetic stripe reader
- 6-foot side-exit USB cable
Encrypted products are nonreturnable. A POSGuys representative will confirm configuration before shipment.
Choice of encryption
Configured versions support TDES or AES with DUKPT key management.
Flexible integration
Programmable output and decryption-service choices support compatible applications.
Shop SecureMag Models
IDRE-334133B
SecureMag MagStripe Reader, Black, Encrypted, 3-Track, USB/Keyboard Interface **Special Order - Not Returnable - A Representative will contact you prior to shipment of this product.
Interface:
USB keyboard emulation
IDRE-335133BE
SecureMag MagStripe Reader, Black, Enhanced Encryption Format Ready, Tracks 1, 2 and 3, USB HID Interface. Special Order; Nonreturnable. A POSGuys representative will confirm configuration before shipment.
Interface:
USB HID
